?Description:

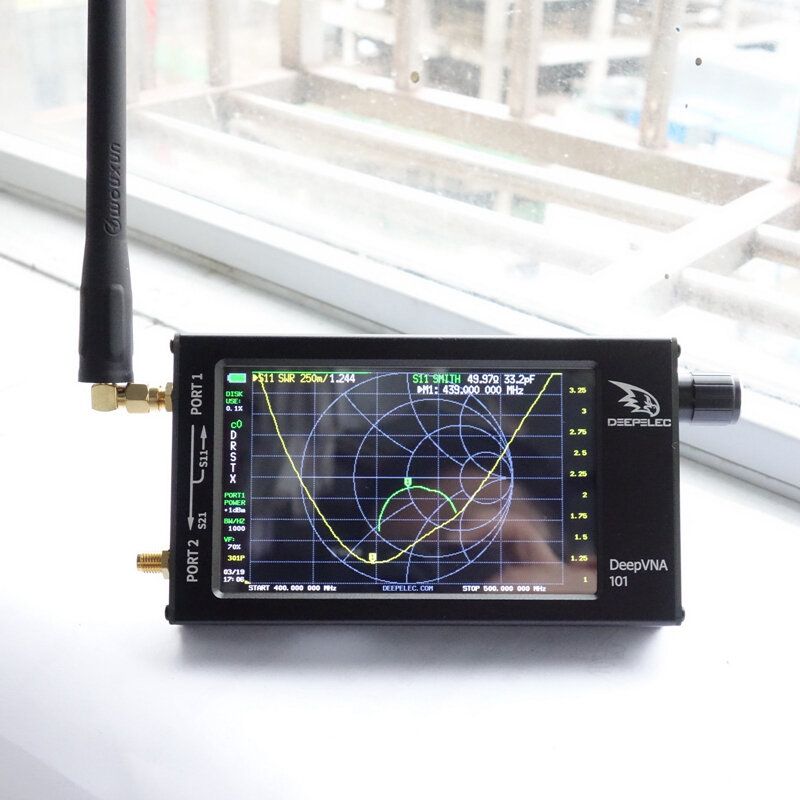

This is a vector network analyzer, which can measure the S-parameters of circuit. It can carry out transmission test and reflection test. The device can be used to test insertion loss, return loss, fault location (TDR function), antenna standing wave, impedance, filter response and so on.
Improvements:

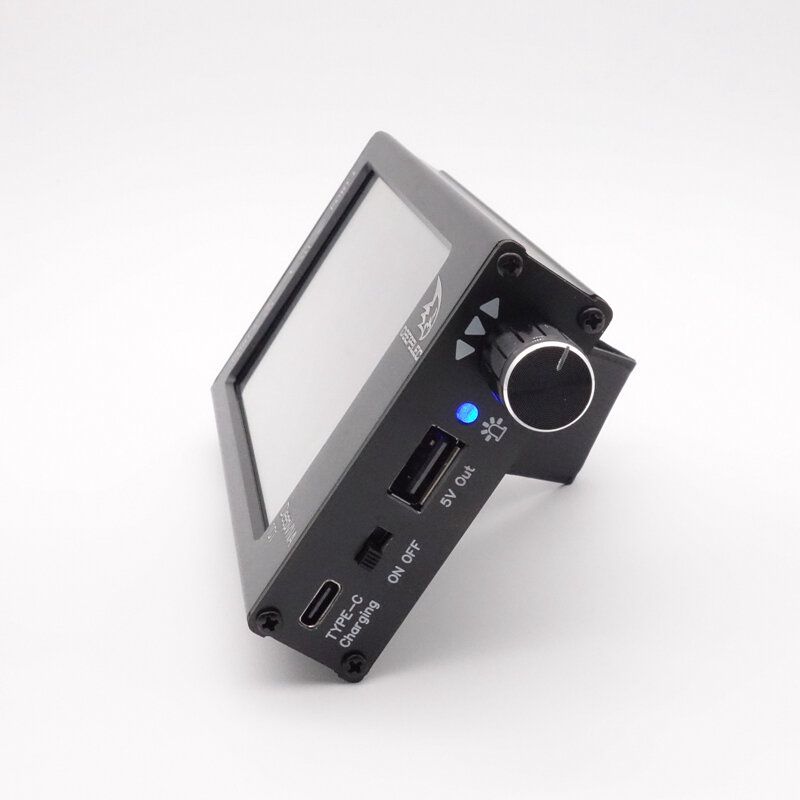

1. Buttons are changed to a rotary encoder, which makes the control more convenient and smooth.
2. Newly added RTC circuit with real-time clock and perpetual calendar functions.
3. Optimize the S21 insertion loss/filter measurement performance, with a larger dynamic range.
New Features (Running firmware version: 1.0.4):
1. RTC real-time clock and perpetual calendar
2. The measurement data file name is in the form of YYMMDD_HHMMSS
3. The frequency setting can choose the start and end or the center span mode
4. The boot sound can be turned on or off
Specifications:
- Nominal Frequency: 10k-1.5GHz
- Scan Points: Up to 301 points
- Battery capacity: 5000mAh/3.7V
- Memory capacity size: 16MB
- Up to about 1000 sets of snp file data can be saved

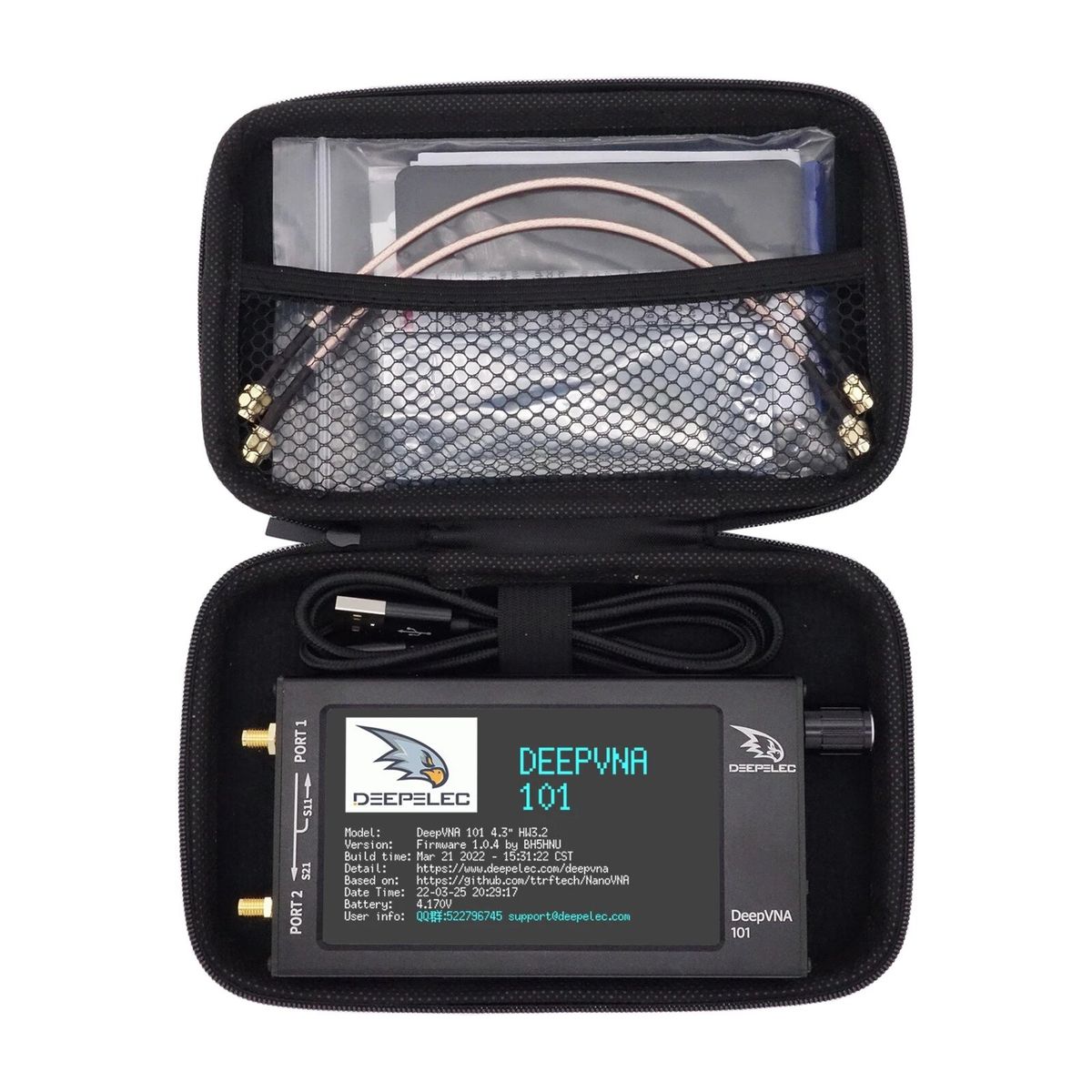

Package Included:
1. DeepVNA 101 with 4.3\\\' screen x 1
2. USB type-c data cable x 1
3. 20cm/7.9\\\' RG316 RF cables (SMA male to male) x 2
4. SMA male calibration piece - OPEN x 1
5. SMA male calibration piece - SHORT x 1
6. SMA male calibration piece-LOAD (SWR lt;1.025 within 4GHz) x 1
7. SMA-JJ male to male connector x 1
8. SMA-KK female to female connector x 1
9. SMA-JKW male to female right angle connector x 1
10. Machine foldable stand x 1
11. Stylus x 1
12. Quick start guide x 1
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
This is a vector network analyzer, which can measure the S-parameters of circuit. It can carry out transmission test and reflection test. The device can be used to test insertion loss, return loss, fault location (TDR function), antenna standing wave, impedance, filter response and so on.
1. Buttons are changed to a rotary encoder, which makes the control more convenient and smooth.
2. Newly added RTC circuit with real-time clock and perpetual calendar functions.
3. Optimize the S21 insertion loss/filter measurement performance, with a larger dynamic range.
New Features (Running firmware version: 1.0.4):
