Model |
Expansion Board |
Production Country |
China |
Size (L x W x H cm) |
14x8x4 |
Weight (kg) |
0.0775 |
Color |
multicolor |

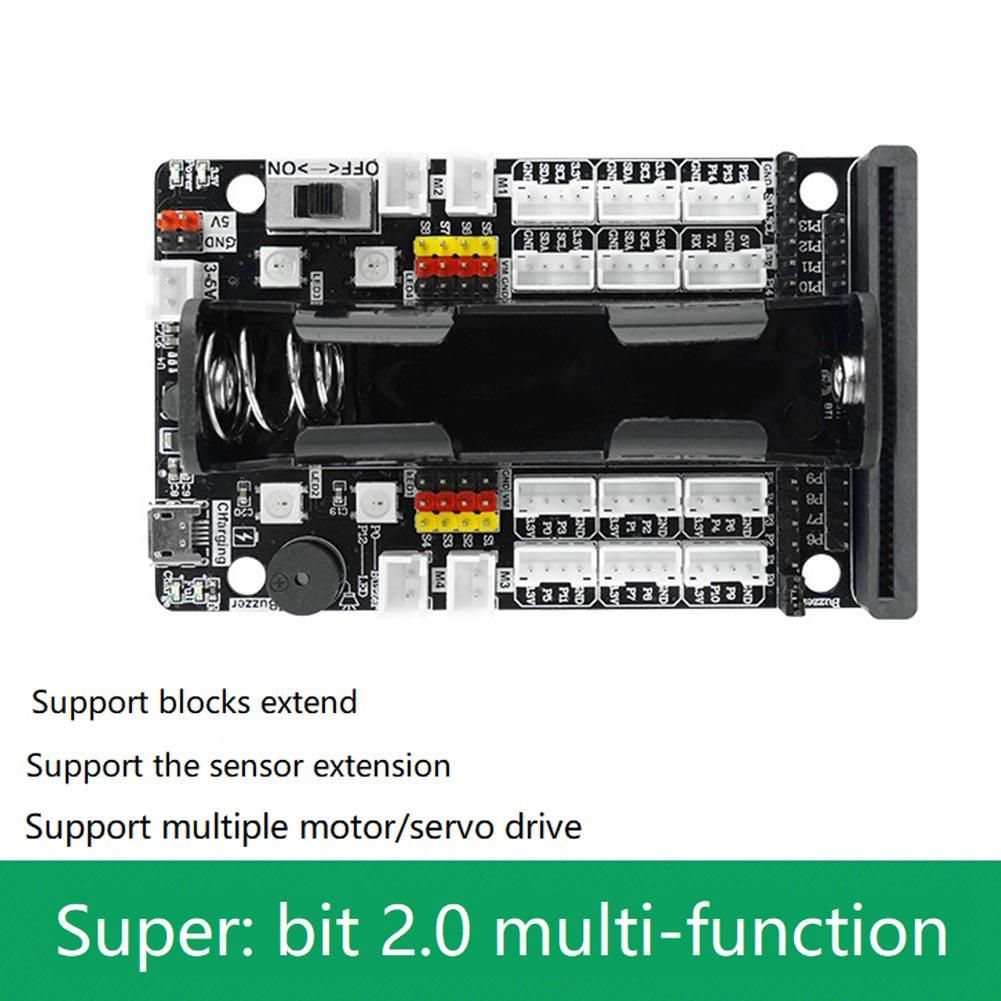

Compatible with block shapes It can be used with block series sensors to complete shapes and interesting experiments It can be quickly connected with PH20 cable
4-way motor control 8-way steering gear control easy to meet drive requirements

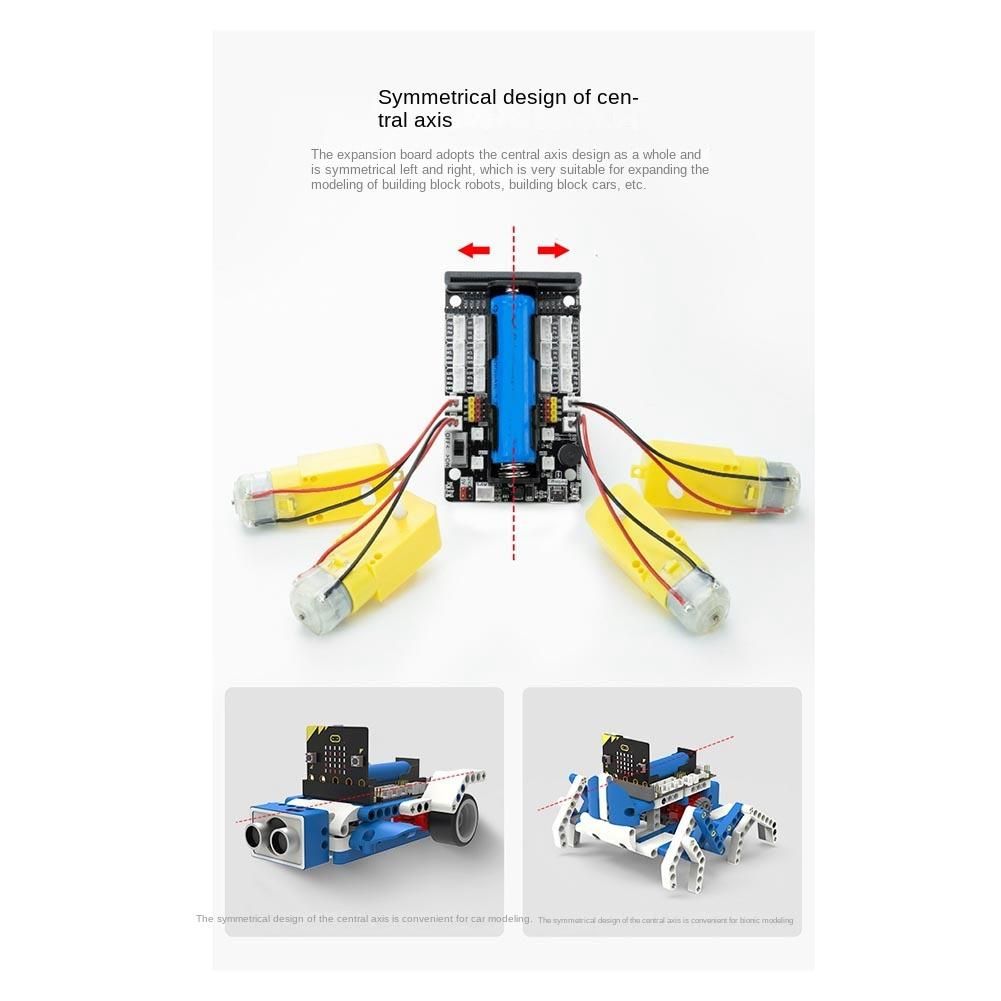

The expansion board adopts a central axis design as a whole with left and right symmetry which is suitable for expanding the shape of block robots and block

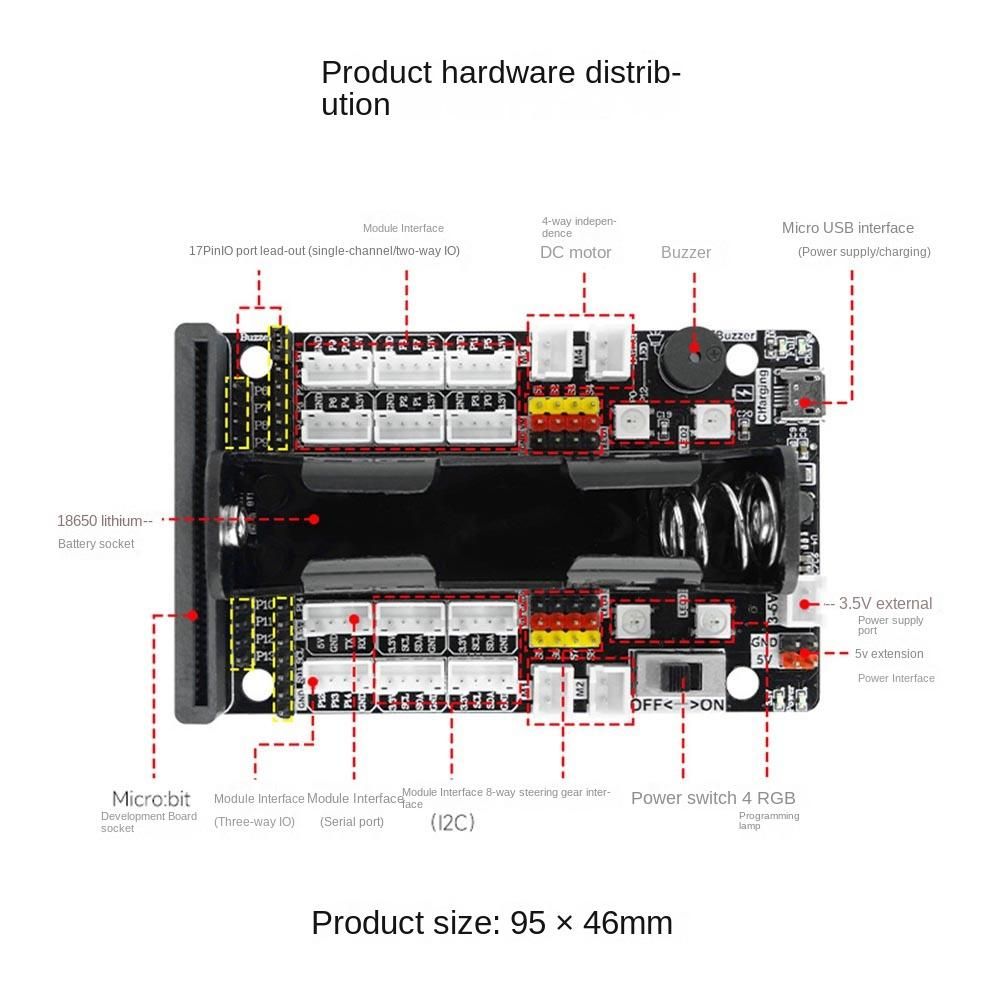

The expansion board has a of functions onboard such as Wifi camera serial port 7 anti-reverse IO module ports 4 I2C ports 4 DC motor ports 8 servo ports 4 RGB lights buzzer etc It is convenient for users to complete DIY
Onboard IO devices passive buzzer 4 programmable RGB lights
Motor interface four-way DC motor voltage is taken from the battery current 1-3A
Servo interface eight-way servo
Expansion interface 17Pin expansion IO port module interface serial port 1 module interface I2C 4 module interface singletwo-way IO 6 module interface three-way IO 1
Protection scheme reverse polarity protection low voltage protection overcurrent protection
socket 1 bit gold finger interface

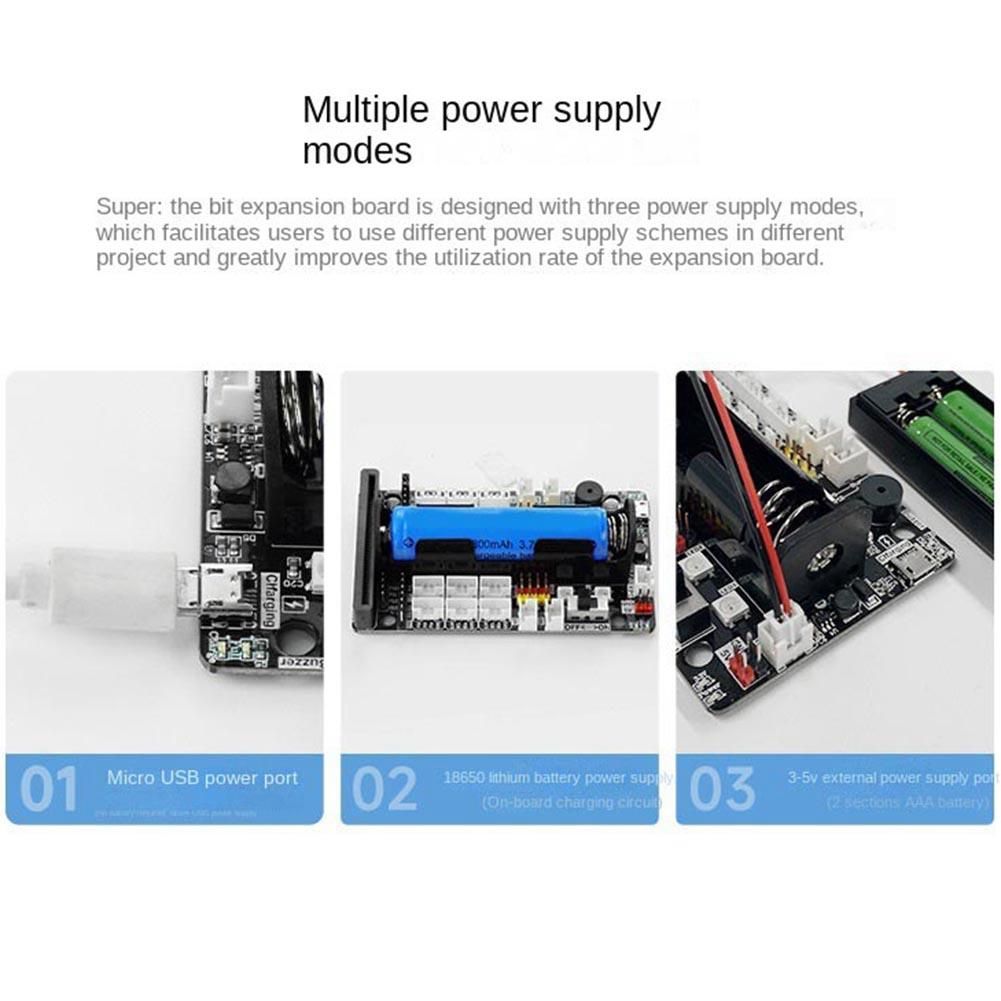

Power supply interface holder external 3-5V power supply -USB power supply
Output power 5V MAX 1A 33V MAX 05A
Size 95 x 46mm
Material PCB
colour black
Package Contents
1 x Expansion Board
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Expansion Board
