for can be used to develop electronic products that need to run independently and have interactive effects It can also be used to develop interactive works connected with computers and completed in cooperation with FLASH PROCESSING MAXMSP PD VVVVV and other software

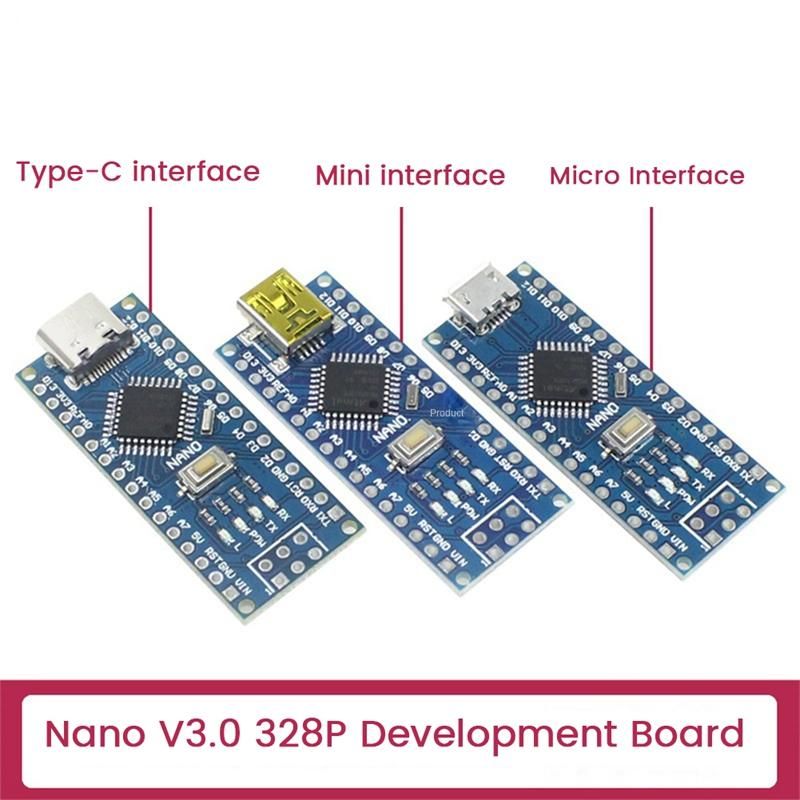

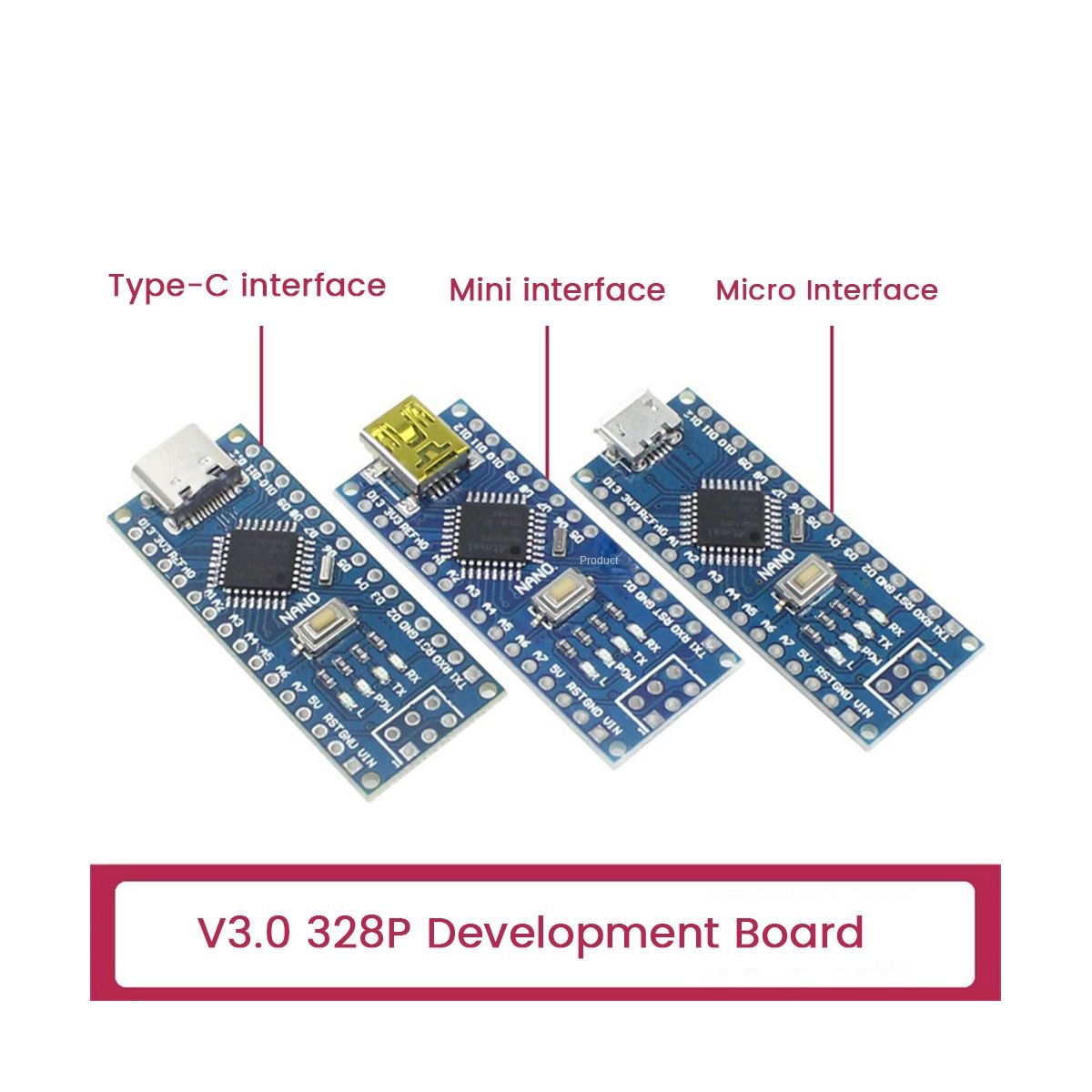

Version Type-c interface
14 digital inputoutput ports TX D2~D13
8 analog input ports AO~A7
1 pair of TTL level serial port TX
6 PWM ports D3 D5 D6 D9 D10D 11
Adopt ATMEGA328P-AU MCU
Support USB download and power supply
Support external 5V-12V DC power supply
Support 9V battery power supply
Support ISP download
Three power supply modes USB VIN external 5V input
Board size 18 x 43MM
On the premise that the main control chip ATMEGA328P-AU with the same performance of NANO remains unchanged we repd the USB chip to the download speed and increase the stability of WIN7 WIN8
instructions
1 Download IDE
Download address httpccenMainSoftware
2 Download USB chip driver
Download address httpwchcndownloadsphpname=pro&proid=65
Download address for foreign customers httpwch-icdownloadlistaspid=126
3 Plug in the NANO development board and the driver will be installed automatically
4 Select the board NANO in die
5 Select the port which can be queried in my computer Just now the port in your for development board
6 First select the routine that comes with and burn it
Colourblue
MaterialPCBmetal
Package Contents

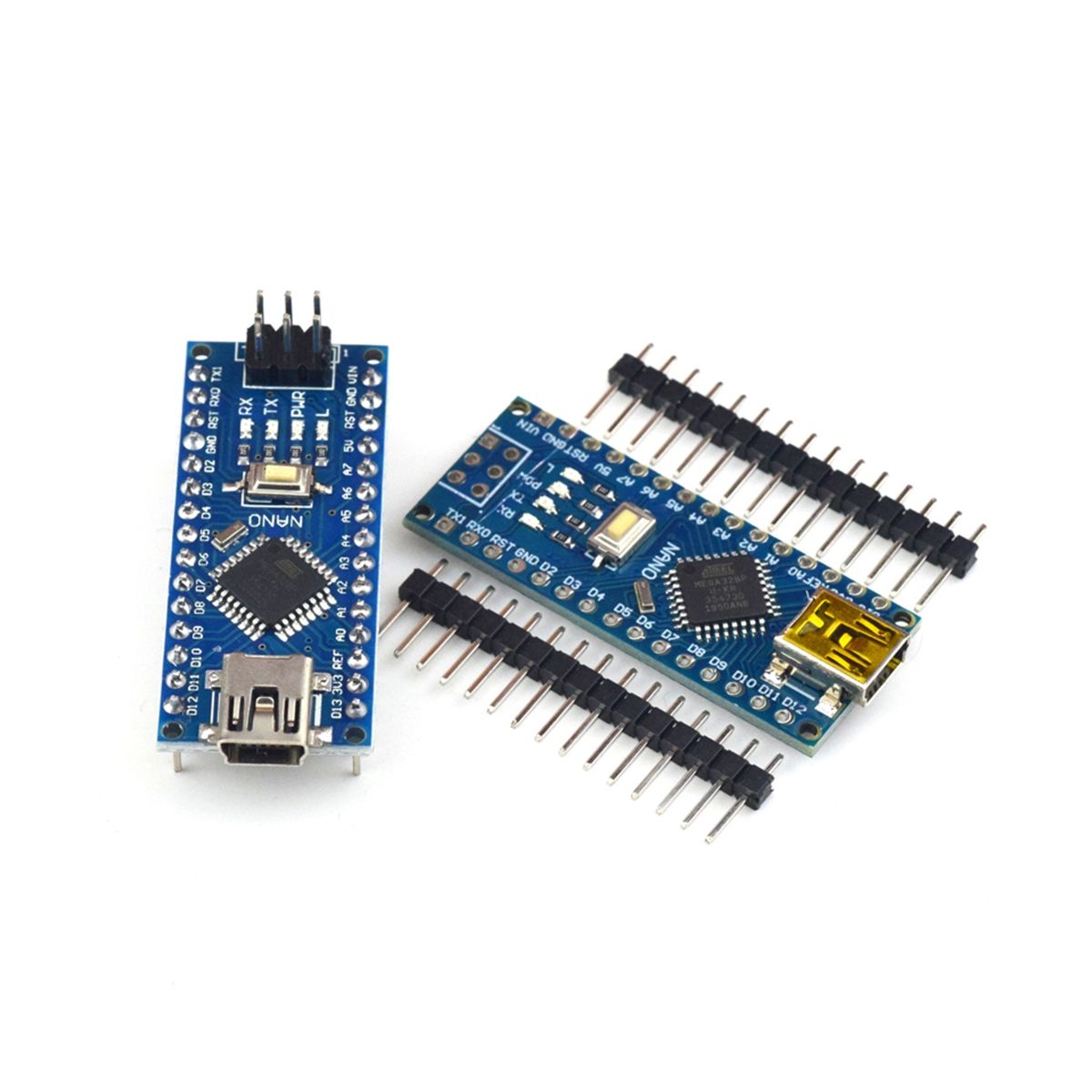

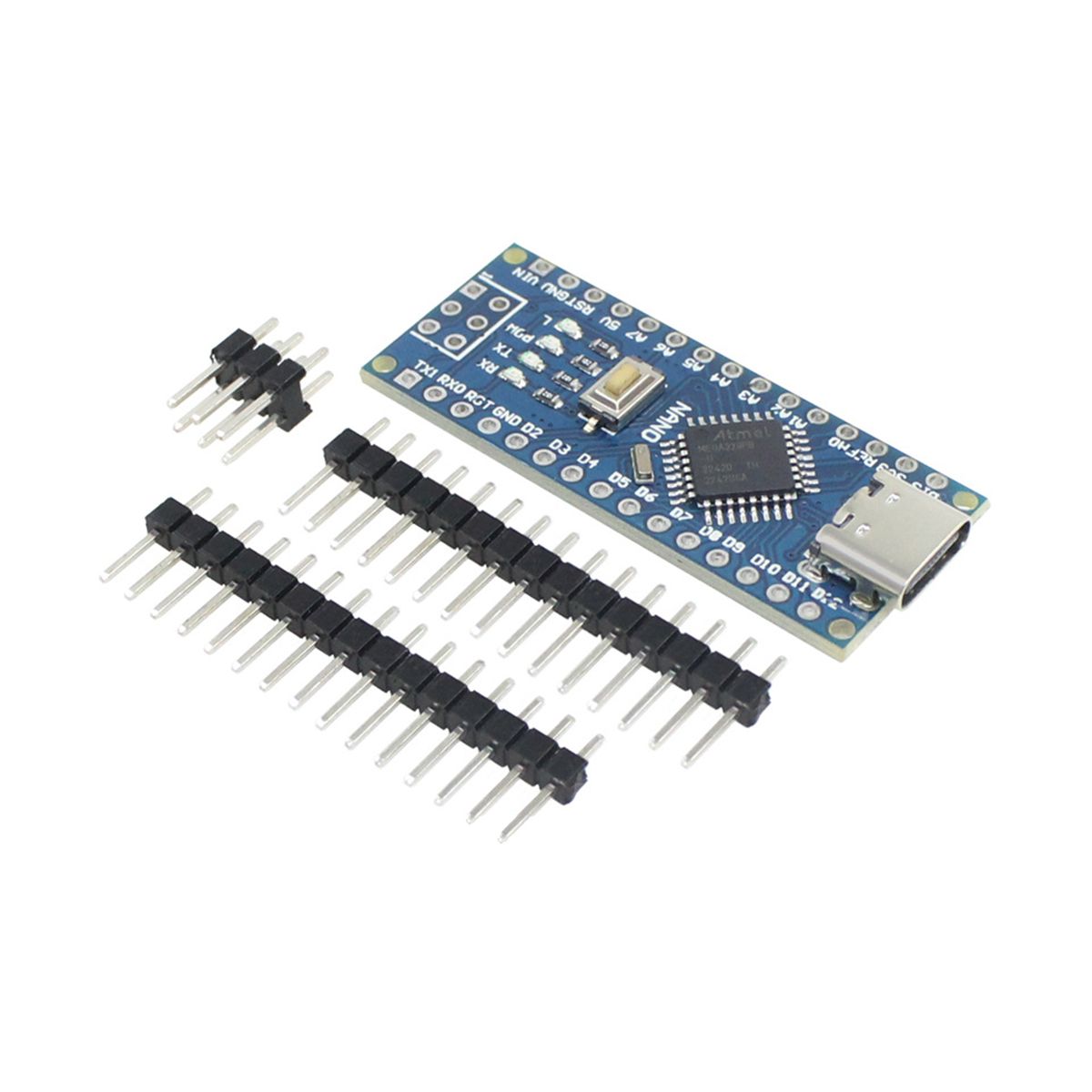

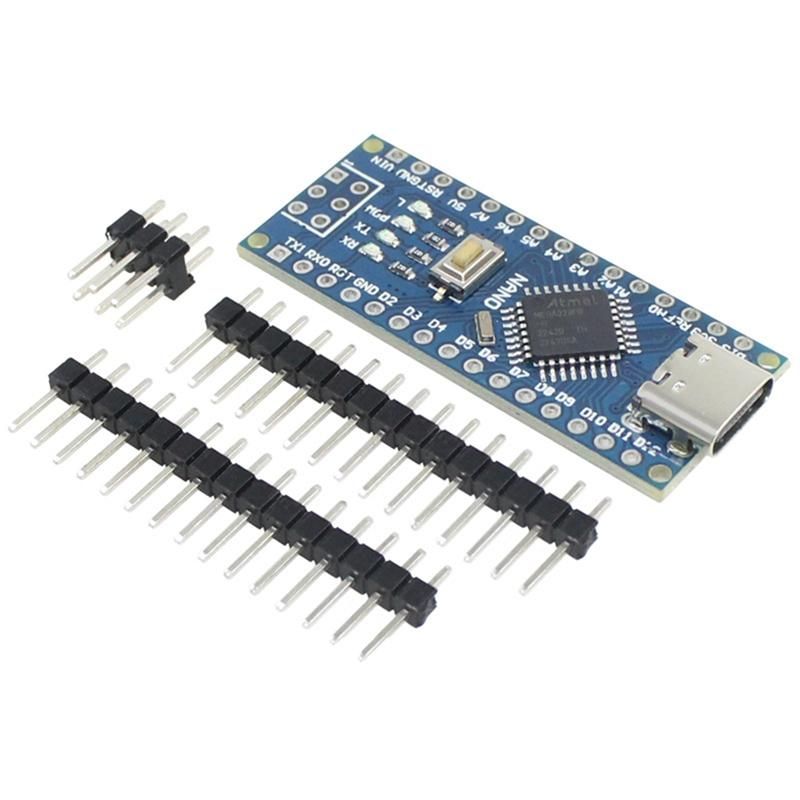

1 x development board
3 x row pin
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x development board
3 x row pin
