Model |
Development board |
Production Country |
China |
Size (L x W x H cm) |
10x6x2 |
Weight (kg) |
0.018 |
Color |
multicolor |
1 80211bg
2 Built-in 10bit high-precision
3 Built-in IP protocol cable
4 Built-in switch balun LNA power amplifier and matching network
Built-in PLL voltage regulator and power management components20dBm output power in 80211b mode
Aggregation of A-MPDU and A-MSDU and protection interval of 04s
WiFi@24GHz support WPAWPA2 security mode
Support AT remote upgrade and cloud OTA upgrade
Support STAAPSTAAP working mode
Support Smart Config function including Android and ios devices
HSPIUARTI2CI2SIR Remote ControlPWMGPIO
The holding current of deep sleep is 10uA and the turn-off current is less than 5uA
Wake up connect and transfer data packets within 2ms
Power consumption in standby mode is less than 10mW DTIM3
Operating temperature range - 40 ° C~125 ° C
Built-in Tensilica L106 ultra-low power 32-bit -MCU main frequency support 80MHz and 160MHz support RTOS
Product size 57 x 30mm
Color black
Material PCB metal
Package Contents

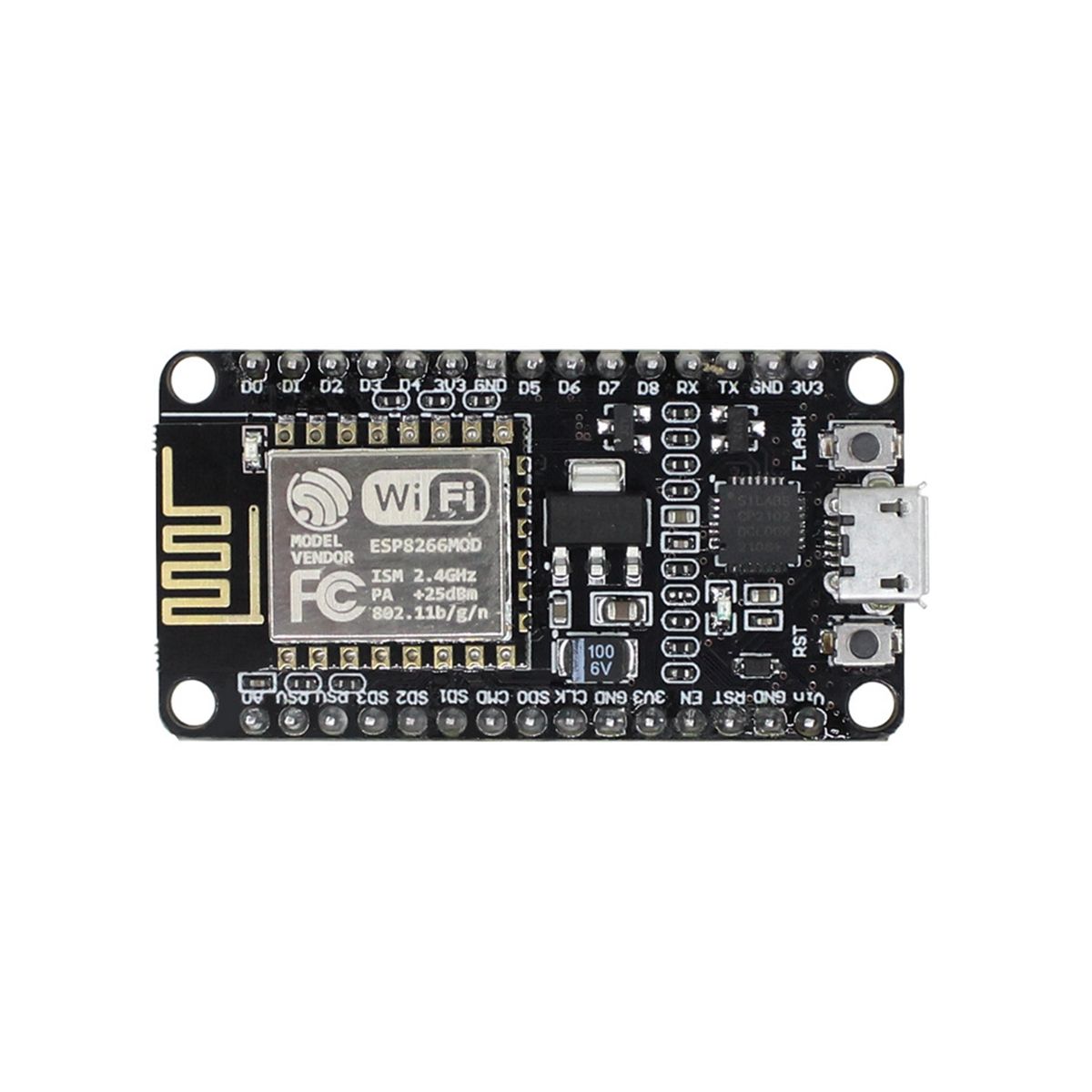

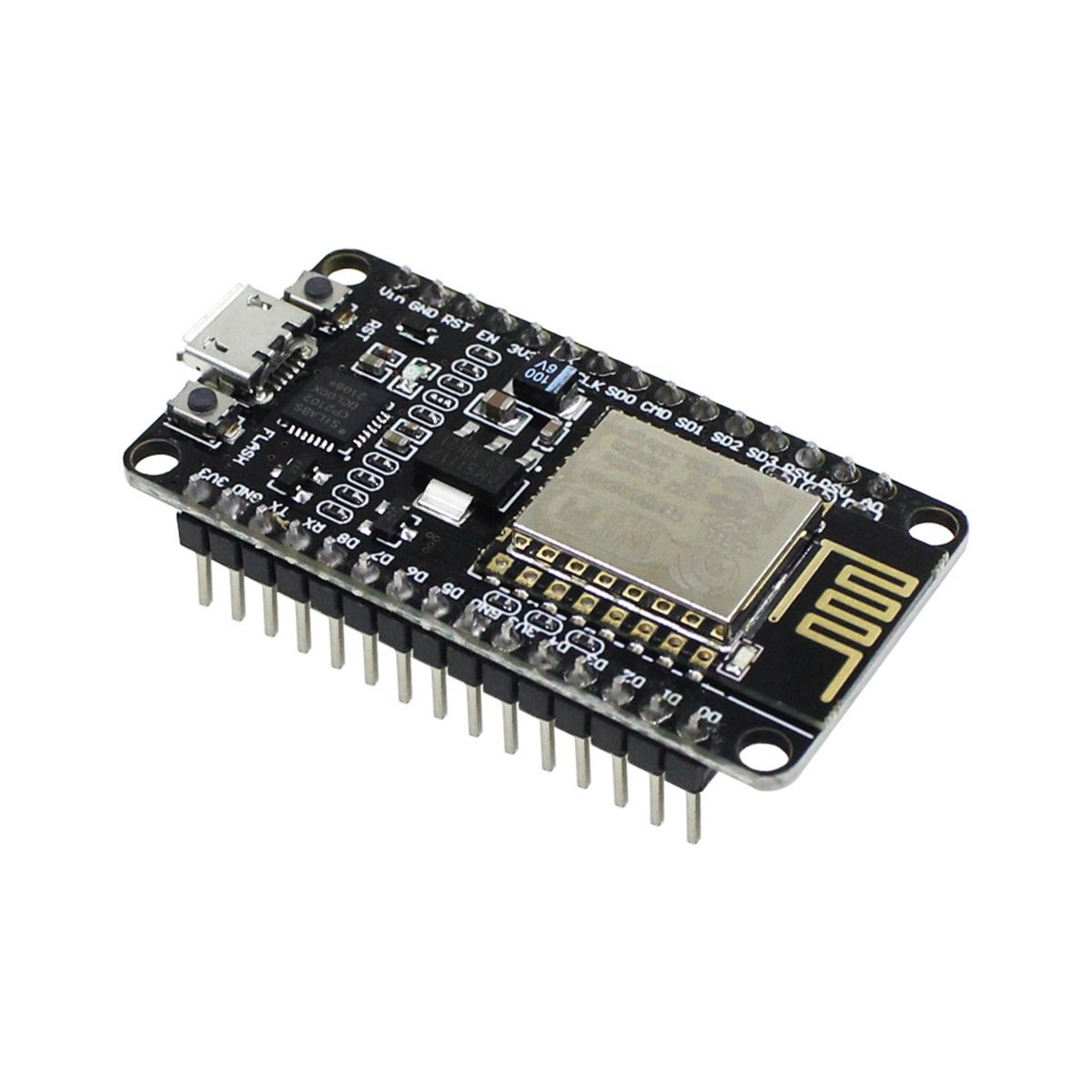

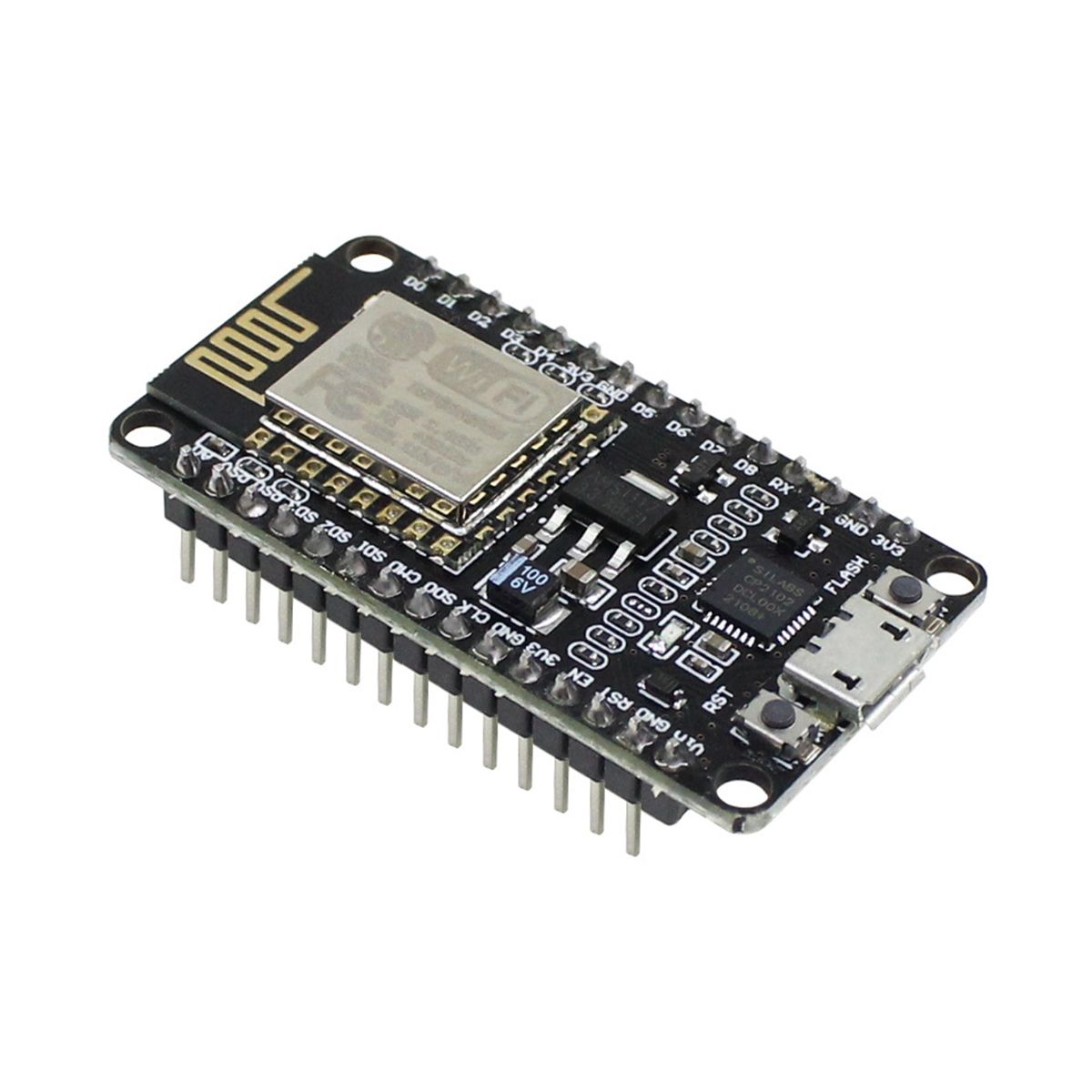

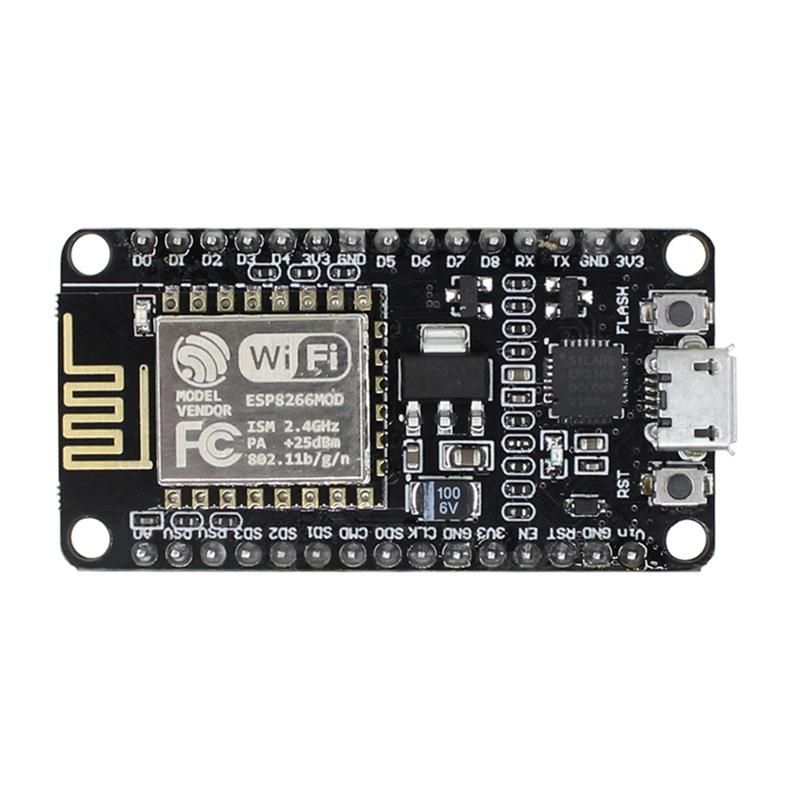

1 x ESP8266 CP2102 development board
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x ESP8266 CP2102 development board
