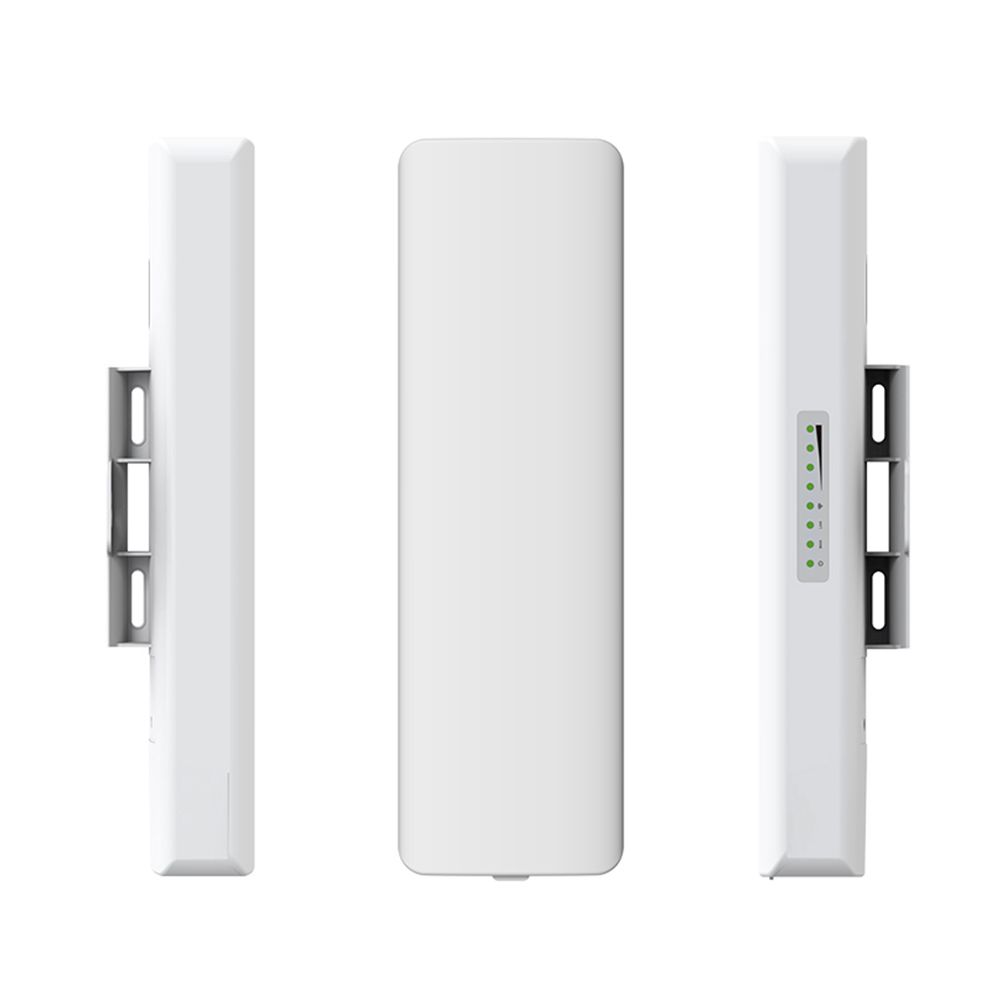

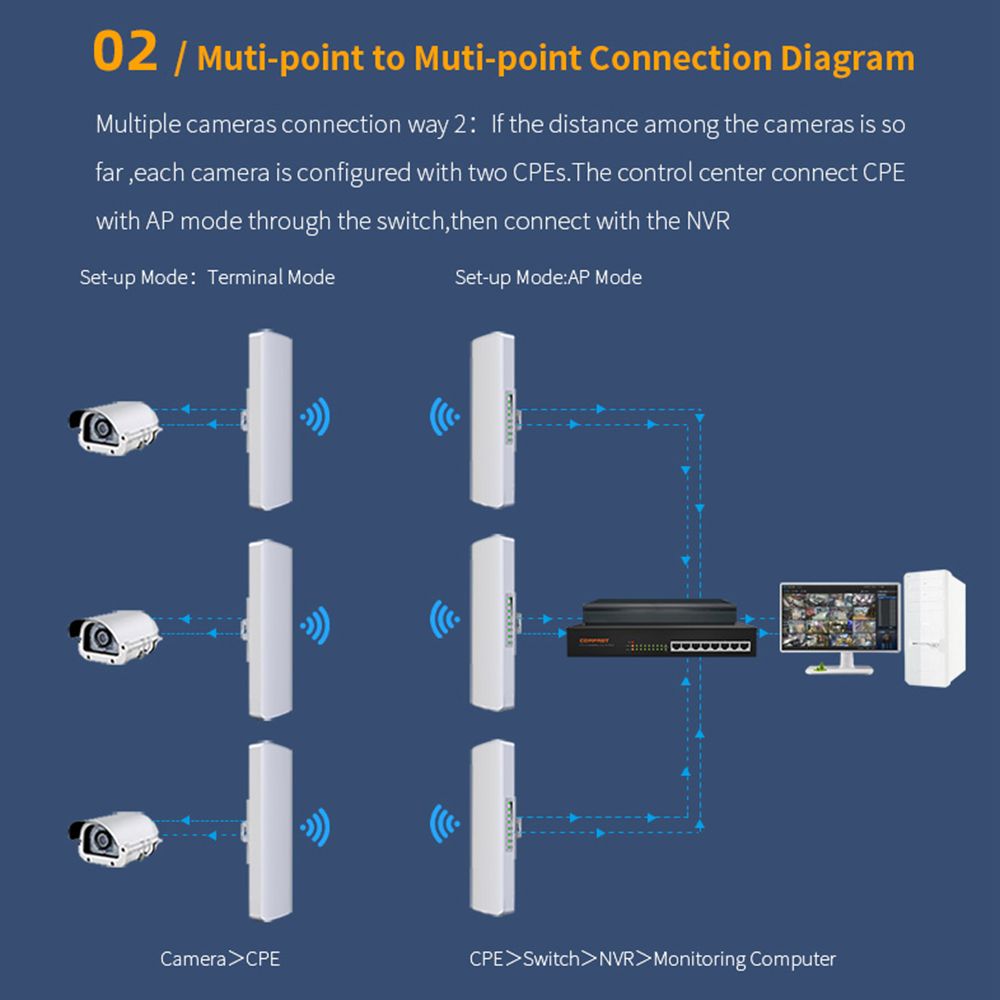

Features:The wireless transmission distance can reach to lkm, professionally solve outdoor point to point, point to multi-point long distance wireless transmission and coverage problems.
3 modes for selection-Bridge mode, AP mode and router mode, to meet the needs of outdoor WiFi engineering applications.

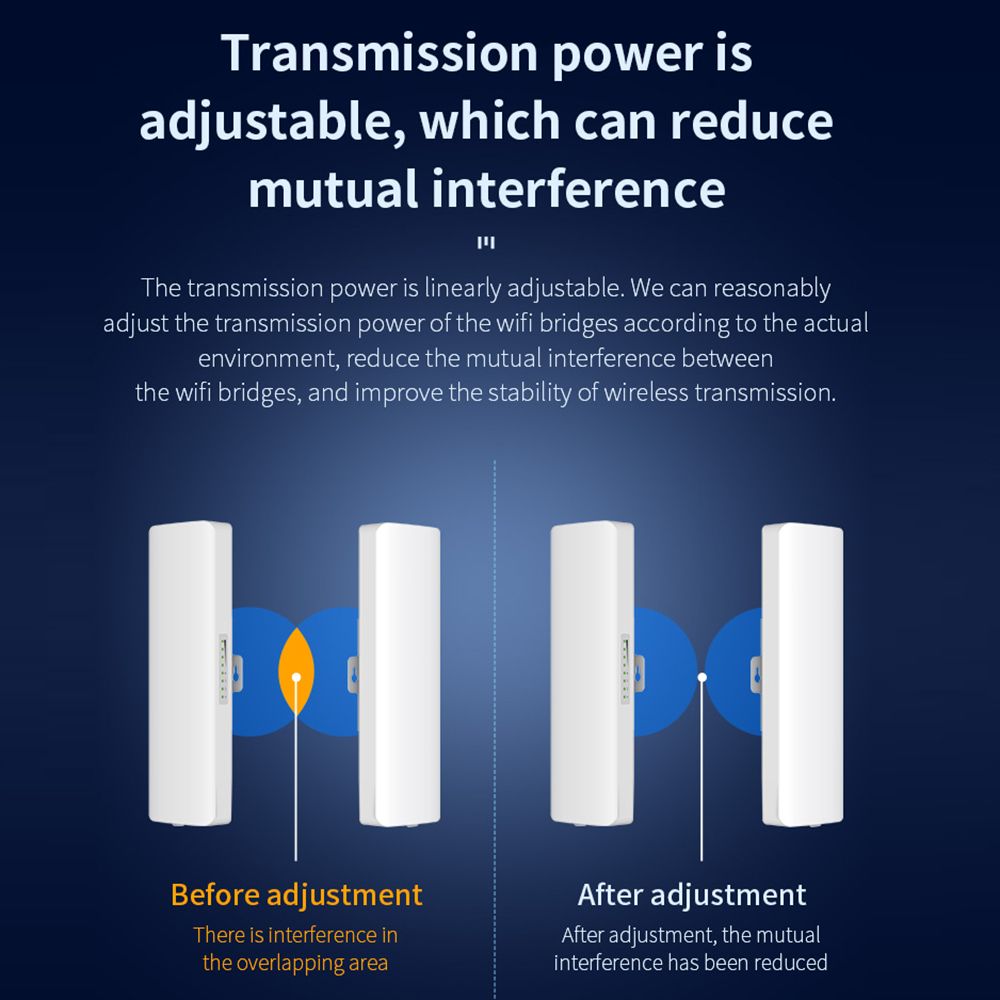

The transmitting is linearly adjustable. You can reasonably adjust the transmitting of the wifi bridges according to the actual environment, to reduce the mutual interference between the wifi bridges, and improve the stability of wireless transmission.
Built-in high-gain dual-polarized antennas, longer transmission distance.
Designed with 8 indicator lights, the signal strength is at a glance.
Support 9V-21V POE and two supply modes, you can select the suitable supply way according your demands.
Wide application range, suitable for aquaculture/forest/driving school/road/tourist/construction sites monitoring, and community/scenic spot/remote regions network transmission, etc.

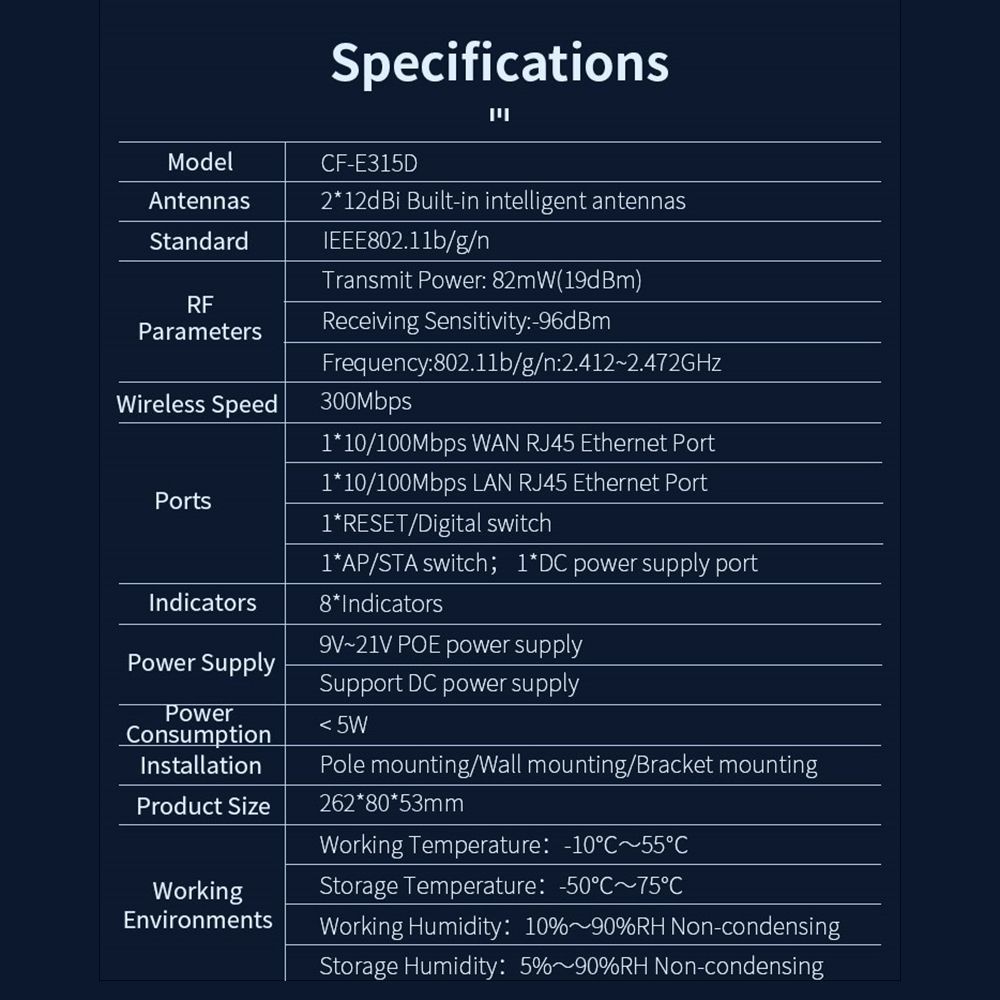

Specification:Model: CF-E315D
Antenna: Built-in 2*12dbi intelligent antennas
Standard: IEEE802.11b/g/n
Transmit : 82mw(19dbm)
Receiving sensitivity: -96dbm
Frequency: 802.11b/g/n: 2.412-2.472GHz
Wireless speed: 300Mbps
Port: 1*10/100Mbps WAN RJ45 Ethernet port, 1*10/100Mbps LAN RJ45 Ethernet port, 1*RESET/Digital switch, 1*AP/STA switch, 1* supply port
Indicator: 8*Indicators
supply: 9V-21V POE supply, support supply
consumption:
Key Features
The wireless transmission distance can reach to lkm, professionally solve outdoor point to point, point to multi-point long distance wireless transmission and coverage problems.
3 modes for selection-Bridge mode, AP mode and router mode, to meet the needs of outdoor WiFi engineering applications.
The transmitting is linearly adjustable. You can reasonably adjust the transmitting of the wifi bridges according to the actual environment, to reduce the mutual interference between the wifi bridges, and improve the stability of wireless transmission.
Built-in high-gain dual-polarized antennas, longer transmission distance.
Designed with 8 indicator lights, the signal strength is at a glance.
Support 9V-21V POE and two supply modes, you can select the suitable supply way according your demands.
What's In the Box
1 x WiFi bridge,2 x Stainless steel ties,1 x POE adapter,1 x cable,1 x Installation guide
