Resistance Tester DUOYI DY4100
Real Digital Earth Tester Ground Resistance Instrument Megohmmeter 0-2000 Higher Accuracy
1.DY4100 Digitaround Resistance Tester can test earth resistance of various earth syst including power syst, electric equipments, lightning conductors as well as resistance value of low resistance conductor and AC voltage test. 2.This one has more complete functions, higher accuracy, more convenient and reliable for operation and more suitable for outdoor use with dust and wet proof structure. Product Feature ： 1. Measuring range of earth resistance: 0-2000Ω. 0/20/200/2000 ±(2%+3)with 0.01 2. Measuring range of earth voltage: 0-30V(3%+5) 3.LED green light indicates normal operating mode. 4.31/2 digit LCD display for more direct and convenient reading. 5. Low Battery Warning: on LCD indicates deficiency of 12V battery. LED red lighting off indicates deficiency of 1.5V battery. 6. Fast Response: measure earth resistance, about 5 seconds. Measure earth voltage, about 2 seconds. 7.Withstand voltage: AC 500V, 1 minute between circuit and outer casing. 8. Overload protection: on earth voltage, can withstand 300V AC 1 minute . on earth resistance, can withstand 200V AC 10 seconds . 9. Power supply,six 1.5V AA batteries ,one 12V battery 23A.(not include) 10.Data Hold:yes 11.Working LED Indicator:yes 12.Function Symbol Display:yes
Specification
Earth Ground Resistance:0/20/200/2000Ω ±(2%+3) Resolution:0.01Ω Earth Voltage:0~30V ±(3%+5) Data Hold:yes Working LED Indicator:yes Function Symbol Display:yes Low Battery Warning:yes Product Size:150×100×70mm. Weight: about 680g NOT including battery Power:AA1.5Vx6(UM3) (not include battery) Working envment: Working temperature:0°C-40°C relative humidity < 80% Storage temperature: - 10°C-50°C relative humidity < 85% Ensured accurate temperature:23°C±5°C relative humidity < 80%

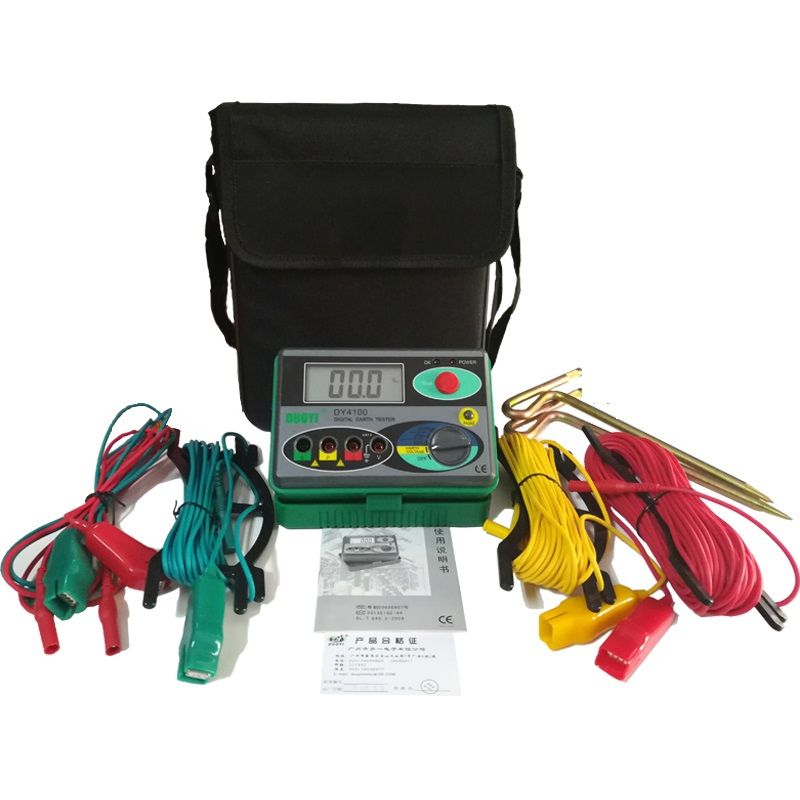

Acceories： 1. auxiliary earth bar*2 2).testing wire
(red 1 5-meter testing wire*1 /
yellow 10-meter testing wire*1 /
green 5-meter testing wire*1) 3. simple testing wire
(red 1.6-meter testing wire*1 /
green 1.6-meter testing wire*1) 4. instruction manual*1 5. tool bag*1
Matched battery model:
1. 5V(R6AA) battery*6 12V(23A) battery*1 Battery is not included in the acceory

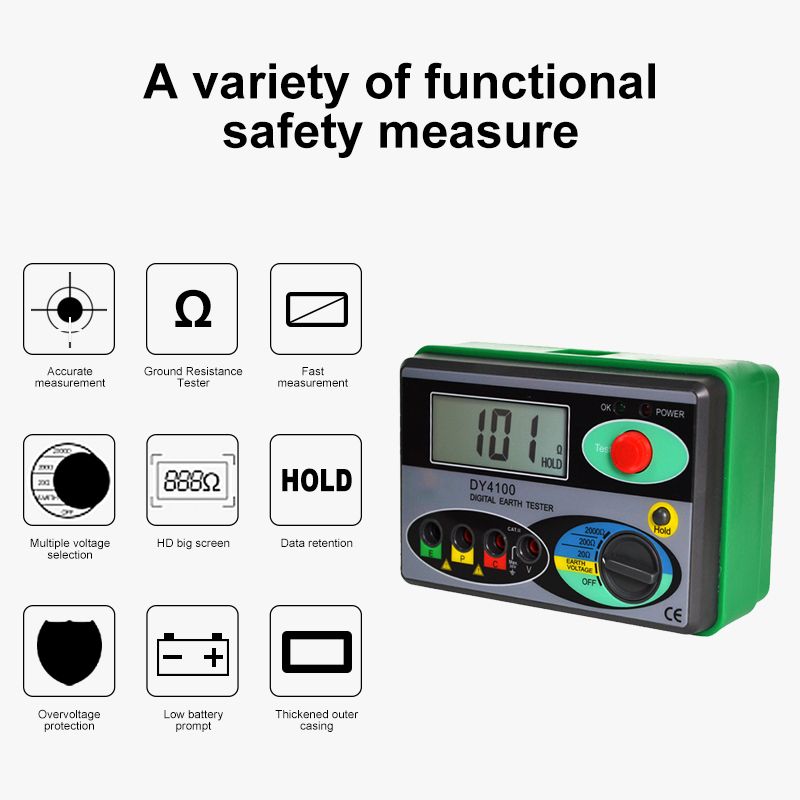

PRODUCT ADVANTAGES
Earth resistance measurement
Accurate measurement (with the equipped test leads) to puncture the P and C grounding pins to the depth of the ground. They are arranged in a straight line with the grounding equipment and are spaced 5 to 10 meters apart. (Note: Make sure the grounding pins are inserted in the wet soil. If the soil of the grounding nail is dry, it is neceary to add water or stone or the sand to be wet and test)
Grounding resistance test requirements:
a. AC working ground, the grounding resistance should not exceed 4Ω,
b, safe working ground, the grounding resistance should not be greater than 4Ω,
c. DC working grounding, grounding resistance should be determined according to the specific requirements of the computer system;
d, the grounding resistance of the lightning protection ground should not exceed 100Ω;
e. For jointed grounding of shielded syst, the grounding resistance should not be greater than 10 Ω.
Ground voltage measurement

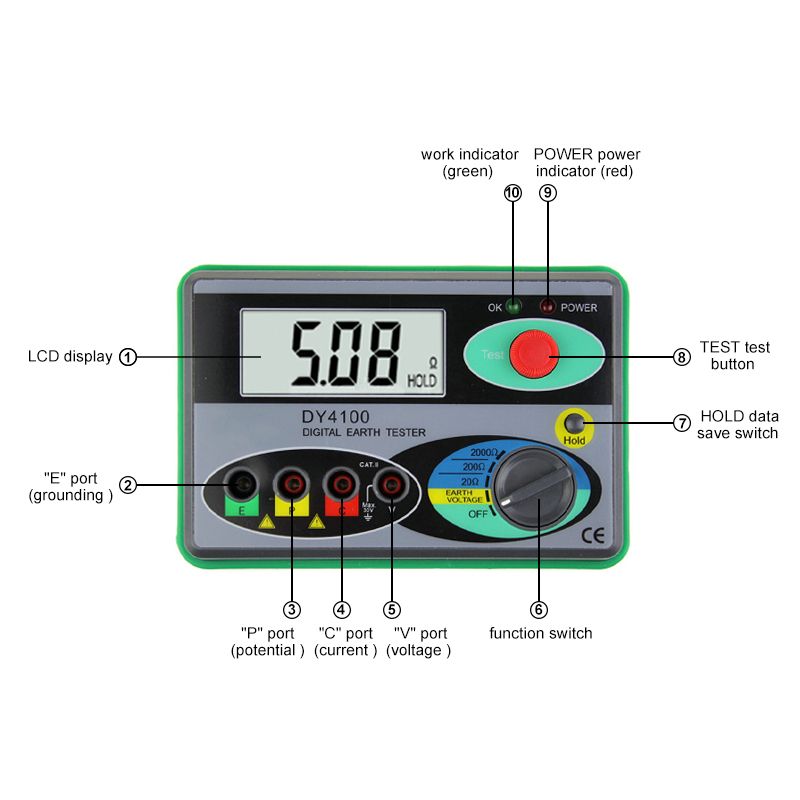

Please turn the dial switch to the grounding voltage "EV" file and connect the test line according to the grounding voltage test chart. The ground voltage will be automatically displayed. Please make sure that the ground voltage is ≤10V. If the local voltage is >10V, the grounding resistance measurement value may cause an error. At this point, the relevant electrical equipment can be powered off to reduce the ground voltage before measuring.
、

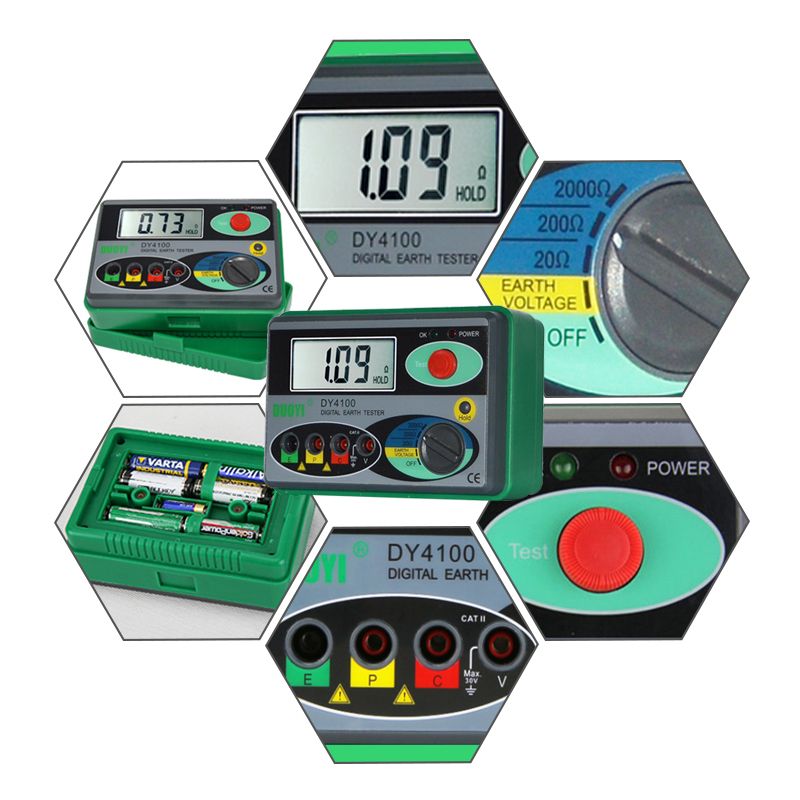

DETAIL DISPLAY
1. We accept , , TT. All major credit cards are accepted through secure payment proceor ESCROW.
2.Payment must be made within of order.
3. If you can't checkout immediately ar auction close, please wait for a few minutes and retry Payments must be completed within .
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. All orders will be shipped out within 3 working days ar we have succefully received your payment.
3. We offer regular Post Air Mail and have set up methods.
4. Since the trade is trans-national, as well as airmail is the est shipping method, it will take a long time for delivery. If you don't want to wait such a long time, please choose Expre and pay the fee.
5. We are not responsible for your Customs duty.
1. If it are found in bad condition when received, please contact us freely. We can the money or resend a new one to you.
2. If you are not satisfied with the product because of personal preference, you can return it to us within 7 days. You need to pay the freight.
3.All returned it MUST BE in the packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
1.12 months warranty
2.If you are not satisfied when you receive your item or with quality problem,please contact us,we can offer return or resend warranty but please offer evidence to show the problem actively.
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very ant We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily addre your concerns.
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Model Number:DY4100
Measuring Range:0-2000
Dimensions:150 *100 * 70 mm
Testing Voltage:0~30V
Operating Temperature:0℃~40℃
Accuracy Class:0.01
Display Type:Digital Only
Certification:NONE
Response time 1:5 seconds/ground voltage measurement
Response time 2:2 seconds/resistance measurement
Earth Resistance resolution:0.01&;
Earth Voltage(AC) accuracy:±3%rdg+5dgt
Earth Voltage(AC) resolution:0.1V
Earth resistance Range:0-20-200-2000&;
Resolution 0-20Ω Earth resistance:±2%+0.1&;
Resolution 20-2000Ω Earth resistance:0.01&;
Accuracy 20-2000Ω Earth resistance:±(2%+3dgt)
Resolution 20-200Ω Earth resistance:0.1&;
Resolution 200-2000Ω Earth resistance:1&;
Relative humidity:less than 80%RH
Storage temperature:-10℃~50℃
Increase accuracy temperature:23℃±5℃
Features 1:Ground resistance measurement
Features 2:Ground voltage measurement
Overload protection:yes
Data lock(hold):yes
key words1:earth resistance meter
key words2:digital earth tester
key words3:ground tester
key words4:earth meter
key words5:resistance meter
What's In the Box
1X DUOYI DY4100 Digital Multimeter Megohmmeter Earth Resistance Tester Ground 0-2000 Meer Meter Resistance Tester
