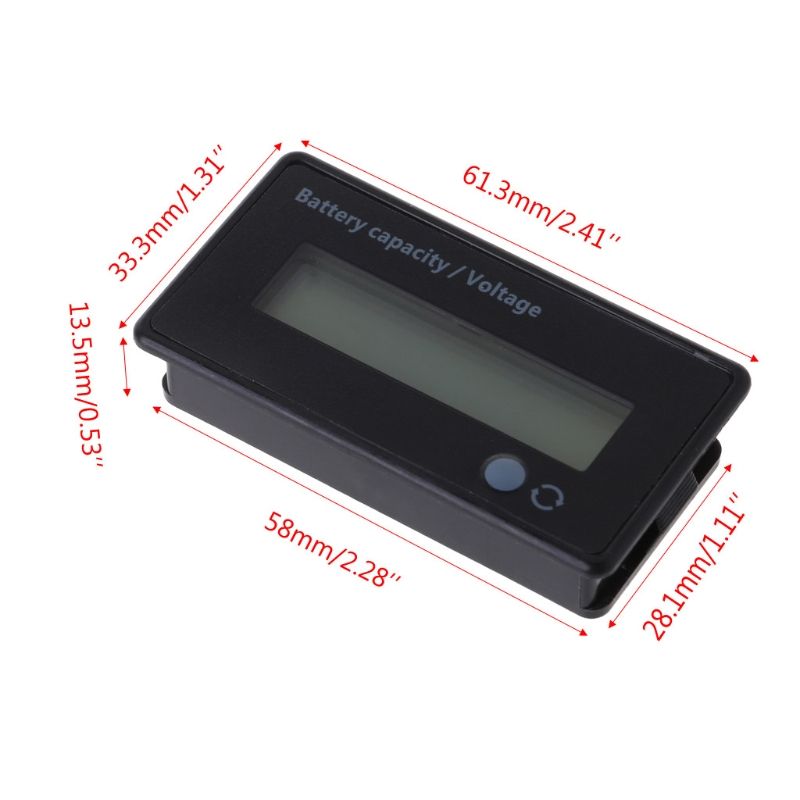

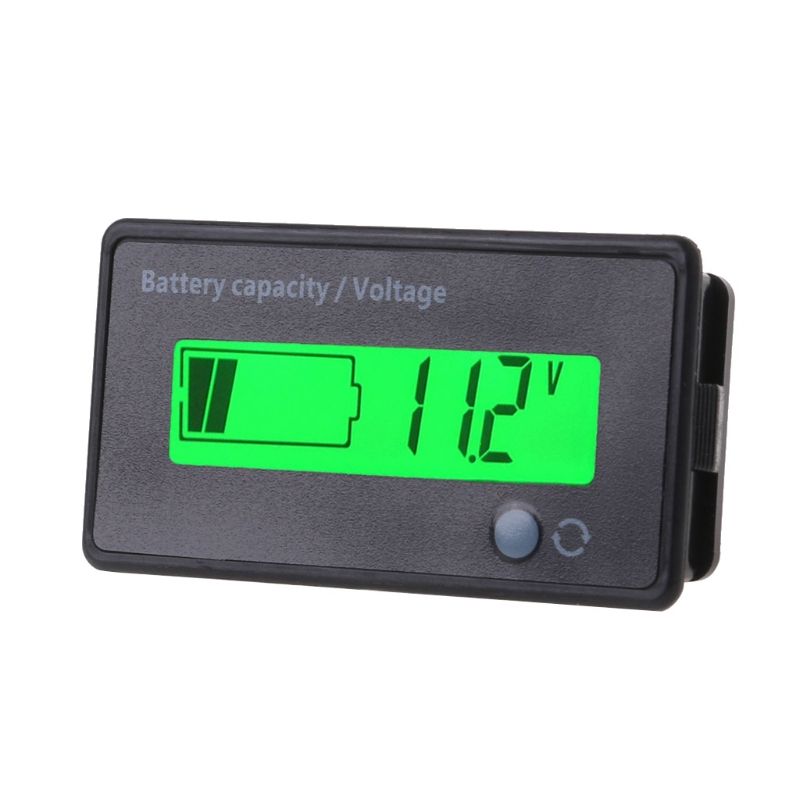

Features: Lead-acid and Lithium battery can be used to visually display battery state power; With switch, easy to install and use, no need for external control switch; The front is a PVC film, the surface can be waterproof; Liquid crystal display, power saving, saving more than 50% power over conventional power The following battery is universal Lithium battery: 3 string 4 string 5 string........24 string 25 string 26 string Lead acid: 12V 24V 36V 48V 60V 72V 84V Specifications: Voltage range: 9-100V Operating current: Display mode: LCD percentage% / voltage Color: Green Waterproof grade: surface waterproof About installation Installation method: shell with snap lock (without screws) Product Size: 61.3*33.3*13.5mm Embedded size: 58.5*28.5mm Package include: 1 * 12V-84V Lead-acid Battery Capacity Voltage Indicator 1 * Cable
Instructions How to set (If you don't understand, welcome to contact us for help) S1:%/V Rotate display in 2s Power percentage and voltage are displayed in turn recurrently and automatically; S2:Inactivity sleep in 10s Automatically sleep ar battery capacity display for 10 s, save power, pre the function key to wake up power display for 10 seconds; S3:Turn on backlight Power display turns on or off power backlight; S4:Show logo(Applicable to small battery icon) Logo icon is located in the underface of battery symbol on the left side of LCD, turn on and show the logo; S5:Discharge mode selection Power displays two kinds of battery discharge curve, different envments convert to select appropriate battery discharge modes; Setting procedure 1. Disconnect the module power supply, pre and hold the setting on until powering the power module. Display shows the current power setting ; 2. Pre the setting on to select P / L / F ,(P = 12V lead acid, L = 3.7V lithium battery, F = 3.2V lithium phosphate battery); 3 pre the function key to set the number of the battery string, according to the function keys and set the key up or down to choose the number of batteries in series; 4. Pre the function key for a long time to enter the advanced setting interface, use setting key to select S1-S5, enter key to select or cancel the current mode; 5. Reenergize the power ar setting. The power automatically saves setting data. E.g. 10 lithium battery power, turn on power percentage and voltage automatic rotation display (S1 mode) Operation: Disconnect display module power, pre and hold the setting on, power the power module, pre the setting on for a short time to select L, pre the function key to select 10, pre the function key for a long time to select S1 and re-power.
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
DIY Supplies:ELECTRICAL
Origin:Mainland China
Certification:NONE
Model Number:Lead-acid Battery Capacity Indicator
Type:Electronic Device Battery Tester
What's In the Box
1X DC 12V-84V Lead-acid Battery Capacity Indicator Voltage Meter LCD Voltmeter Monitor
