DUOYI DY2015
12V Car Battery System Tester Capacity Maximum Electronic load Battery Cranking Charge Test Digital Diagnostic Tools
If you need to test 12/24v battery, please click this text to buy "DY2015A"
Introduction:
DY2015 series storage battery testers are used for activated style leadacid storage battery. Precise circuit and strong digital proceing unit make it complete collection of a series of complicated data and figure out every test data, which availably by 4-wire Kelvin test connection. Besides it strengthens input protection inside , in order to prevent such situations as polar reversal connection, over-high voltage input, poor contact of the test clamps and so on. That makes sure safer and more convenient when testing.
This tester is the best tool for battery sales, vehicle repair and condition check of all kinds of lead-acid batteries that used in equipment system aociated with lead-acid battery.

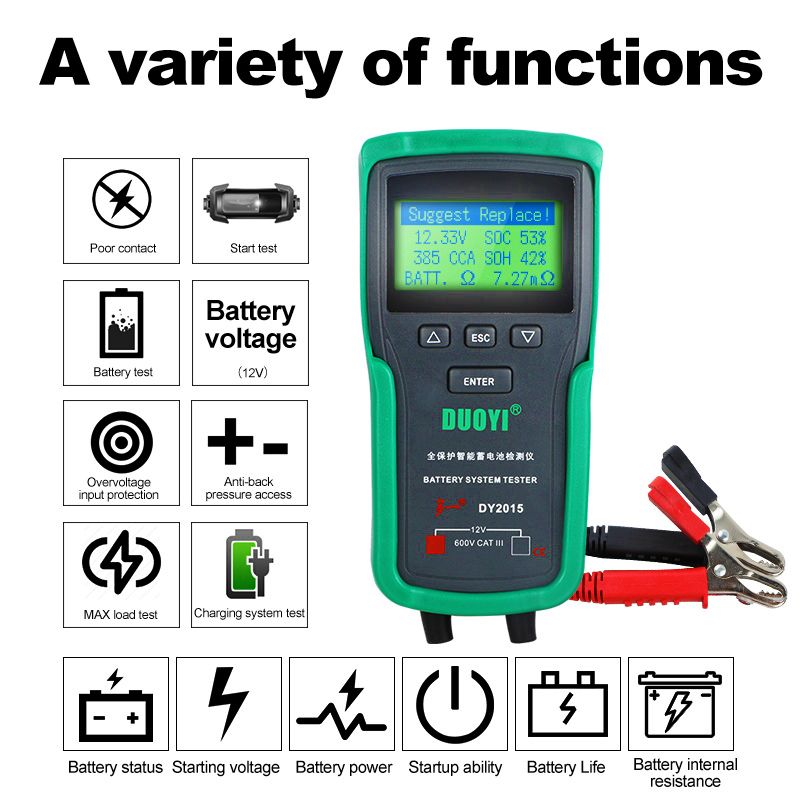

Features:
Conforms to CAT III 600V With large LCD display, easy to read the value Fully diagnose the battery status and car charging system Battery test: cold cranking amps, battery resistance, voltage, life analysis Engine system test: the change of battery system with the proce of startup Charging system test: the charging system working state of the output Maximum load system test: the maximum load state of battery Rich measured and displayed for battery condition diagnose Overload protection and wrong connection protection keeps operator always safe Easily read out conclusion of battery condition good/OK/pay attention/replace Loose lead detection, unit conversion CCA/IEC/EN/DIN

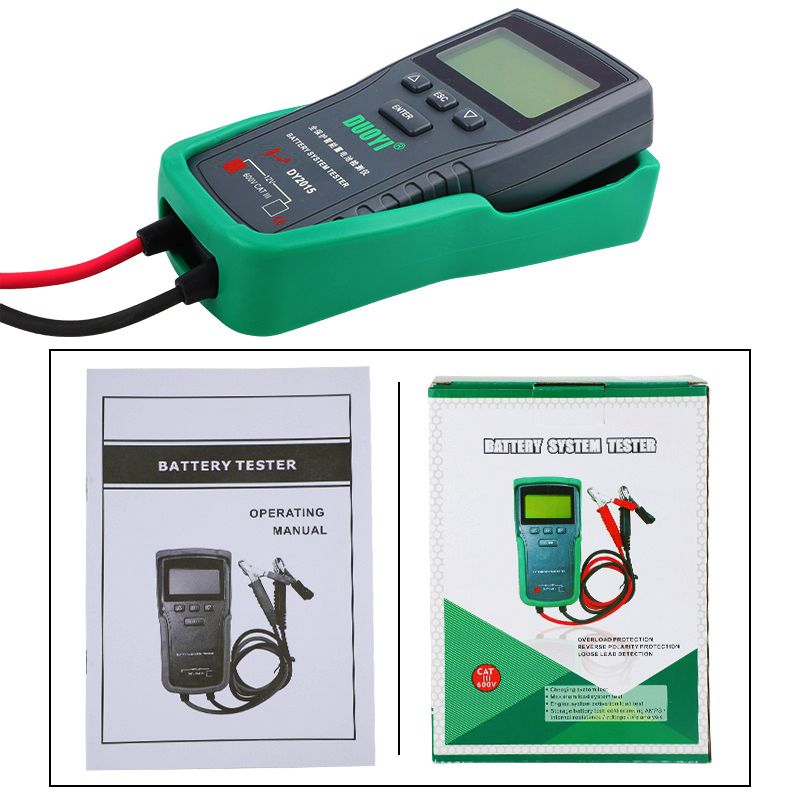

Package Content:
1 x DY2015 Car battery tester
1 x Pair test leads
Specification:
specification
Range
CCA
100~1700
IEC
100~1000
EN
100~1700
DIN
100~1000
JIS
Reference table in manual
Displays Battery Internal Resistance
Displays
Displays Battery Voltage
Display volts
Displays Battery Condition
good/OK/pay attention/replace
Test 12V Batteries
√
Battery Recharge Indicator
√
Reverse Polarity Protection
√
Detects and Displays Bad cell
√
Loose Lead Detection
√
Internal Unit Conversion EN,EIC,DIN
√
Overload protection of input voltage
√
Cable Length
700mm
Dimension
180 * 90 * 32 mm
Weight
400 g
PRODUCT DETAILS
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. All orders will be shipped out within 3 working days ar we have succefully received your payment.
3. We offer regular Post Air Mail and have set up methods.
4. Since the trade is trans-national, as well as airmail is the est shipping method, it will take a long time for delivery. If you don't want to wait such a long time, please choose Expre and pay the fee.
5. We are not responsible for your Customs duty.
1. If it are found in bad condition when received, please contact us freely. We can the money or resend a new one to you.
2. If you are not satisfied with the product because of personal preference, you can return it to us within 7 days. You need to pay the freight.
3.All returned it MUST BE in the packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
1.12 months warranty
2.If you are not satisfied when you receive your item or with quality problem,please contact us,we can offer return or resend warranty but please offer evidence to show the problem actively.
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very ant We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily addre your concerns.
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
DIY Supplies:ELECTRICAL
Origin:Mainland China
Type:Vehicle Battery Tester
Certification:NONE
Model Number:DY2015
Material Type:Metal and plastic
Battery voltage:12V
Language optional:English
Battery internal resistance:0-99m&;
Battery range:100-1700CCA
Battery range1:3AH~250AH
Battery status of health:0~100%
Battery type:Lead-acid battery
Test voltage:DC 9~18V
Weight:400g
Dimensions(L*W*H):18*9*5mm
Maximum load test:on car
Battery conclusion:Good/OK/Attentionn/Replace
Ah input quick test:yes
Battery ststus of health(SOH):yes
Charging system test:yes
Loose lead detection:yes
Wrong connection protection:yes
Overload detection:yes
Star-up load test:yes
Country/Region of Manufacture:China
What's In the Box
1X DUOYI DY2015 12V Auto Battery Load Tester Tools 100-1700CCA Load Tester Automotive Alternator Tester Digital Battery Analyzer
