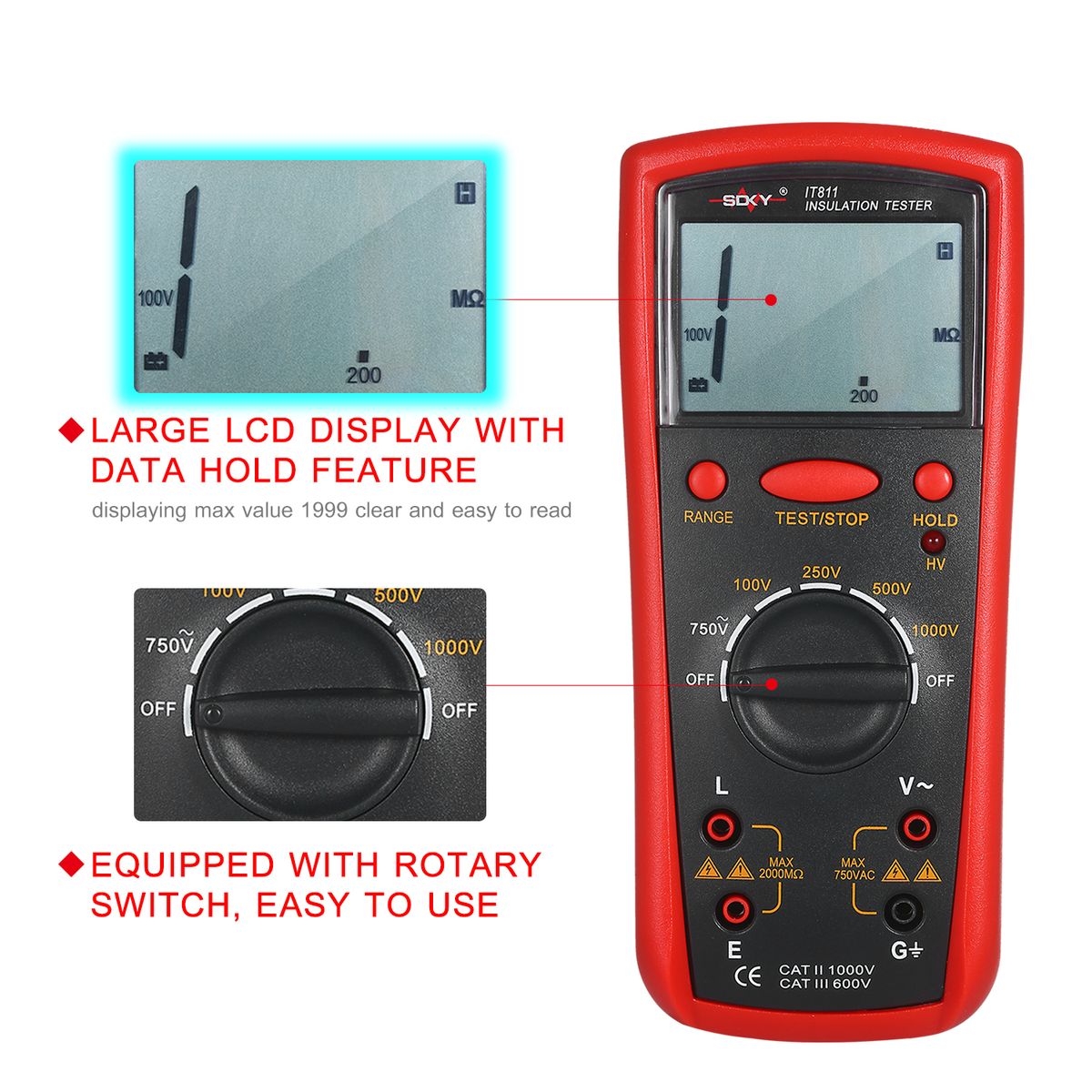

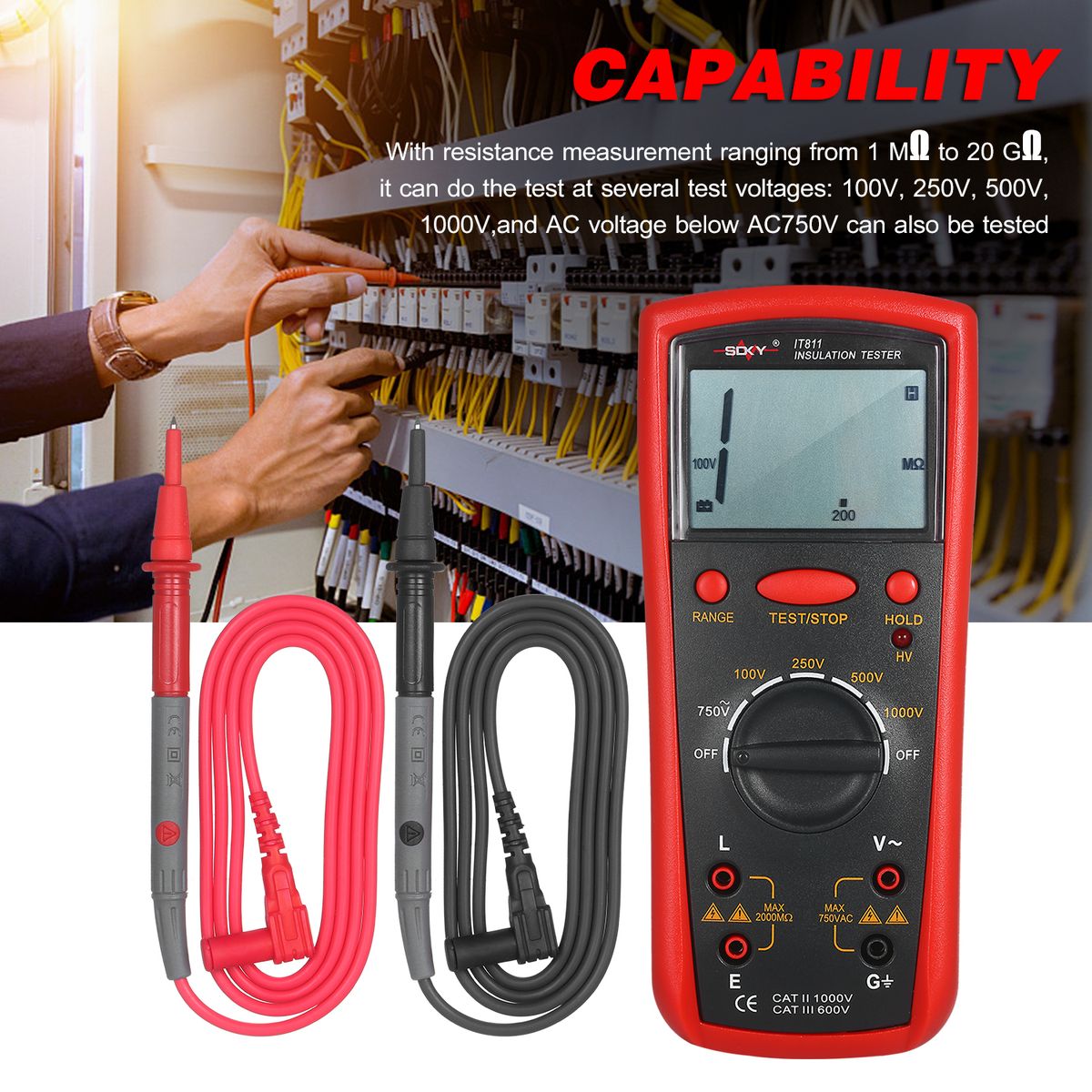

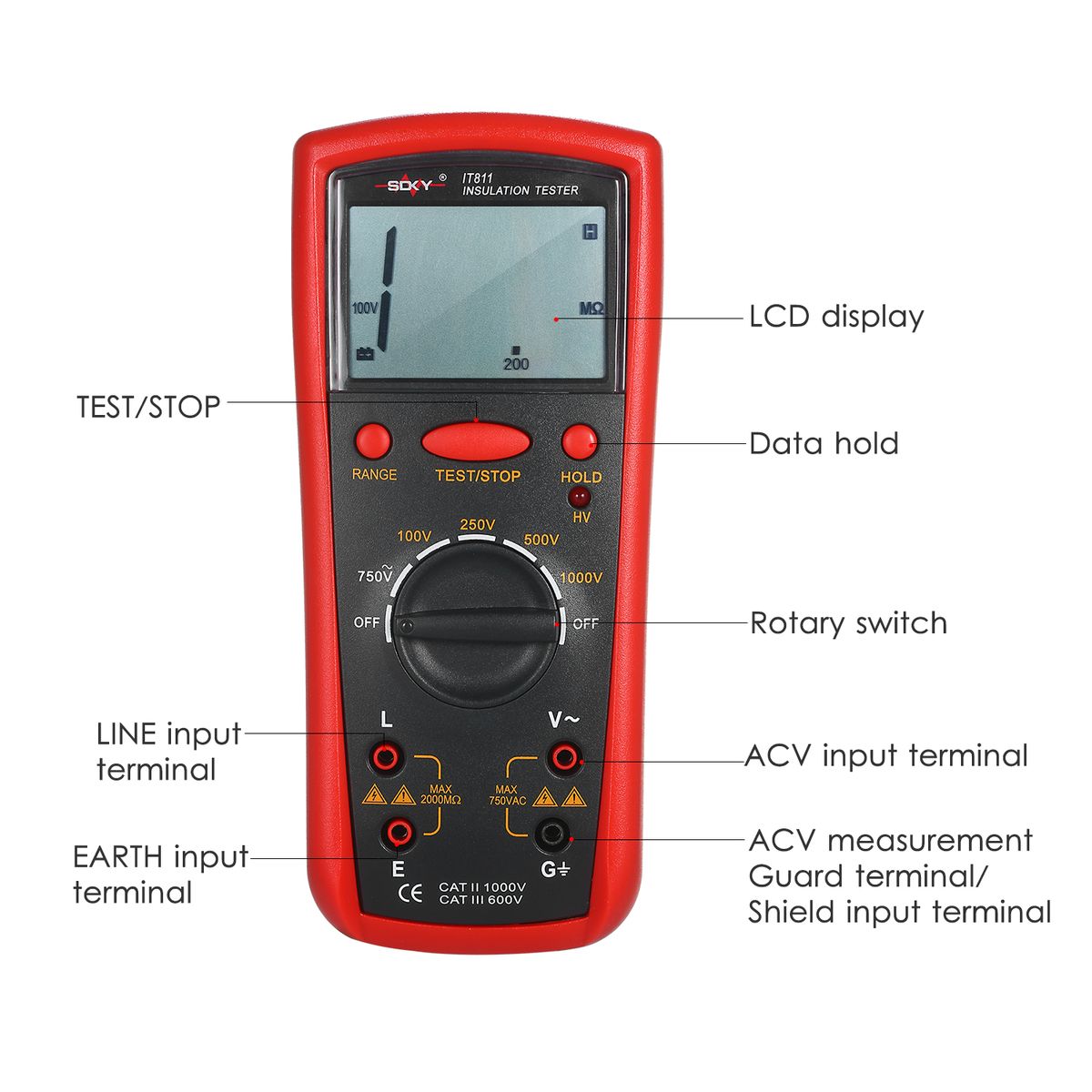

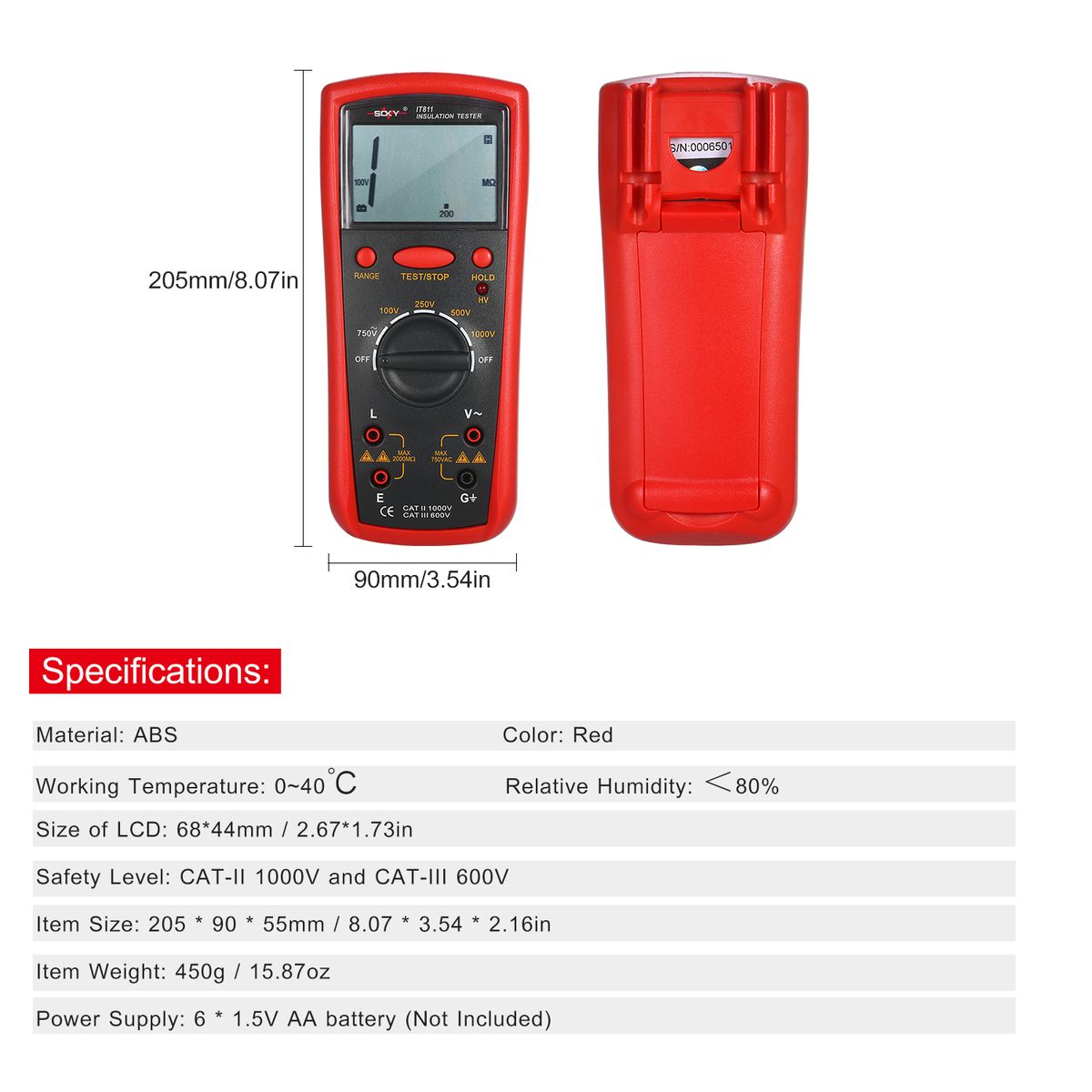

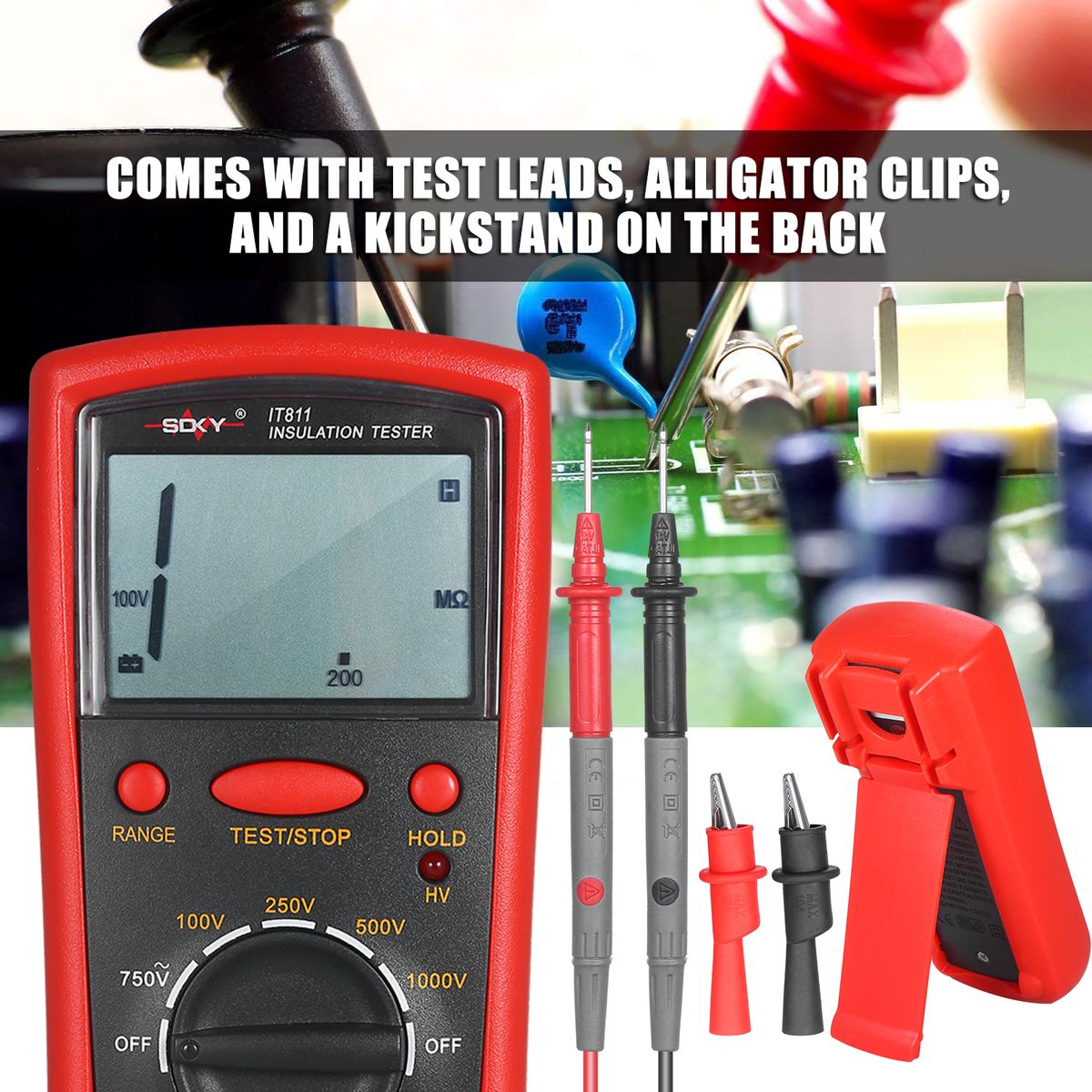

The Digital Insulation Resistance Tester has safe configuration and improved electro-circuit. It is one new item with more functions, higher precision, and easier operation. It' s also one quake-proof, dust-proof and damp-proof tester for outdoor use. Features: Capability: Can do the test at several test voltages: 100V, 250V, 500V, 1000V; voltage below AC750V can be tested; with resistance measurement ranging from 1 MΩ to 20 GΩ. Practical Function: Auto switch the range when measuring resistance; data hold feature; low battery reminder and high voltage indicator. Large LCD Display: Equipped with a 3 1/2 digits big LCD display with max value 1999, easy to read. Safe to Use: Rued housing is dust-proof and damp-proof; strong load capacity with output short-circuit current about 1.0mA; protective circuit prevents damage from voltage shock. User-Friendly: Turn the rotary switch to select voltage; comes with test leads, alligator clips, and a kickstand on the back. Wide Application: This tester can be applied in all kinds of electric equipment and insulation materials such as transformer, electromotor, cable, switch, appliance, etc. Specifications: Material: ABS Color: Red Size of LCD: 68*44mm / 2.67*1.73in Power Supply: 6 * 1.5V AA battery (Not Included) Working Temperature: 0~40℃ Relative Humidity: ＜80% Safety Level: CAT-II 1000V and CAT-III 600V Item Size: 205 * 90 * 55mm / 8.07 * 3.54 * 2.16in Item Weight: 450g / 15.87oz Package Weight: 774g / 27.3oz Package Size: 23.2 * 16.2 * 7cm / 9.13 * 6.37 * 2.75in Technique Index: Test rated voltage: 100V, 250V, 500V, 1000V Output voltage: 90%~110% of the test rated voltage Resistance Measurement range: 1 MΩ ~ 20 GΩ Resolution: 0.01 MΩ Accuracy: 1 MΩ ~ 200 MΩ: ±(3% of the reading + 5 significant digits) 200 MΩ ~ 10 GΩ: ±(5% of the reading + 5 significant digits) 10 GΩ ~ 20 GΩ: ±(10% of the reading + 5 significant digits) AC voltage Measurement range: 1V ~ 750V Resolution: 1V Accuracy: ±(2% of the reading + 5 significant digits) Frequency Response: 40Hz ~ 400Hz Packing List: 1 * Insulation Tester 1 * Storage Bag 1 * Test Leads(pair) 1 * Probe Clips(pair) 1 * User Manual (English)
Shipping:
1.We guarantee to ship goods out within 24-72 hour ar payment confirmation except holiday. 2.We ship by China post,HKpost ,,,according to your choice when placing orders . 3.If you didn't receive the item ar 45 days,please feel free to contact us.We will make all our effort to resolve the problem. 4.We are not responsible for delays causedby the customs, duties,taxes or other customscharges.
Warranty:
1.All it have 1 year guarantee.IF your purchase do not meet merchantable quality, fitne for purpose or match the description, We can make sure your iues are resolved . 2.For wrongly-shipped it, Please contact us in 48 hours ar delivery.We will arrange to deliver the correct it or return all your payment. 3.For defective or faulty products,please take photos or videos,we would resend or ar confirmation.
About shippingShipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 2 business days ar buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).
Special Announcement:Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .
Your 100% satisfaction is very ant to usIf the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Origin:Mainland China
DIY Supplies:ELECTRICAL
Model Number:IT811
Display Type:Digital Only
Certification:NONE
What's In the Box
1X 1MΩ-20GΩ Digital Meermeter Insulation Resistance Tester Handheld Insulation Tester LCD Insulation Measurement Instrument
