Gol 20 D Professional Optical Level Distance Measure
Level BOSCH GOL 20 D Professional is designed for measuring heights, distances and angles, determining and checking horizontal lines.Bosch GOL20DSET Optical Level and BT160 Tripod and GR500 Level Rod
Optical level BOSCH GOL 20 D Professional (Bosch professional) 0.601.068.500, the model is widely used on construction sites. It features 32x magnification and is IP54 splash and dust resistant. Thanks to the large lens (36 mm) and high quality German optics, the image is especially clear.
Erect image Large focusing knob for easy alignment Fast aperture for a sharp image of the target (measuring rod) Endless gon/angle setting using knobs with friction -braked rotationRobust and reliable - ideal for outdoor use.
Unit of measure 360 degrees Magnification 20x Levelling accuracy 3 mm at 30 m Working range up to 60 m Dust and splash protection IP 54Included:Lens cover Plumb bob Adjusting pin Allen key Carrying case BT 160 160cm Tripod GR500 500cm levelling rod
CHARACTERISTIC & FUNCTION
1.GENERATES TWO LINES ON THE FLOOR AT 90 DEGREE ANGLES FOR SURFACE LAYOUT INCLUDING TILE, STONE, BRICK, CARPET AND HARDWOOD FLOORING AND MORE.2.GREAT ALIGNMENT GUIDE FOR 90-DEGREE LAYOUT-CALCULATE AND TURNING ANGLES IN 5-DEGREE INCREMENTS.3.ONE POWER BUTTON DEVICE, SIMPLE OPERATION, EASY TO USE.4.TWO SUCTION CUPS ALLOW THE LASER LEVEL SQUARE TO BE MOUNTED ONTO THE SURFACES STABLY.5.IDEAL FOR FLOORS, TILES, PANELING, WALL FIXTURES, WALLPAPERING, WAINSCOTING, FINISH CARPENTRY AND MORE.
TECHNICAL PARAMETERS
CONDITION: 100% BRAND NEW
LASER WAVELENGTH: 650NM
LASER CLASS: CLASS II ANTI-DUST/ANTI-WATER: IP-54 ACCURACY: +/-3/8"/100FT.(+/-1.5MM/5M) SELF-LEVELING RANGE: +/-4 DEGREE
POWER: 3 X AA ALKALINE BATTERIES (NOT INCLUDED)
LOW VOLTAGE INDICATION: POWER LED FLASHING
PRODUCT DIMENSION: APPROX. 200 * 100 * 52MM / 7.9 * 3.9 * 1.0INCH
PLEASE CHECK ON THE PICTURE) PACKAGE WEIGHT: APPROX. 190G
Wall mount bracket:
Can be used by 16lines, 12lines (etc) laser leveling machine.
With this device, the the levelling machine can be fastened to the wall making the work routine easier and more flexible
Topcon 32x Automatic Level At-b2 - 2110220b0 With Tripod And Levelling Staff
The is Topcon & rsquo;s high-precision automatic level. It features 32X magnification, a large 42mm objective aperture for increased light gathering, and an accuracy of 0.7mm (0.03 & Prime;) per 1km double run leveling.
It has a completely waterproof telescope (IPx6) and is, therefore, ideal for all kinds of wet-surveying operations, in light rain or tunnels.
The AT-B2 can focus on objects as close as 20cm (7.9 in.) which is suitable for close range work carried out by builders and contractors.
The compensator of AT-B series levels incorporate four suspension wires made of extremely high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy even in the harshest environmental conditions.
Its finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.
Each instrument is calibrated by our factory-trained technicians before it ships to ensure accuracy. This means adjusting both the reticle and the bubble.
Remember, no matter how good or expensive your level is, if it & rsquo;s out of adjustment, your level won & rsquo;t shoot level!
The Topcon AT B2 Automatic Level allows surveyors and construction professionals to perform highly accurate leveling, angle, height, as well as distance measurements.
This optical instrument has 32x magnification, 1/32 inch accuracy, and a built-in compensator that stabilizes the line of sight despite the fine vibrations caused by heavy equipment on the jobsite.
Focus Range
Featuring a focusing range of 7.9 inches in front of the telescope, this Topcon site level facilitates working in confined spaces. With an internal magnetic dampened compensator, this survey and construction tool levels the line of site within the range of & plusmn;15 arc-minutes and an accuracy of 0.3 arc-second.
Optional Accessories
For working in extremely confined spaces, this auto level allows you to use an optional diagonal eyepiece, an optical micrometer , a light pack for leveling in low light conditions, and a 40x eyepiece for improved accuracy and magnification.
2-Speed Focusing Knob
With the AT-B2 automatic level, the rotation speed of the focusing knob is automatically switched between coarse and fine, allowing for quick and precise focusing.
In addition, the fine horizontal knobs located on both sides of the instrument can be operated without clamping, speeding up aiming procedures to the staff and other objects.
Horizontal Circle
Horizontal angles can be directly read in degrees or gon and can be viewed just below the eyepiece. Protected against dirt and scratch, the horizontal circle features free rotation that enables you to read any angle from zero.
The ATB2 also allows you to easily view the circular level through its integrated pentagonal prism without changing your eye height.
Water Resistant
With the IPx6 rating, the AT-B2 auto level is protected against powerful water jets from all directions. The advanced protection design not only prevents water from entering the instrument, but also deters clouding or condensation inside the telescope.
This Topcon automatic level comes with a hard carrying case, plumb bob, hex wrench, adjusting pins, vinyl cover, cleaning cloth and lens cap.
AUTO LEVEL AT-B Series Topcon AT-B2 32X Auto Level & ndash; 60907
3 Models & ndash; 32x, 28x, and 24x Magnifications
Rapid, Accurate, and Stable Automatic Compensation
Ultra-Short 20cm (7.9 in.) Focusing
All-Weather Dependability
Clampless, Endless Fine Horizontal Adjustments
Technical Specifications
Length
215 mm (8.46 in)
Zoom
32X
Objective slot
42 mm (1.65 inch)
solve power
3 in.
Field of View (at 100m/328ft)
1 & deg; 20 & prime; (2.3 m/7.5 ft)
Focusing minute from the end of the telescope
0.2 m (7.9 in)
Min. Focus from the Tool Center
0.3 m (1 ft)
erect
The stadiums are fixed
0
pitches ratio
100
focus knob
2 speed
see aid
peep sight
Accuracy
sub micrometer
0.7 mm (0.03 inch)
with micrometer
0.5 mm (0.02 inch)
compensator
Type
Pendulum compensator with magnetic damping system
Precision setting
0.5 in.
work area
& plusmn;15 ft.
generalization level
sensitive
10 ft./2 mm
horizontal circle
Diameter
103 mm (4.1 in)
minimum division
1 & deg;/1gon
general
water resistance
IPX6 (IEC 60529:2001)
Operating temperature
-4 & deg;F to +122 & deg;F (-20 & deg;C to +50 & deg;C)
Show
5.12 in. (130mm)
Length
8.46 in. (215mm)
to rise
5.51 in. (140mm)
weight
4.1 lbs (1.85 kg)
Tile Leveling And Joint Adjuster Splicing Suction Cup Device
Name: Tile leveling stitching sucker Product Usage: When installing ceramic floor tiles, as an auxiliary installation tool to adjust the level and the space between the two tiles. Easy to use and reliable, it is a good helper for the installation of floor and wall tiles with or without gaps inbetween tiles.
Also suitable for glass, stone and other plate installation. size:40*13*10cm Material:ABS
Description:
Specification:Aluminum alloy countertop tensionerMaterial: aluminum alloy + rubberSize: total length 390mm, suction cup diameter: about 120mmSuction weight: 50KG / 110.2LB / 110.2OZRubber thickness: 7MMHeight adjustment length: 120mmSpacing adjustment length: 20mmIron countertop tensionerMaterial: iron + rubberSize: total length 425mm, suction cup diameter: about 145mmRubber thickness: 8MMHeight adjustment length: 115mmSpacing adjustment length: 20mm
Package Contents: 1 * Tile leveling stitching sucker
Lightweight and easy to use, the GWM 32 measuring wheel is the ideal tool for measuring outdoor construction sites or road constructions up to 9,999.9 meters. Measuring wheel measures 31.85 cm in diameter and 1 meter in circumference. It is PTB*-certified with +/- 1dm/100m accuracy. *Physikalisch-Technische Bundesanstalt Items Included: Measuring Hoop GWM 32 Protective Bag
Features & details
EASY TO USE: Comfortable gun grip and lightweight aluminum structure.
Telescoping bar: telescoping bar with altitude adjustment ensures flexibility and comfort while in use.
VERSATILE: Cast aluminum hoop with sturdy rubber tread for use on any surface
LIGHTWEIGHT: GWM 32 hoop is noticeable light weight with only 3.4lb aluminum construction.
Included elements: GWM gauge hoop 32 and protective bag
The lightweight, handy measuring wheel
Ergonomic pistol grip and lightweight aluminium construction for ease of use
Telescopic shaft with continuously variable height adjustment
Laser Level Remote Control Rotary Self-levelling Hlrl30051
Weight
3.00 kg
Warranty Period
1 Year
Green laser beams
Working range: indoor 50m, outdoor 300m (with laser detector)
Remote control distance: 20m
Beam accuracy: & plusmn;0.1mm/m Line accuracy 1.5mm
at 5m
leveling 3s
Self-leveling range: 5 & deg;
Protection level: IP65
Laser class II
Rotation speed: 0,60,120,300,600rpm
Rotational coverage: 0 & deg;, 10 & deg;, 45 & deg;, 90 & deg;, 180 & deg;, 360 & deg;
Slope of adjustment: 5 & deg;
Laser power supply: DC 4.8-6V Ni-MH rechargeable or alkaline type 4C
Packed in plastic box
Ingco tools are devoted to making professional quality tools affordable. ingco believes that top quality refers to not only function, usability and appearance, but also efficiency, performance and maintainability. the whole ingco team pay great attention to every detail to make ingco tools stand on the top of the world. all the ingco team are based in china to support the global marketing. we focus on finding partners overseas instead of setting up our own sales team. rather than making much advertisement, we prefer to save all extra expense to maximize the benefits to partners. ingco & mdash;make the world in your hands
Hello and thank you for viewing our products at MURICH INVESTMENT. Should you need any further help or info please get in touch with us and we will be glad to help in any way we can.
We are proud to have many customers visit us and have also delivered many products across the country. Kindly check out our feedback.
Once again, thank you for viewing.
WARRANTY:INGCO gives 12-months parts & service warranty on the power tools, during this period, our Repair Service is normally free of charge, for details of the services provided, please refer to our warranty conditions. In case of warranty, please present the original purchase receipt or warranty card or any proof of purchase; otherwise, we cannot repair your tool free of charge.

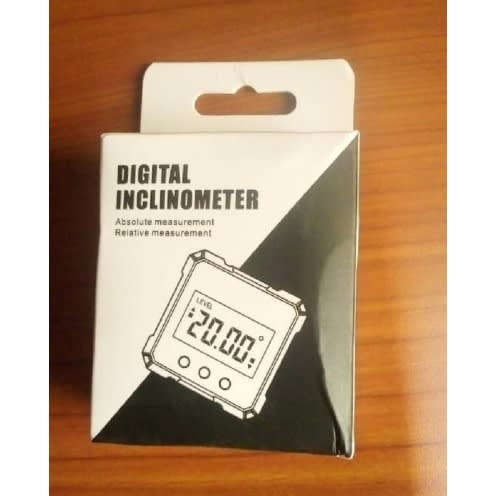

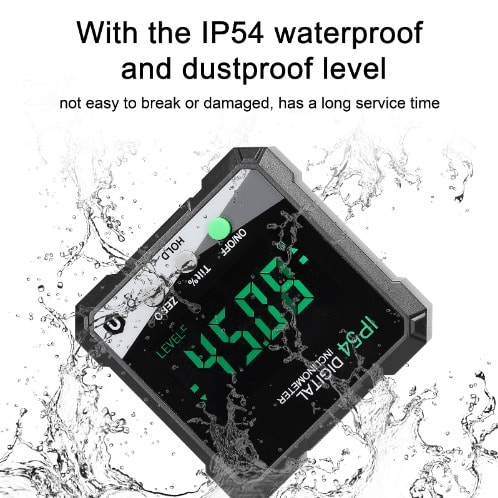

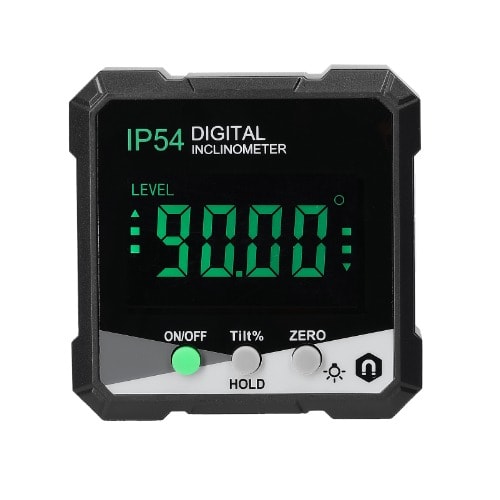

Digital Protractor Inclinometer Level Box Level Measuring Tool
Characteristic & Function:
1). Plastic material
2). Measuring range
3). Three function key
4). With data hold function
5). Zero-setting at any position
6). Quick display of the measured value on big LCD screen
7).With on-off power switch & Auto power-off for option
8).9V heavy duty battery, battery life greater than 1 year
9).Reversible reading allowing to read display to right side up
10).Relative-absolute measurement interchange at any position, ABS function
11).Used for angle measurement in automotive, woodwork, building, drilling machinery etc
Package List:
Digital Inclinometer 1
English User Manual 1
Aluminum alloy enclosure (light weight and durable)
Relative/absolute measurement interchange at any position

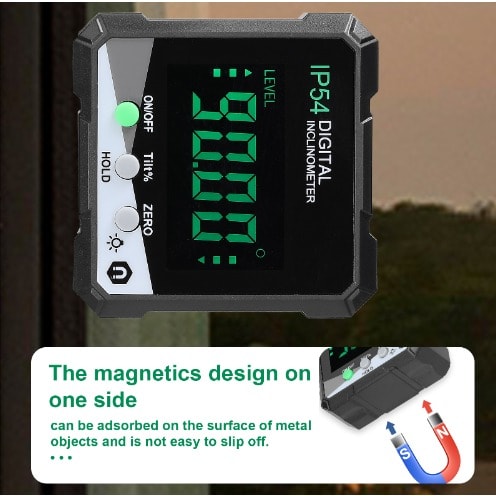

With 3 built-in magnets in measuring surface, which is convenient to be attached to the object measuring workpiece
Power-off automatically in 5 minutes
Portable size, convenient to co-work with other measuring tools and enlarge measuring range
Technical Parameters
Measuring range: 360 & deg;
Resolution: 0.05 & deg;
Accuracy: & plusmn;0.2 & deg;
Repeatability: 0.1 & deg;
Battery: 2PCS AA battery( battery not including for air shipment)
Working temperature: 0 & deg;C-40 & deg;C
Dimension: 57*57*30.5mm
With 3 diameter 10mm built-in magnets in measuring surface, which if convenient to be attached to the object measuring workpiece.
Absolute zero measurement based on the horizontal surface
Net weight:0.21kg
Total Spirit Level - 30cm
A spirit level is used for determining horizontal and vertical levels and can be used on a variety of DIY projects in and around the home. A spirit level is used to designed to indicate whether a surface is level on the horizontal or vertical planes, and there are a variety of sizes and designs for every project.
Sides: Double side milledVials: 0.5mm/m accurate vialsAluminum thickness: 1.5mmEyes: 3Length: 30 cmSlot: V-shape slot for measuring objects with round surfaceEnds: Shock absorbing rubber ends
Ingco Spirit Level - 40cm + Gift
INGCO Spirit Level 40cm HSL08080GZ Industrial Supplies is the distributor and supplier of Ingco Tools and equipment in Nigeria. Our INGCO Spirit Level 80cm HSL08080 is a high-quality measuring tool designed for accurate and reliable leveling.
This spirit level features a sturdy aluminum body that is both lightweight and durable, making it suitable for use in various construction, woodworking, and DIY projects.
A spirit level gets its name from the mineral spirit solution inside the levels.
Typically, the vials in a spirit level are a yellowish-green color with additives for UV protection and maximum performance in temperatures ranging from -20 degrees F to 130 degrees F.
The vials are protected with durable acrylic covers to prevent damage and ensure longevity.
MULTIFUNCTION LASER LEVEL: Laser level tool cool gadgets for men Works For Indoor Designed for any situation where accurate measurements are needed, such as hang shelves, cabinets, tiles and picture frames with accuracy. All The Job That Requires A Straight Line Or Accurate Measurement.
EASY TO OPERATE: Laser leveler tool herramientasis designed with one slider selection button in the front to make it easy for everyone to use. It control the vertical laser line, horizontal laser line and cross laser line mode switching,suitable for different usage modes,and accuracy is more accurate and stable. Such as,laser level for picture hanging.
3 PRONGED APPROACH: Laser level tool tools for men with one Level (0 & deg;), one plumb (90 & deg;), and one 45 & deg; bubble for determining horizontal and vertical plane. To provide more accurate results.
8 FEET Measuring Tape: Laser level matey measure tool comes loaded with an 8-foot measure that includes imperial and metric linear measures, with graduations down to 1/32" and 1mm.
