OUTDOOR PROFESSIONAL LEVEL TOOL: With 32X magnification lens and large aperture, the AL-32X Automatic Optical Level allows you to work within a range of 393Ft for sharper image without issues even in low light conditions. The level tool adopted high-speed lens in high quality imaging that ensures accurate measurements. The level offers excellent accuracy of 1/16" at 100Ft and the standard deviation per Km ( double run leveling ) can reach 1.0 mm.
Professional Features:
- The Huepar al-32x Automatic Optical Level has three measuring functions for height/distance/Angle measurement.
- It can meet various indoor and outdoor environment measurements, such as construction site, railway engineering, ship engineering, mountain mapping, mineral exploration, civil engineering and so on.
- Magnetic Dampening System: The magnetic dampening compensator can quickly settle the system and reduce the effects of job site vibration.
- Transport Lock: The lock-out device protects pendulum in carrying case against damage and loss of calibration.
Specifications:
- Magnification: 32X
- Clear Objective Aperture: 36mm; Working Range: 393Ft.
- Leveling Accuracy: 1/16" at 100Ft.
- Leveling Type: magnetically dampened compensator
- Compensator Setting Accuracy: ±0.3”
- Deviation for 1 km Double Run Leveling: 1.0mm
- Telescope Image: erect
- Minimum Measuring Distance: 1 feet; Field of View: 1°30’
- Compensator Leveling Range: ±15’
- Stadia Ratio: 100; Stadia Addition: 0
- Accuracy of Circular Vial: 8’/2mm
- Horizontal Circle Graduation: 1°
- Tripod Mount Thread: 5/8”
- IP Rating: IP54

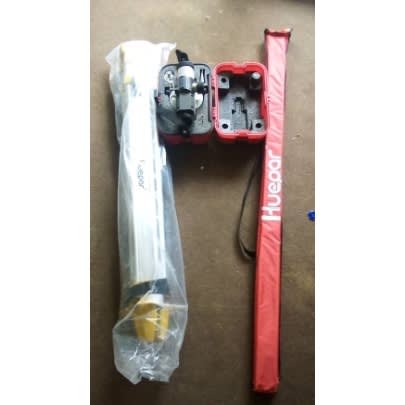

Items in the Package:
- 1 x Huepar 32x Automatic Optical Level
- 1 x Hard Carrying Case
- 1 x Adjusting Pin
- 1 x Allen Wrench
- 1 x Plumb Bob
- 1 x User Manual
- 1 x Tripod Stand
- 1 x 5m Leveling Staff
