Brand |
KDK |
Warranty Period |
3 Months |
This device is used to:
Plumb and Align: Walls, Doors, Frames, Stud Beams, Windows and Skylights; Level Electrical Outlets; Stud and Curtain Wall plumbing, HVAC, Plumbing Pipe Installation. ; Easily Lay Out Right Angles; Establish Diagonals and Footings for Decks, Porches and Patios; Grade Determination; Dray Wall Installation.
Features:
1. A laser straight line is emitted on the surface of the object, and the straight line can be at any angle. It can be operated in single line and double line at an angle of 90 degrees
2. Suitable for woodworking, stair starting board, shelf, forming, tile laying or any other work requiring accurate alignment.
3. Double bubble water leveler is used for accurate alignment of plane or straight. The recyclable i-needle keeps it stationary when working in a straight line.
4. On / off switching device.
5. This is a laser square specially designed for craftsmen. It maintains the characteristics of the original square and outputs two extended 90 ° right angle laser chalk lines, which can significantly extend the length of the square. The marking angle can also be changed according to the angle scale, which saves the time of angle measurement and marking. It is an effective tool for angle setting out.

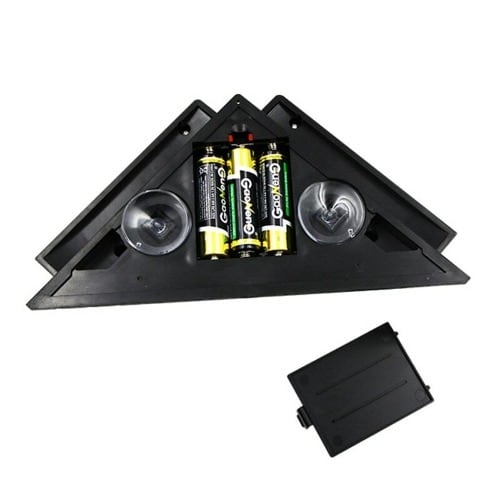

6. With 2 suction cups
Specifications:
Laser Wavelength: 650nm
Laser class: Class III
Anti-Dust & Anti-Water:IP-54
Accuracy: ±3/8"/100ft
Actual test distance: 10M
Application range: 2m
Emission angle: 90 degrees
Self-leveling range: ±4°
Power: 3 X AAA1.5V batteries(Included)
Size:190x104x49mm
Packing List

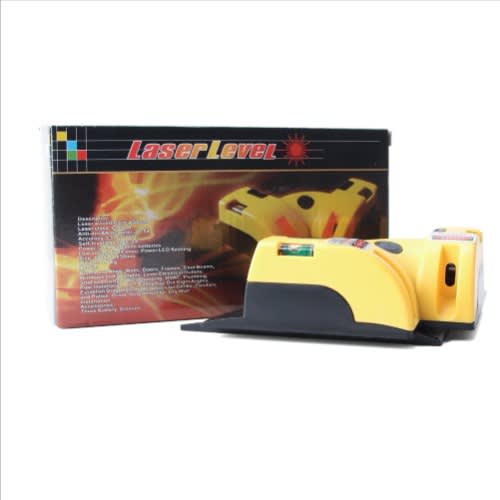

1 1*90 Degrees Laser level
2 3*1.5V (AA) Alkaline batteries
