Extremely robust – ideal for outdoor use
Applications: Determine cut and fill rates to make sure a job site is level, and determine how much higher a building is in relation to the street, gutters and drainage ditches.
Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)
Robust design with built-in target collimator and integrated circular vial
Compensator lock for safe transport
Target collimator for rough alignment
Penta prism makes it easy to read the circular vial
Large focusing knob for easy alignment
Fast aperture for excellent staff reading
High precision (1.6 mm/30 m) over long distances
Endless degree/angle setting using knobs on both sides with friction-braked rotation
Erect image
Set up of the optical level in 6 steps:
1. Mount the tool on the tripod and center it over a point in the ground.
2. Align the optical level with the three leveling screws so that the air bubble is positioned in the center of the circular bubble vial.
3. Focus the telescope.
4. Target the goal with the collimator.
5. Turn the focusing knob for a sharp image.
6. Position with the horizontal drive.
Technical Specifications:
Unit of measure - Degrees
Magnification - 26 x
Leveling accuracy - 1 mm at 30 m
Working range - 120
Dust and splash protection - IP 54
Tripod thread - 5/8"
Operating temperature - -10 – 50°C
Storage temperature - -20 – 70°C
Length - 215
Width - 135
Height - 145
Weight, approx. - 1.7kg

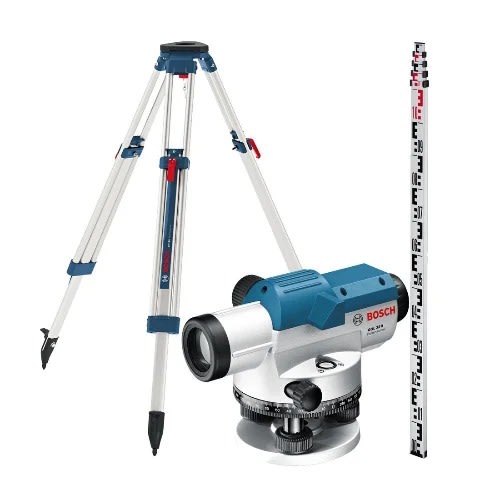

1 x BT 160 160cm Tripod
1 x GR500 500cm levelling rod
1 x Plumb bob
1 x Allen key
1 x Adjusting pin
1 x Carrying cases
1 x Lens cover
