Features of lenvii C100 red light scanner:

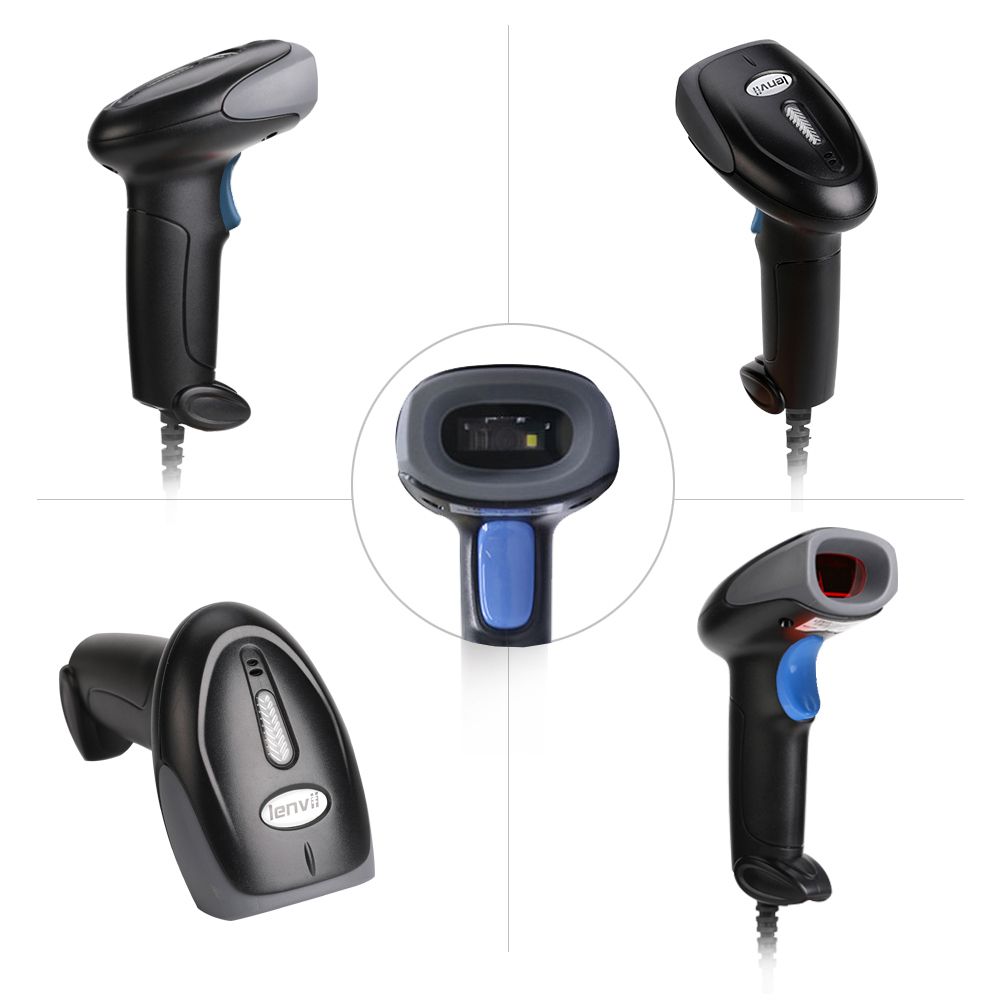

● Ergonomic design, more comfortable operation
● High and low temperature resistant wire, longer life

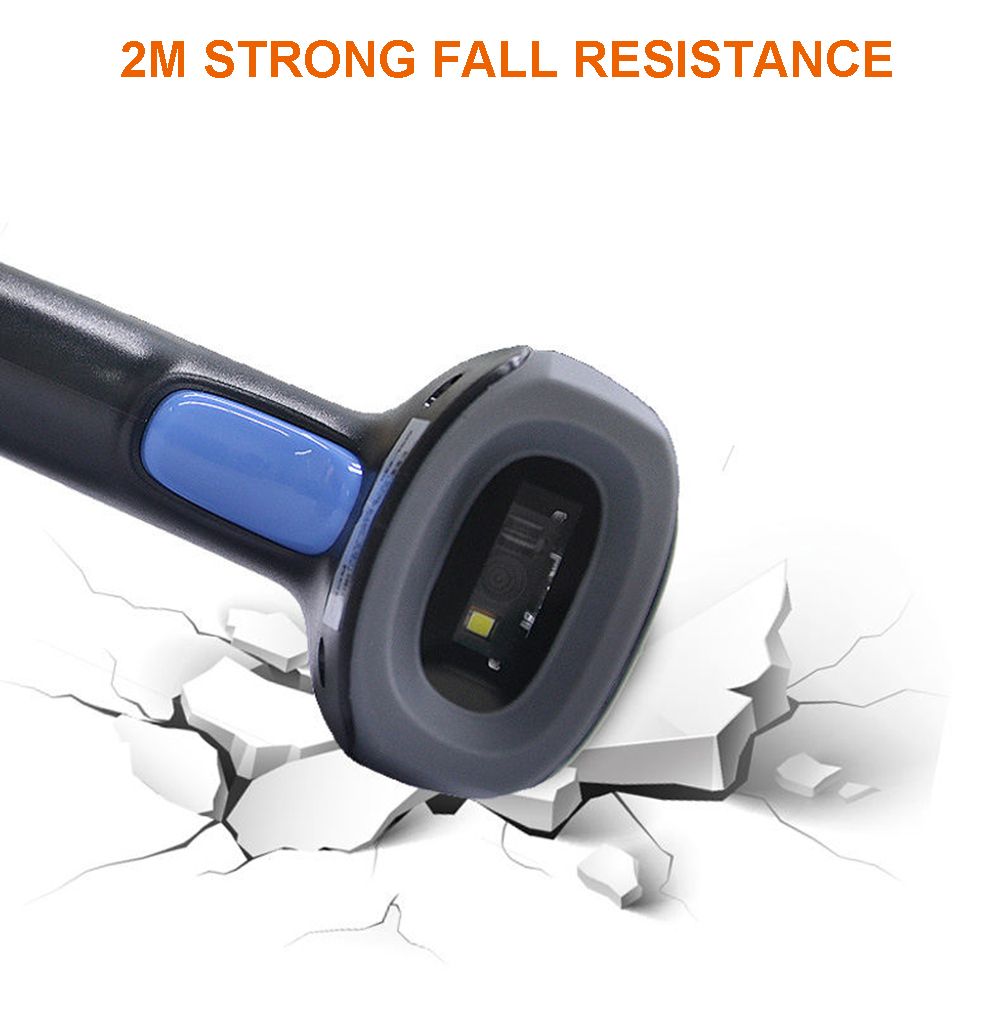

● Modular design, easy to assemble and more resistant to falling
● Support paper barcode, screen scanning function
● High-performance decoding, able to recognize various complex one-dimensional codes
● LED indicator and buzzer sound for quick feedback on code reading experience

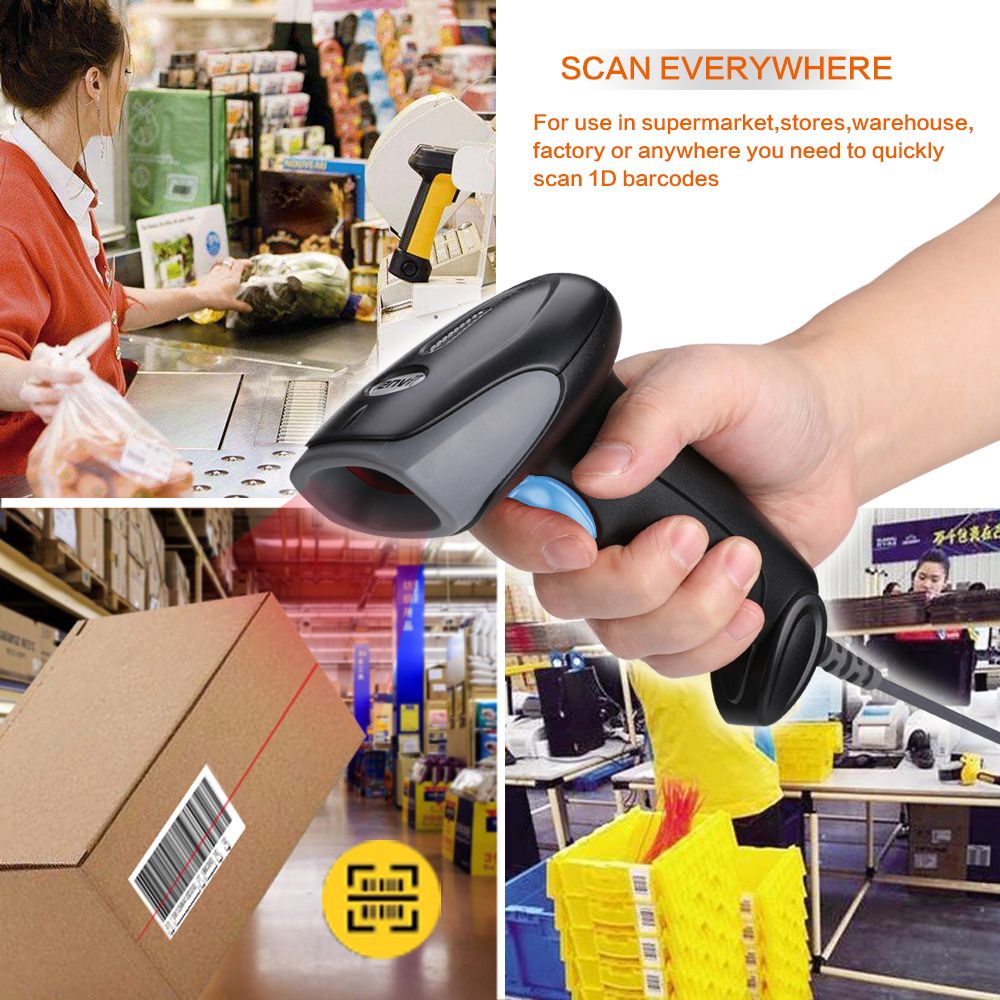

Application areas: mainly used in commercial, medical, tobacco, some industries, etc.
Technical parameters / working parameters:
Light source: 4500nm high-intensity laser diode
Scanning distance: 40-200mm @ UPC/EAN 13mil PCS=90%; 20-250mm @ QR 20mil PCS=100%
Scanning Angle: Elevation 65° / Rotation 30° / Declination 55°
Number of scan lines: single line
Minimum resolution: 0.1mm(4mil)@Code 39, PCS=90% (3mil can be customized)
Printing Contrast: Greater than 30% (UPC/EAN 100%)
Reading tips: blue LED lights, buzzer
Communication interface: HID USB, USB Virtual COM, RS-232 serial port
physical parameters
Line length: straight 1.8 meters
Power parameters
Input voltage: 5VDC±10%
Working current: 170mA
Environmental parameters
Working temperature: 0℃~+50℃
Working humidity: 5%~95% non-condensing
Storage temperature: -20℃~+60℃
Ambient brightness: 0~4,000Lux (fluorescence), 0~100,000Lux (daylight)
safety regulations
EMC: CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI
Laser Safety: CDRH Class IIa, IEC 60825-1 Class 1

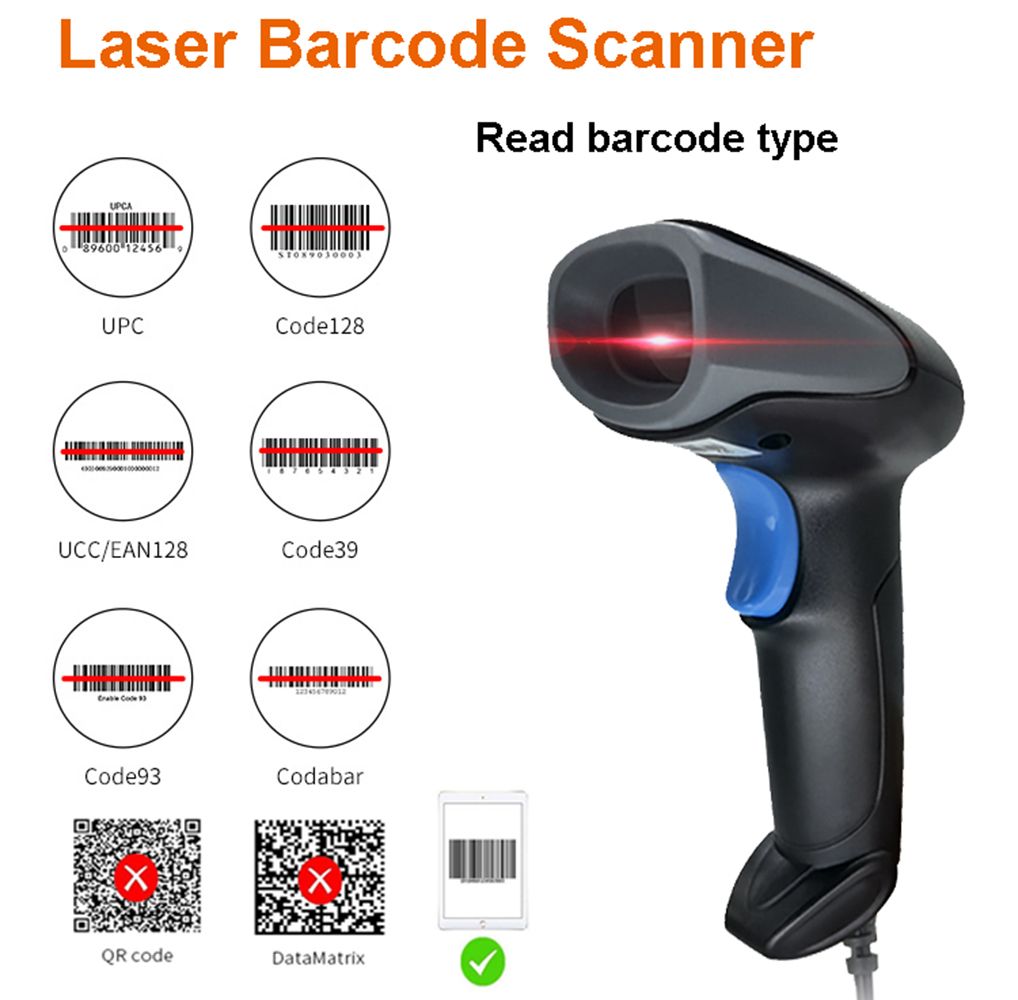

Decoding type:
1D: UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 & JAN-13,
ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacopoeia), RSS 14, RSS
Limited, RSS extension
Key Features

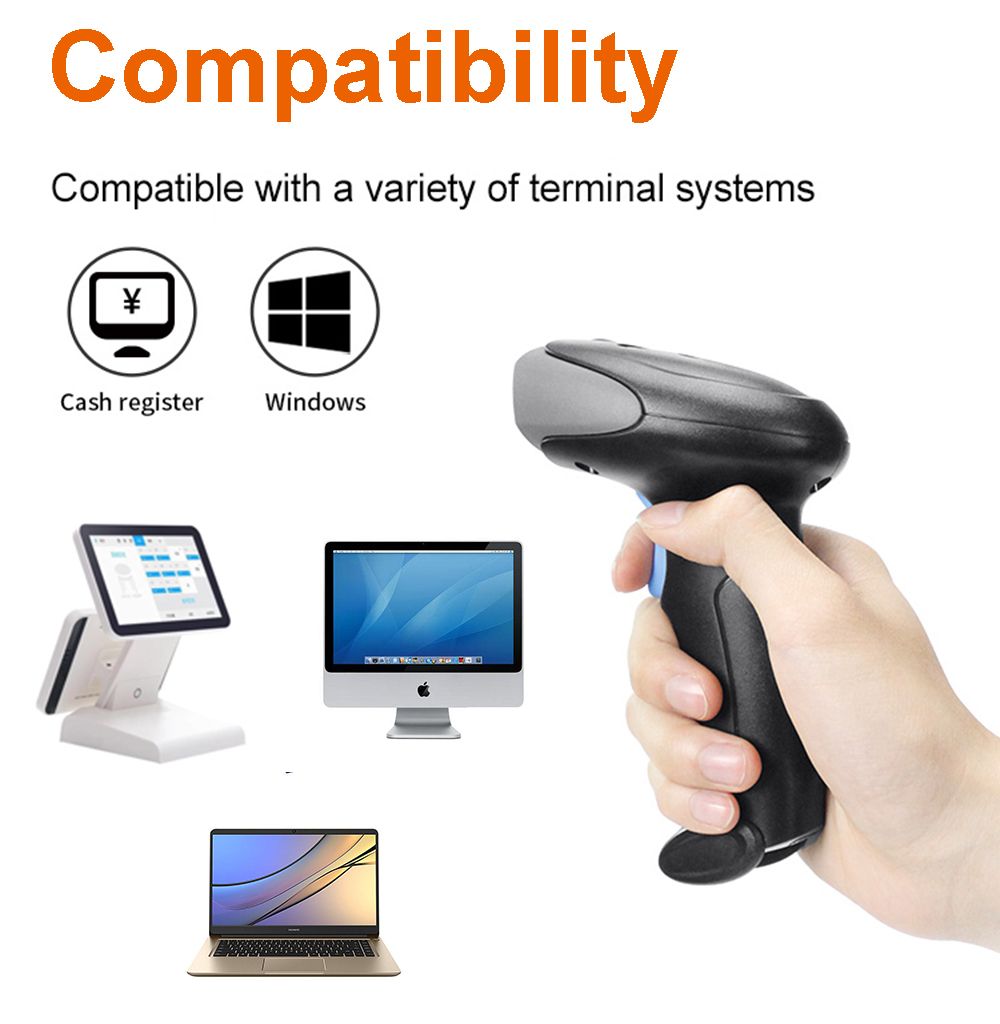

The scanner can be connected to a computer, laptop and other devices. The scanner is compatible with Windows, Mac OS, Linux, Unix and other systems;
Passed CE, FCC, RoHS three certifications, it is a barcode scanner that meets international safety standards;
Scanner type: bidirectional, scan rate: 100 scans per second;
Support interface: USB, cable type: 1.5M;

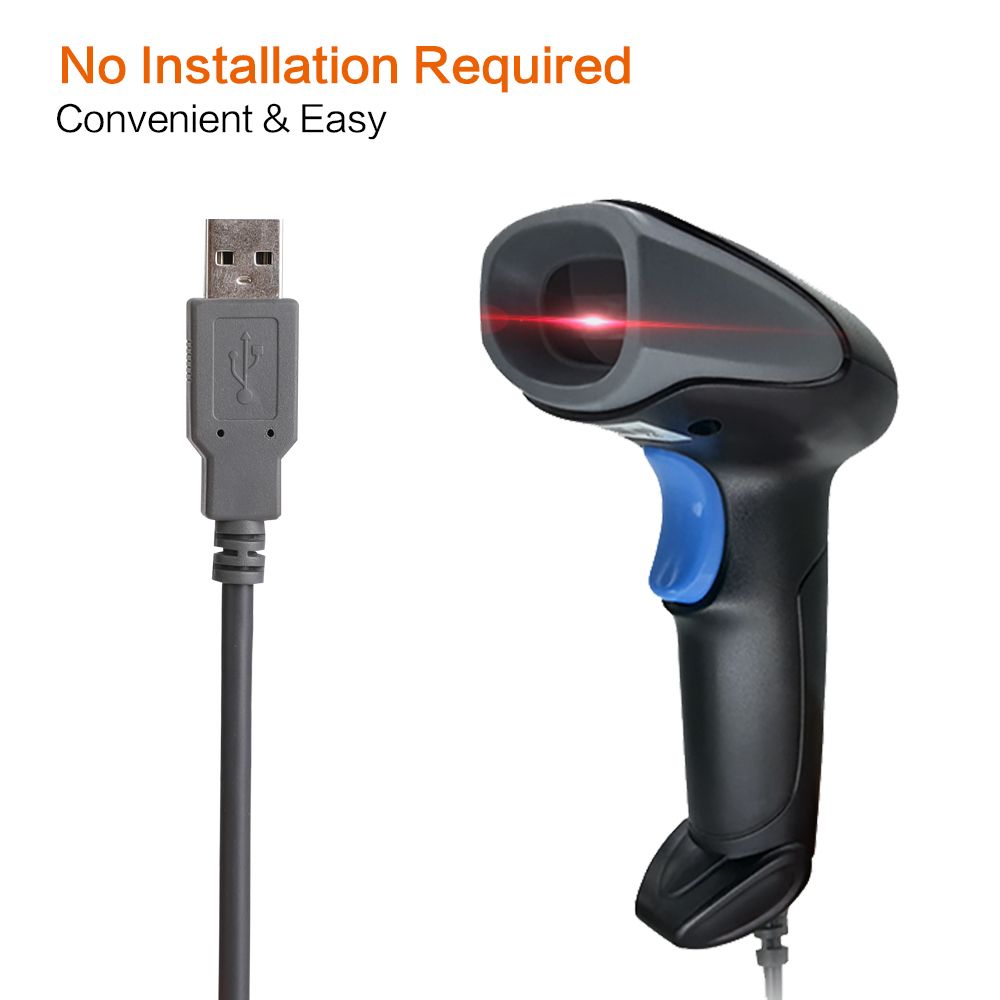

Wired handheld USB 1D red light barcode scanner;
What's In the Box
C100 Scanner*1USB cable*1Product manual*1
