Features:▶ Desktop Barcode Scanner: Portable desktop hands-free design, improve the working efficiency. Super and sensitive decoding speed, make the mobile payment more easily.

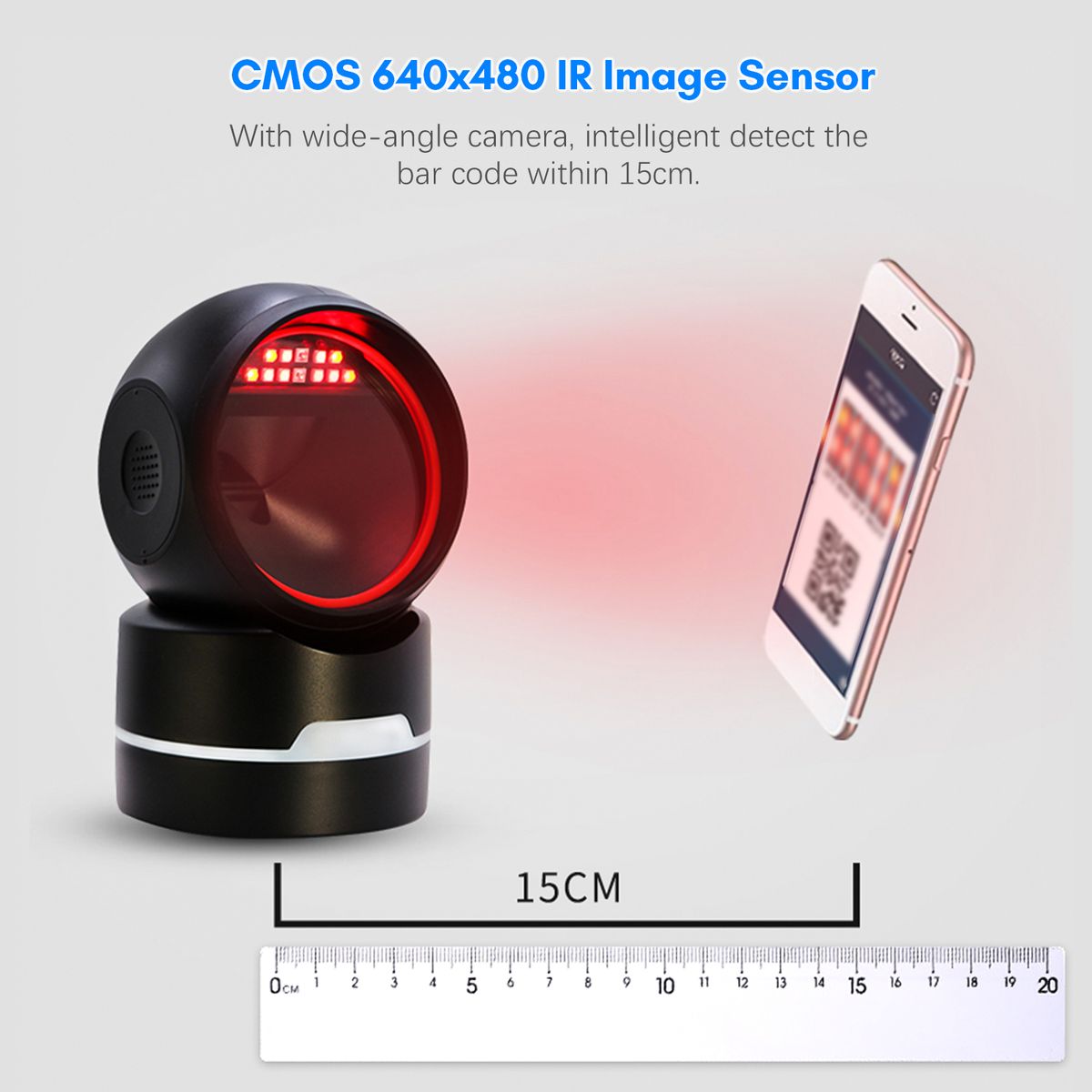

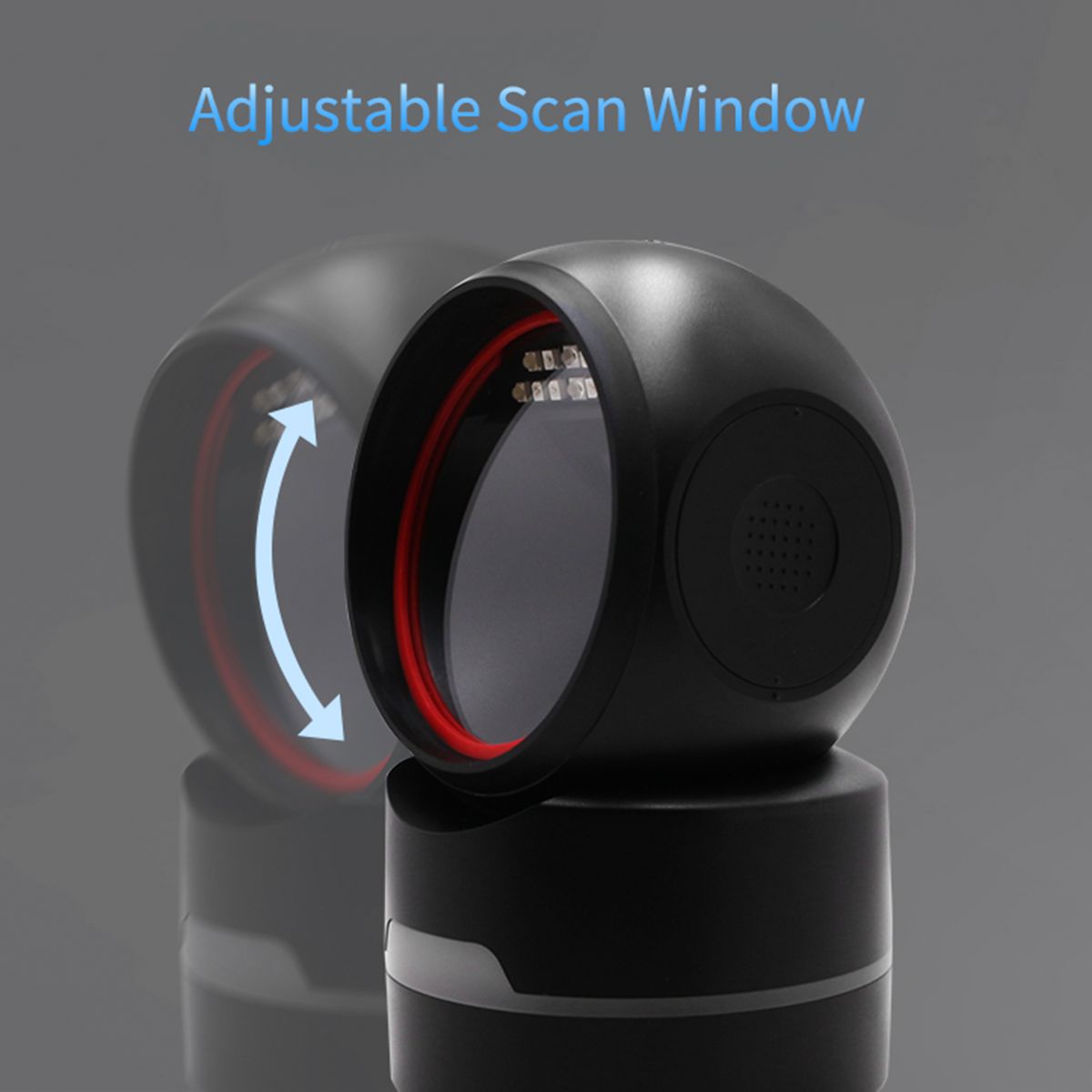

▶ IR Sensor: Adpopt CMOS 640x480 Image sensor, with wide-angle camera, intelligent detect the bar code within 15cm. scanning speed no matter in the dim light environment or strong light environment. The scanning head can be rotated up and down fine-tuning to adapt to a variety of environments. Once it senses that there is a barcode in front, it will quickly light up for scanning.
▶ Powerful Barcode Identification Ability: support 1D barcode - (Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, GS1 DataBar, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Straight 2 of 5 IATA, MSI Plessey); 2D - (Aztec Code, HANXIN, Maxicode, Codablock F, Data Matrix Code ( DPM), PDF417, Micro PDF417, QR Code, Micro QR Code, DOT Code, Grid Matrix Code)
▶ Plug and Play: No need for any driver or software. Easy installation with USB cable. Compatible with Linux, Windows XP/7/8/10 system, MACOS and Android system. We can upgrade the MP6800 through online firmware update.
▶ Wide Application: Available to use in supermarket, retails stores, restaurants, clothing store, chemist's shop, library, warehouse and other fields.
Specification:Model: 6800
Size: 88(W)x86(D)x139(H) mm
Weight: 260g
Color: Black
Interface: USB
Image Sensor: CMOS 640*480
Light Source: Red LED + Infrared LED
Scan Angle: Skew±60° Pitch±60° Roll 360°
FOV: D=56° H =42° V =33°
Resolution: ≥3.9mil
Minimum Print Contrast: ≥20%
Decode Capacity:
1D: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, GS1 DataBar, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Straight 2 of 5 IATA, MSI Plessey
2D: Aztec Code, HANXIN, Maxicode, Codablock F, Data Matrix Code ( DPM), PDF417, Micro PDF417, QR Code, Micro QR Code, DOT Code, Grid Matrix Code
Voltage: 5 VDC± 5%
Current (Typical): 270mA ( 5 VDC)
Current(Max): 320mA ( 5 VDC)
Standby Current: 170mA ( 5 VDC)
Consumption(Typical): 1350mW
Country Keyboard Layout: Multiple Country Keyboard Layout
Indicator: LED, Beeper
Package Size: 17.8x16.8x12cm/7x6.6x4.7in
Package Weight: 500g/17.6oz
Packing List:1 x Barcode Scanner
1 x USB Cable
Key Features
▶ Desktop Barcode Scanner: Portable desktop hands-free design, improve the working efficiency. Super and sensitive decoding speed, make the mobile payment more easily.
▶ IR Sensor: Adpopt CMOS 640x480 Image sensor, with wide-angle camera, intelligent detect the bar code within 15cm. scanning speed no matter in the dim light environment or strong light environment. The scanning head can be rotated up and down fine-tuning to adapt to a variety of environments. Once it senses that there is a barcode in front, it will quickly light up for scanning.
▶ Powerful Barcode Identification Ability: support 1D barcode - (Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, GS1 DataBar, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Straight 2 of 5 IATA, MSI Plessey); 2D - (Aztec Code, HANXIN, Maxicode, Codablock F, Data Matrix Code ( DPM), PDF417, Micro PDF417, QR Code, Micro QR Code, DOT Code, Grid Matrix Code)
▶ Plug and Play: No need for any driver or software. Easy installation with USB cable. Compatible with Linux, Windows XP/7/8/10 system, MACOS and Android system. We can upgrade the MP6800 through online firmware update.
▶ Wide Application: Available to use in supermarket, retails stores, restaurants, clothing store, chemist's shop, library, warehouse and other fields.
What's In the Box
1 x Barcode Scanner,1 x USB Cable,
