Item Weight 4.05 poundsProduct Dimensions 6 x 8 x 8 inchesCountry of Origin ChinaASIN B08NYK33B5Item model number APLTWDU-HECustomer Reviews
4.0 out of 5 starsBest Sellers Rank #33,547 in Musical Instruments ()#265 in Date First Available November 21, 2020About this itemA special edition of UA's esteemed Apollo Twin USB interface & mdash; with a premium suite of 5 award-winning plug-in titles from Teletronix, Pultec, and UA & mdash; a $1,300 valueUAD DUO Core Processing for tracking through vintage compressors, EQs, tape machines, mic preamps, and guitar amp plug-ins with near-zero latencyWorld-class Apollo A/D and D/A conversion and USB 3 connection for modern Windows systemsUSB 3 connection for modern Windows systemsUnison technology provides stunning models of classic mic preamps and guitar amps2 premium mic/line preamps, 2 line outputs, front-panel Hi-Z instrument input and stereo headphone output2 analog monitor outputs for full resolution at all listening levels.A Special Edition of Universal Audio's Esteemed Apollo Twin USB Interface, with a Bundled UAD Plug-In Package Worth over $1,300. Apollo Twin USB Heritage Edition has all the benefits of the acclaimed Apollo Twin USB, including impeccable 24-bit/192kHz audio conversion, DUO Core realtime UAD plug-in processing, and Unison preamp technology. And it goes a step further, with a software suite of 5 award-winning UAD plug-in titles, featuring Collections from Teletronix, Pultec, and UA.Technical DetailsProduct Dimensions & lrm;22.86 x 20.32 x 20.32 cm; 1.95 KilogramsItem model number & lrm;APLTWXD-HECompatible Devices & lrm;Personal ComputerSize & lrm;DUOItem Weight & lrm;1.95 kg
Audient Id44 (mkii) 20in 24out Audio Interface.
Audient iD44 (MKII) 20in | 24out Audio Interface
Integrate your favourite outboard FX prior to conversion and start creating signal chains that rival the very best. The insert returns also gives you direct access to the A/D converters providing the cleanest signal path possible, making it great for print-backs or integrating outboard line level sources.
Designed to replicate the input stage of a classic valve amplifier, iD44 features two harmonically rich JFET Instrument Inputs giving you the perfect sonic foundation for your guitars or basses before you hit your amp sims.
Connect and listen to your mixes through two sets of speakers with iD44 & rsquo;s four line outputs. Alternatively use the extra line outputs to send audio to an external headphone amp for distribution to your artists.
Easily record and collaborate with others by utilising iD44 & rsquo;s two individual stereo headphone amps, both providing more than enough power for your headphones to perform accurately.
Now equipped with Audio Loop-back, iD44 can quickly transform into a multi-purpose powerhouse. Giving you the ability to capture playback from multiple applications on your computer at the same time as your microphones, Audio Loop-back lets you create a custom audio feed ready to send to your streaming software. Ideal for content creators, podcasters and streamers.
iD44 & rsquo;s dedicated talkback technology enables you to use any audio source connected to your computer such as a built-in or USB microphone as your talkback mic, freeing up valuable mic preamps for recording.
Specifications
Microphone preamplifier
MIC GAIN:
0 to +60 dB
LINE GAIN:
-10 to +50 dB
PHANTOM POWER:
48v +/-4v @ 10mA/Channel (12VDC only)
MIC EIN:
-126dBu
CMRR:
& gt;80dB @ 1kHz
MAXIMUM INPUT LEVEL:
+18 dBu
INPUT IMPEDANCE (Mic):
3k & Omega; balanced
INPUT IMPEDANCE (Line):
10k & Omega; balanced
FREQUENCY RESPONSE:
& plusmn;0.5 dB 10Hz to 65kHz
CROSSTALK:
& lt;-90 dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz):
0.003% (-96dBu)
SNR:
96dB
XLR:
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4 & rdquo; TRS JACK:
TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I / Instrument Input (Channel 1):
D.I GAIN:
0 to +60 dB
MAXIMUM INPUT LEVEL:
+10dBu
INPUT IMPEDANCE:
1Meg & Omega; Unbalanced
FREQUENCY RESPONSE:
& plusmn;0.5 dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz):
& lt;0.3%
SNR:
95dB A-weighted
1/4 & rdquo; JACK:
Tip (Hot) & Sleeve (Shield)
Analogue to Digital Converter (ADC 1 & 2):
(Measured via Insert Returns under AES-17)
MAXIMUM INPUT LEVEL:
+18 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:
+18 dBu = 0 dBFS
INPUT IMPEDANCE:
& gt;10k & Omega; Balanced
CROSSTALK:
-115 dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:
& plusmn;0.5 dB 10Hz to Fs/2 (Nyquist)
CROSSTALK:
-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):
& lt;0.0003% (-112dB)
DYNAMIC RANGE:
120 dB A-weighted
1/4 & rdquo; TRS JACK:
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital to Analogue Converter (DAC 1 & 2):
(Measured under AES-17 at line outputs 1 & 2)
MAXIMUM INPUT LEVEL:
+18 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:
+18 dBu = 0 dBFS
OUTPUT IMPEDANCE:
& lt;100 & Omega;
CROSSTALK:
& lt;-118 dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:
& plusmn;0.5 dB 10Hz to Fs/2 (Nyquist)
CROSSTALK:
-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):
& lt;0.0006% (-104dB)
DYNAMIC RANGE:
124 dB un-weighted, 126 dB A-weighted
1/4 & rdquo; TRS JACK:
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Outputs:
(Measured under AES-17 at phones output)
MAXIMUM OUTPUT LEVEL:
+14 dBu (0 dBFS digital maximum)
DIGITAL REFERENCE LEVEL:
+14 dBu = 0 dBFS
OUTPUT IMPEDANCE:
& lt;50 & Omega; unbalanced
CROSSTALK:
& lt;-110 dBu @ 1kHz & 10kHz
FREQUENCY RESPONSE:
& plusmn;0.5dB 10Hz to Fs/2
CROSSTALK:
-115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):
& lt;0.0008% (-103 dB)
DYNAMIC RANGE:
121 dB un-weighted, 124 dB A-weighted
MAX LEVEL INTO 30ohms:
+10.2 dBu 0.002% THD+N Power: 210mW
MAX LEVEL INTO 60ohms:
+14.2 dBu 0.001% THD+N Power: 54mW
MAX LEVEL INTO 600ohms:
+14.2 dBu 0.001% THD+N Power: 54mW
1/4 & rdquo; JACK:
TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital Input:
ADAT 16 CHANNELS:
44.1kHz to 48.0kHz
ADAT 8 CHANNELS (SMUX):
88.2kHz to 96.0kHz
STEREO S/PDIF:
44.1kHz to 96.0kHz
USB2.0 High Speed:
No. of INPUT CHANNELS 20:
20 (4 Analogue, 16 Digital)
No. of OUTPUT CHANNELS 24:
24 (8 Analogue, 16 Digital)
Connector:
USB Type-C
Included Cables:
1.5m USB 2.0 Type-C to USB Type-C, 1.5m USB 2.0 Type-C to USB Type-A
DSP Mixer Latency & ndash; ROUND TRIP (in-to-out):
44.1kHz
0.677ms
48.0kHz
0.625ms
88.2kHz
0.354ms
96.0kHz
0.323ms
Unit: 276mm (w) x 51mm (h) x 174mm (d)
Studio Xl High-end Studio Control And Communication Center
Behringer STUDIO XL High-End Studio Control and Communication Center
Premium, ultra-low noise and high headroom studio control and communication center
All-in-one master volume controller, source selector, monitor switcher and talkback box
2 state-of-the-art, Midas mic preamplifiers with +48 V phantom power
Audiophile 192 kHz 2 & times;4 USB audio interface, perfect for computer-based studios
True VCA control for extremely precise level control and stereo tracking
6 inputs with level controls plus additional aux mix input and USB monitoring from your DAW
3 independent and adjustable monitor outputs to connect up to 3 sets of studio monitors
Versatile talkback options with built-in and external microphone input with footswitch and level control
Convenient mono, mute and dim functions right at your fingertips
2 powerful headphone amplifiers with separate volume controls and source select switches
Zero-latency direct monitoring with controlled blending between direct inputs and cue mix sources
Quick-access aux input to connect your smartphone and music player for reference tracks
High-precision dual LED meters for perfect level overview
Inputs
6
Preamps
2 x Midas designed
Type
2 x XLR / TRS combo connector (mic/line)
Impedance
Mic: 3 k & Omega; / Line: 1 M & Omega;
Line inputs
4 x 1/4 & Prime; TRS, balanced or unbalanced, +4/-10 dB (Input 5/6 only)
1 x 1/8 & Prime; TRS stereo (input 5/6)
Maximum input level
+22 dBu
Talback input
1 x XLR
Footswitch
1 x 1/4 & Prime; TRS
Outputs
5 stereo
Line outputs
10 x 1/4 & Prime; TRS, balanced or unbalanced
Headphone outputs
2 x 1/4 & Prime; TRS stereo
Maximum output level
+22 dBu
Type
Class compliant USB 2.0, type B
Supported operating systems
Windows 10/ Mac OS X 10.14 or higher
Audio
2 in / 4 out
Converter resolution
24-bit
Supported sample rate
44.1, 48, 88.2, 96, 192 kHz
Output level
- & infin; to +10 dB
Talback level
- & infin; to max
Takback destination
2 track or cue
Talkback input
Internal (mic) or external (XLR)
Footswitch
Activates talkback
Phantom power
+48 V (inputs 1/2)
Volume
High-precision stereo tracking VCA volume control 0 & ndash; 100%
Playback controls
Mono, Mute, Dim
Monitor select
A, B, C
Input 1/2
48 V on/off, Stereo on/off, 1/2 (channel select) on/off
Input 3/4
-12 to +12 dB Trim, 3/4 (channel select) on/off
Input 5/6
-12 to +12 dB Trim, 5/6 (channel select) on/off
USB input
USB (channel select) on/off
Muted
-60 dB
Dim
-20 dB
Cue source
Aux Mix, Source, USB 3/4
Studio outs
- & infin; to max, on/off
Direct monitoring
Inputs to Cue blend
Phones 1/2
Level control - & infin; to max, individual source select
Frequency response
20 Hz to 20 kHz ( & plusmn;0.5 dB)
Signal-to-noise ratio
& lt;-90 dBu RMS, un-weighted
Distortion (THD+N)
& lt;0.01% @ 1 kHz, unity gain, 4 dBu input
Crosstalk
& lt;-60dB @ 1 kHz, unity gain, 4 dBu input
Mains voltage
100-240 V, 50/60 Hz
Power supply
12 V DC 2000 mA
Power consumption
18 W max
Standard operating temperature range
5 & deg; C & ndash; 45 & deg; C (41 & deg; F & ndash; 113 & deg; F)
Dimensions (H x W x D)
80 x 328 x 163 mm (3.15 x 12.91 x 6.42 & Prime;)
Weight
1.8 kg (3.97 lbs)
Whirlwind PC USB
Whirlwind PC USB
Converts the digital audio from USB outputs to high quality analog, stereo, balanced audio for easy connection to PA systems, mixing boards, etc.
Specs:
Max output: -3.4 dBV balanced with 0 dBfs input
Supported sample rates: 32 kHz, 44.1 kHz, 48 kHz
Input pad attenuation: -20 dB
Hosa-Tech Desktop Microphone Stand MST-224
Ideal for the streamers, content creators, and podcasters using multiple locations or shifting setups, the Hosa Desktop Microphone Stand is portable and light. The tripod base is designed to be low-profile without taking up too much desktop space.
& bull; Foldable tripod base for easy travel & bull; Die-cast steel for durability & bull; Rubber feet provide stability and protect surfaces
Height: 110-168 mm

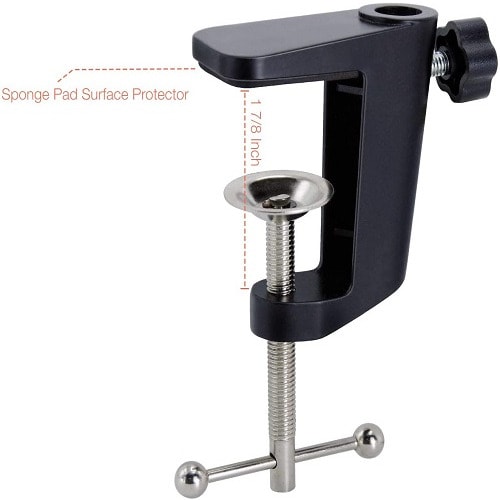

Hosa-Tech Desktop Microphone Boom Arm MSB-265
Hosa-Tech Desktop Microphone Boom Arm MSB-265
Ideal for the streamers, content creators, and podcasters using a static location, the Hosa Microphone Boom Arm utilizes a sturdy C-Clamp that easily attaches to most desks or tables. The angle can be quickly adjusted for any sitting or standing position.
& bull; Scissor Arm for easy adjustments & bull; Adjustable angle from 0 to 160 degrees for versatility & bull; All metal construction for durability
Nektar Impact GXP61 USB MIDI controller
NEKTAR DAW INTEGRATION:GIVE YOUR MOUSE A BREAK!
Install Nektar DAW Integration and the 8 buttons right above the wheels let you take control of essential tasks in your DAW right from Impact GXP. Features cover extended transport control including goto and set locators, track navigation, volume control, launching windows and patch navigation & ndash; without ever reaching for the mouse.
NEKTARINE: YOUR VIRTUAL KEYBOARD WORKSTATION
Of course you can use Impact GXP like any other standard MIDI controller with all the features you & rsquo;ve come to expect. But if you install the included Nektarine plugin host and librarian software, you can do a lot more:
Nektarine lets you switch complex setups like on a live keyboard workstation including zones, layers and more; build multipatches from multiple instrument and effects plugins and have them available at the press of a button. Nektarine adds powerful control features for your VST, VST3 and AU instrument plugins to Impact GXP!
Launch Nektarine in your DAW and it immediately communicates with your Impact GXP: Now you are ready to create Multis with up to 10 instrument plugins, each with up to 4 insert FX plugins each and additionally 4 global send FX. All of this is stored in one Multi Patch and can be assigned to one of GXP & rsquo;s ten RGB-illuminated front panel buttons for instant recall.
Just want to play? Simply run the also included Nektarine stand-alone app and play your plugins without running any DAW. The Nektarine app turns Impact GXP into a stage-ready live keyboard serving up all your virtual VST, VST3 and AU sound sources!
DAW INCLUDED:STEINBERG CUBASE LE
Impact GXP includes licenses for Steinberg & rsquo;s acclaimed Cubase LE Music Production Software and Retrologue 2 VST synthesizer. So you can start producing music like a pro from day one. To claim your free DAW and virtual synth, register your Impact GXP in your Nektar user account and follow the instructions.
Cubase LE comes with Halion Sonic SE including 180 instrument presets and Groove Agent SE drum production software as well as a host of VST FX processors. Cubase LE lets you record on up to 24 MIDI, 8 instrument and 16 audio tracks. You can use any 3rd party VST plug-ins you might own, too. Over 5GB of sounds and loops provide you with all you need to get started.
Nektar DAW Integration makes Nektar Impact GXP and Cubase LE a fantastic combination, and lets you experience remote control direct from the hardware. The Nektarine plugin host and librarian software is of course also compatible and adds additional power to this setup.
If you are just starting out, you will find it & rsquo;s the perfect way to take your first steps in the world of digital music creation. And if you & rsquo;re already familiar with using computer software, then you & rsquo;ll be amazed at what this combination has to offer! To claim your free DAW and virtual synth, simply register your Impact GXP in your Nektar user account and follow the instructions.
HIGHLIGHTS
& bull; Audio/MIDI recording, editing, scoring and mixing tools & bull; 24 MIDI, 8 instrument & 16 audio tracks with up to 24-bit/192 kHz & bull; Includes Halion Sonic SE with GM compatible set of 180 instrument presets & bull; Includes Groove Agent SE drum production tool for amazing beats & bull; 23 audio VST FX processors including modulation, delay, dynamics and EQ & bull; Over 5GB of sounds and loops
FEATURES & SPECIFICATONS
IMPACT GXP 49, 61 & 88
49, 61 or 88-note full-sized keybed with velocity and aftertouch
14 RGB LED buttons for MIDI, note repeat and Nektarine features
Pitch Bend and Modulation Wheels
1 push encoder for note repeat tempo control and Nektarine features
Octave up/down buttons with LED indicators
Transpose up/down buttons with LED indicators. Assignable to other functions.
Power on/off switch
9v DC power supply socket(9V, 600 mA, center positive, 2.1 mm barrel connector, PSU optional)
USB port and USB bus powered
7 transport buttons for DAW integration or MIDI assignable
Shift button activates secondary level for a total of 14 accessible buttons
1 MIDI assignable potentiometer
Note Repeat button with LED tempo indicator
Note Repeat Function button
1/4 & ldquo; TRS jack expression pedal socket (pedal not included)
1/4 & rdquo; TRS jack Foot Switch socket for connection of up to 2 standard foot switches (not included, dual mode requires optional Y-cable adapter)
MIDI Output jack
Nektar DAW integration support*
Nektarine plugin control and patch librarian software support*
Nektar DAW Integration for Impact GXP88 currently supports: Bitwig, Cubase, Digital Performer, Garageband, Logic, Nuendo, Reaper, Reason, Sonar, Studio One
NEKTARINE SOFTWARE
AAX, AU, VST or VST3 plugin version and stand-alone application for OSX & Windows
Load any VST, VST3 and AU instrument plugins
Up to 16 instrument slots
Create layers, splits & zones with direct selection of 10 instrument slots from GXP
Each instrument slot with volume, pan, mute/solo, FX sends 1-4 controls
4 effect insert plugin slots per instrument (AU / VST / VST3 FX)
4 send effect plugin slots (AU / VST / VST3 FX)
Store instrument & FX plugin patches + Nektarine Multi-Patches
Browser Settings are remembered per plugin slot
Patch-management with control from GXP
Full parameter feedback: button colours updated in real-time
Multi-Patch with settings save as & lsquo;Default & rsquo; load as default & ndash; all browser settings can be saved with tags for slots tags.
SYSTEM REQUIREMENTS
USB class compliant (no driver needed)
GXP: Windows XP, Vista, 7, 8, 10 or higher.Mac OS X 10.5 or higher, Linux (Ubuntu).
Nektarine and Nektar DAW Integration: Windows 7/8/10 or higher. Mac OS 10.7 or higher.
WEIGHT & DIMENSIONS
GXP49:80,5cm (L) x 23 cm (D) x 7,2 cm (H), 4 kgs
GXP61:96,5cm (L) x 23 cm (D) x 7,2 cm (H), 5 kgs
GXP88:134,5 cm (L) x 23 cm (D) x 7,2 cm (H), 8,2 kgs
IN THE BOX
Impact GXP USB MIDI Controller keyboard
User Guide
Standard USB cable
Steinberg Cubase LE DAW license*
Steinberg Retrologue VST-Synthesizer Plugin license*
NEKTAR AURA BEAT COMPOSER
HARDWARE
16 RGB color illuminated velocity- and pressure-sensitive pads
8 heavy duty potentiometers (360 degrees, endless)
TFT colour display with 320 & times;240 px including 4 soft buttons
16 RGB LED buttons
8 Nektarine buttons for direct access to Patches, Mixer, Pad Setup, Plugins and more
6 mode buttons
7 Transport Buttons with LED illumination
Fully MIDI-programmable pads, switches and pots
16 Presets for storing all internal settings (not required when using Nektarine)
Rugged housing with aluminium top
MIDI Out connector
1/4 & Prime; TRS footswitch socket (for up to 2 footswitches using optional Y-adaptor)
USB connector
PSU connector (9V DC / 600 mA, center positive. PSU not included)
Kensington Lock connector
30,1 cm (L) x 23,1 cm (D) x 4,5 cm(H), 1,4 kg
AURA: USB class compliant (no driver needed) works with Windows XP, Vista, 7, 8, 10 or higher. Mac OS X 10.5 or higher, Linux (Ubuntu)
Nektarine and Nektar DAW Integration: Windows 7, 8,10 or higher. Mac OS X 10.7 or higher
Stores 16 Collections of 16 Patterns each
Each Pattern with up to 4 parts for a total of up to 64 steps
Dedicated programming interface with 16 RGB buttons and parts selection buttons
Real-time performance features (solo, mute, instant start options and more)
Trigger sequencer parts in any combination at any time
Independent settings per part (play rate, step length, velocity, accent, gate, swing and more)
Extensive editing features all the way down to step level
Internal and external clock operationLatch automation on/off
8 adjustable real-time parameters incl. note length, accent level and interval and repeat rate
Dedicated Repeat rate settings & activation buttons
Display soft button for instant assignment of pressure to velocity
Tap tempo feature
Internal and external clock operation
AAX, AU, VST or VST3 plugin version and stand-alone application for OSX & Windows
Load any VST, VST3 and AU instrument plugins
16 instrument plugin slots
Each instrument slot with choke, volume, pan, mute/solo, sends 1-4 controls
4 effect insert plugin slots per instrument (AU / VST / VST3 FX)
4 send effect plugin slots (AU / VST / VST3 FX)
Store instrument & FX plugin patches + Nektarine Multi-Patches
Browser Settings are remembered per plugin slot
Handles all pad-, plugin- & patch-management with complete control from AURA
Control page editor for customizing Nektar plugin maps or creating new ones from scratch
Full parameter feedback: display updated in real-time
Scale and Chords mode for building tracks
Multi-Patch with Pad settings save as & lsquo;Default & rsquo; load as default & ndash; all browser settings can be saved with tags for slots tag & lsquo;kick & rsquo;, slot 1, etc.
Ableton Live Suite
Apple Logic + Garageband
Bitwig 8-Track + Studio
Cockos Reaper
MOTU Digital Performer
Presonus Studio One
Reason Studios Reason
Steinberg Cubase + Nuendo
Whirlwind ISOXL LINE LEVEL ISOLATION TRANSFORMER
This is a professional quality compact transformer in an XLR male/female tube for quick fix line isolation. The shield is lifted from input to output.
Description
Housed in a high impact nylon casing, our ISOXL outperforms the industry leading inline isolation transformer . Give us a call to find out more!
PreSonus SL-Dante-MIX
The SL-Dante-MIX option card enables any StudioLive AI-series or StudioLive RM-series mixer to join a standard Dante & trade; network. The card houses two Ethernet connections for redundant Dante audio networking, recording and remote control via UC Surface, one S/PDIF output, and two FireWire 800 connections for continuously bidirectional recording and playback. Create a complete, networked audio system using a standard gigabit Ethernet switch and Audinate & rsquo;s Dante digital-media networking technology, which offers no-hassle, true plug-and-play digital audio networking.
sE Electronics Metal Pop Filter
sE Electronics Microphone Pop Screen is a perfect add-on for a productive vocal recording session. The metal pop filter made from finely perforated metal, each groove in the Studio Mic Pop Screen is louvered to redirect ultra-low-frequency breaths, virtually eliminating the threat of plosive pops. The sE Studio Mic Pop Screen does not color your sound in the high-frequencies the way cloth pop filters do, never dulling your sound. Premium performance from the sonically transparent metal of the Pop Screen louver pattern that diverts air away from the mic element with a 13 & Prime; flexible goose neck with an adjustable clamp.
sE Electronics Microphone Pop Screen is a perfect add-on for a productive vocal recording session. The metal pop filter made from finely perforated metal, each groove in the Studio Mic Pop Screen is louvered to redirect ultra-low-frequency breaths, virtually eliminating the threat of plosive pops. The sE Studio Mic Pop Screen does not color your sound in the high-frequencies the way cloth pop filters do, never dulling your sound. Premium performance from the sonically transparent metal of the Pop Screen louver pattern that diverts air away from the mic element with a 13 & Prime; flexible goose neck with an adjustable clamp.
It's as described. My Rode NT2A is a little heavy for it, bu I can pretty much position the microphone however I want depending on how I manoeuvre the arms of the stand. I'm quite satisfied.
It's as described. My Rode NT2A is a little heavy for it, bu I can pretty much position the microphone however I want depending on how I manoeuvre the arms of the stand. I'm quite satisfied.
