Behringer Ha8000 8 Channel High-power Headphones Mixing And Distribution Amplifier
Behringer HA8000 8 Channel High-Power Headphones Mixing and Distribution Amplifier
The POWERPLAY PRO-8 HA8000 is a professional, high-power multi-purpose 8-channel headphone distribution amplifier that features 8 independent stereo high-power amplifier sections in one rack space, 2 separate main inputs, 2 headphone outputs per channel and a dedicated direct input for each channel.
Highlights Professional multi-purpose headphones amplifier system for stage and studio applications Eight totally independent stereo high-power amplifier sections in one rack space Two stereo main inputs for two independent mixes, accessible from all eight channels Eight independent direct inputs provide up to eight individual stereo mixes Highest sonic quality with virtually all types of headphones even at maximum volume Output level control and accurate 8-digit LED output meter per channel Mono/stereo switch per channel for more flexibility Behringer HA8000 High-Power 8-Ch Headphone Distribution Amp An articulate headphone mix can make a tremendous difference in the outcome of a recording session. The eight-channel Behringer HA8000 features superior performance, routing and mixing functions to accommodate the most discerning set of ears. When a conditioned mix has to reach multiple listeners, the HA8000 delivers in style.
Altogether Now The HA8000 offers eight totally independent stereo amplifier sections. Each amplifier features its own 8-digit LED output meter and a MAIN IN 1/MAIN IN 2 switch to toggle between the two main input signals.
A MAIN section features a 5-segment LED output meter and MAIN IN 1 and MAIN IN 2 MASTER LEVEL dials. Connections On the back panel you'll find 1/4" output and 1/4" direct input per channel. The back panel also features stereo 1/4" and XLR inputs and outputs so you can connect multiple HA8000 units for even greater listening capacity. Meanwhile, ultra-low-noise 4580 operational amplifiers deliver outstanding audio quality. Great Sound, Great Value When a recording session calls for everyone's heads and ears to be in the game, the HA8000 is essential.
Hearing is believing. Specifications: • Frequency response: 10 Hz to 150 kHz, ±3 dB • Noise: 22 Hz to 22 kHz, >90 dB @ 0 dBu • Dynamic range: 22 kHz to 22 kHz: 110 dB • Distortion: 0.006% typ. @ +4 dBu, 1 kHz, gain 1 • Dimensions: Approx. 1-3/4" H x 19" W x 8-1/2" D • Weight: Approx. 5.19 lbs. Behringer HA8000 High-Power 8-Ch Headphone Distribution Amp BrandBehringer ModelHA8000 Part Number248-6236 UPC689076751179 Product Category Unit of MeasureEA Weight6.8 lbs.
The Behringer POWERPLAY HA8000 is an 8-channel high-power headphone mixing and distribution amplifier designed for stage and studio recording applications.
With two independent stereo main inputs as well as a dedicated direct input on each channel, the unit allows the engineer to prepare a customized monitoring mix for each musician.
Each of the unit's amplifiers can drive loads down to 8 ohms and each features its own 8-digit LED output level meter, Main in 1/Main in 2 select switch, a stereo or dual-mono select switch, and a 1/4" direct input for integrating an additional sound source.

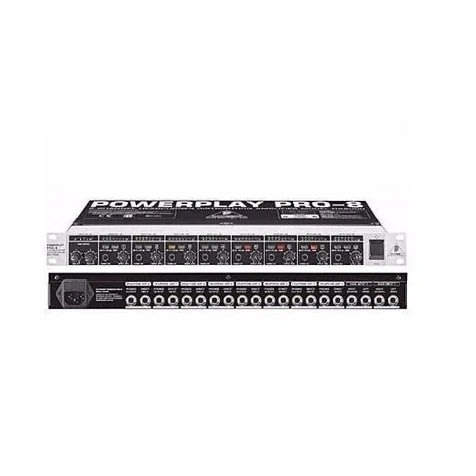

The front panel of each section gives one 1/4" phones out jack per channel. The main section includes a dedicated 5-segment LED input meter, plus Main in 1, and Main in 2 level dials.The back of the unit features an additional 1/4" phones output per channel, which allows a total of 16 pairs of headphones to listen to 8 separate mixes at once.
