Buy 62kva Generator in Nigeria

62kva Generator

₦ 17,563,166.56 ₦ 18,487,543.75 -5%

0 No Reviews

Product SKU: RENG123626

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

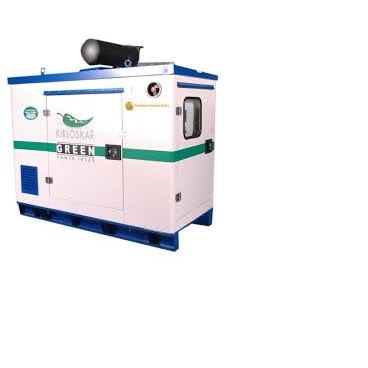

Air and liquid-cooled Gen Sets, Low noise pollution, Low diesel consumption, Low maintenance, Durable and Affordable. with 365 days warranty. It can be used at home and in different organizations. with Kirloskar Generator, you are assured of value for your money.

Product Specifications

Prime Rating at rated rpm ( as per ISO8528)		kVA	40	40	45	62.5	62.5	82.5	100	125	125HD
Prime Rating at rated rpm ( as per ISO8528)		kW	32	32	36	50	50	60	80	100	100
Genset Model			KG1-40AS	KG1-40WS	KG1-45WS	KG1-62.5AS	KG1-62.5AS	KG1-82.5WS	KG1-100WS	KG1-125WS	KG1-125WS HD
Frequency		Hz	50	50	50	50	50	50	50	50	50
Power factor		lagging	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Voltage		V	230 (1Ø) & 415 (3Ø)					415(3Ø)
Governing class (As per ISO 8528 Part-V)			G2	G2	G2	G2	G2	G2	G3	G3	G3
Noise level		dBA	< 75	< 75	< 75	< 75	< 75	< 75	< 75	< 75	< 75
Fuel Consumption*	At 100% Load	Ltrs/hr	9.9	9.2	10.3	16.2	14.1	18.8	21.9	27.4	27.5
	At 75% Load		7.9	7.4	8.7	12.7	11.3	13.8	16.9	20.2	21.4
	At 50% Load		5.8	5.5	5.9	8.9	7.5	9.9	12.2	15.3	15.3
Fuel tank capacity		Ltrs	100	100	100	150	150	230	230	230	50
Weight of genset with canopy (approx..)^	Dry	Kg	1270	1250	1250	1700	1420	1710	2040	2090	2520
Weight of genset with canopy (approx..)^	Wet	Kg	1370	1335	1335	1825	1550	1840	2240	2290	2730
Overall dimensions of genset^	Length	mm	2400	2550	2550	3150	2800	3200	3220	3220	3650
	Width	mm	1050	1050	1050	1200	1100	1100	1300	1300	1350
	Height	mm	1670	1450	1450	1635	1595	1595	1795	1795	1915
Electrical Battery starting voltage		Volts-DC	12	12	12	12	12	12	12	12	12
ENGINE
Engine Model			HA494TCI G1	3R1040TA G1	3R1040TA G1	HA694TCI G1	4R810TA G1	4R810TA G1	4K1080TA G2	4K1080TA G2	6R1080TA G1
Rated output (Prime Continuous rating as per ISO 8528-1)		KW	41.19	41.2	41.2	61	61	74.8	114.7	114.7	114.7
Rated output (Prime Continuous rating as per ISO 8528-1)		HP	56	56	56	83	83	102	156	156	175
No. of cylinder		Number	4	3	3	6	4	4	4	4	6
Cubic capacity		Ltrs	3.77	3.12	3.12	5.65	3.24	4.16	4.32	4.32	6.49
Bore x Stroke		mm	100 x 120	105 x 120	105 x 120	105 x 120	100 x 120	96 x 112	105 x 120	105 x 125	105 x 125
Rated Speed		RPM	1500	1500	1500	1500	1500	1500	1500	1500	1500
Aspiration		NA/TC/TA	TC	TA	TA	TC	TA	TA	TA	TA	TC
Lube Oil change period		Hrs	500	500	500	500	500	500	500	500	500
Lube Oil Sump Capacity		Ltrs	8.3	8	8	11	10	10	14	14	18
Coolant Capacity		Ltrs		11.5	11.5		117.5	24	21	21	28
ALTERNATOR
Insulation Class			Class H
Alternator Efficiency (at 100% load) 0.8 pf**		%	89.2	89.2	89.2	91	91	91.4	92	92.5	92.5
Max Voltage Dip at Full Load 0.8 pf Lag		Sec	< 20%	< 16%	< 16%	< 20%	< 20%	< 20%	< 20%	< 20%	< 20%
Max Time to build up rated voltage at Rated RPM			< 5 sec provided engine reach the rated speed					< Voltage recovery time 6 sec
