Air and liquid-cooled Gen Sets, Low noise pollution, Low diesel consumption, Low maintenance, Durable and Affordable. with 365 days warranty. It can be used at home and in different organizations. with Kirloskar Generator, you are assured of value for your money.

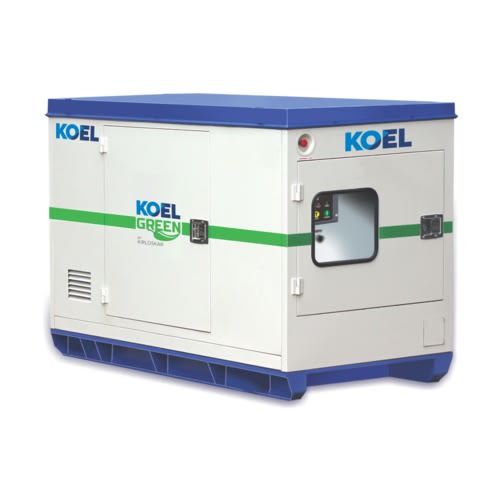

The specifications of the Kirloskar 160 kVA Slim Power Diesel Generator is mentioned below.
Prime Rating at rated rpm ( as per ISO8528)1 kVA 160
kW 128
Genset Model KG1-160WS
Frequency Hz 50
Power factor lagging 0.8
Voltage V 415 3Ø
Governing class (As per ISO 8528 Part-V) G3
Noise level dBA < 75
Fuel Consumption* At 100% Load Ltrs/hr 36.6
At 75% Load 27.7
At 50% Load 19.1
Fuel tank capacity Ltrs 300
Weight of Genset with canopy (approx.)^ Dry Kg 2730
Wet Kg 3010
Overall dimensions of genset^ Length mm 4000
Width mm 1500
Height mm 1915
Electrical Battery starting voltage Volts-DC 12
ENGINE
Engine Model 6K1080TA G2
Rated output (Prime Continuous rating as per ISO 8528-1) KW 147
HP 200
No. of cylinder Number 6
Cubic capacity Ltrs 6.48
Bore x Stroke mm 150 x 125
Rated Speed RPM 1500
Aspiration NA/TC/TA TA
Lube Oil change period Hrs 500
Lube Oil Sump Capacity Ltrs 18
Coolant Capacity Ltrs 28
ALTERNATOR
Insulation Class Class H
Ingression Protection IP 23
Alternator Efficiency (at 100% load) 0.8 pf** 93
Alternator Efficiency (at 75% load) 0.8 pf** 93.3
Permissible Voltage Dip at Full Load 0.8 pf < 20%
Time Permitted to build up the rated voltage at Rated RPM < 1 sec provided engine reach the rated speed
Short Circuit Ratio 0.518
Short Circuit Withstand Time sec 3 times rated current for < 3sec
Overload Withstand Capacity % 10% overload for one hour once in 12 hours & for 150% for 30 sec
