Air and liquid-cooled Gen Sets, Low noise Pollution, Low diesel consumption, Low maintenance, Durable and Affordable. with 365 days warranty. it can be used at home and in different organizations.

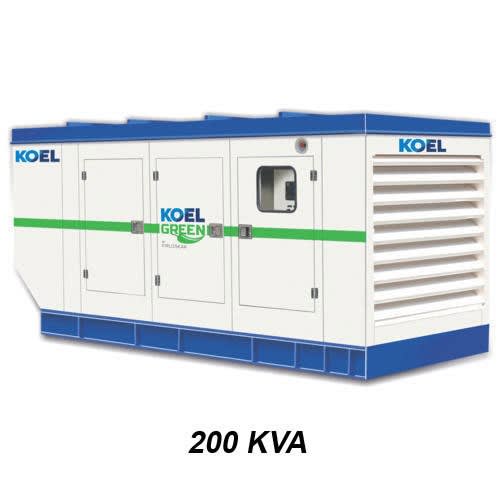

Specifications of Kirloskar 200 kVA Slim Power Diesel Generator is mentioned below.
Prime Rating at rated rpm ( as per ISO8528)1 kVA 200
kW 160
Genset Model KG1-200WS
Frequency Hz 50
Power factor lagging 0.8
Voltage V 415 3Ø
Governing class (As per ISO 8528 Part-V) G3
Noise level dBA < 75
Fuel Consumption* At 100% Load Ltrs/hr 45.9
At 75% Load 34.4
At 50% Load 25.5
Fuel tank capacity Ltrs 460
Weight of Genset with canopy (approx.)^ Dry Kg 3900
Wet Kg 4340
Overall dimensions of genset^ Length mm 4340
Width mm 1740
Height mm 1970
Electrical Battery starting voltage Volts-DC 24
ENGINE
Engine Model GSL1500TA G2
Rated output (Prime Continuous rating as per ISO 8528-1) KW 183
HP 248
No. of cylinder Number 6
Cubic capacity Ltrs 8.86
Bore x Stroke mm 118 x 135
Rated Speed RPM 1500
Aspiration NA/TC/TA TA
Lube Oil change period Hrs 500
Lube Oil Sump Capacity Ltrs 27
Coolant Capacity Ltrs 29.2
ALTERNATOR
Insulation Class Class H
Ingression Protection IP 23
Alternator Efficiency (at 100% load) 0.8 pf** 93.5
Alternator Efficiency (at 75% load) 0.8 pf** 93.8
Permissible Voltage Dip at Full Load 0.8 pf < 20%
Time Permitted to build up the rated voltage at Rated RPM < 1 sec provided engine reach the rated speed
Short Circuit Ratio 0.545
Short Circuit Withstand Time sec 3 times rated current for < 3sec
Overload Withstand Capacity % 10% overload for one hour once in 12 hours & for 150% for 30 sec
