The Xm-18 automatic 4 screens display egg incubator controller has input and output of dc 12v. It is a microelectronics and new electronic component
that is used for the digital display of temperature, humidity, and rotation frequency. It has a strong anti-interference ability, high working stability,
and high accuracy.
Dc 12v input and output make the controller versatile universal and usable with a wide range of 12v dc sources. It can be powered by a battery, solar panels,
dc power adapters, or a dc 12v wind turbine. XM-18 dc 12v can also take power input from any ac to dc converter thereby making the controller ac dc usable.
The intelligent 4 screens display design allows you to understand all the incubation data. The dc 12v automatic control system is adopted to give the controller
a vast voltage source and is very convenient to operate. It can effectively ensure the stability and reliability of product performance. The sensor probes
are used for fully automatic temperature and humidity control. They can accurately convey the temperature and humidity to the
machine in real-time. The precise temperature sensor is used for temperature variation sensing, and a wide temperature measurement range and

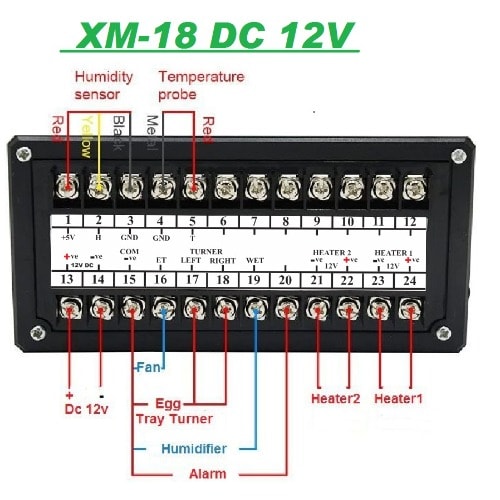

it can quickly convey the temperature to the machine. There are dc 12v output port/terminals to connect the egg tray turner, fan, humidifier, extractor, etc.
With the help of relays or contactors, the XM-18 controller can be configured to drive large ac or dc accessories of any wattage.

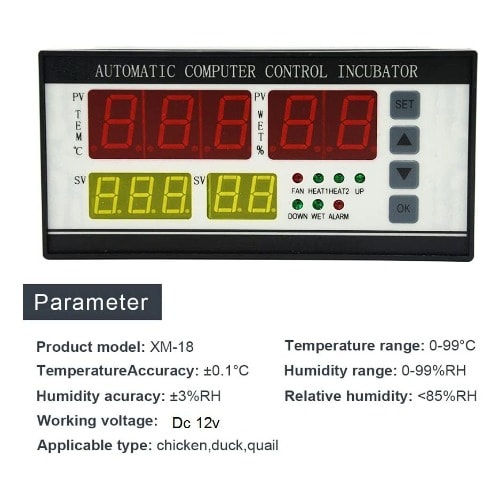

Automatic temperature and humidity controller with 4 screens display for egg incubators Specifications
Item Type: Xm-18 automatic egg incubator controller
Input Voltage: Dc 12v
Output Voltage for Accessories: Dc 12v

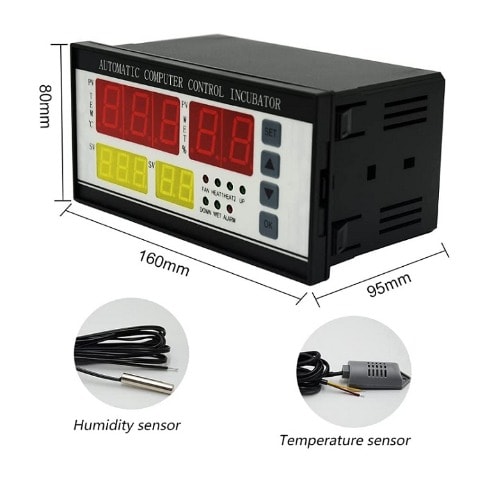

Product Size: Approx. 16x9.5x8cm / 6.3x3.7x3.1in
Temperature Measurement Range: 0-99 degrees Celsius
Temperature Measurement Accuracy: ?0.1 degrees Celsius
Humidity Measurement Range: 0-99%RH
Humidity Accuracy: + or - 3%RH
Number Of Output Channels: 7 Channels (over Temperature, Temperature Control, Under Temperature, Turning Eggs, Turning Right, Humidity Control, Alarm)
Output Current: Temperature Control, Under Temperature <8A, Over Temperature, Egg Turning, Left Turning, Right Turning, Humidity Control, Alarm <1A
Turning Eggs: 999 times can be recorded with XM-18
Egg Turning Cycle: 0-999 Minutes (Factory Setting Is 90 Minutes)
Egg Turning Time: 0-999 Seconds (Factory Setting Is 180 Seconds)
Ventilation Cycle: 0-999 Minutes (Factory Setting Is 120 Minutes)
Ventilation Time: 0-999 Seconds (Factory Setting Is 15 Seconds)

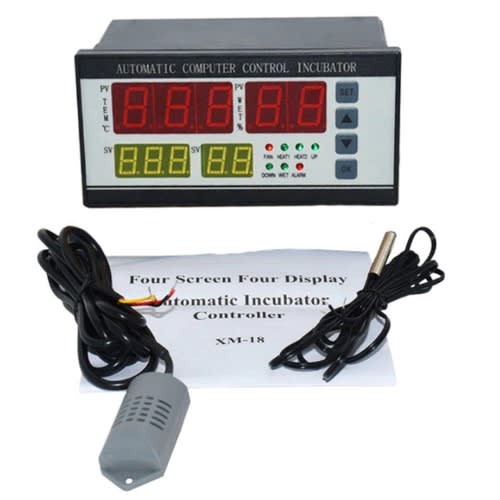

The package list includes:
1 x Dc 12v XM-18 Automatic Controller
1 x Temperature sensor
1 x Humidity sensor
1 x English manual
