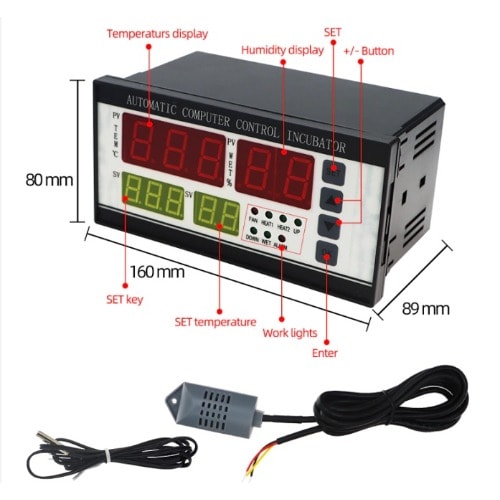

This controller has four displays.
The Automatic Multi-Function Incubator Is a well researched and produced piece of incubation equipment. It is a microcomputer-based technology with the latest micro-electronics technology and components, equipped with a high-level digital temperature sensor and humidity sensor.
This instrument is miniaturized, intelligent, high measurement accuracy, etc. It is stable and reliable, time-saving, labor-saving, and easy to use. It is the ideal incubation equipment for the propagation of poultry and rare birds and small and medium-sized hatcheries.
Main Technical Index:
1. Temperature display range: 0 ~ 99.9 Degree Centigrade
2. Temperature measurement accuracy: ± 0.1-degree Centigrade
3. Humidity display range: 0-99% RH
4. Humidity control accuracy: ± 3% RH

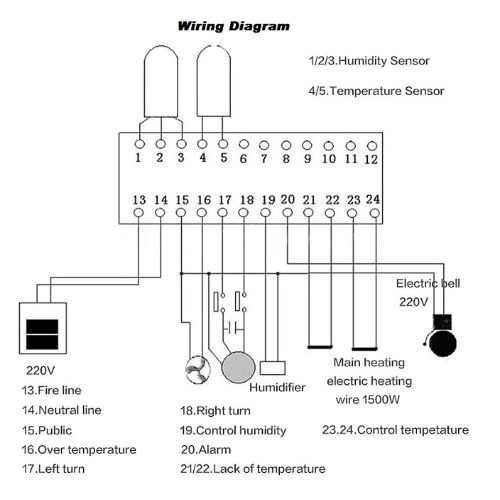

5. Number of signal output: 7 Street (over-temperature, temperature control, insufficient temperature, egg-turn left, egg right-turn, humidity control, alarm)
6. The maximum output load current: temperature control, insufficient temperature <= 8A / AC 220V, over-temperature, egg-turn left, egg right-turn, humidity control, alarm <= 1A / AC 220V
7. Number of egg-turning: Maximum record 999 times.
8. cycle of egg-turning: from 0 to 999 minutes (factory set to 90 minutes)
9.Turn the eggs time: 0 to 999 seconds (factory set to 180 seconds)
10. Ventilation cycle: 0-999 minutes (factory set to 120 minutes)
11. Ventilation time: 0-999 seconds (Factory set to 30 seconds)
12. The measuring line length: About 2 meters
Working conditions:
1. Power adapter: AC 220V ~ 240V, 50Hz
2. Relative humidity: less than 85%
3. Ambient temperature: -10 degree - 60 Degree Centigrade
Package Include
1 X Automatic Multi-function Incubator Controller
1 x Temperature Sensor
1 X Humidity Sensor
1 x Manual
