| Model |
V8 Finder Pro TV Signal Finder Meter Signal Receiver 4.3-inch LCD Dispaly H.265 Auto Calculate Angle 4000mAh Battery |
| Size (L x W x H cm) |
20.4×16.4×5.7 |
| Weight (kg) |
0.5 |
| Color |
Orange & Blue |
| Main Material |
N/A |
Overview: GTMEDIA V8 Finder Pro is a D V B-S2X/S2/S/T2/T/C/ATSC-C and MPEG-2/4 H.264/H.265 (10 bit) compliant handheld combo meter. With its compact size, lightweight design, intuitive user's interface, long battery operational hours and rich feature set, the signal finder meter provides all functions needed for installation and verification of digital TV service, antenna signal and cable signal to residential homes or multi-dwelling units.
Features: - *4.3 Inch High Definition TFT LCD Screen

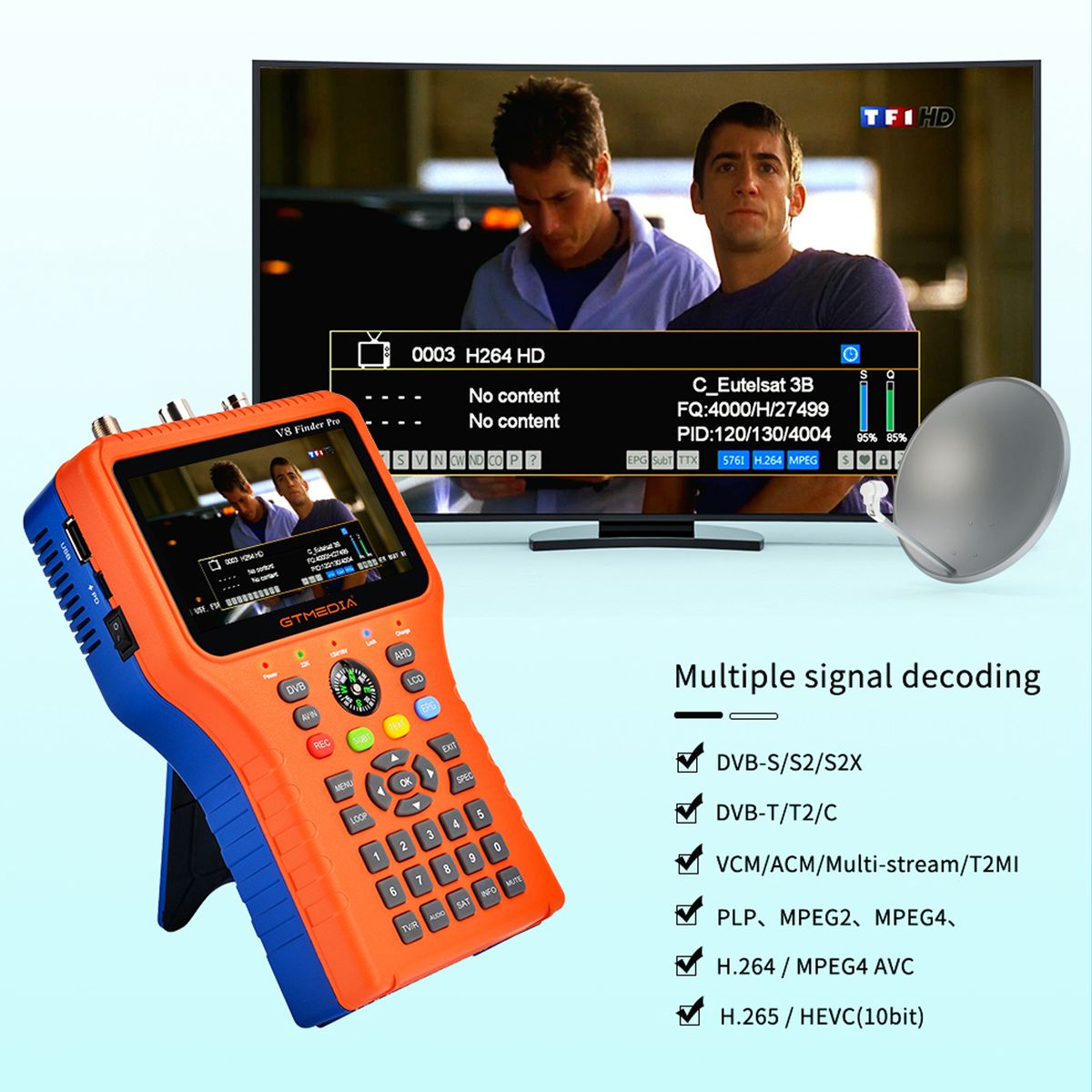

- *Fully D V B-S2X/S2/S/T2/T/C/ATSC-C, MPEG-2/MPEG-4 compliant
- *Support H.264/H.265(10 Bit) Hardware decoding
- *Digital measuring device for signal strength and quality
- *Support Loop Search
- *Constellation analyzer
- *Spectrum analyzer
- *Supports scan of Auto, Blind, Manual or NIT
- *Sound for Locking Signal
- *Auto Calculate Angle of AZ,EL
- *Support DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone

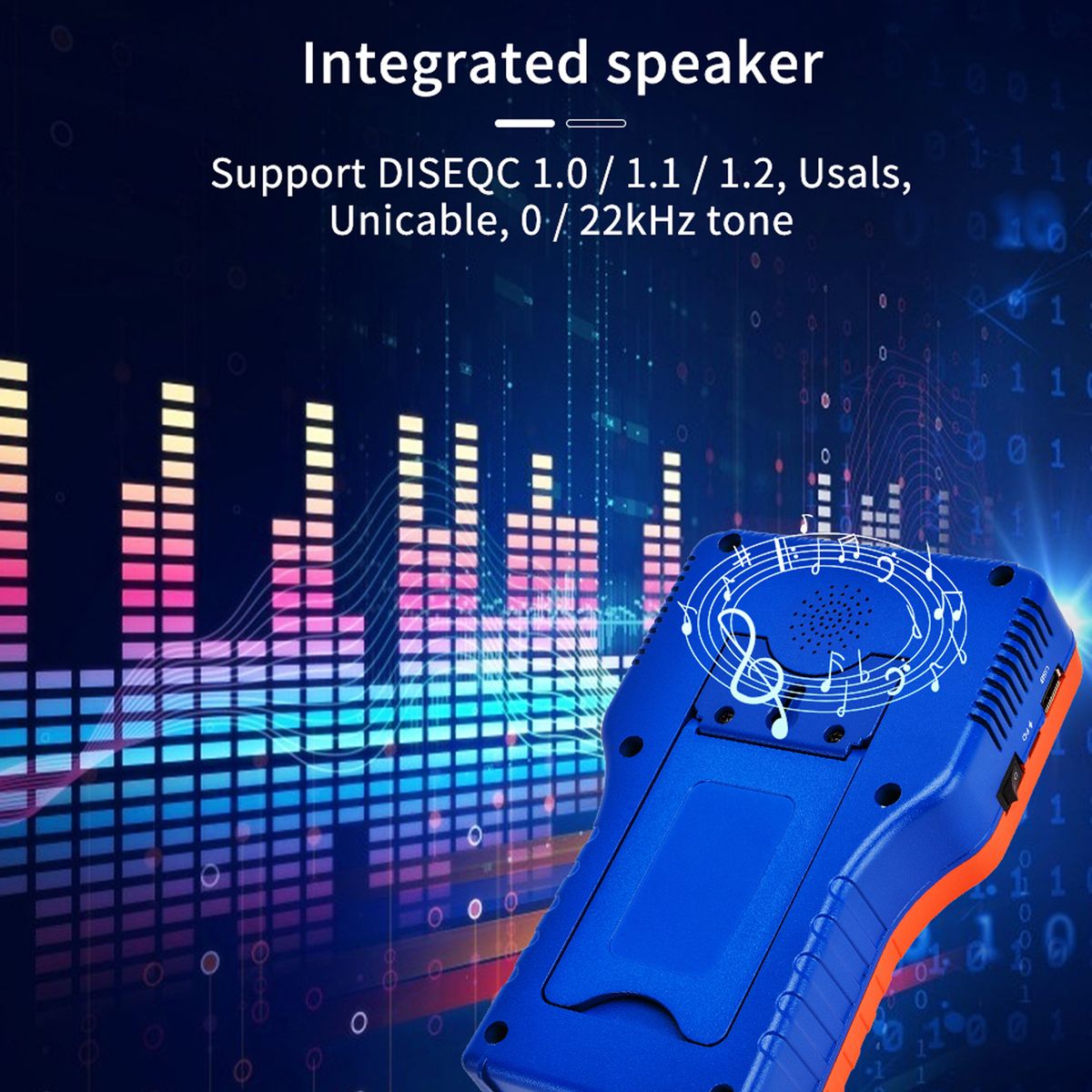

- *Speaker Integrated

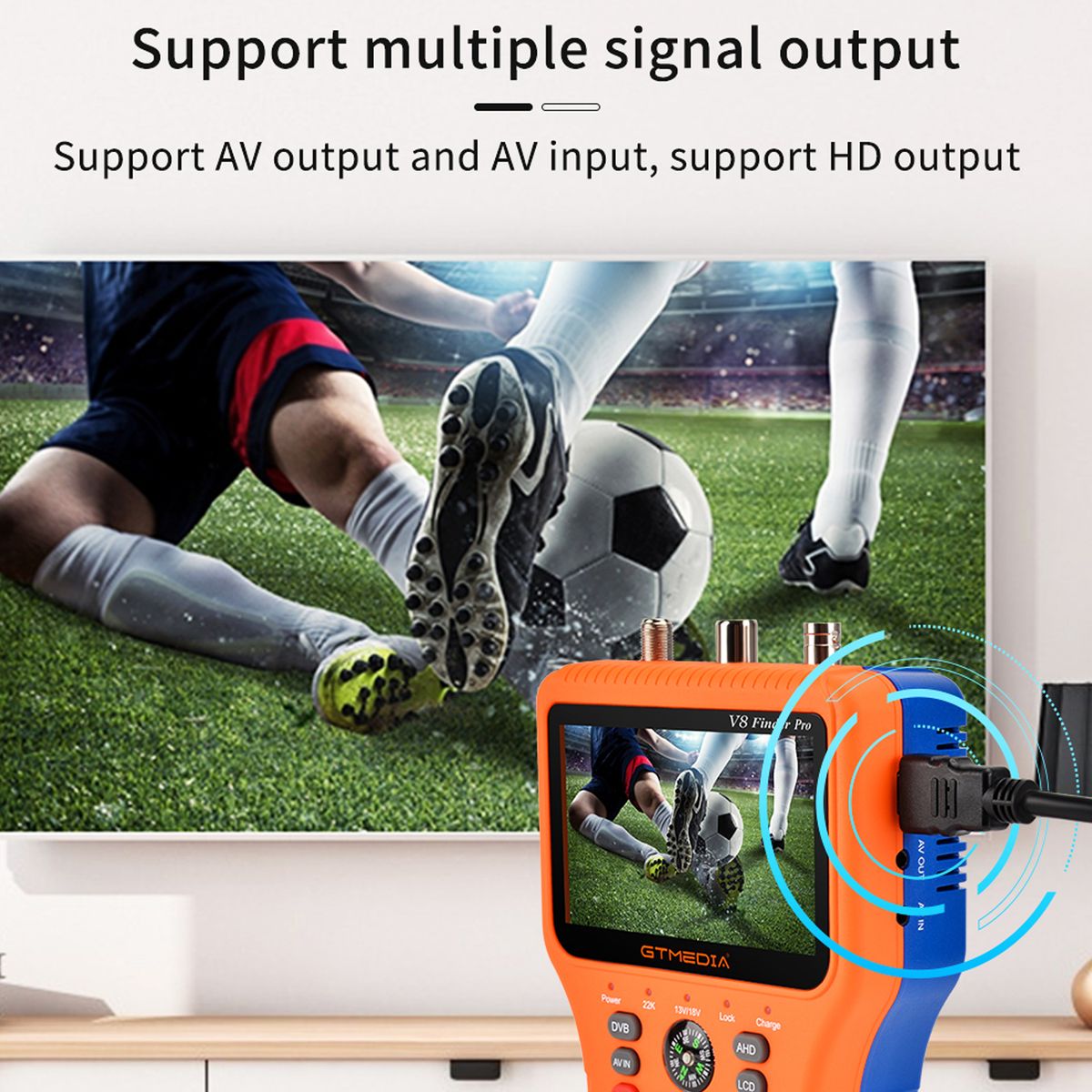

- *Support both AV out and AV in
- *Support both HD out
- *Support AHD camera input
- *Support compass function
- *Support real-time power display, with low power reminder
- *Support Youtube for USB WiFi 2.4G
- *LNB short protect
- *7.4V/4000mAh Li-ion Battery Included
- *Software upgrade via USB port
- *Easy to carry
Specifications: - Connector Type: F Type
- Input Frequency: 950 to 2150 MHz
- Signal Input Level: ‐65~‐25dBm
- Band Switch Control: 22KHz
- LNB Supply: 13V/18V, Max 350mA
- Demodulation Type: D V B-S2 QPSK, D V B-S2 QPSK/8PSK/16APSK/32APSK,
- D V B-S2X QPSK/8PSK/16APSK/32APSK/64APSK
- Symbol Rate: 2
- LCD Type: TFT Transmissive
- Number of Dots: 800 RGB(H) *480(V)
- Active Area (W*H): 95.04*53.86mm
- Video Decompression: MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264/H.265 MP&HP@L4, HW JPEG decoder
- Resolving Rate: PAL-25 frame@7200*576, NTSC-30 frame@720*480
- Singnal Compatibility: Support conversion for different video formats
- Video Format: 4:3, 16:9, By Pan&Scan and Letter Box conversion
- Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
- Audio Output Mode: Stereo, Mono, R/L
- Li-Lon Battery: 7.4V/4000mAh (The machine behind labeling shall prevail)
- Adapter: DC 9V/2.5A, AC 100~240V 50/60Hz (Will be subject to actual configuration)
- Power Consumption: Max.10W
- Temperature: Operation 0~+45 Celsius ; Storage -10~+60 Celsius
- Humidity: 20~90%, non-condensed

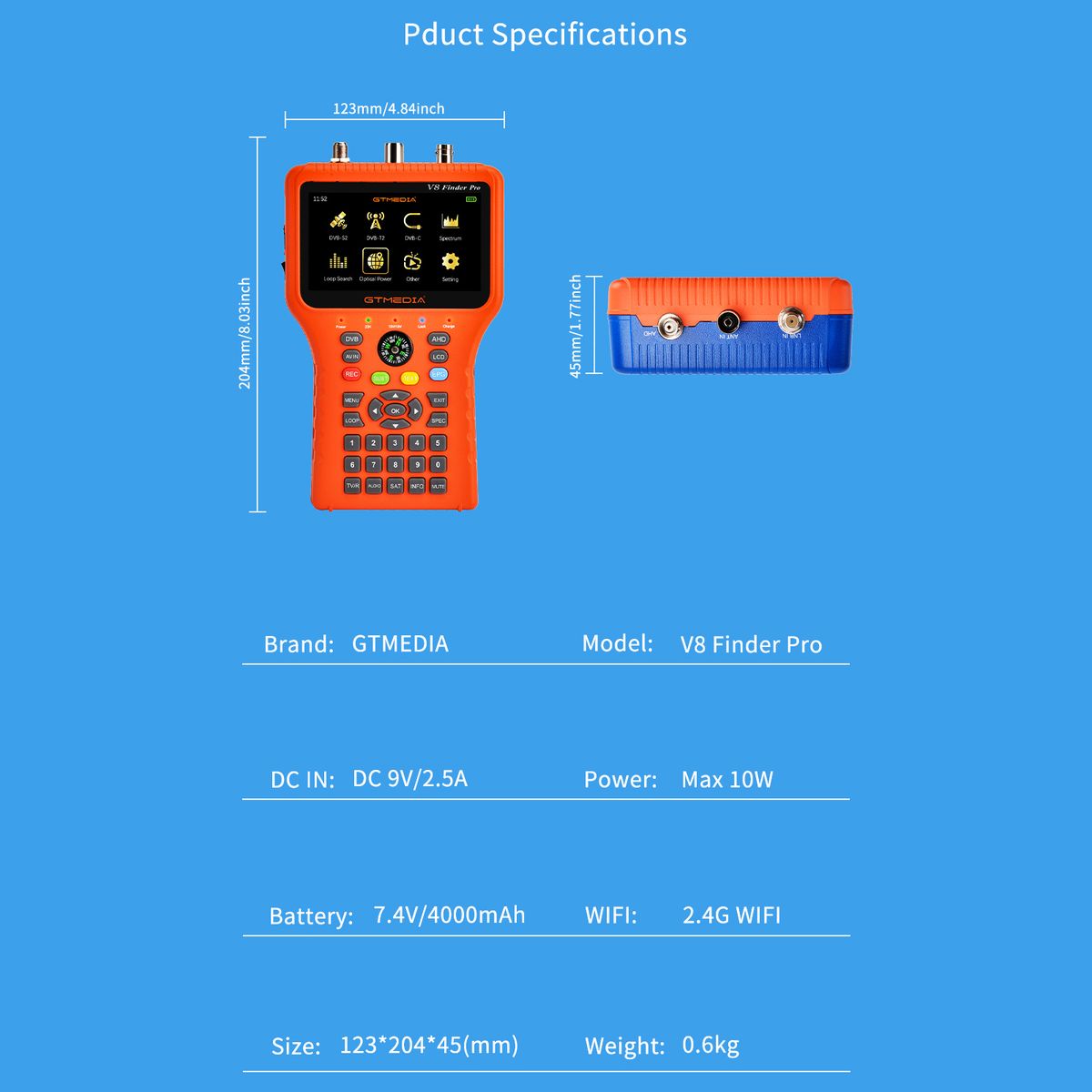

- Product Size(W*D*H): 123*204*45mm/4.84*8.03*1.77in
- Product Weight: 514g/18.13oz
- Package Size(W*D*H): 260*200*57mm/10.23*7.87*2.24in
- Package Weight: 777g/27.40oz
Package List: - 1 * V8 Finder Pro
- 1 * AV Cable
- 1 * Power Adaptor
- 1 * User Manual (EN/DE/FR/ES/IT/PO)
Key Features
*4.3 Inch High Definition TFT LCD Screen
*Fully D V B-S2X/S2/S/T2/T/C/ATSC-C, MPEG-2/MPEG-4 compliant
*Support H.264/H.265(10 Bit) Hardware decoding
*Digital measuring device for signal strength and quality
*Support Loop Search
*Constellation analyzer
*Spectrum analyzer
*Supports scan of Auto, Blind, Manual or NIT
*Sound for Locking Signal
*Auto Calculate Angle of AZ,EL
*Support DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
*Speaker Integrated
*Support both AV out and AV in
*Support both HD out
*Support AHD camera input
*Support compass function
*Support real-time power display, with low power reminder
*Support Youtube for USB WiFi 2.4G
*LNB short protect
*7.4V/4000mAh Li-ion Battery Included
*Software upgrade via USB port
*Easy to carry
What's In the Box
- 1 * V8 Finder Pro
- 1 * AV Cable
- 1 * Power Adaptor
- 1 * User Manual (EN/DE/FR/ES/IT/PO)
