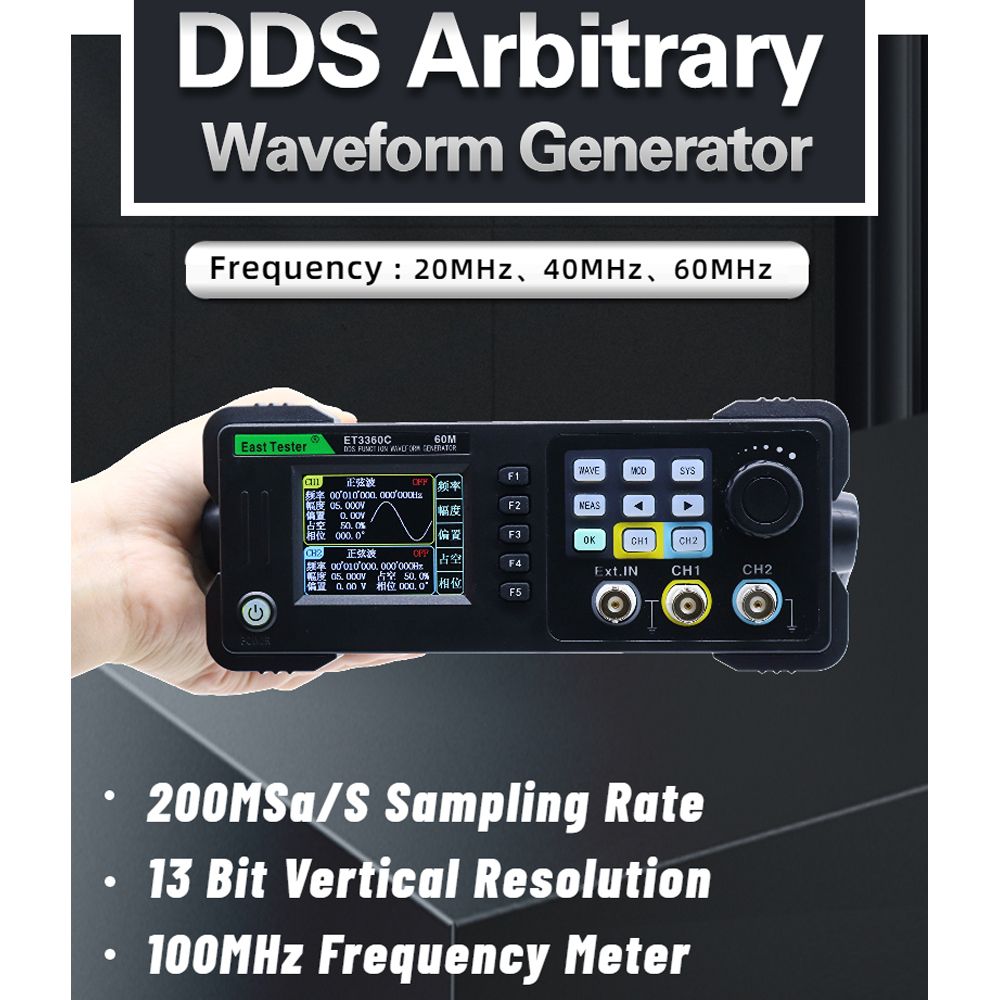

Features:
Independent Channel: Both channels are independent of each other and have phase synchronization function.
Basic Parameters: Sampling rate: 200MSa/S, vertical resolution: 13bit and storage depth: 8k.

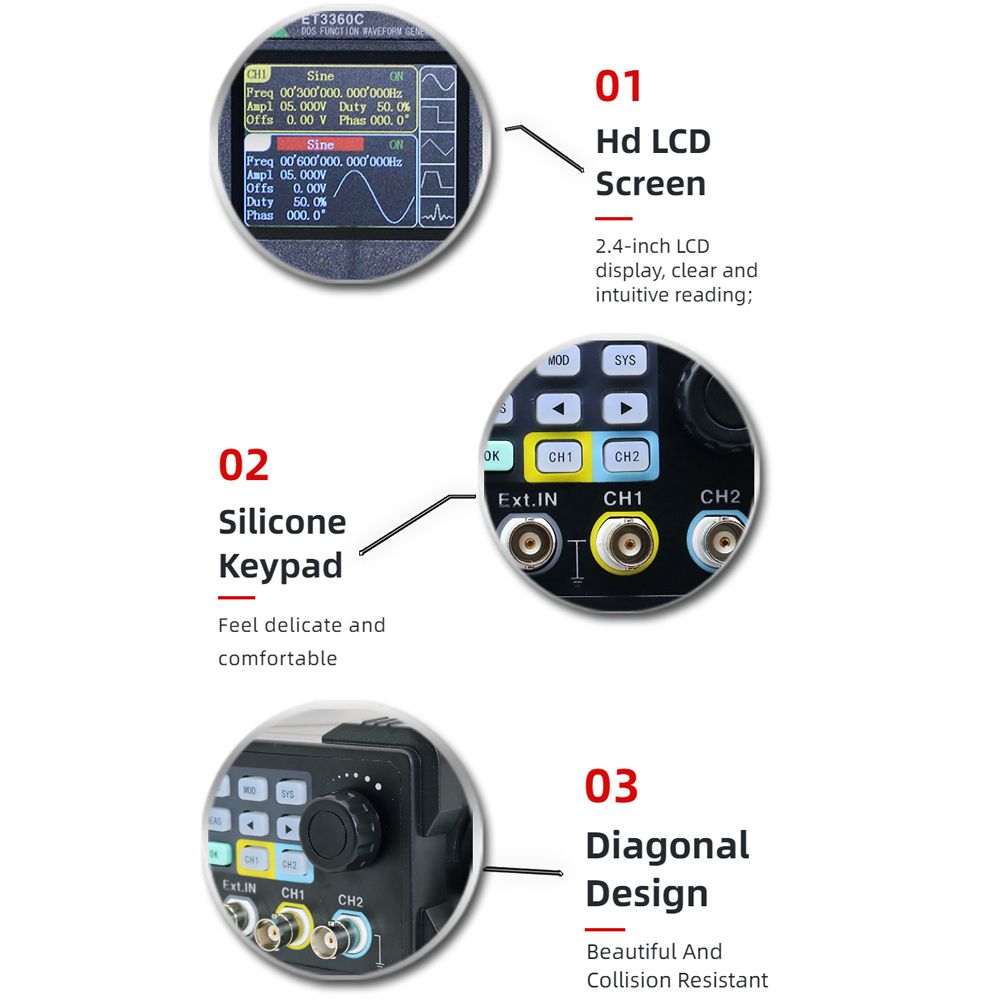

Digital Display: 2.4-inch TFT LCD display, 320*240 resolution, with clear graphic interface.
Measurement Mode: The measurement mode has 2 functions, one is a frequency meter, the other is a counter. They measure digital signals from the external input port.
Frequency Meter: The frequency meter is used to measure the frequency. The frequency is measured by equal precise measurement. The coupling and gate time can be set.
Pulse Counter: With 100MHz high precise frequency meter and 32 bit counter. The counter is used to count the number of pulses, and can be set to turn on the coupling and function, as well as the number of zeroes.
Four Modulation Modes Design: Support for pulse/sweep/burst/modulated output.
System Settings: The system Settings page displays the current software version.It can load and save the system parameters, set the buzzer to open and close, the brightness of the screen, the English and Chinese language switching, and edit, save and load any wave, calibrate, and restore factory Settings.

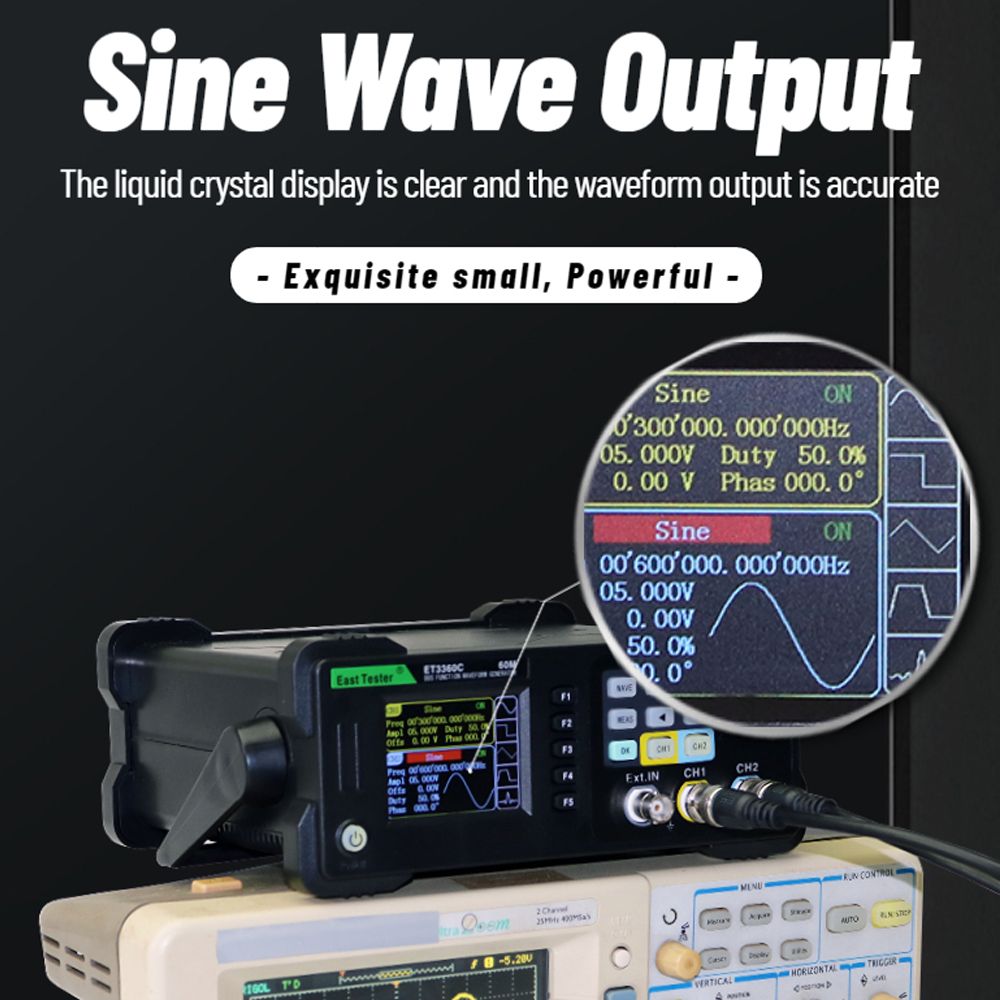

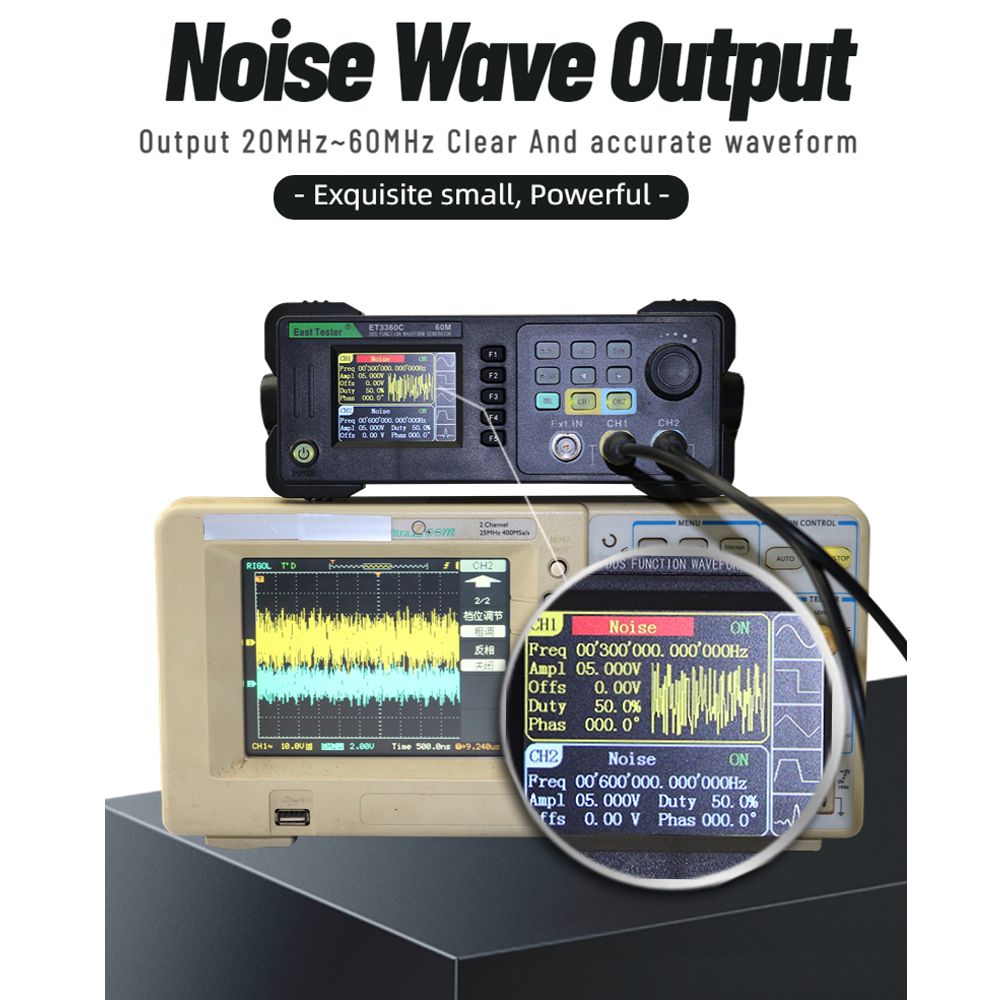

Waveform Types: 5 basic waveforms(sinewave, squarewave, rampwave, pulsewave, noisewave) and 32 arbitrary waveforms in-built.
Waveform Storage: Support internal storage of 50 groups of user-defined edited waveforms.
Settable Time Edges: Pulsewave output set in edgestime.
AM/FM/PM Modulation Function: Internal AM, frequency modulation, PM modulation function (External AM, frequency modulation, PM modulation is optional).
ASK/FSK/PSK Modulation Function: Internal/external ASK, FSK, PSK modulation function.
60M Channel Output Frequency: Dual channel output, maximum output frequency 60M.
Waveform Output: Output of linear/logarithmic sweep and burst (pulse train) waveforms.
Standard USB Device Interface: Optional external analogue modulation interface.
Communication Extension Interface: The 10P communication extension interface of ET33C extends TTL digital signal and serial signal.
Software Support: Equipped with multifunctional arbitrary waveform editing software.
Three Models Available: ET3320C, ET3340C, ET3360C, the highest output frequency is 20MHz, 40MHz and 60MHz respectively.

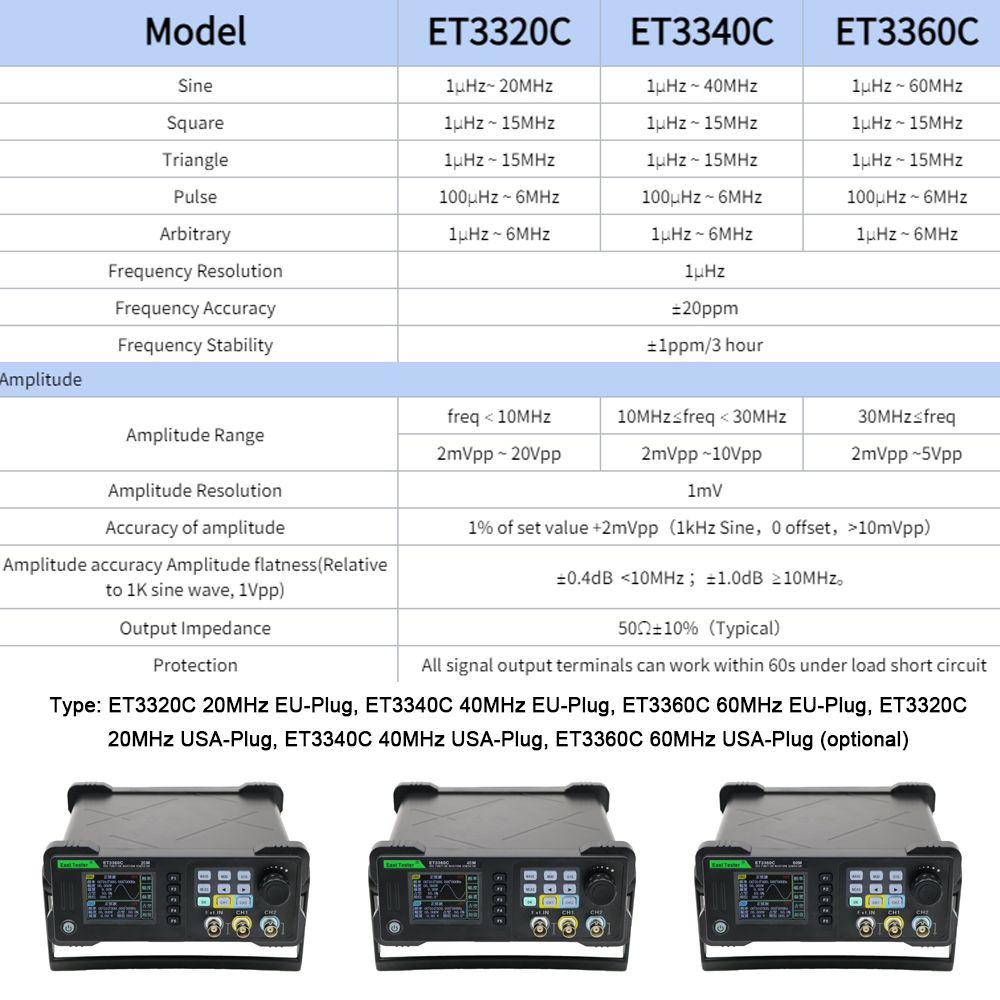

Specifications:
Name: Waveform Generator
Material: plastics
Type: ET3320C 20MHz EU-Plug, ET3340C 40MHz EU-Plug, ET3360C 60MHz EU-Plug, ET3320C 20MHz USA-Plug, ET3340C 40MHz USA-Plug, ET3360C 60MHz USA-Plug (optional)
ET3320C:
Sinewaves: 1 mu;Hz-20MHz
Squarewaves: 1 mu;Hz-15MHz
Trianglewaves: 1 mu;Hz-15MHz
Pulsewaves: 100 mu;Hz-6MHz
Arbitrarywaves: 1 mu;Hz-6MHz
ET3340C:
Sinewaves: 1 mu;Hz-40MHz
Squarewaves: 1 mu; Eta;z-15MHz
Trianglewaves: 1 mu;Hz-15MHz
Pulsewaves: 100 mu;Hz-6MHz
Arbitrarywaves: 1 mu;Hz-6MHz
ET3360C:
Sinewaves: 1 mu;Hz-60MHz
Squarewaves: 1 mu;Hz-15MHz
Trianglewaves: 1 mu;Hz-15MHz
Pulsewaves: 100 mu;Hz-6MHz
Arbitrarywaves: 1 mu;Hz-6MHz
Frequency Resolution: 1 mu;Hz
Frequency Accuracy: plusmn;20ppm
Frequency Stability: plusmn;1ppm/3 hour
Waveform Types: Sinewaves, squarewaves, trianglewaves, pulsewaves, noisewaves and arbitrary waves. There are 32 kinds of arbitrary waves and 50 kinds of user-defined waves.
Waveform Length: 8192 points
Waveform Sampling Rate: 200MSa/s
Waveform vertical resolution: 13bits
size: 210 * 200 * 85mm / 8.27 * 7.87 * 3.35in
Package size: 260 * 250 * 100mm / 10.24 * 9.84 * 3.94in
Package weight: 1100g / 2.43lb
