| Model |
V8 Finder 2 D V B-S/S2/S2X 3.5-inch |
| Size (L x W x H cm) |
20.4×16.4×5.7 |
| Weight (kg) |
0.5 |
| Color |
Grey |
| Main Material |
N/A |

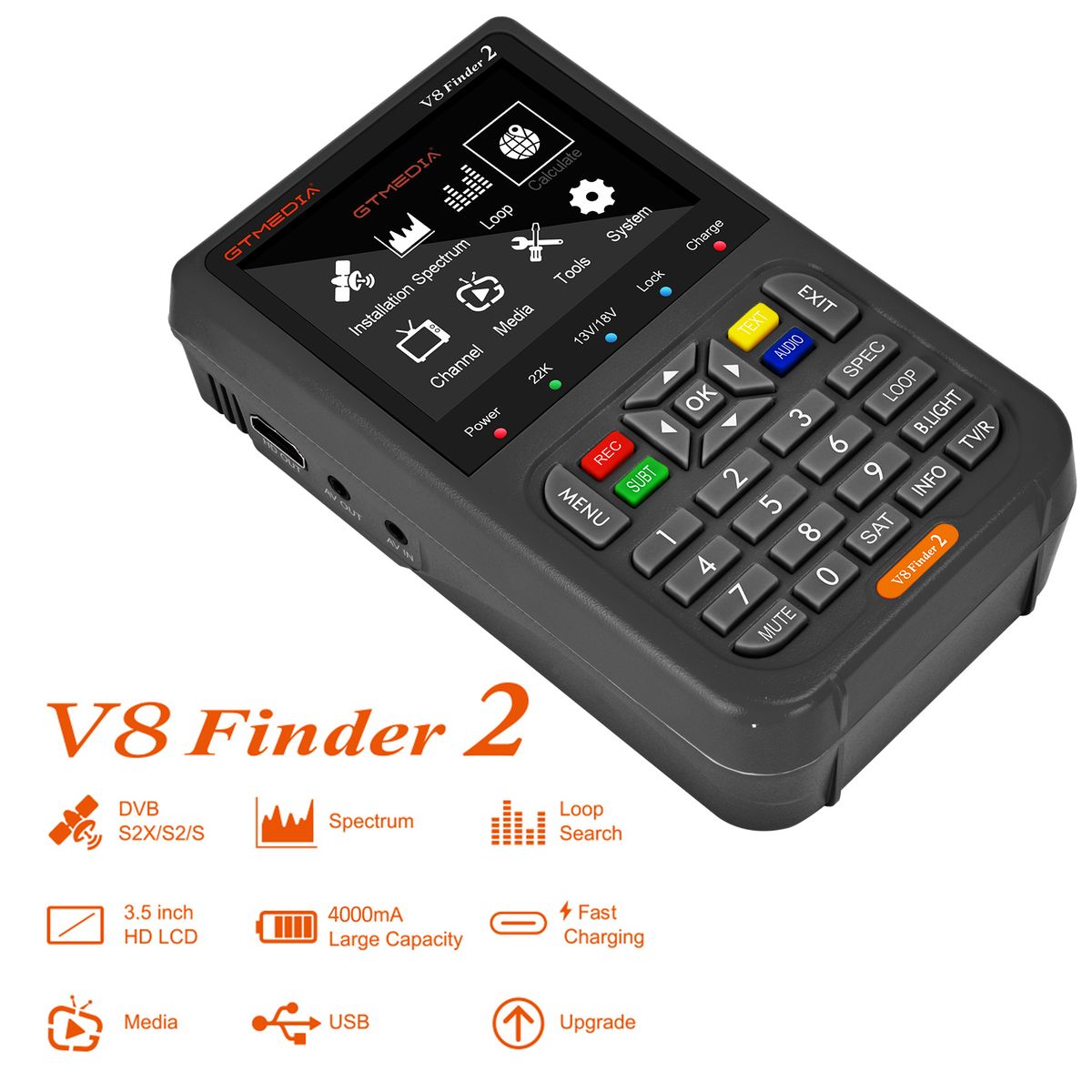

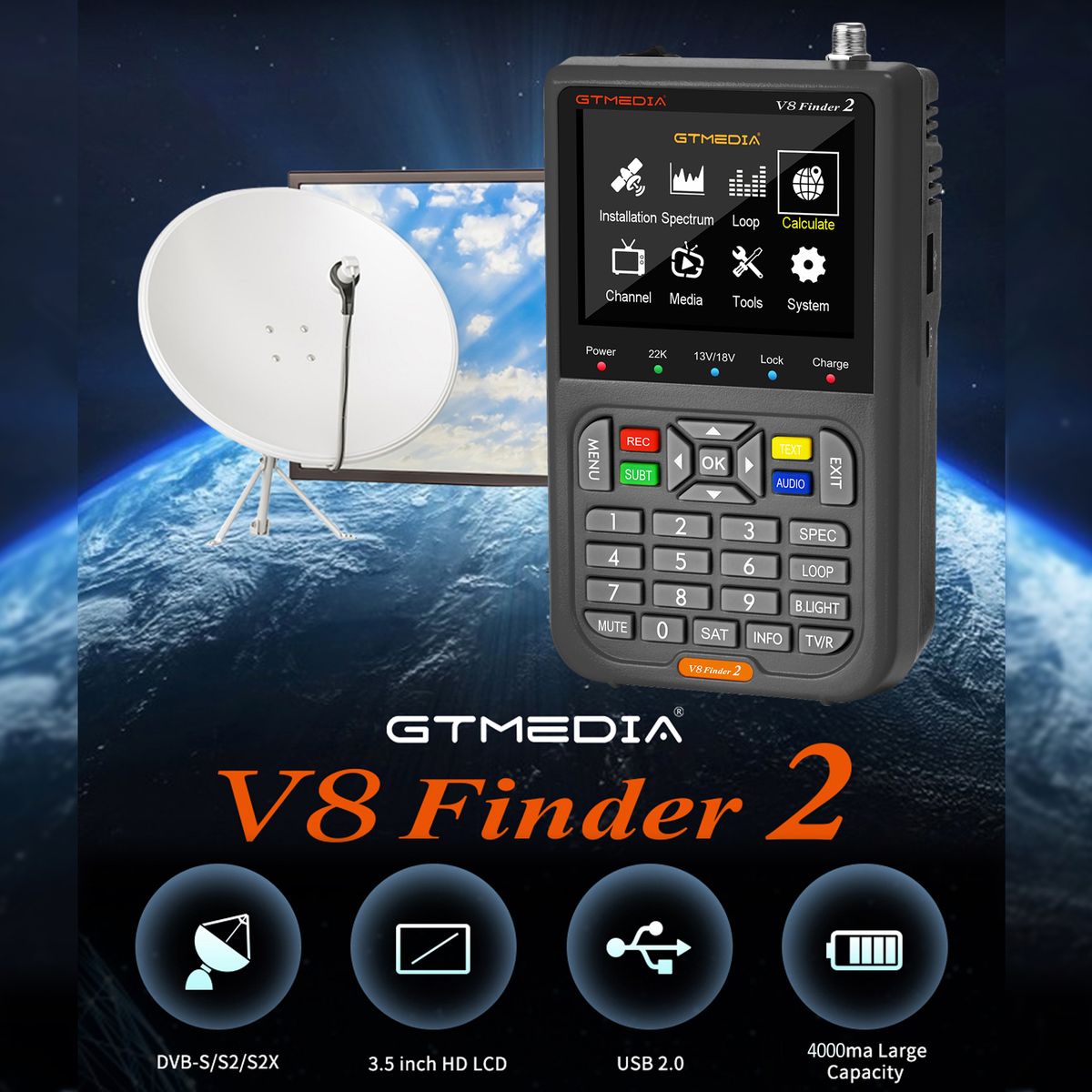

Overview: GTMEDIA V8 Finder 2 is a D V B-S/S2/S2X and MPEG-2/4 H.264 (8 Bit) compliant handheld signal finder meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital TV service to residential homes or multi-dwelling units.

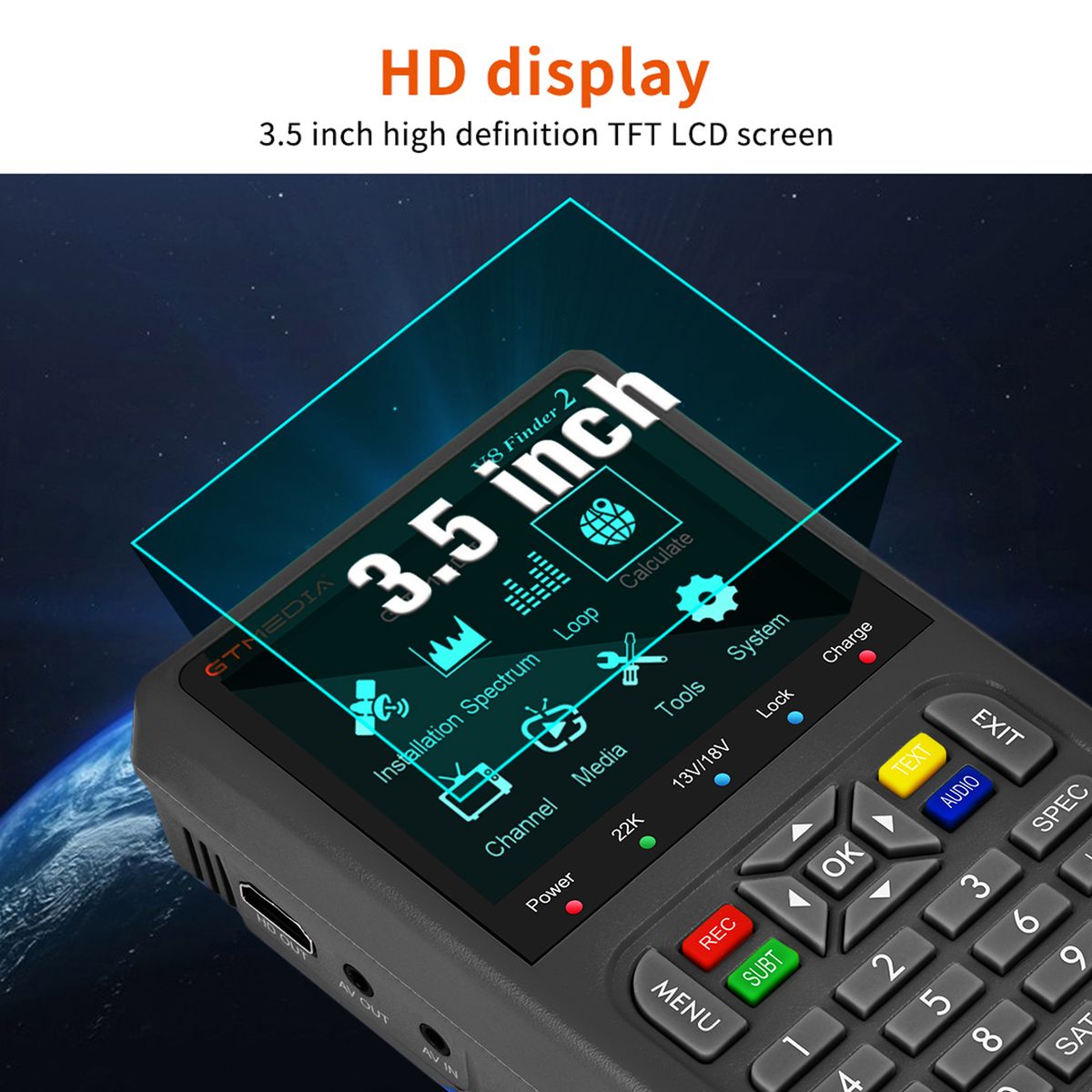

Features: - 3.5 Inch High Definition LCD Screen

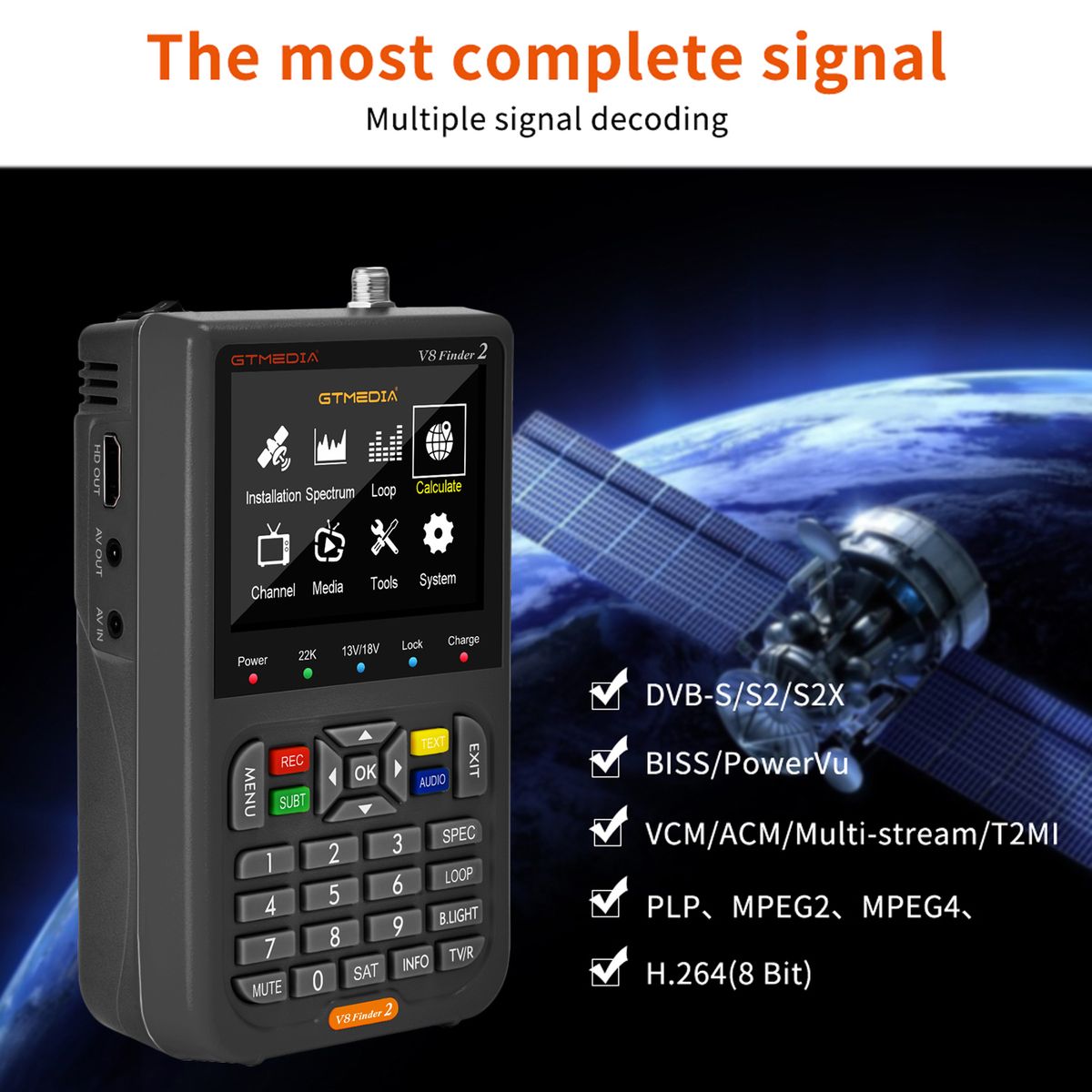

- Fully D V B-S2X/S2/S, MPEG-2/MPEG-4 compliant
- Support H.264 (8 Bit) Hardware decoding
- Digital measuring device for signal strength and quality
- Support Loop Search
- Spectrum analyzer
- Supports scan of Auto, Blind, Manual or NIT
- Sound for Locking Signal
- Auto Calculate Angle of AZ,EL
- Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22kHz Tone
- Speaker Integrated
- Support both AV out and AV in
- Support both HD out
- Support real-time power display, with low power reminder
- Supports Youtube for USB wifi 2.4G
- LNB short protect
- 7.4V/4000mAh Li-ion Battery Included
- Support Type-C charging interface, support multi-protocol fast charging
- Support Type-C reverse charging
- Software upgrade via USB port
- Easy to carry
Specifications: - Connector Type: F Type
- Input Frequency: 950 to 2150 MHz
- Signal Input Level: ‐65 to ‐25 dBm
- Band Switch Control: 22KHz
- LNB Supply: 13V/18V, Max 350mA
- Demodulation Type: D V B-S2 QPSK, D V B-S2 QPSK/8PSK/16APSK/32APSK, D V B-S2X QPSK/8PSK/16APSK/32APSK/64APSK
- Symbol Rate: 2
- LCD Type: TFT Transmissive
- Number of Dots: 320 RGB*240
- Active area (W*H): 70.08(H)*52.56(V)MM
- Connector Type: 3.5 mm jack
- Video Output: CVBS
- Audio Output: Stereo Audio L/R output
- HD Output Connecter: HD 1.3a
- AV Input Interface: 3.5 mm jack
- Video Input: CVBS
- Audio Input: Stereo Audio L/R input
- Video Decompression: MPEG-2 MP @HL, MPEG-1 Decoding, MPEG-4 ASP @l5 HD resolution, H.264 MP&HP @L4, HW JPEG decoder
- Resolving Rate: PAL-25 frame @720*576, NTSC -30 frame @720*480
- Singnal Compatibility: Support conversion for different video formats
- Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion
- Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
- Audio Output Mode: Stereo, Mono, R/L
- DATA SERVICE PORT Conector: USB
- Data Protocol: USB 2.0 interface
- File Management System: NTFS, FAT32, FAT16
- File Format: Media: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
- Audio: wma, mp3
- Photo: jpg, jpeg, bmp, img
- PVR Option: Support recording TS files
- WiFi Option: Support networking via USB WiFi
- Li-Lon Battery Capacity: 7.4V/4000mAh
- Power Consumption: Rated 8W (No external equipment)
- Temperature: Operation 0～+45 "℃"; Storage -10~+60 "℃"
- Humidity: 20~90%, non-condensed

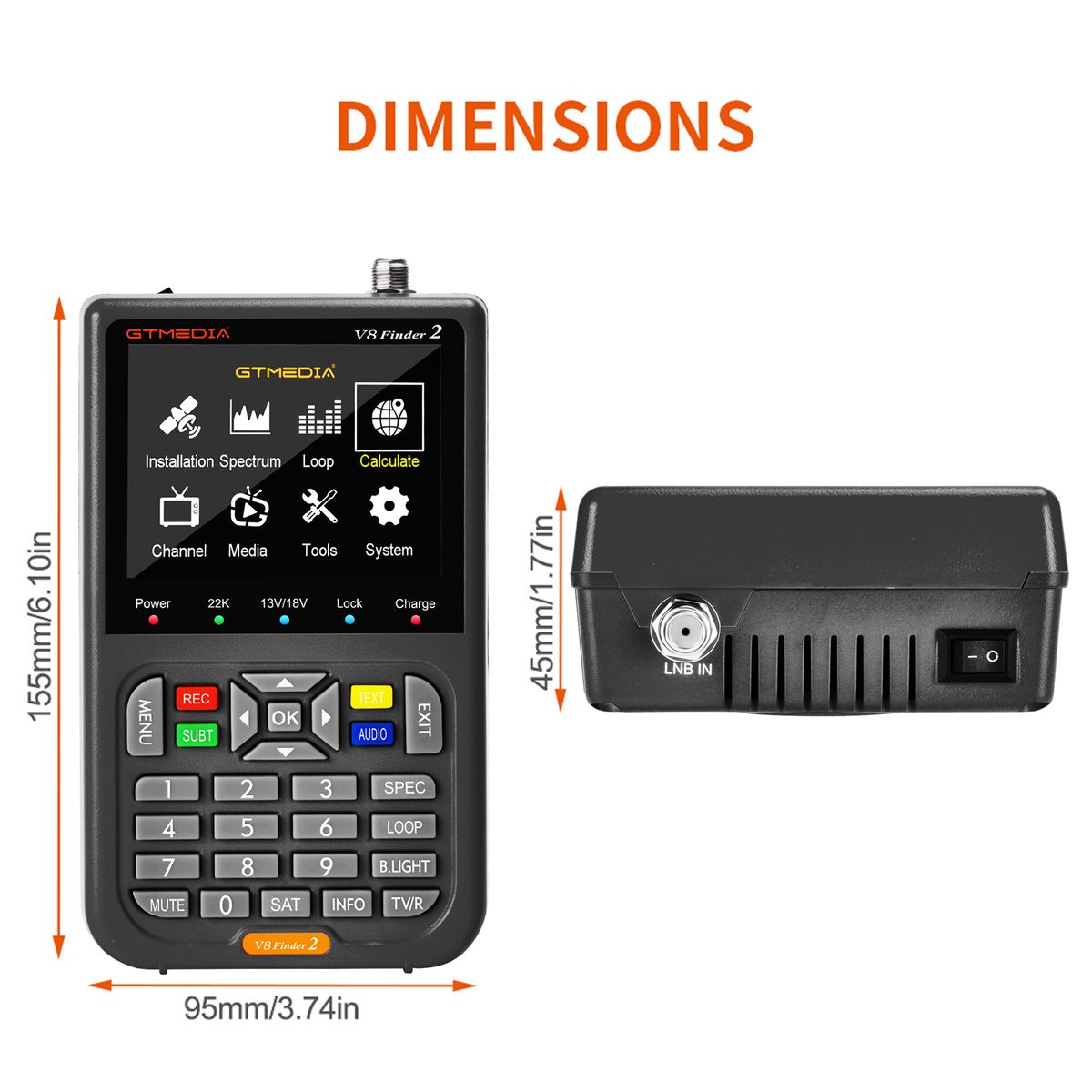

- Item Size(W*D*H): 155*95*45mm/6.10*3.74*1.77in
- Item Weight: 317g/11.18oz
- Package Size: 204*164*57mm/8.03*6.45*2.24in
- Package Weight: 451g/15.90oz
Package List: - 1 * V8 Finder 2
- 1 * USB Cable
- 1 * Storage Bag(optional)
- 1 * User Manual (EN/DE/FR/ES/IT/PO)
Key Features
Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: ‐65 to ‐25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, Max 350mA
Demodulation Type: D V B-S2 QPSK, D V B-S2 QPSK/8PSK/16APSK/32APSK, D V B-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Symbol Rate: 2
LCD Type: TFT Transmissive
Number of Dots: 320 RGB*240
Active area (W*H): 70.08(H)*52.56(V)MM
Connector Type: 3.5 mm jack
Video Output: CVBS
Audio Output: Stereo Audio L/R output
HD Output Connecter: HD 1.3a
AV Input Interface: 3.5 mm jack
Video Input: CVBS
Audio Input: Stereo Audio L/R input
Video Decompression: MPEG-2 MP@HL, MPEG-1 Decoding, MPEG-4 ASP@l5 HD resolution, H.264 MP&HP@L4, HW JPEG decoder
Resolving Rate: PAL-25 frame@720*576, NTSC -30 frame@720*480
Singnal Compatibility: Support conversion for different video formats
Video Format: 4:3, 16:9, By Pan & Scan and Letter Box conversion
Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode: Stereo, Mono, R/L
DATA SERVICE PORT Conector: USB
Data Protocol: USB 2.0 interface
File Management System: NTFS, FAT32, FAT16
File Format: Media: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
Audio: wma, mp3
Photo: jpg, jpeg, bmp, img
PVR Option: Support recording TS files
WiFi Option: Support networking via USB WiFi
Li-Lon Battery Capacity: 7.4V/4000mAh
Power Consumption: Rated 8W (No external equipment)
Temperature: Operation 0～+45℃; Storage -10~+60℃
Humidity: 20~90%, non-condensed
Item Size(W*D*H): 155*95*45mm/6.10*3.74*1.77in
Item Weight: 317g/11.18oz
Package Size: 204*164*57mm/8.03*6.45*2.24in
Package Weight: 451g/15.90oz
What's In the Box
- 1 * V8 Finder 2
- 1 * USB Cable
- 1 * Storage Bag(optional)
- 1 * User Manual (EN/DE/FR/ES/IT/PO)
