Made of fine quality frequency converter has nice durability and long service life. It has fine performance and strong function. Human design keyboard with proper and clear digital display screen is easy to operate. Fine heat dissipation system can extend the service life. Drive board is waterproof, dampproof and electrostatic protections.
Features:
Direct current cooling fan low noise, long life, large air volume.
Three anti-paint protectionlines, improve and extend the life of the fuselage.
The machine is screwed to ensure the safety and reliability of the use.
Spacing 2.54mm bar connector, 5-pin plug.
This VFD uses distinctive control method to realize high torque, nice precisions and wide speed regulatingrange driving, with fine performance.
It has fine anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.
By optimizing PWM control technology and electromagnetic compatibility, it satisfies users\' requirement of low noise, low electromagnetic interference.

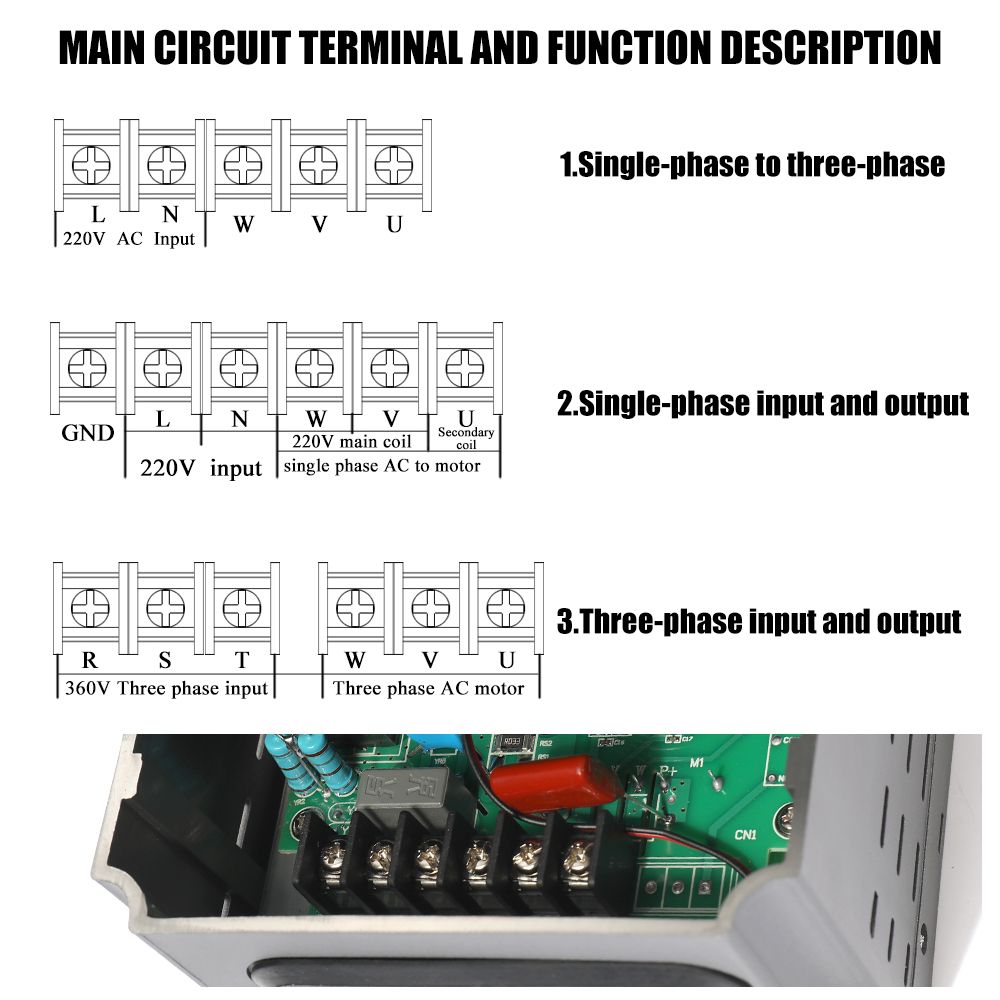

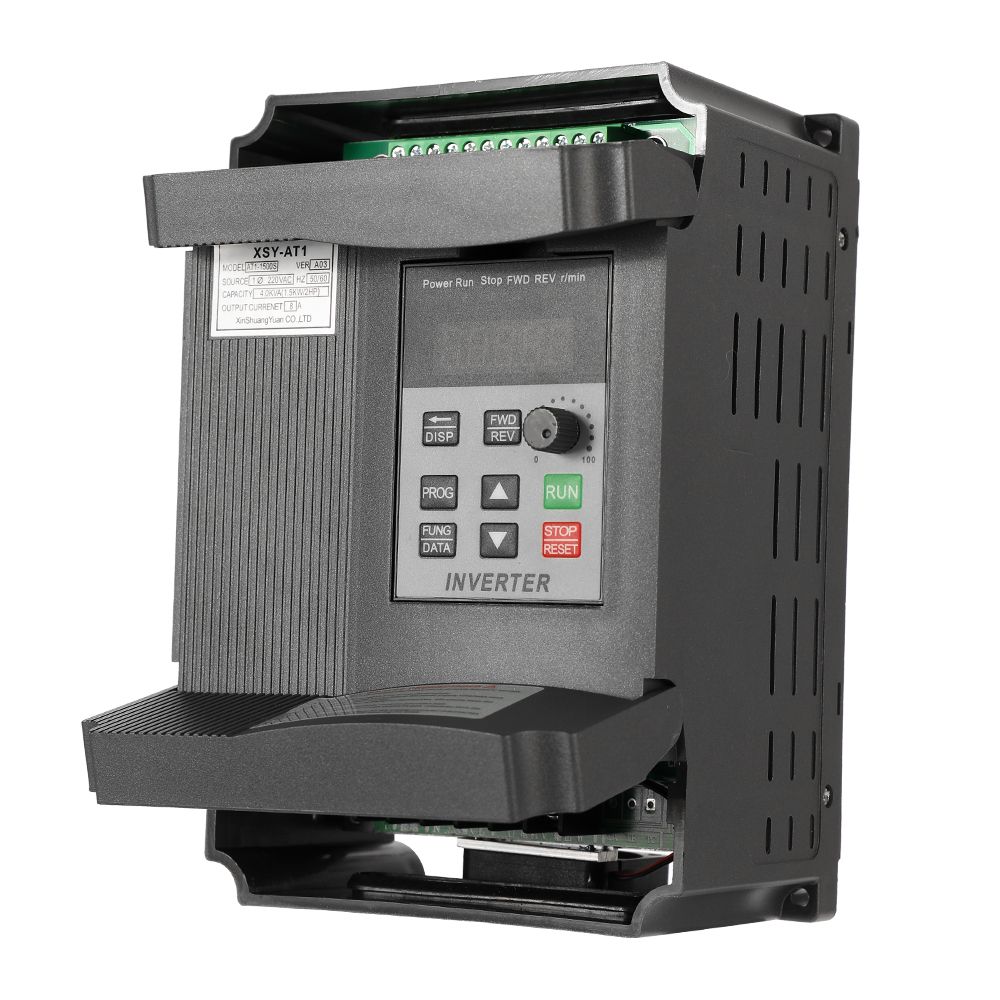

Simple to operate and wire, connect to wires after removing screws.
Fast starts and stop response, large torque at low speed.
Specifications:

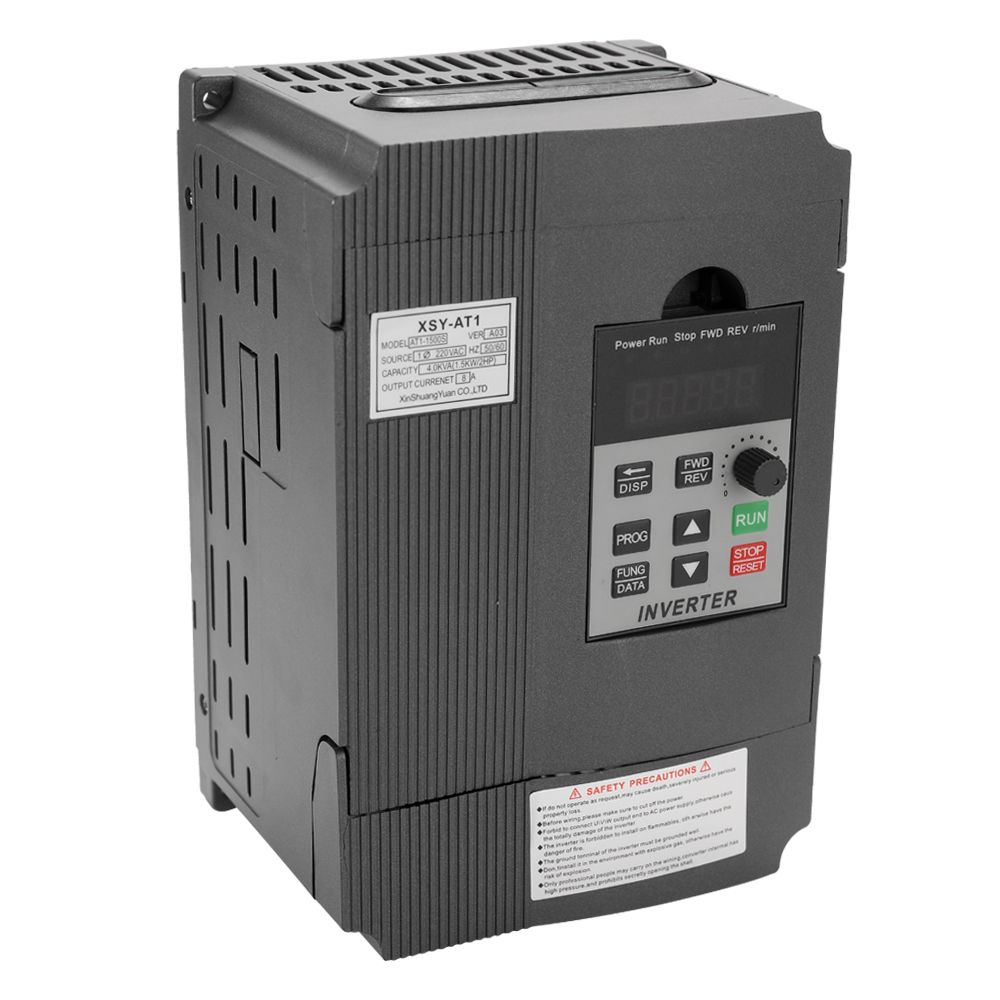

Name: Variable Inverter
Model: AT1-2200S
VER: A03
Source: 200V AC, HZ50/60 (single phase)
Capacity: 4.0KVA(1.5KW/2HP)
Output Current: 8A
Application Range: universal
Phase: Single Phase
Adaptation Motor Power: 2.2KW
Filter: built-in filter
Control Method: V/F closed loop
Output Voltage Regulation Mode: PWM control
Rated Current: 12A
Weight: 1137g / 2.51lb
Package Weight: 1315g / 2.90lb
Size: 195 * 130 * 110mm / 7.68 * 5.12 * 4.33in
Package size: 215 * 200 * 160mm / 8.45 * 7.87 * 6.30in

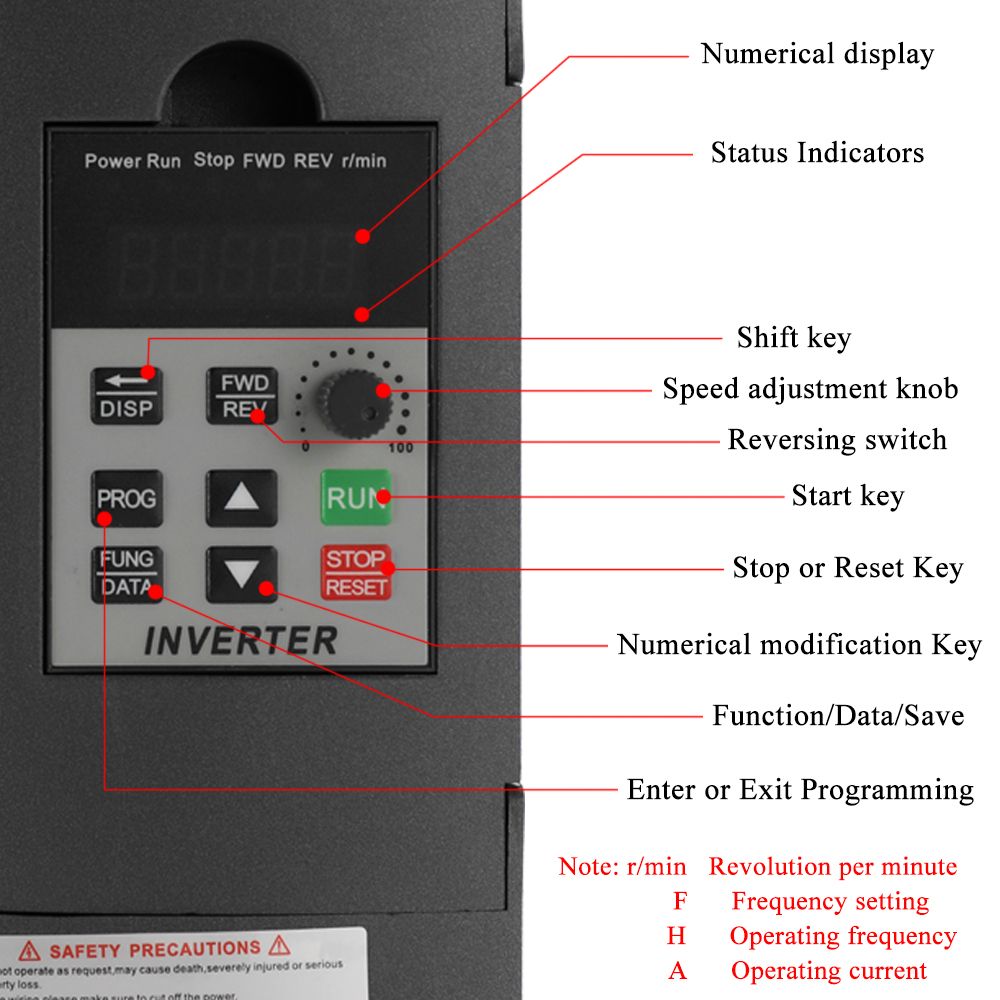

Button:
DISP: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
PROG: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
FUNG/DATA: Enter menus step-by-step, save setting parameters.
Up: Press or press and hold to add data or function code.
Down: Press or press and hold to minus data or function code.
RUN: S-tart.
STOP/RESET: VFD stops running 2, restore to interface before error.
Knob: Adjust rotational speed.
Packing List:
1 * Variable Inverter
1 * Manual
