Model |
Speed Governor |
Production Country |
China |
Size (L x W x H cm) |
7x5x3 |
Weight (kg) |
0.0245 |
Color |
multicolor |
2 With switch can be turned off
3 The appearance of the product is exquisite
4 The starting speed can be adjusted and the use effect is good
5 Simple and convenient operation
Working voltage DC5-12V DC47-14V
Fan current 01-1A Fan current is lower than 01A the control effect is slightly poor and over 1A may damage the circuit board
Self loss less than 30mA without fan
Starting position adjustment range 0%-60% internal circuit control parameters
Output interface model 2510-3P spacing 254mm conventional CPU chassis fan socket
Function Description
Pay attention to the positive and negative poles and the power supply voltage reverse connection will damage the board it can be used after the power supply and fan are connected the potentiometer is turned off counterclockwise to and the clockwise end is the maximum output
A separate small adjustable resistor initial speed adjustment on the board is used to adjust the speed at the just-open position The input of the speed signal port is directly connected to the output of the fan It is mainly used to guide the fan speed signal back to the main board of the device to detect the speed No connection between controller circuits
Precautions
Do not control the fan with more than 1A do not connect the wrong or reverse power supply do a good job of insulation to avoid output short circuit
ColourAs Shown
MaterialPC metal
Package Contents

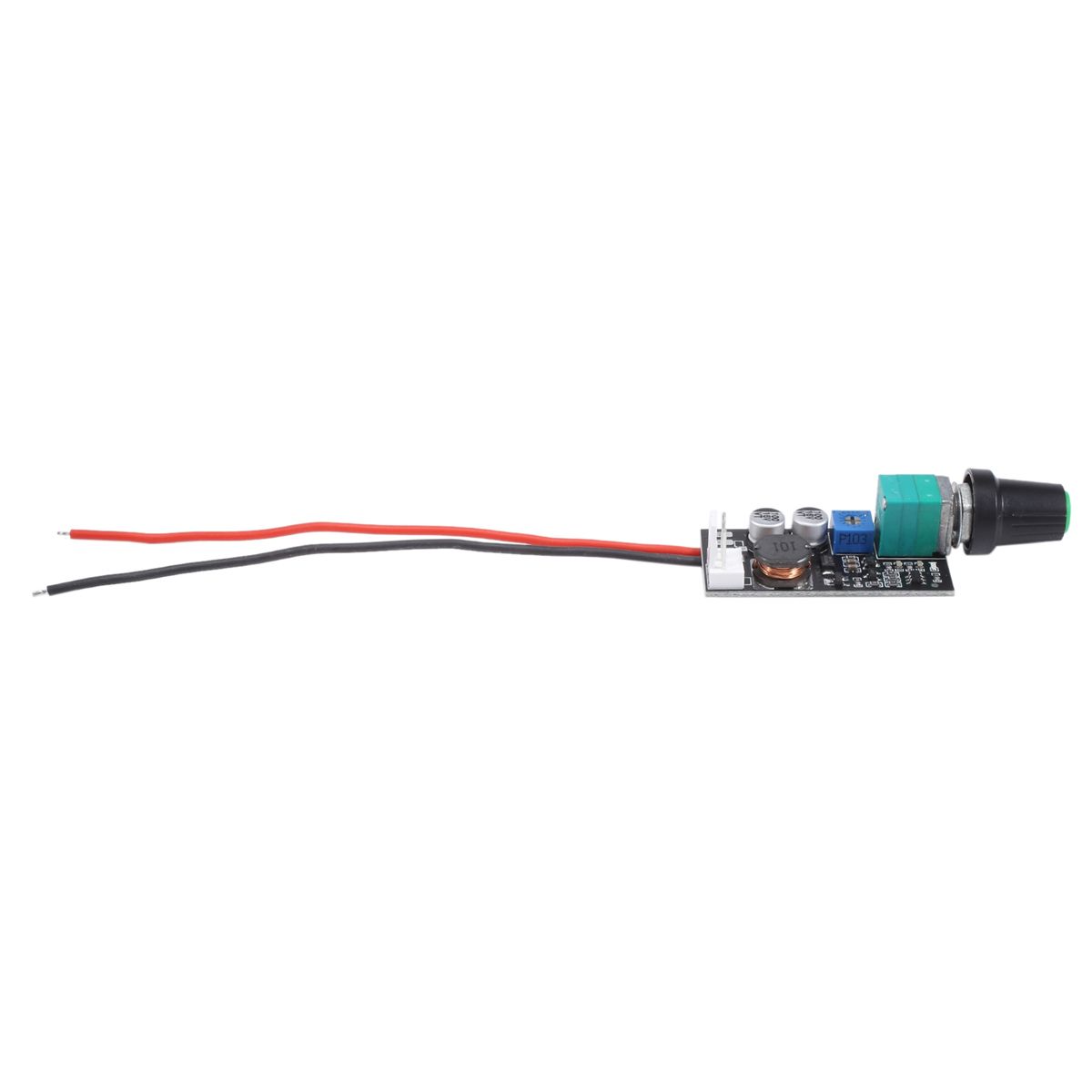

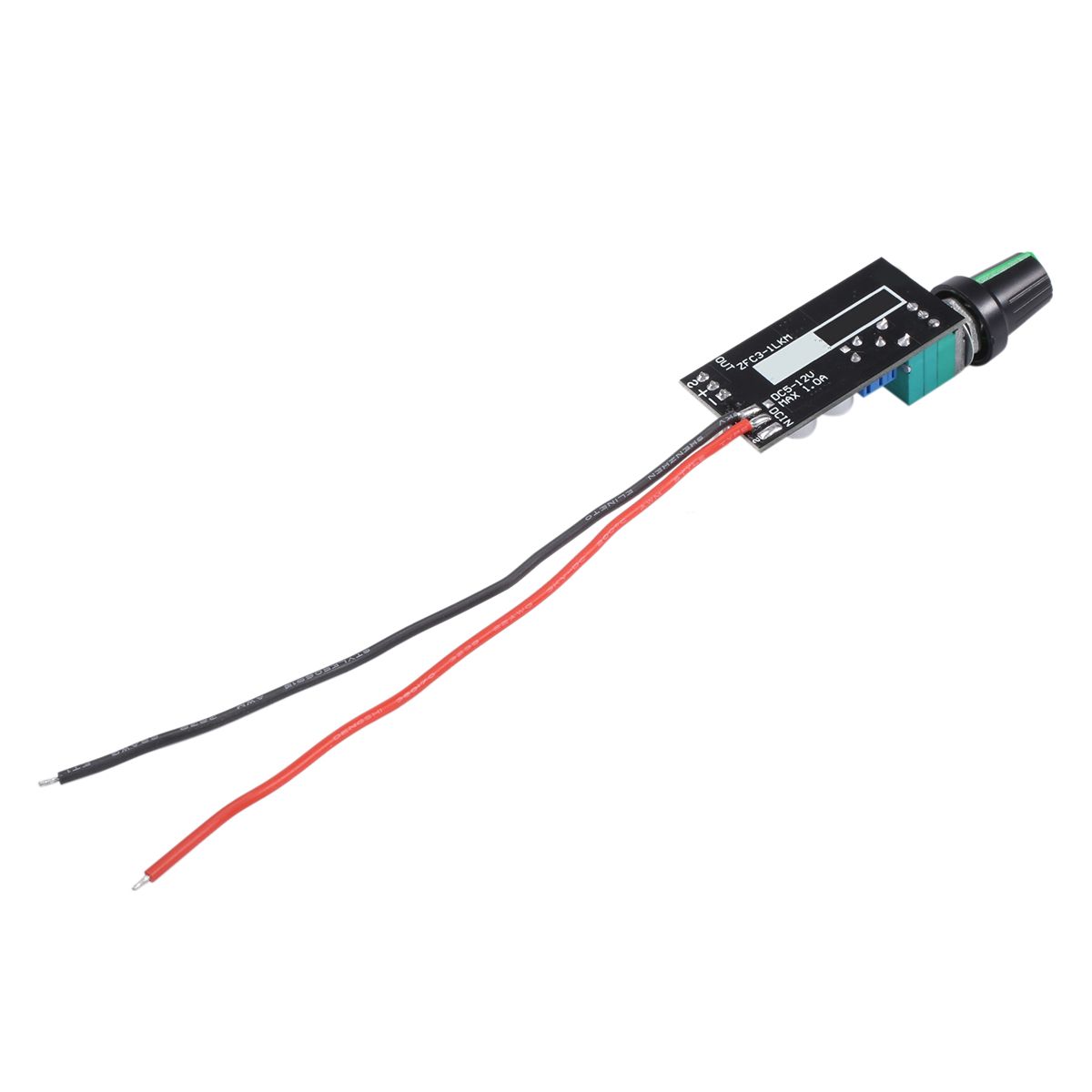

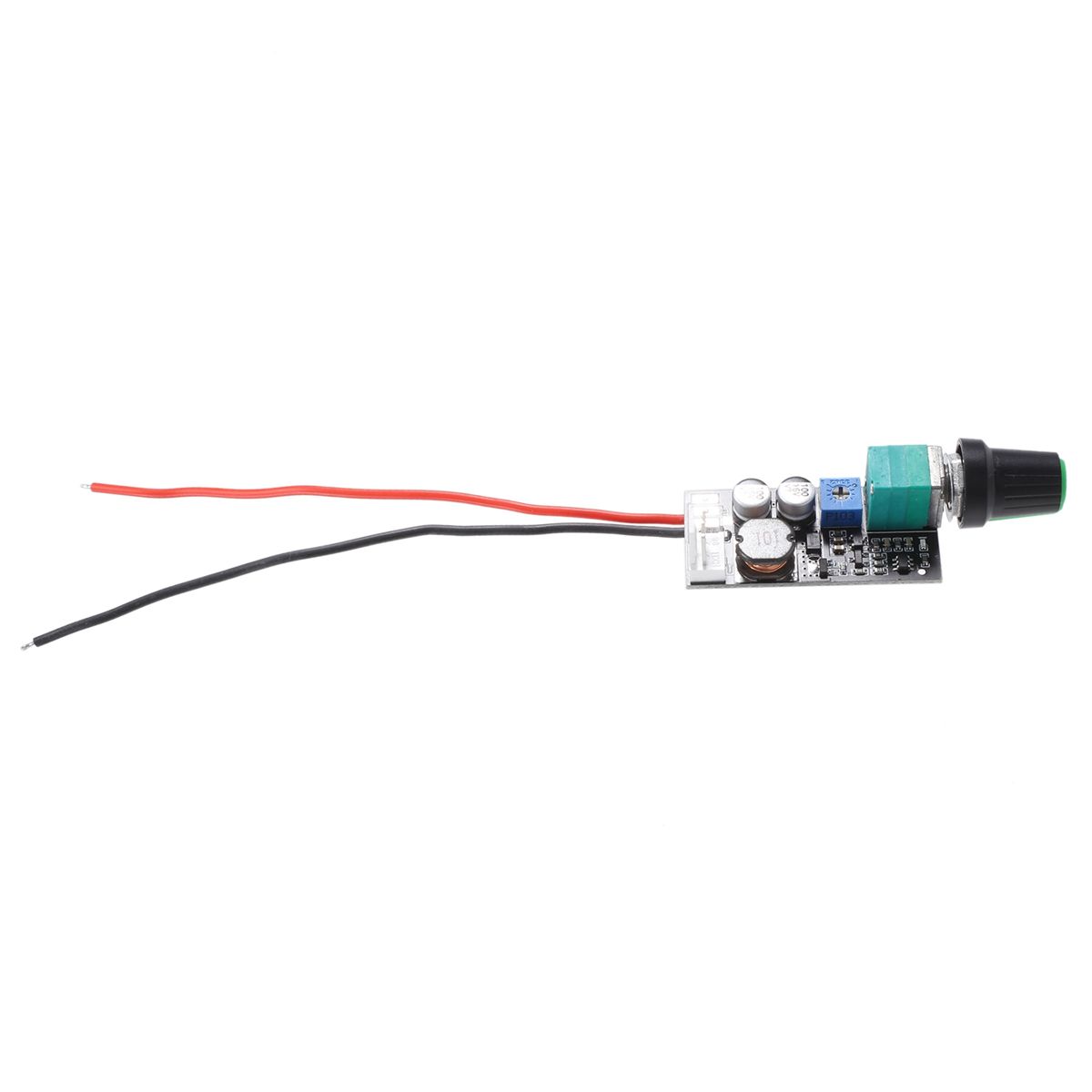

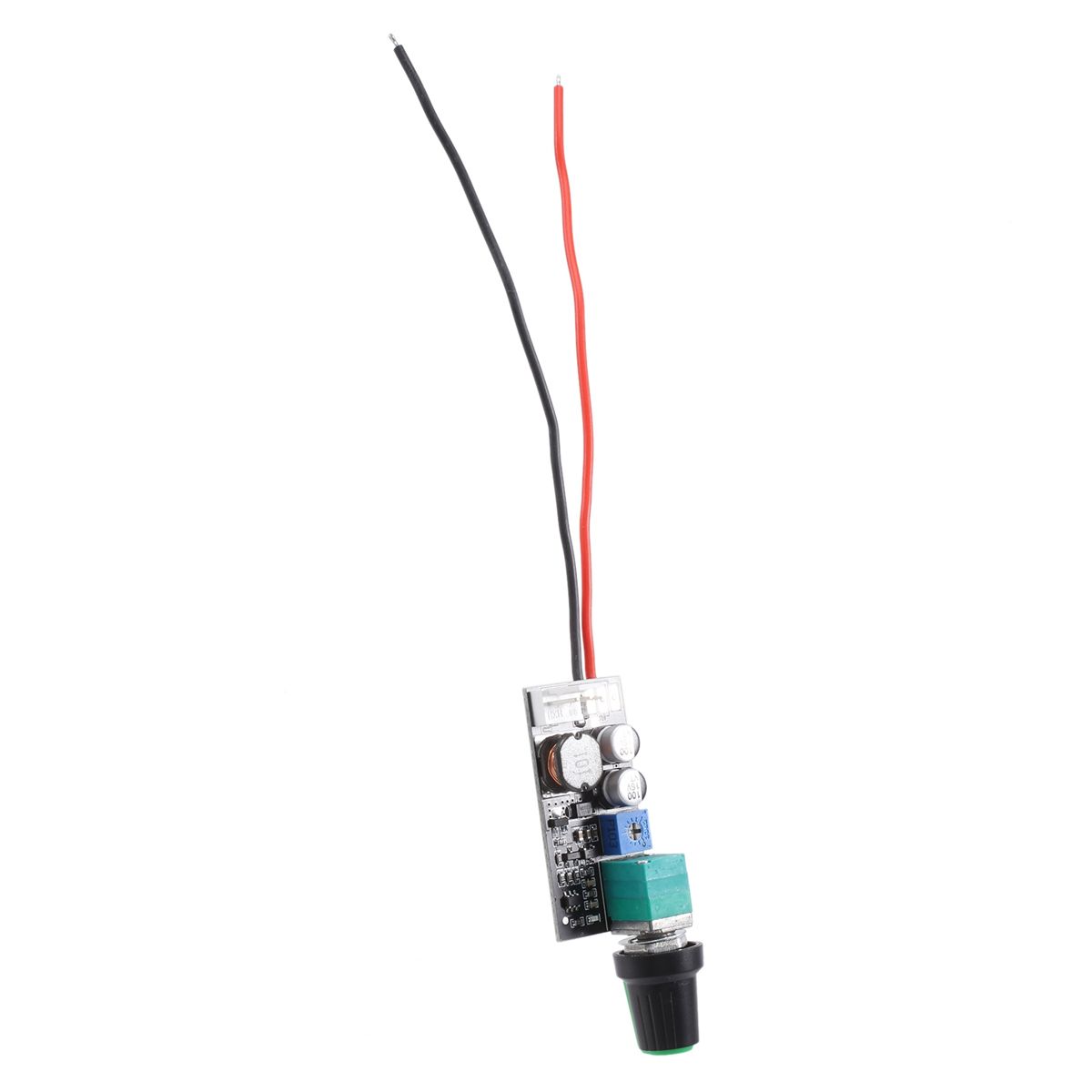

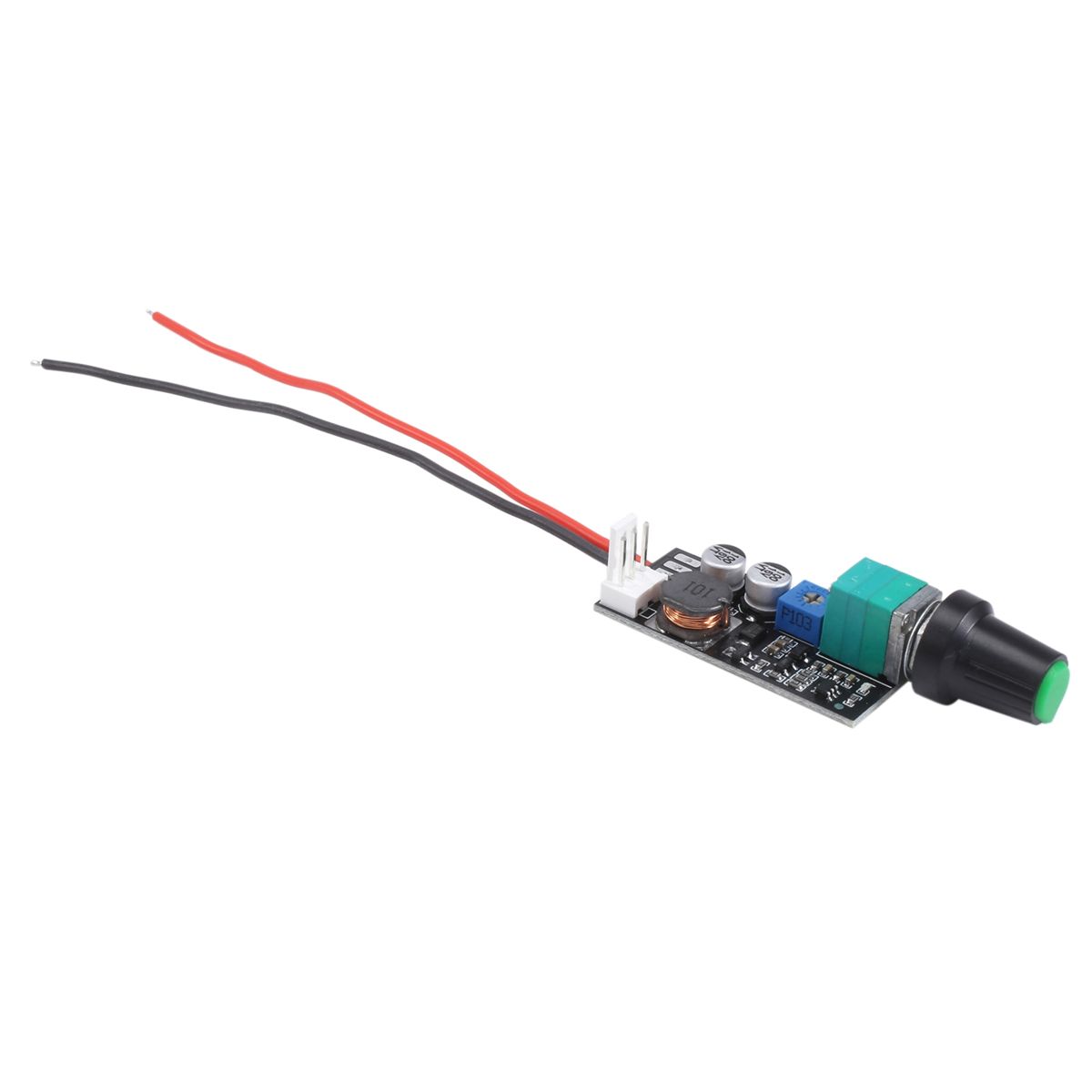

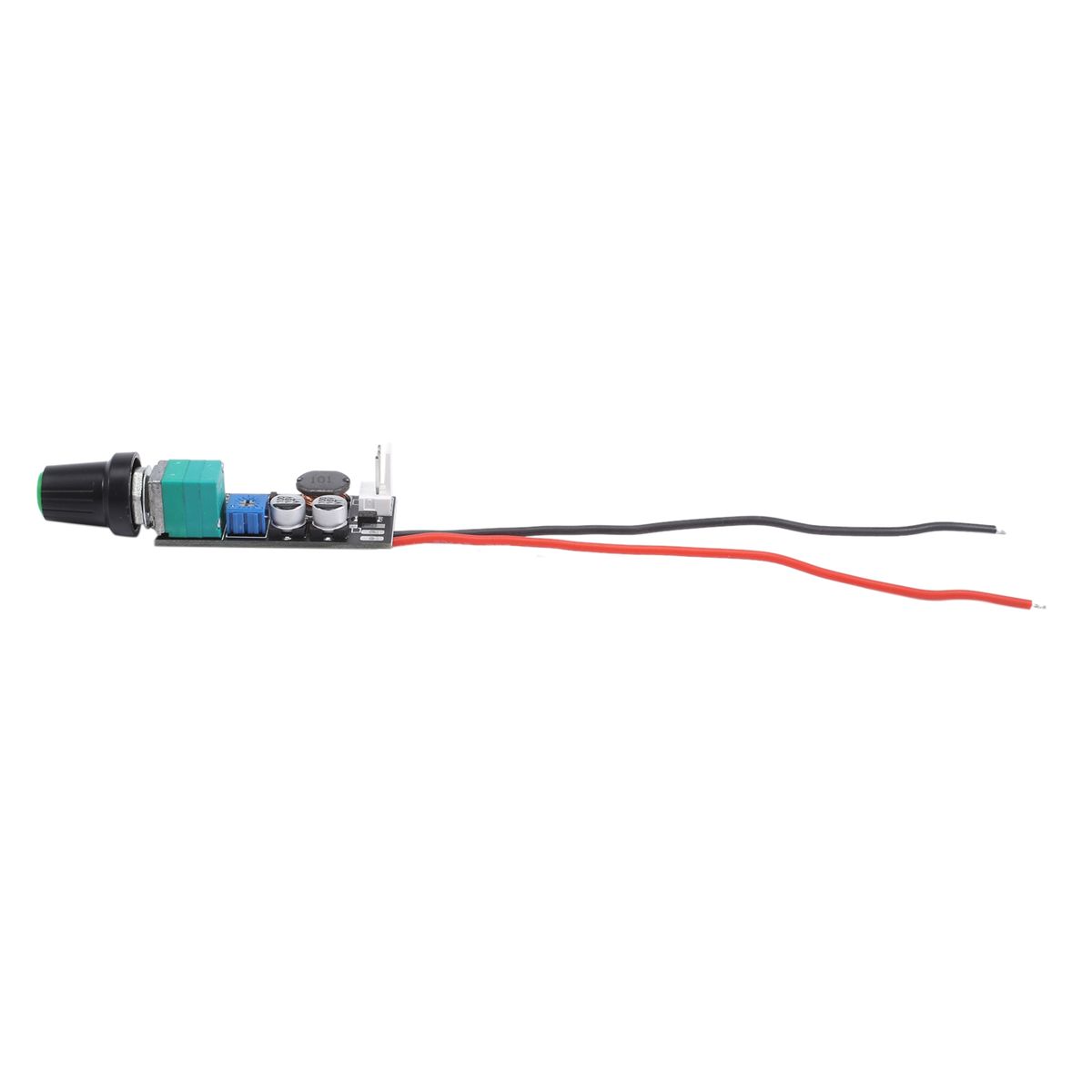

1 x PWM Fan Speed Controller
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x PWM Fan Speed Controller
