Model |
Speed Controller |
Production Country |
China |
Size (L x W x H cm) |
10x15x10 |
Weight (kg) |
0.19844666 |
Color |
multicolor |

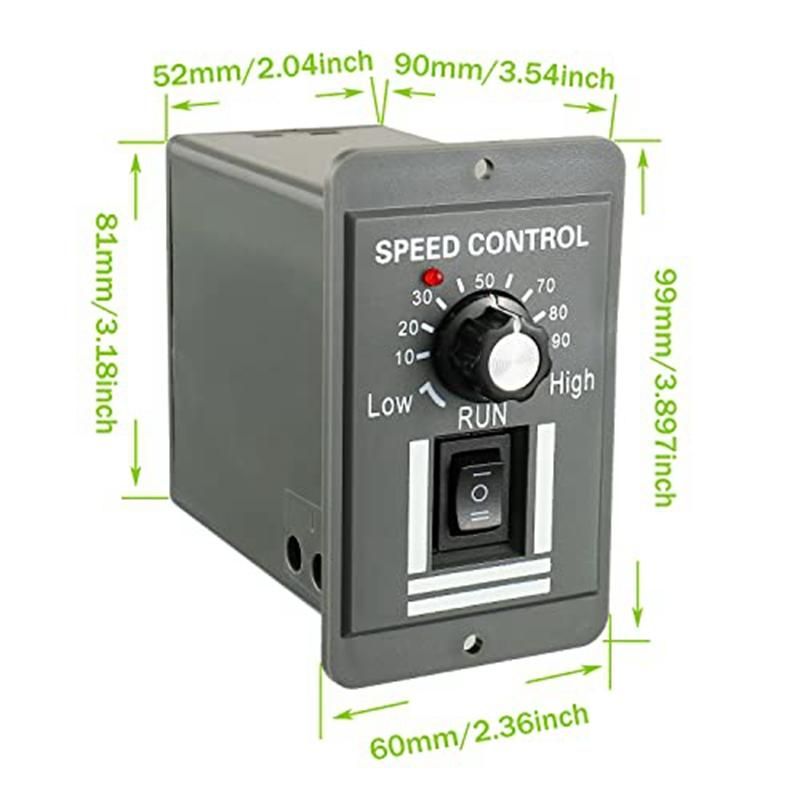

Size 60x90x99mm236x354x39in LxWxH the DC motor speed controller is small in size installation size 52x81mm205x319in convenient for installation in narrow spaces turn control and stop
Soft start protection The motor controller has a soft start protection function which can effectively reduce the surge current protect the motor and prolong the life
Function The DC motor speed control switch can feed back the slip energy generated during speed control Efficient effectively improve energy utilization and efficiency
Application range Widely used in industrial DC motor speed regulation DC fans packaging printing electronics instrumentation clothing machinery medical-machinery and other industries
Input voltageDC 12-60V
Output current20A
Continuous current12A
PWM pulse width adjustable range0% to 100%
ColourAs Shown
Materialplastic
Package Contents
1 * Speed Controller
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 * Speed Controller
