Model |
BS317T |
Production Country |
China |
Weight (kg) |
0.4 |
Certifications |
Eco Friendly |
Color |
Off White |
Main Material |
N/A |
From the Manufacturer |
Yueozinq Supoele Electric Co Ltd |
Care Label |
Do not drop or exceed rated load application |

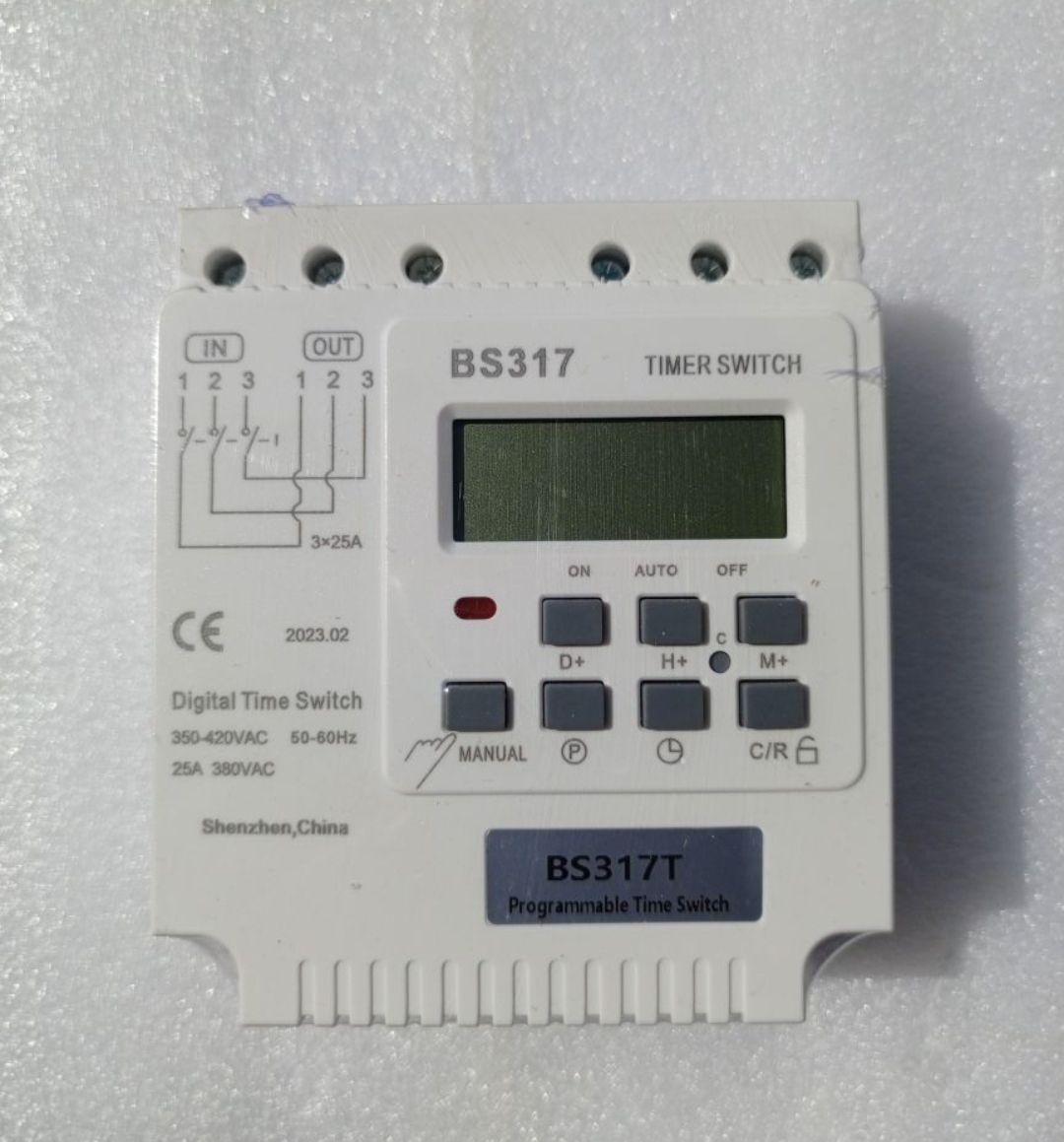

Three Phase Digital Timer Switch 25A for heavy appliancesFeatures:1.Three phase digtal time switch for 7 days-24 hours.Advanced pre-setting one week before.2.15 ON/OFF programs for daily and weekly.3.One channel, voltage output.Accurate-to-the-minute control.4.LED power indicator, high contrast LCD display.5.Reset function and manual override.Battery back up for power failure.
Descriptions:1.High-performance and stable three-phase timing switch, input three firing wires, output three firing wires, without zero-wire to solve some customers inconvenient zero-wire connection shortcomings, the maximum power reaches 4 kW, eliminating the trouble of connecting contactors. As long as you set a good time to turn on and off, a total of 15 can be set, Monday to Sunday, arbitrary settings, at least one minute apart, the maximum 168 hours (equal to one week), can be temporarily manually opened and closed, as long as the settings can be a permanent cycle.2.Widely used in three-phase 350V-420VAC motors such as pumps, fish pond aerators, rice steamers, water heaters, billboards, neon lights, exhaust fans, etc., to achieve unmanned management, safe and reliable, stable performance, is a very good choice.3.Built-in rechargeable battery, power-off memory. No need to reset the program, convenient and practical.
Specifications:- Item name:Digital Time Switch
- Color:White
- Product model: BS317T
- Quantity : 1 piece
- Voltage:380V/50-60Hz
Control output: 25A (three-phase direct output)Number of Settings: 15 Switches (Daily/Week)Setting time: 1 minute to 168 hoursTravel time error: 1s/24hPower outage memory: more than 180 days (built-in 1.2V rechargeable battery)Connection mode: screw device appearanceSize: 120x120x52mm
Package information:Package size:140x140x70mmPackage Weight: 460gGeneral box Package
Package included:1 x Timer SwitchManual
What's In the Box
1* Three Phase TimerManual
