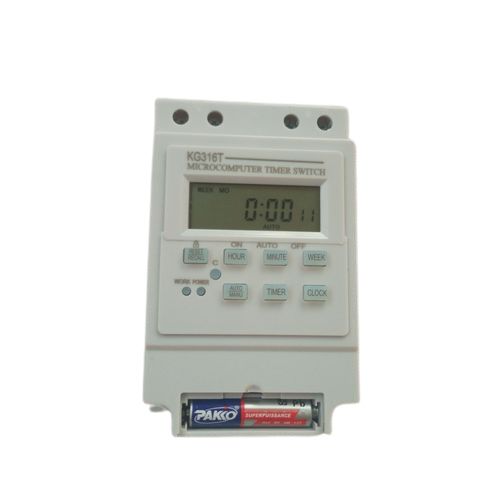

KG316T
programmable time switch is a timer that operates an electric switch controlled by the timing mechanism.
The switch may be connected to an electric circuit operating from mains power, including via a relay or contactor; or low voltage, including battery-operated equipment in vehicles
Features:
This product can automatically switch on and off the power of various powered devices according to the time set by the user.
Adopt an 8-bit microcomputer time control chip for accurate and stable timing control.
The built-in rechargeable battery has a backup power supply to maintain the timing and display in case of no external power supply.
With power-off memory function.
Suitable for the automatic control of street lamps, neon lamp, advertising sign lamp, production device, broadcast television devices,s and so on.
Specifications:
Model specification: KG316T
Working voltage : 220V
Rated current: 25A
Power consumption: about 4VA
Time control range: 1 minute - 168 hours
Time-keeping error: ±2s/day
Switching capacity: Resistive load 25A,

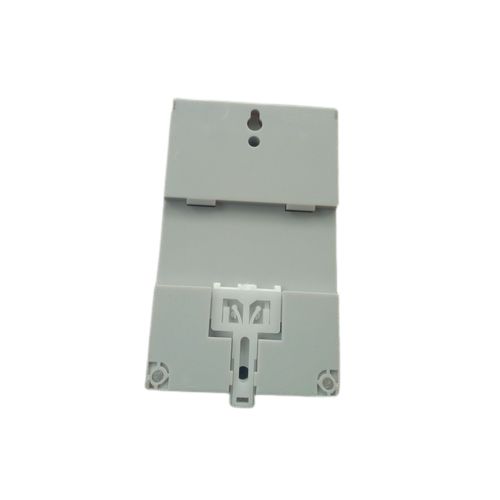

Mounting od: DIN rail mount, wall mount
Working environment: -20~50°C, ≤95%RH
Product size: 12.1*7.5*5cm / 120x74x58mm
Weight: Approx. 200g
Key Features
Resistance Load : 25A
Programmable timer switch
Easy to use
Low power consumption
220V
What's In the Box
1xTimer switchManual
