Features:
Mechanical Timer Switch: Large dial with clear scale; quartz movement starts automatically in a few minutes after the power is switched on.
Easy Operation: 24 hours timer, with manual switch, supports program timing (turn on/ off automatically according to the schedule) and permanent ON/ OFF. Built-in battery for reserve.
DIN Rail Installation: Convenient to assemble and disassemble, flexible to use. Compact size and light weight make installation easier.
Transparent Dust Cover: Dustproof and water-splash proof, prolongs service life. Transparent design has no effect on viewing the dial.
Wide Use: For street lights, ventilation, fountains, advertising hoarding, production equipment, broadcasting and television equipment and more. Only for use in dry indoor places.
Note:
1. Installation should only be carried out by a qualified electrician.
2. Please read the user manual carefully before use.
3. Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:

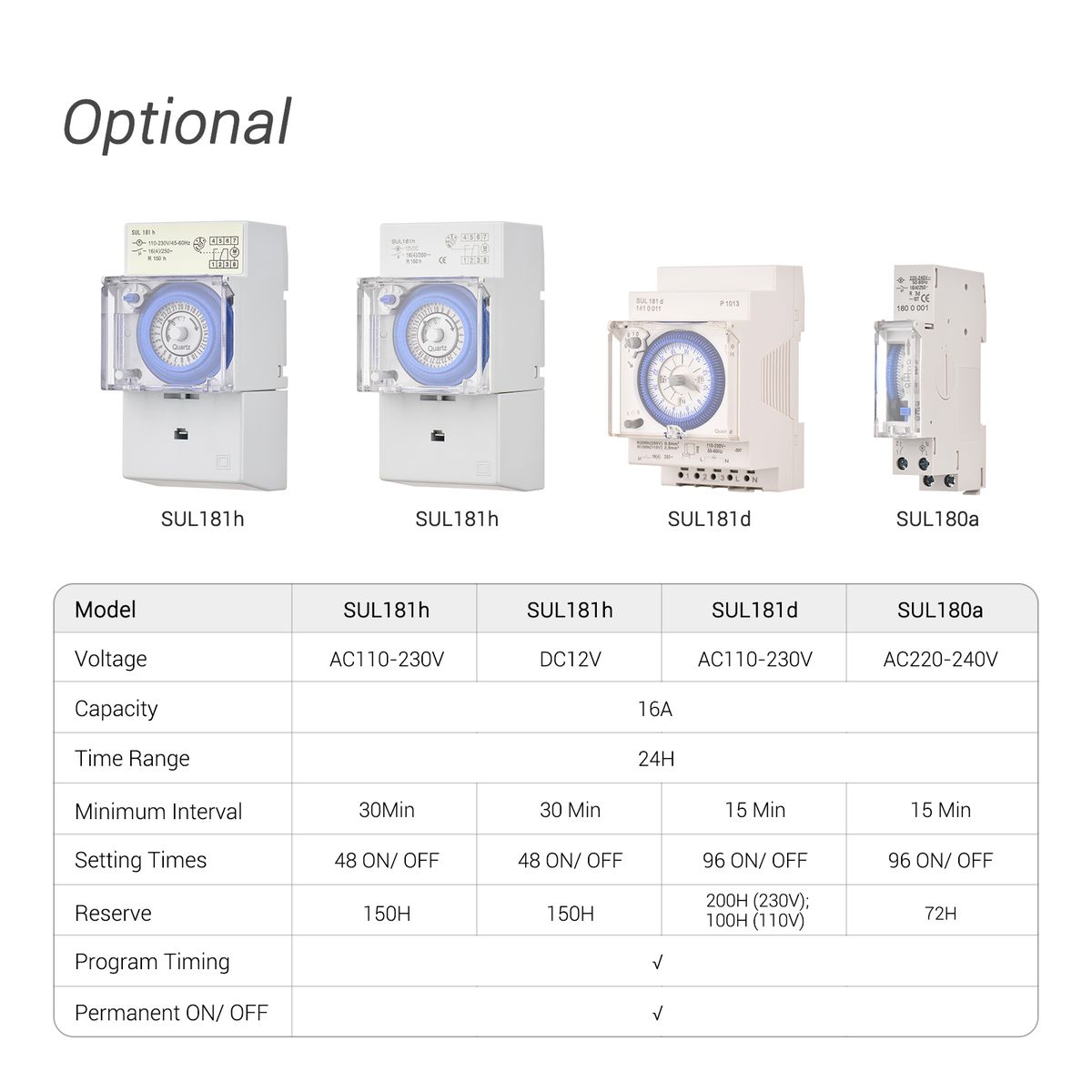

Model, Voltage: SUL181h, AC110-230V/SUL181h, DC12V/SUL181d, AC110-230V/SUL180a, AC220-240V (Optional)
Material: ABS
Built-in Battery: 1.2V 40mAh NI-MH Battery
SUL181h: AC110-230V/ DC 12V
Color: Grey
Contact Capacity: 16A
Power: 2W
Frequency: 45-60Hz (AC110-230V)
Time Range: 24H
Minimum Interval: 30min
Setting Times: 30min/time, 48 times
Reserve: 150H
Contact Resistance: le;50m Omega;
Insulation Resistance: ge;100m Omega;
Size: 54 * 68 * 110mm / 2.13 * 2.68 * 4.33in
Package Size: 11.5 * 7.5 * 6cm / 4.53 * 2.95 * 2.36in
Package Weight: 192g / 6.77oz
SUL181d, AC110-230V:
Color: White or Grey (Randomly Sent)
Power: 1W
Frequency: 50-60Hz
Switching Capacity: 16A, 250V~, cos phi;=1; 4A, 250V~, cos phi;=0.6
Incandescent Lamp Load: 1100W
Time Range: 24H
Minimum Interval: 15min
Setting Times: 15min/time, 96 times
Reserve: 200H (230V); 100H (110V)
Size: 54 * 65 * 90mm / 2.13 * 2.56 * 3.54in
Package Size: 9.8 * 7 * 6cm / 3.86 * 2.76 * 2.36in
Package Weight: 135g / 4.76oz

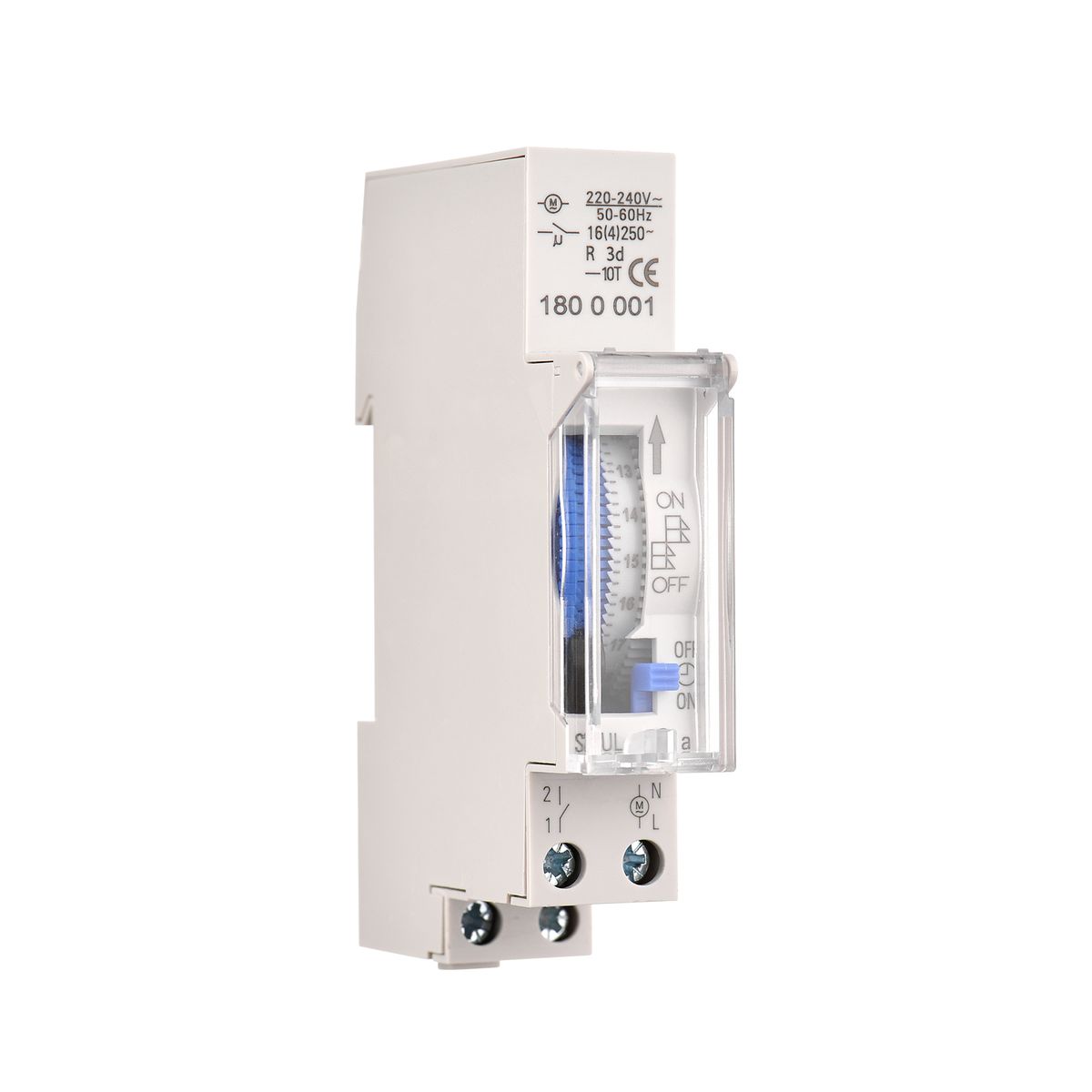

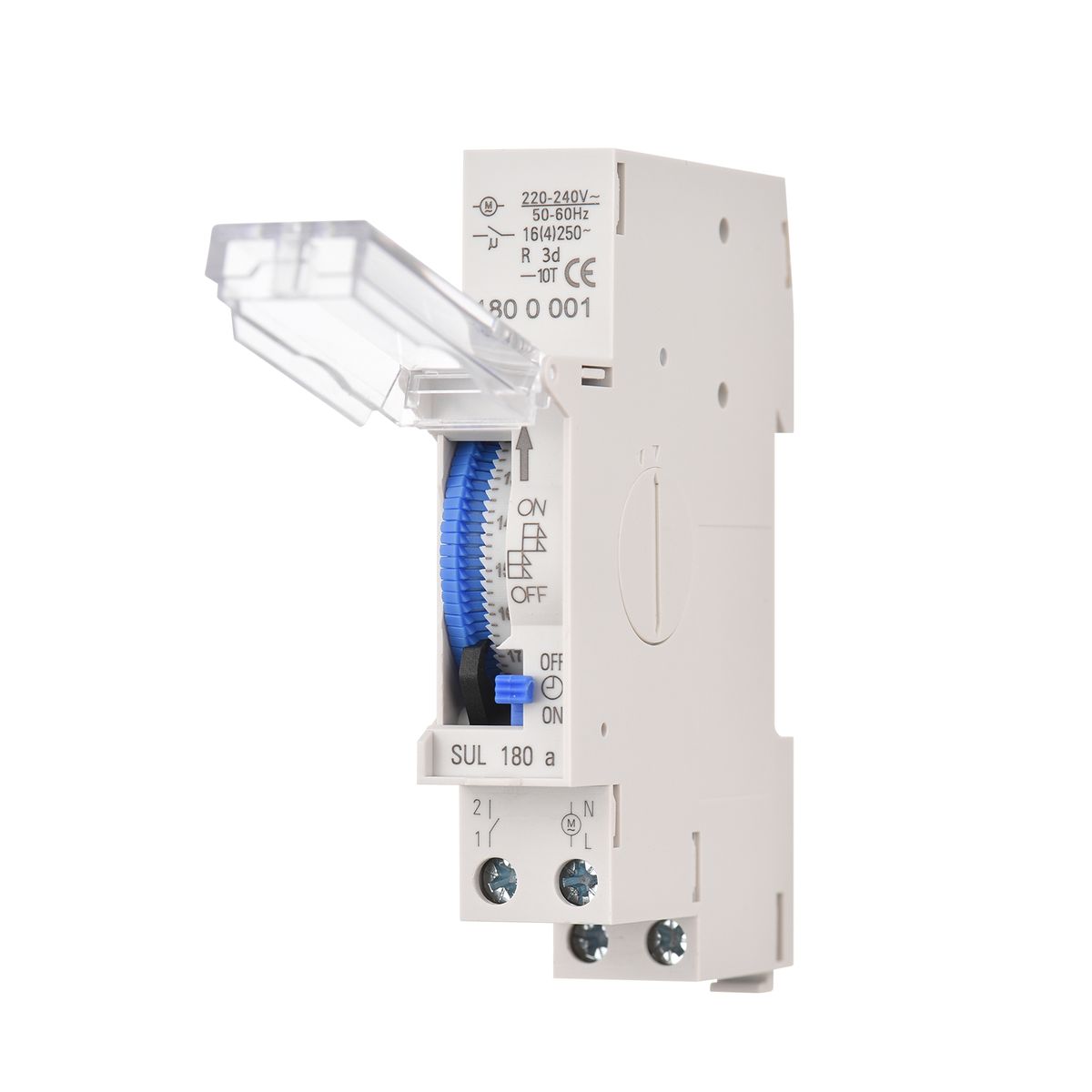

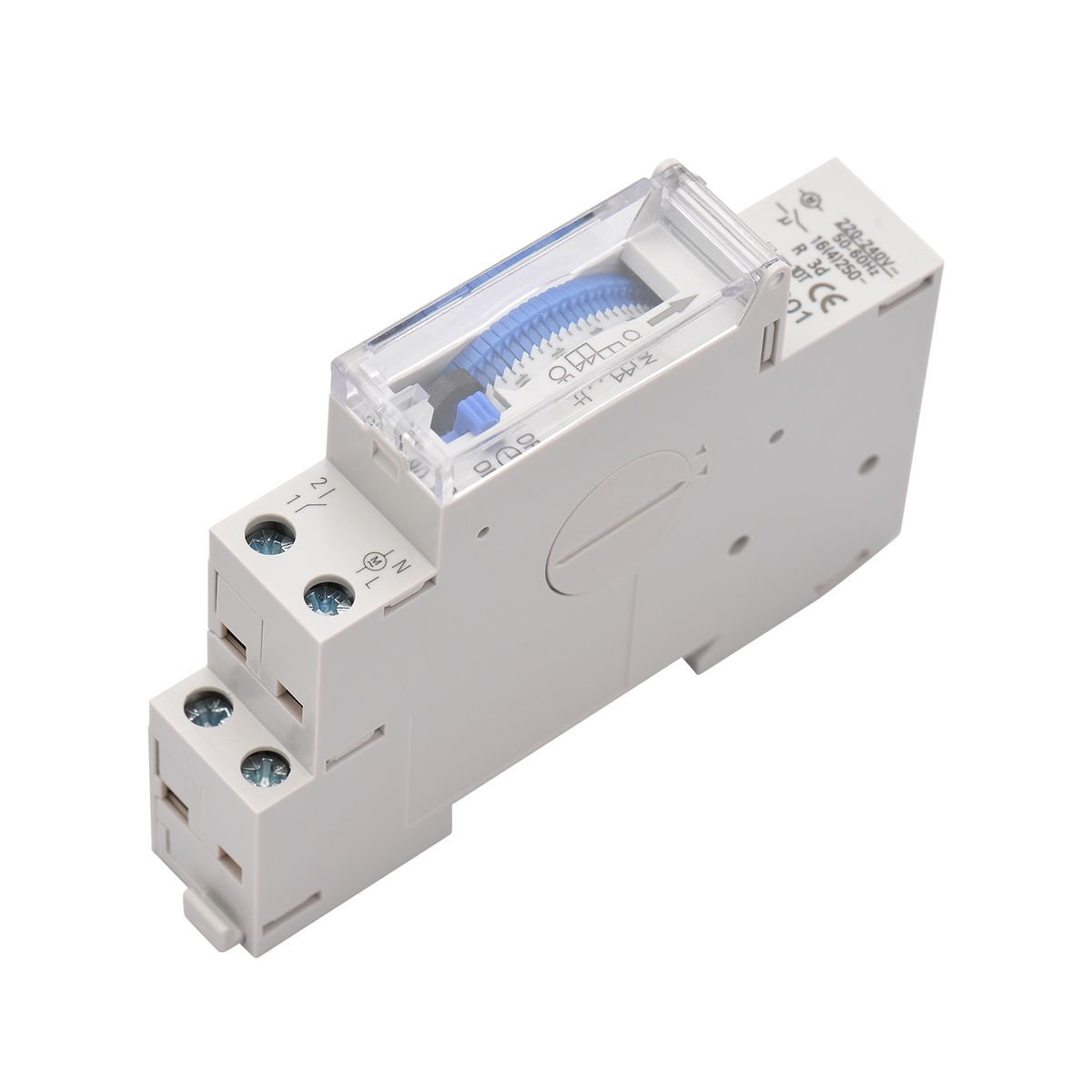

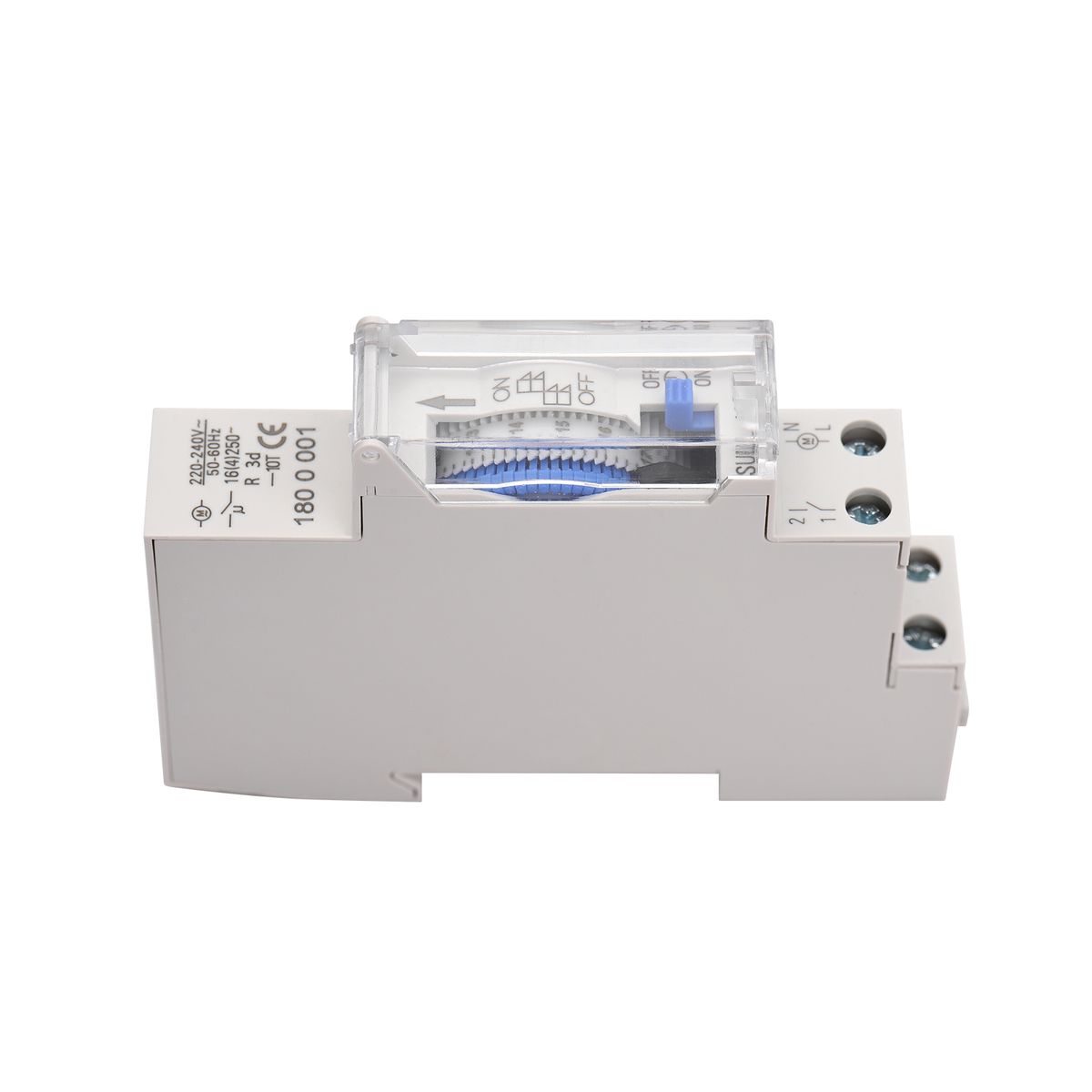

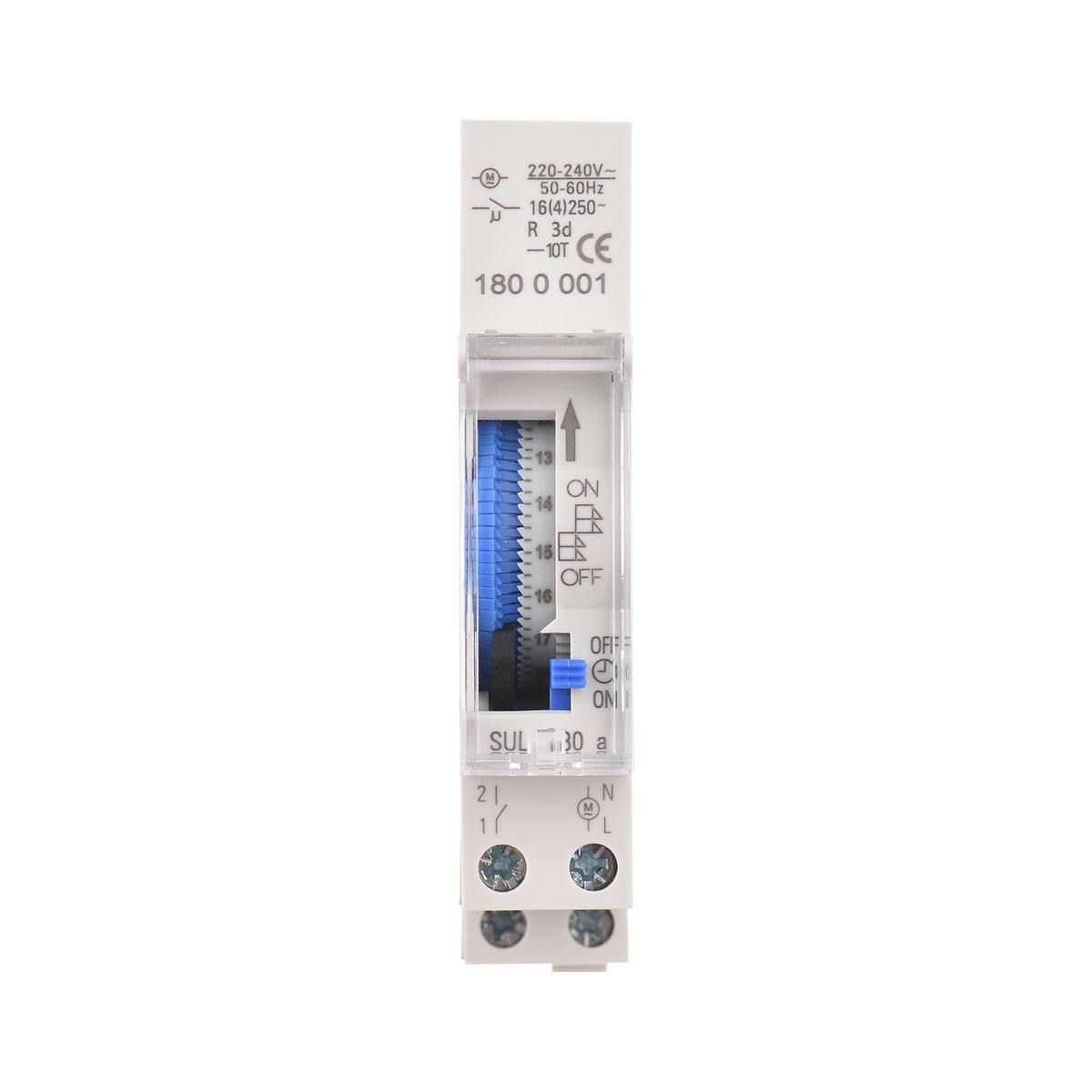

SUL180a, AC220-240V:
Color: Grey
Contact Capacity: 16A
Power: 1W
Frequency: 50-60Hz
Load: Incandescent Lamp 1000W; Energy-saving Lamp 150W
Time Range: 24H
Minimum Interval: 15min
Setting Times: 15min/time, 96 times
Reserve: 72H
Contact Resistance: le;50m Omega;
Insulation Resistance: ge;100m Omega;

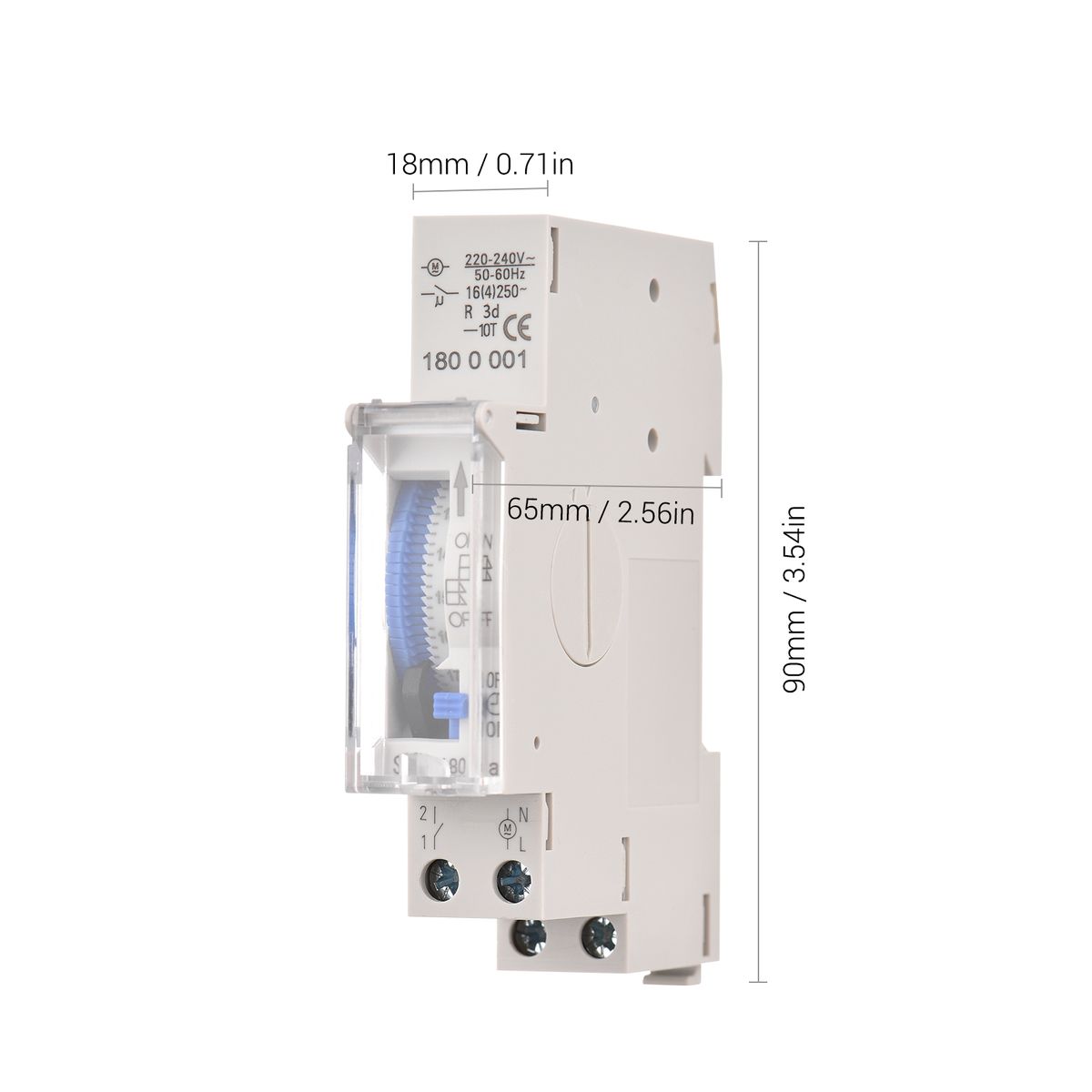

Size: 18 * 65 * 90mm / 0.71 * 2.56 * 3.54in
Package Size: 9.8 * 7 * 2cm / 3.86 * 2.76 * 0.79in
Package Weight: 85g / 2.98oz
