Features:Featured as Excellent Sensitivity and Accurate, help you to find the best position for -T antenna installation.
Designed with a compass for easier and quicker tuning.
With and attenuation control function, easy user-friendly operation.
Feedback numbers shows the strength of the signal intuitively.
Mini size and light weight, really portable and convenient to carry.

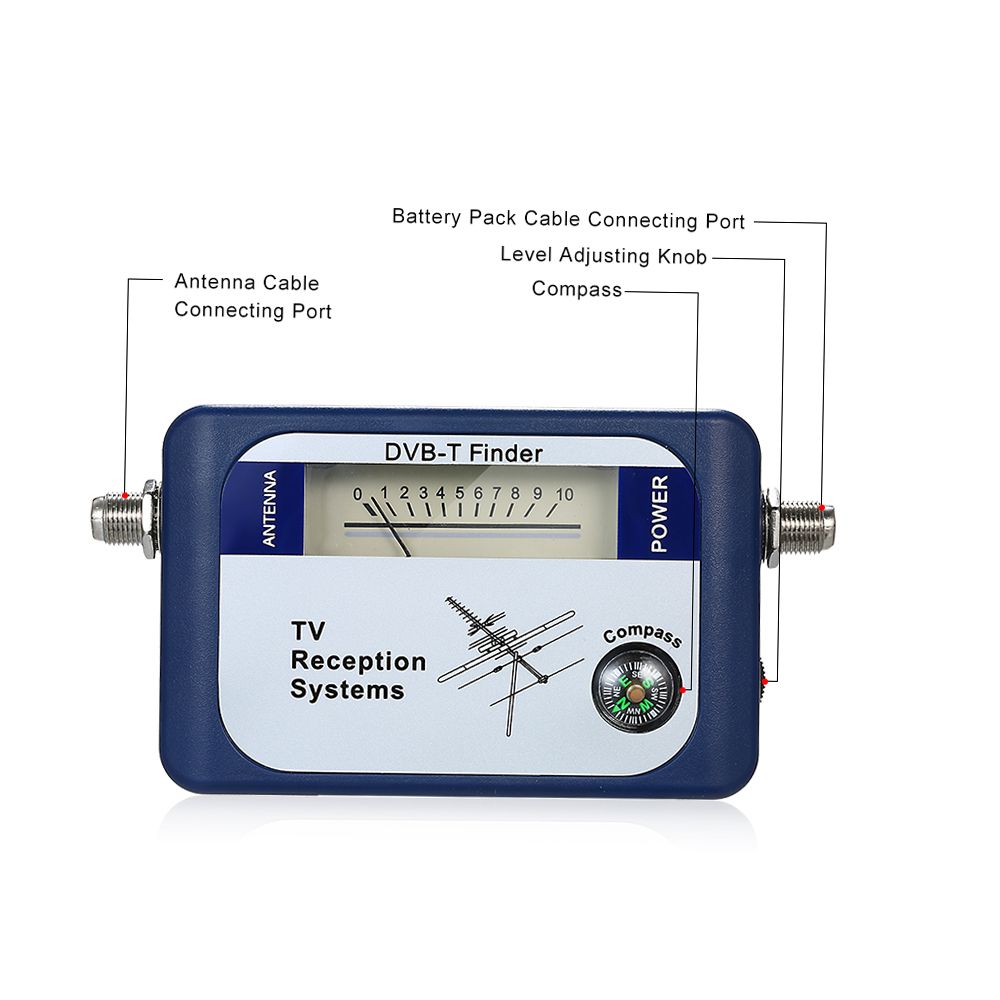

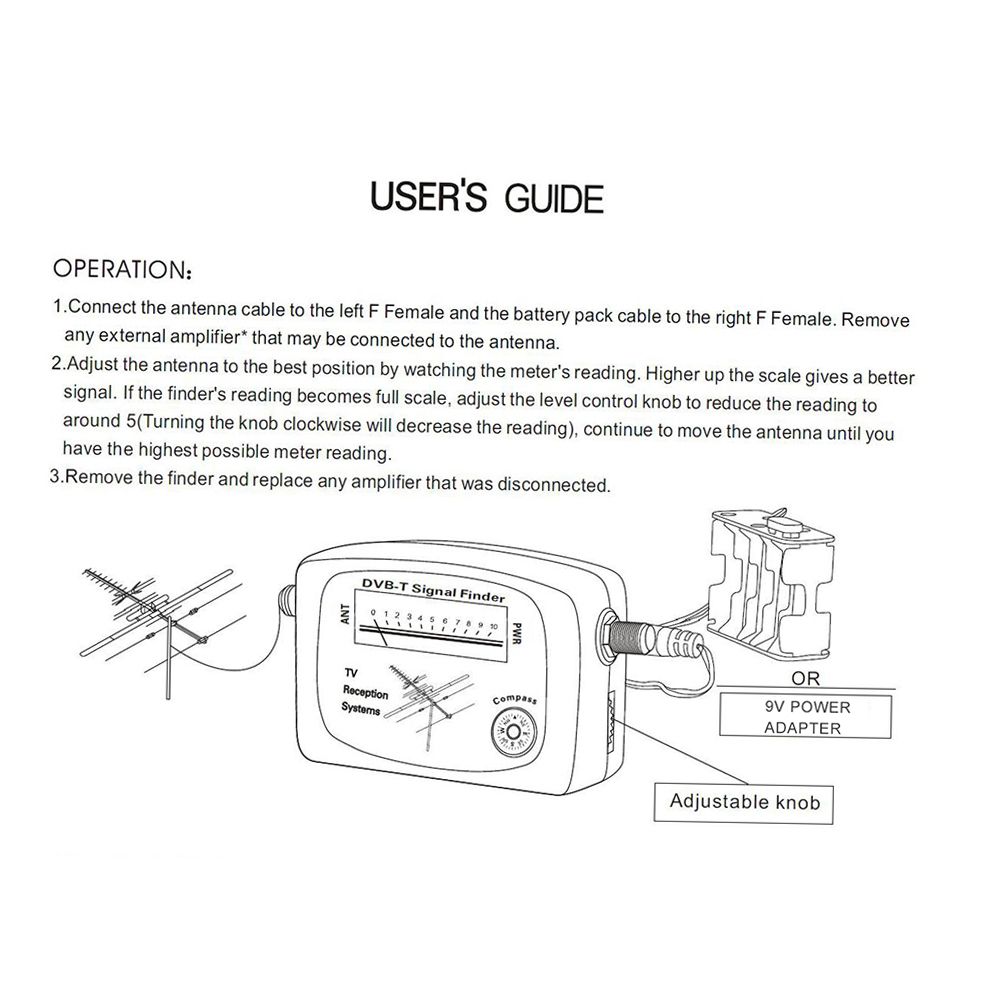

Operation:1.Connect the antenna cable to the left F Female and the battery pack cable to the right F Female. Remove any external amplifier* that may be connected to the antenna.
2.Adjust the antenna to the best position by watching the meter's reading. Higher up the scale gives a better signal. If the finder's reading becomes full scale, adjust the level control knob to reduce the reading to around 5 (Turning the knob clockwise will decrease the reading), continue to move the antenna until you have the highest possible meter reading.
3.Remove the finder and replace any amplifier that was disconnected.
Important Note:
-If your antenna has an internal amplifer, (eg: 01MM-SQ01), it should be powered by an external supply via a inserter. Make sure the inserter is positioned between the finder and the antenna.
Specifications:Color: blue
Material: plastic
Frequency range: 170-860MHz
Input level range: 65-95dBuv
Impedance: 75Ω
Insertion Loss: ≤5.0dB
supply: 9-12V

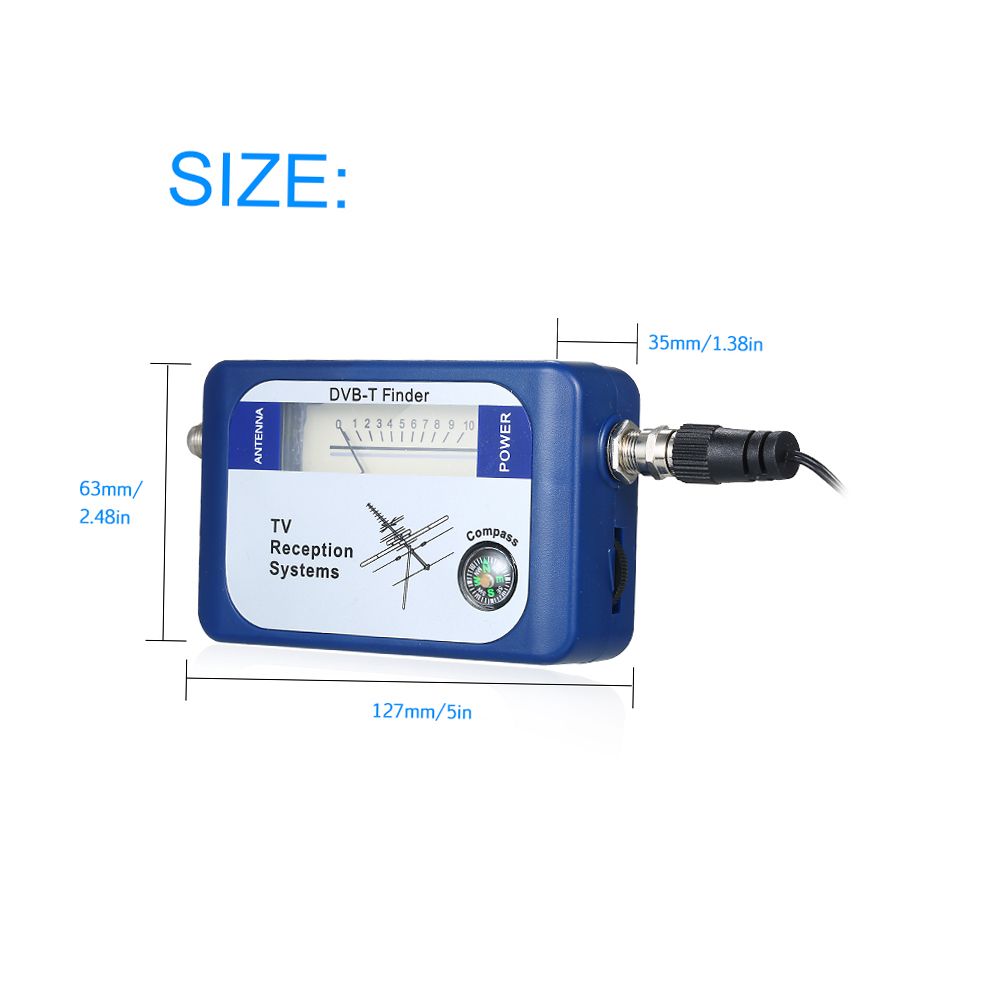

Item Size: Approx. 127 * 63 * 35 mm / 5 * 2.48 * 1.38in
Item Weight: Approx. 90g / 3.2oz
Package Size: Approx. 18.6 * 14.1 * 4.3cm / 7.32 * 5.55 * 1.69in
Package Weight: Approx. 197g / 6.97oz
Package List:1 * Satellite Finder
1 * English User Manual

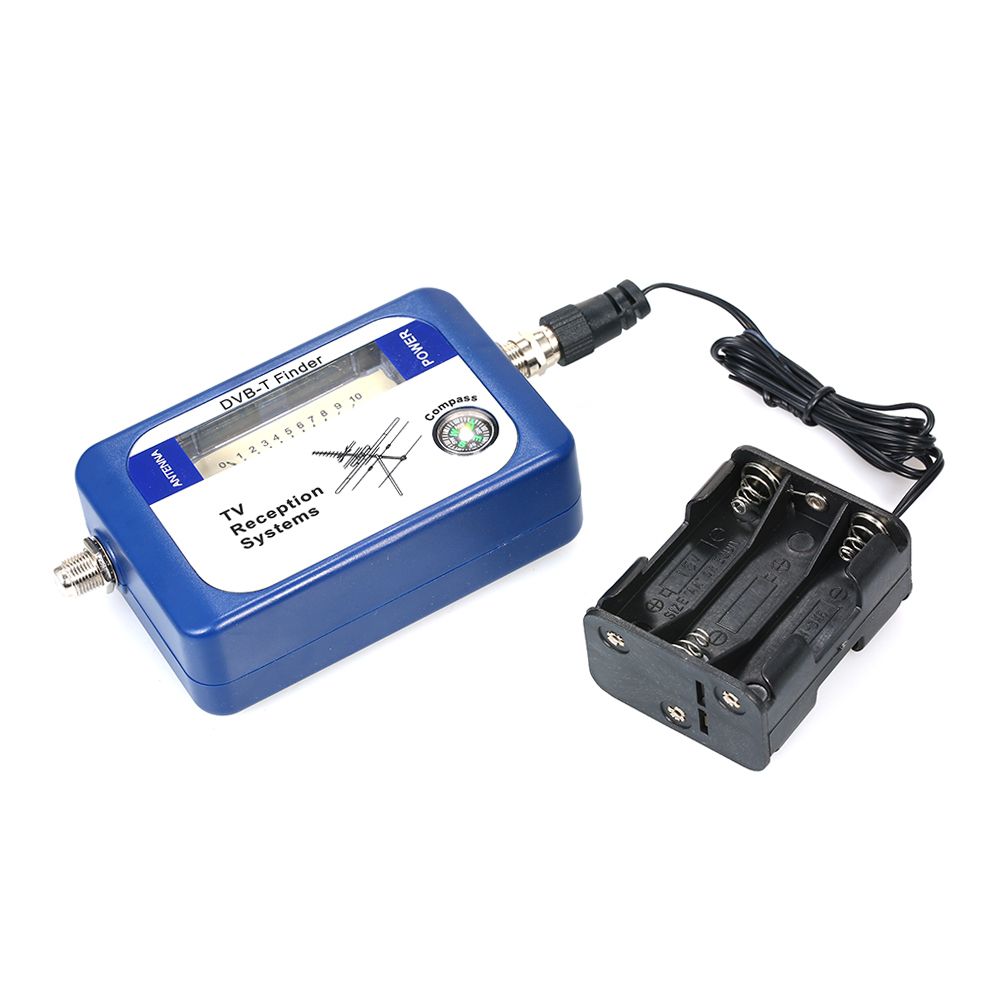

1 * Battery Holder
1 * Cable
Key Features
Featured as Excellent Sensitivity and Accurate, help you to find the best position for -T antenna installation.
Designed with a compass for easier and quicker tuning.
With and attenuation control function, easy user-friendly operation.
Feedback numbers shows the strength of the signal intuitively.
Mini size and light weight, really portable and convenient to carry.
Featured as Excellent Sensitivity and Accurate, help you to find the best position for -T antenna installation.
What's In the Box
1 x Satellite Finder,1 x English User Manual,1 x Battery Holder,1 x Cable
