Digital torque meter for various kinds of tightening and dismantling control, with easy operation, simple and lightweight, multi-unit conversion, audible alert, adjustable in clockwise and reverse directions, etc. Used in conjunction with a common ratchet, the torque handle can be used as a digital torque handle with the same functions as the digital torque ratchet. (Handle to be purchased separately)
Features.This digital torque meter is simple to operate and portable to carry.

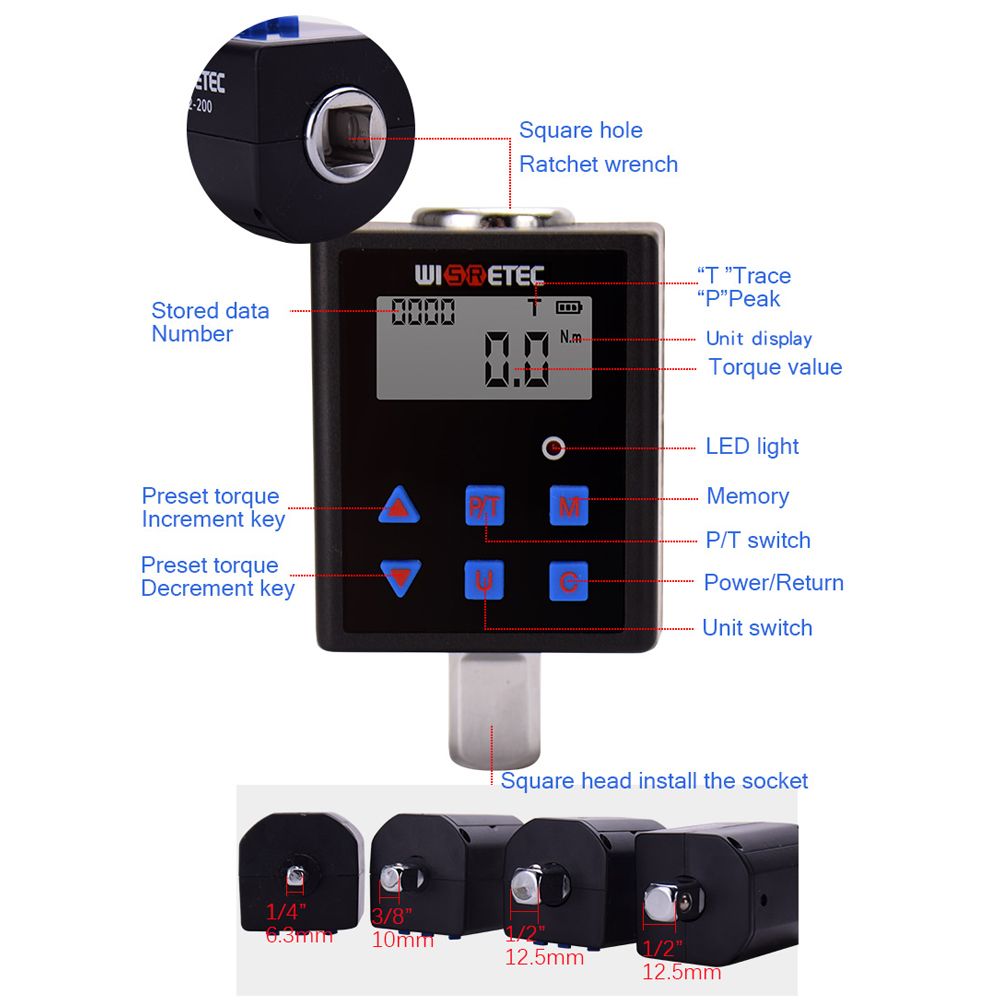

Large digital display with backlight, supports display of torque value, unit, working mode, data storage number, easy to understand.

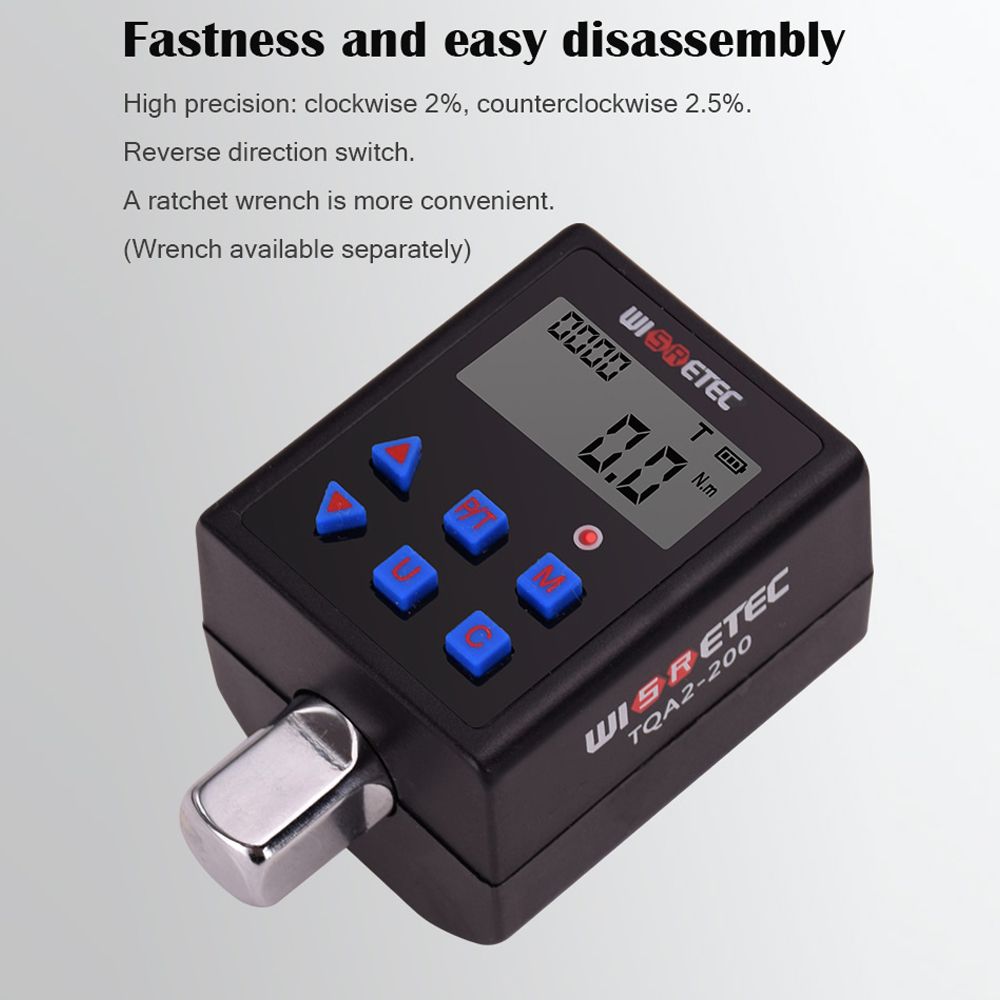

Two-ways measurement, support adjustable in clockwise and reverse direction, can be used in forward and reverse directions, error: 2% clockwise, 2.5% counterclockwise, more convenient to use with ratchet hand. (Wrench to be purchased separately.)

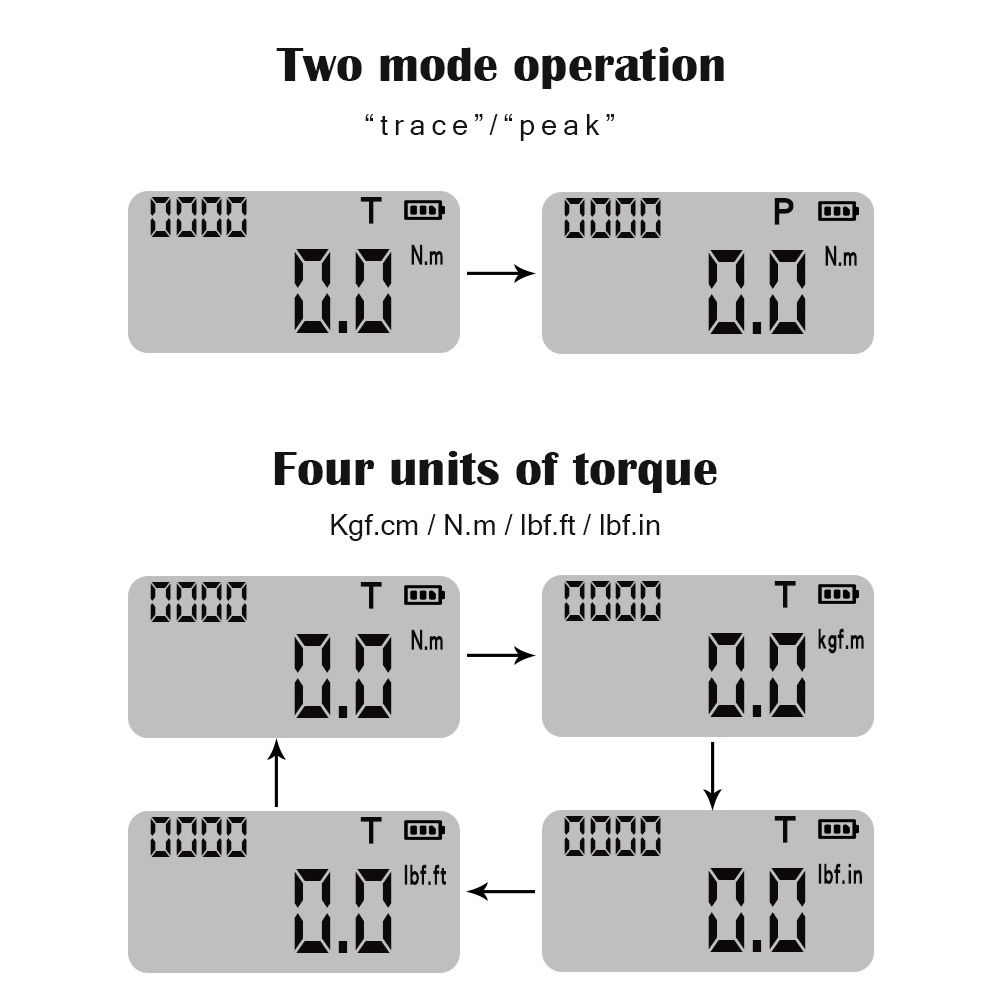

Two working modes, freely switchable between "trace" tracking mode and "peaks" peaking mode.
Four units are available, you can adjust between Kgf.cm, N.m, Ibf.ft and Ibf.in depending on your needs.
Pre-set values with sound and light alarm, preset values according to the torque to be measured, when the is switched on and the preset target torque value is reached, the will sound long and the red light will be on.
When used in conjunction with a common ratchet, it becomes a digital torque indicator with the same function as a digital torque plate. (Handle to be purchased separately.)
Widely used in the automotive, bicycle and machinery repairing industries.
Specifications:Name: Digital Torque Meter
Material: plastics
Models: TQA2-030, TQA2-340, TQA2-135, TQA2-200
(optional)Batteries: 2 * No.7 batteries
(not included)Accuracy: 2% clockwise, 2.5% counterclockwise
Data storage: 999, 999, 999, 999
Indexing values: 0.01, 0.1, 0.1, 0.1
Display ranges: 0.3-30, 1.35-135, 2-200, 3.4-340
Alarm ranges: 0.9-30, 4-135, 6-200, 10-340
Accuracy guarantee ranges: 20-100%, 20-100%, 20-100%, 20-100%
Connection heads size: 1/4inch, 3/8inch, 1/2inch, 1/2inch
Operating mode: P(Peaks)/T(Trace)
Torque units: kgf.cm/N.m/Ibf.ft/Ibf.in
Push button: 6
Operating temperature: -20°C to 70°C
Operating humidity: 15-90%
Automatic shutdown: 60s
Carried adapter:
TQA2-030: 1/2inch square hole to 1/4inch squarehead
TQA2-340: 1/2inch square hole to 3/8inch squarehead
TQA2-135: 1/2inch square hole to 1/4inch squarehead, 1/2inch square hole to 3/8inch squarehead
TQA2-200: 1/2inch square hole to 1/4inch squarehead, 1/2inch square hole to 3/8inch squarehead

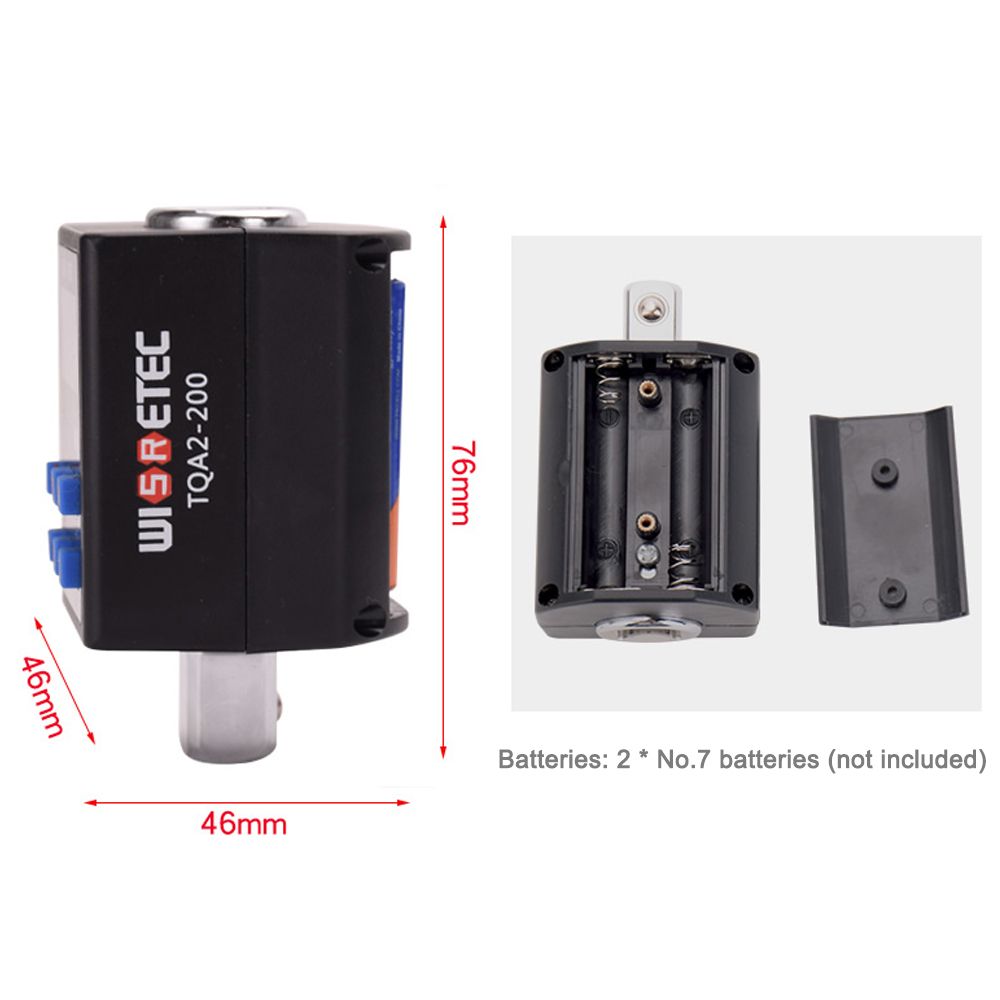

Product size: 76 * 47 * 47mm / 2.99 * 1.85 * 1.85in
Product weight:
TQA2-030: 200g / 7.05ounce
TQA2-340: 300g / 10.58ounce
TQA2-135: 400g / 14.11ounce
TQA2-200: 400g / 14.11ounce
Package size: 130 * 108 * 60mm / 5.12 * 4.25 * 2.36in
Package weight:
TQA2-030: 300g / 10.58ounce
TQA2-340: 350g / 12.35ounce
TQA2-135: 450g / 15.87ounce
TQA2-200: 450g / 15.87ounce
Packing List (TQA2-030):1 * Digital Torque Meter
1 * Screwdriver
1 * Joint Adapter
OR
Packing List (TQA2-340):1 * Digital Torque Meter
1 * Screwdriver
1 * Joint Adapter
OR
Packing List (TQA2-135):1 * Digital Torque Meter
1 * Screwdriver
2 * Joint Adapter
OR
Packing List (TQA2-200):1 * Digital Torque Meter
1 * Screwdriver
2 * Joint Adapter
Key Features
.
This digital torque meter is simple to operate and portable to carry.
Large digital display with backlight, supports display of torque value, unit, working mode, data storage number, easy to understand.
Two-ways measurement, support adjustable in clockwise and reverse direction, can be used in forward and reverse directions, error: 2% clockwise, 2.5% counterclockwise, more convenient to use with ratchet hand. (Wrench to be purchased separately.)
Two working modes, freely switchable between "trace" tracking mode and "peaks" peaking mode.
Four units are available, you can adjust between Kgf.cm, N.m, Ibf.ft and Ibf.in depending on your needs.
What's In the Box
(TQA2-030):,1 x Digital Torque Meter,1 x Screwdriver,1 x Joint Adapter,
