This is a dual display digital counter that can be used as a industrial counter to count the quantity of objects in a single batch and the production line, and also can be used as length counter. It is widely applied in machine, light industry, electronic, food, package, leather, cloth weaving industry for counting, length, batch counting.

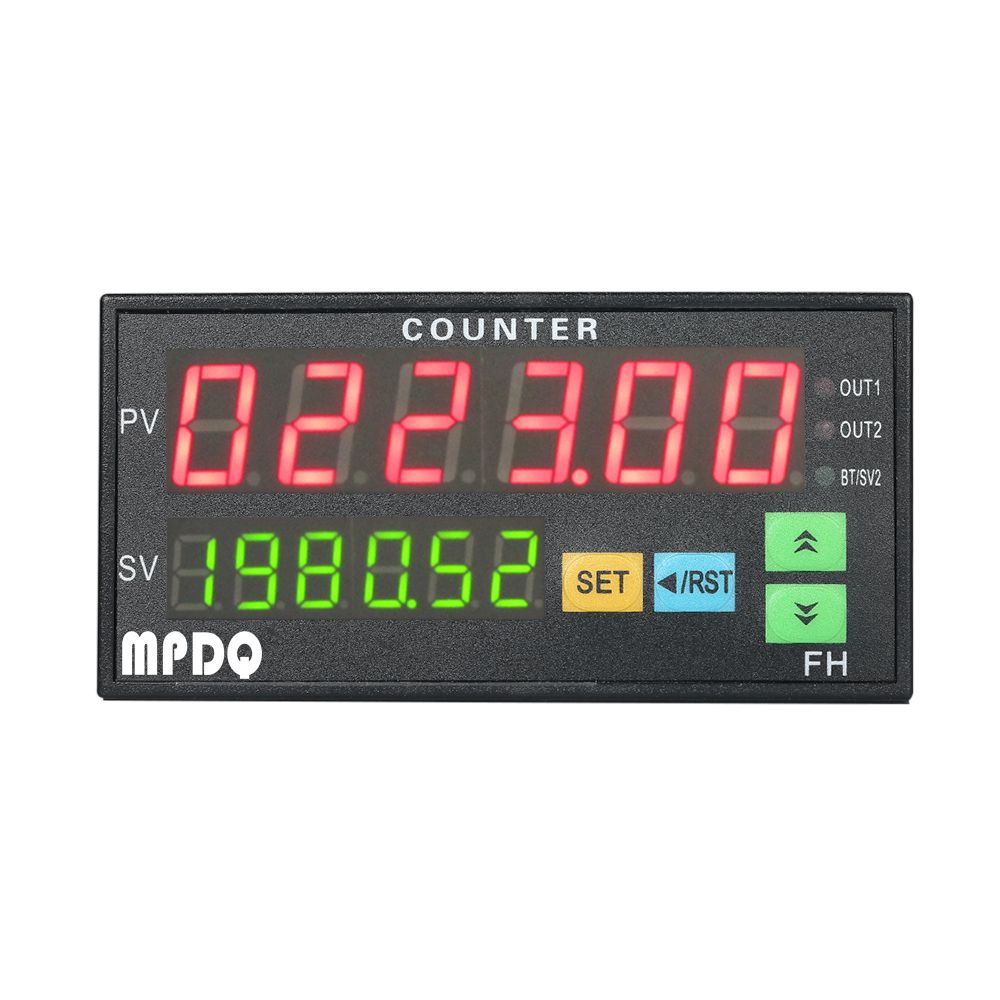

Features:Dual 6 digits light-emitting diode display for clear reading.
NPN and sensor input is switchable.
Includes 4 kinds of input mode, 6 kinds of output mode for option.
Input and output is optional isolated.
Counting Range: -199999～999999; Preset Range: 0.00001-999999.
Can set alarm value for relay output.
Can be connected with encoder, proximity switch, photoelectric switch, optical sensor, laser sensor, etc.
Widely applied in chemical, machine, light industry, etc.
Specifications:Material: ABS
Voltage: 90~265V AC/
Auxiliary : 24V
Input: Pulse Signal: Square Wave and Sine Wave: 5V≤H≤30V 0≤L≤2V up edge active
Input Impedance: ≥10KΩ
Counting Speed: 30/5000CPS
Counting Range: -199999～999999
Preset Range: 0.00001-999999
Response speed: switch type input 0~5000hz, incremental encoder input 0~2000hz
Accuracy: ±0.1%F.S
Output: 2 Relay Contact Output
Environment Temperature: 0～50℃
Storage Temperature: -10～60℃
Environment Humidity: 35～85%RH
Insulation Resistance: ≥10MΩ
Consumption: ≤5W
Contact Edge: Up edge active
Item Size: 9.5 * 8.5 * 4.7cm / 3.74 * 3.35 * 1.85in
Item Weight: 167g / 5.89oz
Package Weight: 203g / 7.16oz
Package Size: 11 * 10.1 * 5.5cm / 4.33 * 3.98 * 2.17in

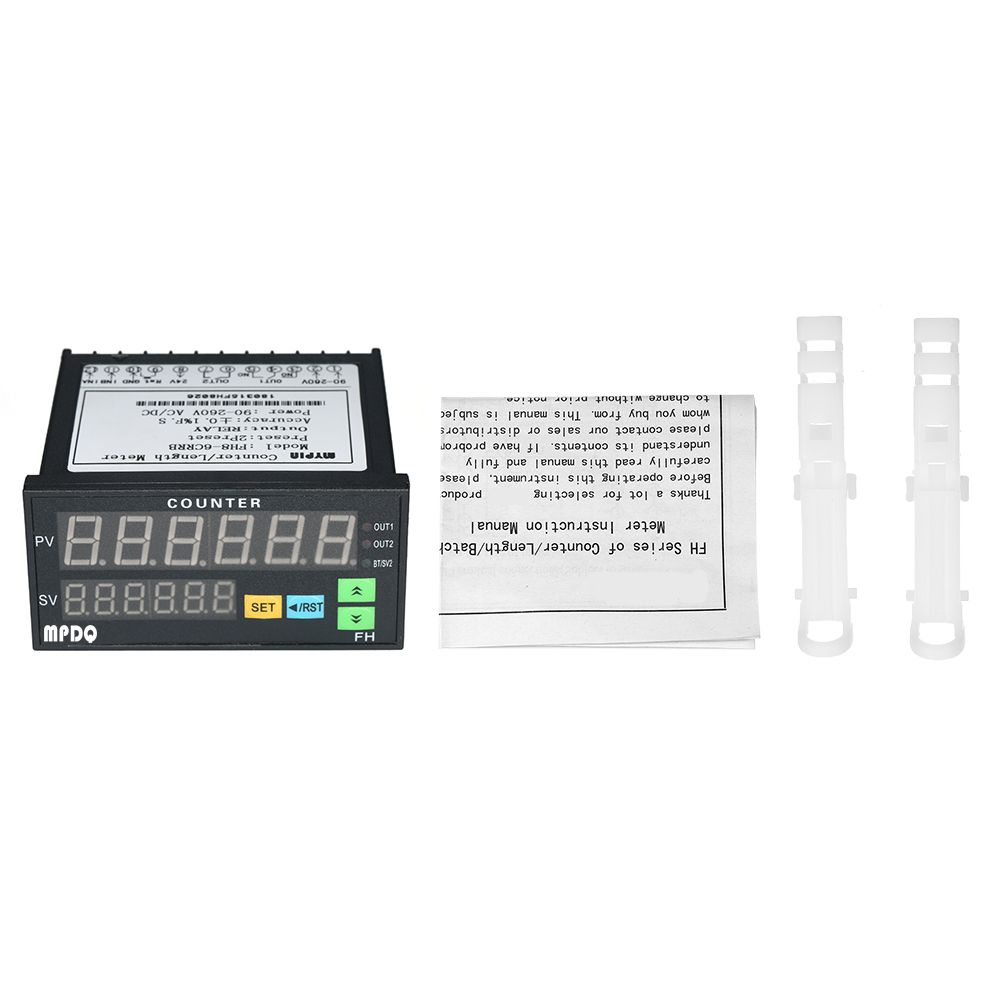

Packing List:1 * Counter
2 * Brackets
1 * User Manual (English)
Key Features
Dual 6 digits light-emitting diode display for clear reading.
NPN and sensor input is switchable.
Includes 4 kinds of input mode, 6 kinds of output mode for option.
Input and output is optional isolated.
Counting Range: -199999～999999; Preset Range: 0.00001-999999.
Can set alarm value for relay output.
What's In the Box
1 x Counter,2 x Brackets,1 x User Manual (English)
