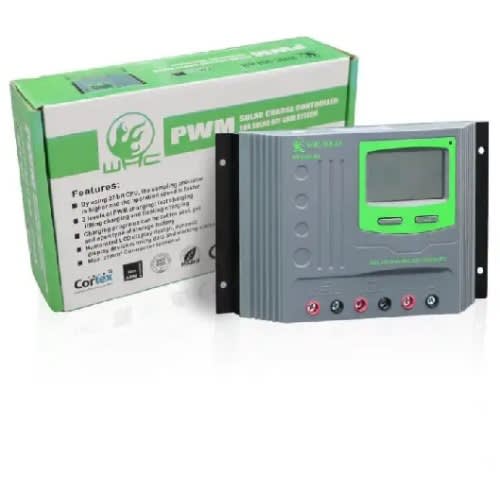

Solar Charge Controller - Whc2460cc 60a

₦ 49,500.00 ₦ 55,000.00 -10%

0 No Reviews

Product SKU: RENG6208

Quantity

In Stock

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

WHC2460CC 60A Solar Charge Controller Features:

* 32bits CPU, sampling precision is higher, operation speed is faster
* 12V/24VDC Automatic Identification System Voltage
* 3 stages PWM charging: Bulk, Boost, Float
* Sealed, Gel, Flooded battery selection procedure
* Humanized LCD displaying, dynamic display operation data and
working state.
* Built-in operation log, account system working state
* Multi load control mode: Normal mode, Sensor mode, Timer mode
* Temperature Compensation Function
* Fullest digital protection functions: Overcharging, Over-discharging,
Overload, Short Circuit, Reverse Connection and so on
* Max 25mm2 connectors

WHC2460CC 60A Pwm Solar Charge Controller Protection Functions

1. Short Circuit and Reverse Connected Protection (Solar Panel)
When the solar panels have short circuit or reverse connection, the
controller will be off the charging immediately, after clearing of the
short circuit, the charging will be automatically continue.

2. Reverse Connection of battery Protection
If the batter reverse connection, the controller will not destroy,
corrected the connection the controller will be normally working.

3. Battery Over Voltage Protection
When the voltage of battery was more than 16.5V, the controller will
be auto closed charging and output in order to destroy the battery
and loads.

4. Battery Low Voltage Protection (LVD)
When the voltage of battery was reach to LVD (Low Voltage
Disconnection) point, the controller will be auto closed the output in
order to over-discharge the battery.

5. Overload Protection
If the current of load is more than 1.5times rated current of controller,
the controller will be cut off the output after 30s and lock. Users have
to decrease loads and press “→”unlock, or 30s later the controller will
auto restart unlock.

6. Short Circuit Protection
When the load have short circuit, the controller will be cut off
immediately and lock. Users have to clearing the short circuit and
press“→”unlock, or 30s later the controller will auto restart unlock.

7. Lightning Protection
This product could only protect small lightning induction, we
suggest to use lightning rod at frequecy area.
