Model |
WP6048D |
Production Country |
China |
Weight (kg) |
0.7 |
Certifications |
Eco Friendly |
Color |
Grey and White |
Main Material |
n/a |
From the Manufacturer |
Ningbo Yahong Energy Co Ltd |
Care Label |
Avoid exposure to moisture, direct sunlight. Do not drop. |

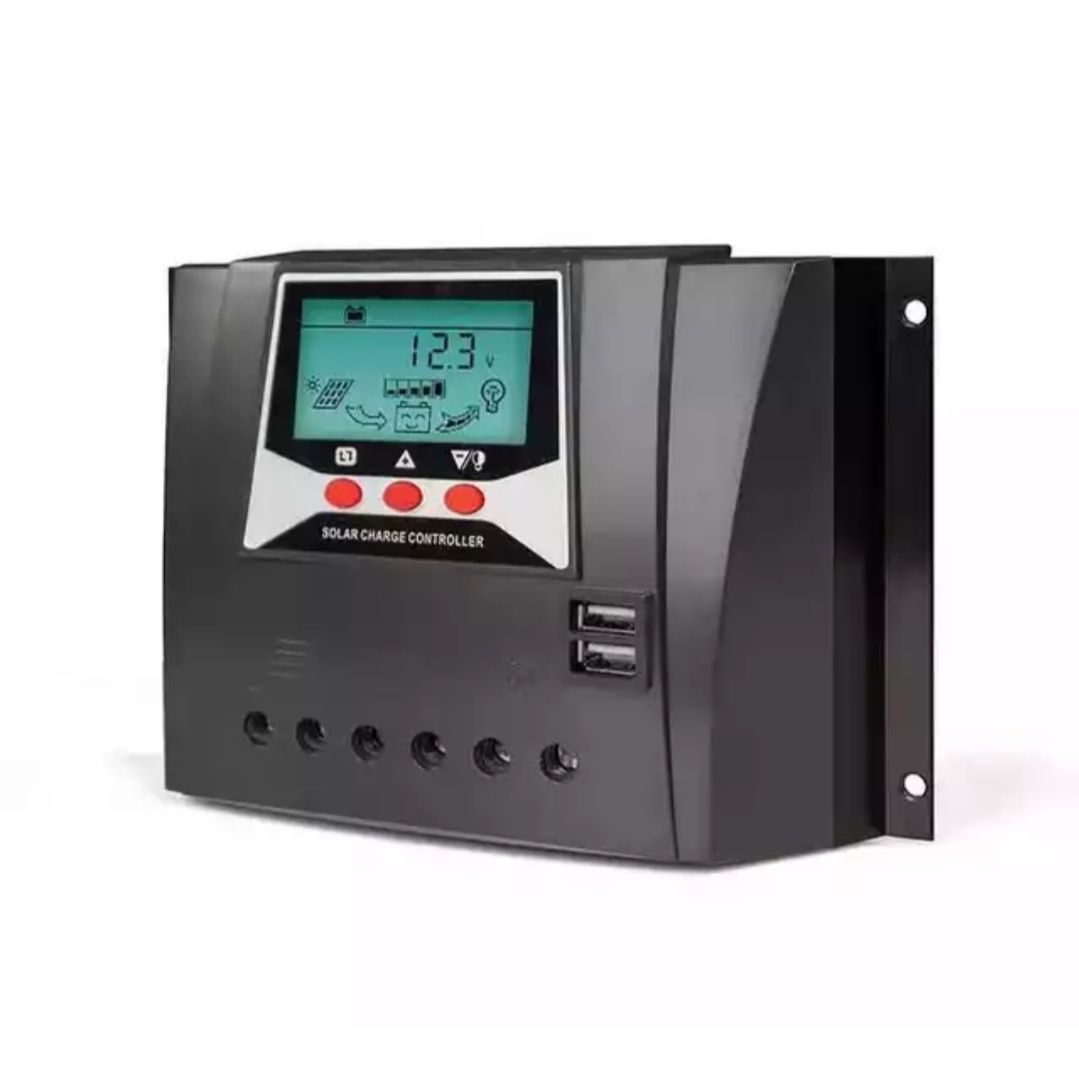

Pwm solar charger controller - 60amps Input voltage 12/24/36v/48v
PV Range - 100v
Visual lcd graphic symbol brief key operation grade auto switch of system voltage intelligent pwm charging mode Auto temperature compensation Adjustable charging & discharging parameter Settable working modes of loads accumulative function of charging & discharging protection for battery back discharging protection for battery low voltage overloading & short-circuit protection battery reversed protection delayed auto restart after overloading protection model: 60a pwm solar charge controller rated working voltage :12v/24v/36v/48v dc auto rated working current :60a voltage of solar panel 48v float charging voltage (settable) weight: 800g
- Panel PV Input: 720w/12v;1440w/24v/2100w/36v/2160w/48v/2880
- w
- Suitable for all battery types including Lithium batteries
- Equipped with 2 USB 5v/2A charging terminals
- dc auto rated working current :60a voltage of solar panel 48v float charging voltage (settable)
- weight: 800g
- Panel PV Input: 720w/12v;1440w/24v/2100w/36v/2160w/48v/2880
- w
Suitable for all battery types including Lithium batteriesEquipped with 2 USB 5v/2A charging terminals
What's In the Box
1*60A PWMManual
