Model |
SCCM8048 |
Size (L x W x H cm) |
283*180*105MM |
Weight (kg) |
5.1 |
A Mppt ( Maximum Power Point Tracking), or Maximum power point tracker is an electronic DC to DC Converter that optimizes the match between the solar array (PV panels),and the battery Bank or utility grid. Simply put, they convert a higher voltage DC output from the solar panels ( and a few wind generators) down to the lower voltage needed to charge batteries.
Compare to conventional PWM controllers, MPPT technology increases the charge efficiency up to 20% and potentially decrease the power of solar array needed.

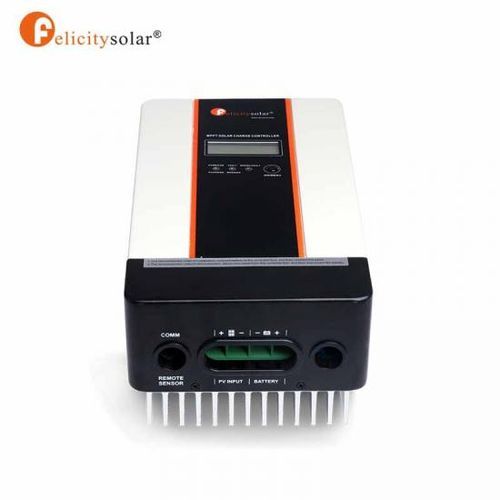

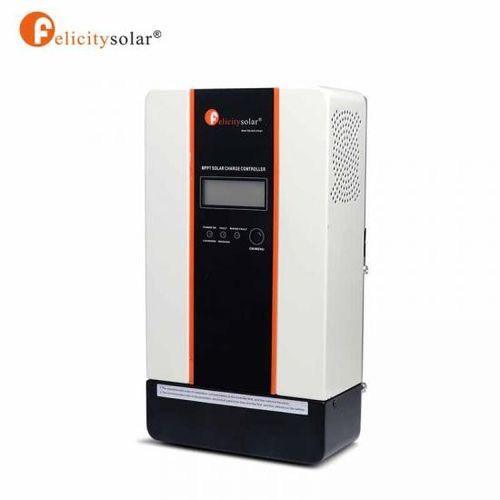

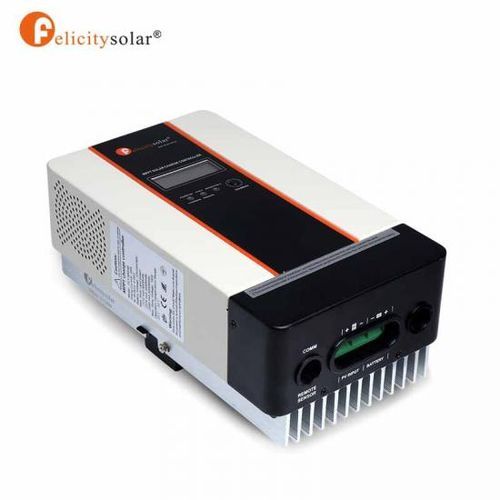

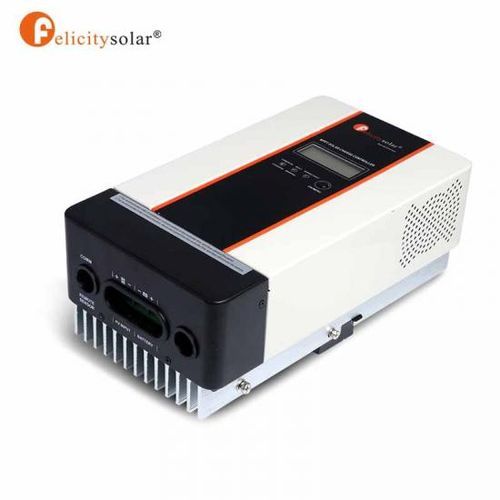

This solar charge controller is an advanced solar charger with maximum power point tracking. The intelligent MPPT algorithm. Allows the solar charge controller to extract maximum power from the solar arrays by finding the maximum power point of the arrays.
The MPPT battery charging process has been optimized for long battery life and improved system performance. Self-diagnostics prevent damage when installation errors or system faults occur. This charger also features a multifunctional LCD with communication ports for remote battery temperature and voltage measurement.
Advantages of this MPPT Charge Controller include:
- Intelligent Maximum Power Point Tracking Technology
- Compatible for PV system in 12v, 24v or 48v
- Three stage charging optimizes battery performance ( Two stage charging in lithium battery mode)
- Maximum charging current up to 30A/45A/70A
- Maximum efficiency up to 98%
- Automatic battery Voltage detection (Lithium battery voltage need to be set manually)
- Support Lithium battery,Lead acid battery, AGM and Gel battery
- Integrated intelligent slot compatible with MODBUS communications
Key Features
Intelligent Maximum Power Point Tracking Technology
Compatible for PV system in 12v, 24v or 48v
Three stage charging optimizes battery performance ( Two stage charging in lithium battery mode)
Maximum charging current up to 30A/45A/70A
Maximum efficiency up to 98%
Automatic battery Voltage detection (Lithium battery voltage need to be set manually)
Support Lithium battery,Lead acid battery, AGM and Gel battery
Integrated intelligent slot compatible with MODBUS communications
