Model |
SY4860B PWM |
Weight (kg) |
1 |
Color |
black |
Main Material |
ABS PLASTIC |

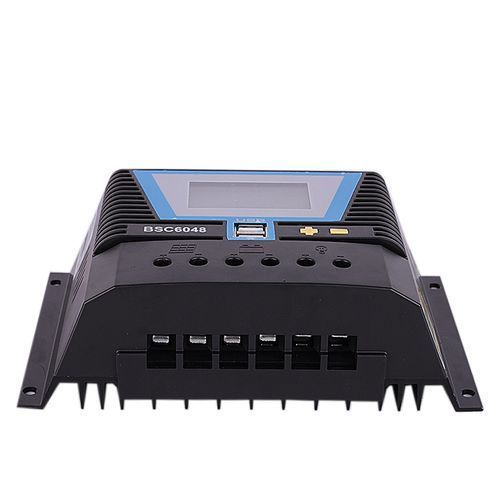

PWMsolar charger controller - 60a 12/24/48v AutoComes with visual lcd graphic symbol display
Operation
Auto voltage selection
Bold screen display and battery percentage displayed
intelligent pwm charging modeauto temperature compensationadjustable charging & discharging parameter
settable working modes of loadsaccumulative function of charging & discharging protection for battery back dischargingprotection for battery low voltageoverloading & short-circuit protectionbattery reversed protectiondelayed auto restart after overloading protectionmodel: 60a pwm solar charge controllerrated working voltage :12v/24v/48v dc autorated working current :60avoltage of solar panel 48vfloat charging voltage (settable) :13.8v/27.6v/41.1v/55.2vlow voltage protection (settable) :10.2v/20.4v/30.6v/40.8vlow voltage recovery (settable) :11.5v/23.0v/34.5/460vno load loss : temperatureweight: 800gpanel power: 720w/12v;1440w/24v/3600w/48v
rated working current :60avoltage of solar panel 48vfloat charging voltage (settable) :13.8v/27.6v/41.1v/55.2vlow voltage protection (settable) :10.2v/20.4v/30.6v/40.8vlow voltage recovery (settable) :11.5v/23.0v/34.5/460vno load loss : temperatureweight: 800gpanel power: 720w/12v;1440w/24v/3600w/48v
Very reliable and times tested.
Very easy to navigate the functions
Key Features
Very compact and efficient solar charge controller
rated voltage : 12v24v36v48v
rated current :60A
max.PV voltage: 100V
What's In the Box
1 * Solar Charge Controller
