| Model |

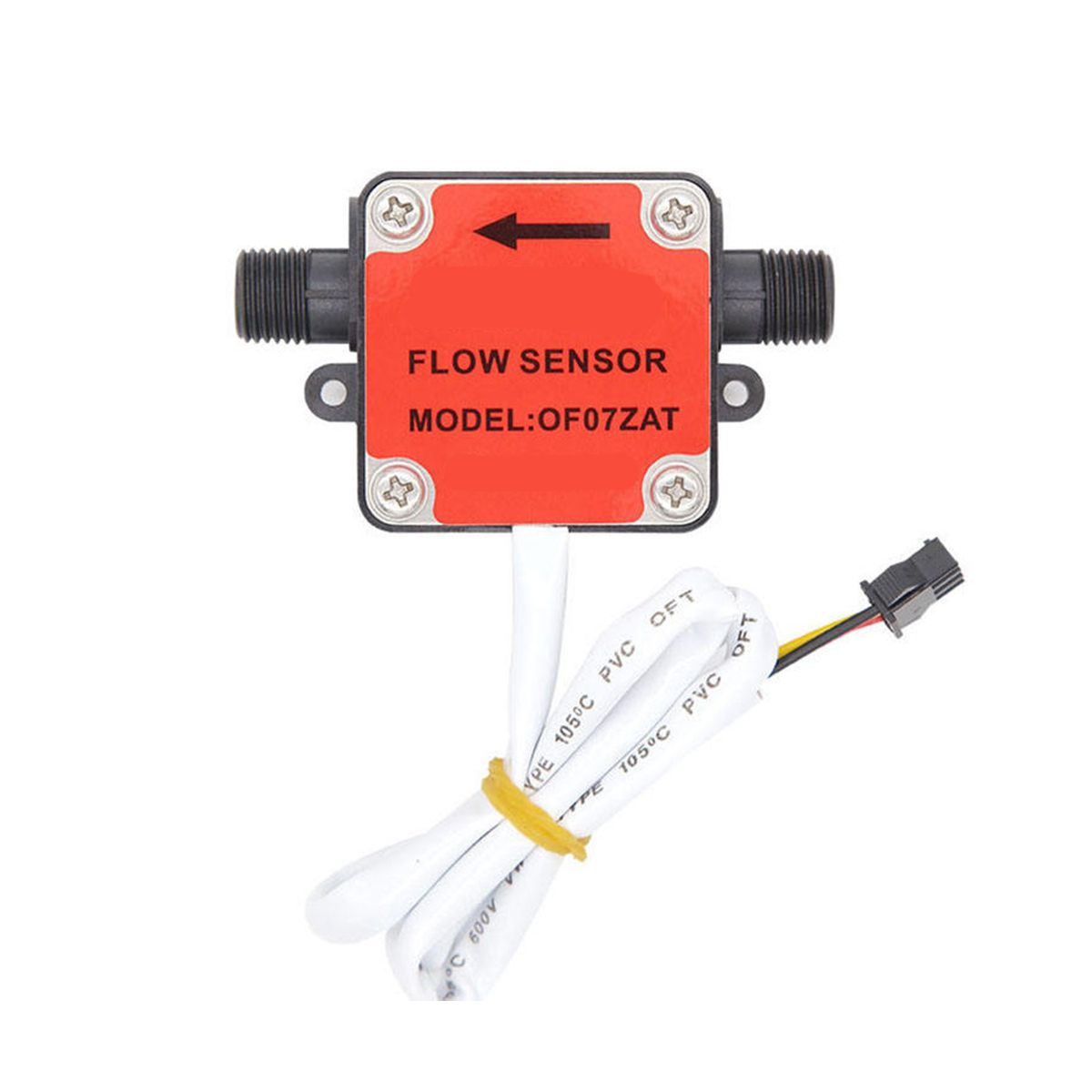

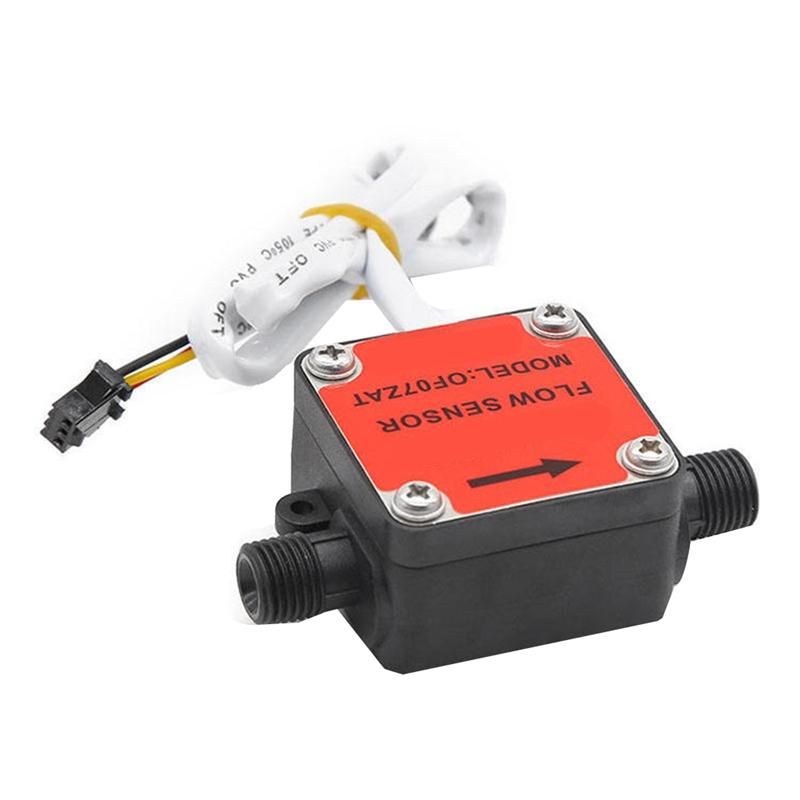

Gear flow meter |
| Production Country |
China |
| Size (L x W x H cm) |
15x15x10 |
| Weight (kg) |
0.11 |
| Color |
multicolor |
Specification Function Sensor flow rate control
Flow rate test by oil high density 30-3000LHour
Flow Pulse FHz=12ML P -1%
Working VoltageDC 7V~24V
not less than 5Vdc Working
Load Capacity =10 mA DC 5 V
Operate pressure Less than 12Mpa
Operating Working Temperature
-25 Degree centigrade to 70 Degree centigrade
Temperature 70
Accuracy at 30-3000Lhour is -1% test is
Working environmental light oil
Cable wire Red IN Black - GND Yellow signal output
Color As Shown
Material plastic
Package Contents
1 x Gear flow meter
Only the above package content other products are not included
Note Light reflection and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1 x Gear flow meter
