| Model |
JAVANLINCJ383127 |
| Production Country |
China |
| Size (L x W x H cm) |
23 x 18 x 4 |
| Weight (kg) |
1.6 |
| Certifications |
Organic |
| Color |
multicolor |
| Main Material |
1 |
| From the Manufacturer |
1 |
| Care Label |
1 |
Welcome to my store, we have many kinds of price products, we launch new products every day, please follow my store and pay more attention, for more products, Please click on the seller information to enter our store to buy, we hope give you a pleasant shopping experience. Thank you and have a nice day!

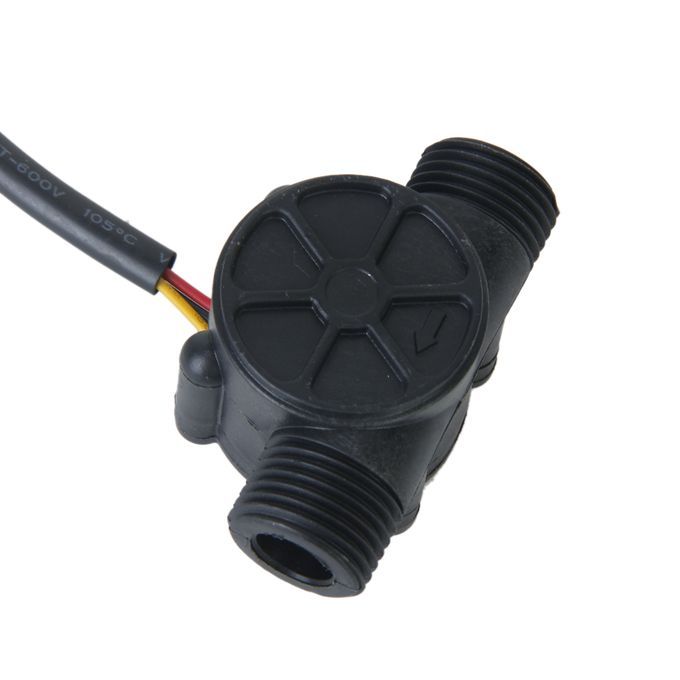

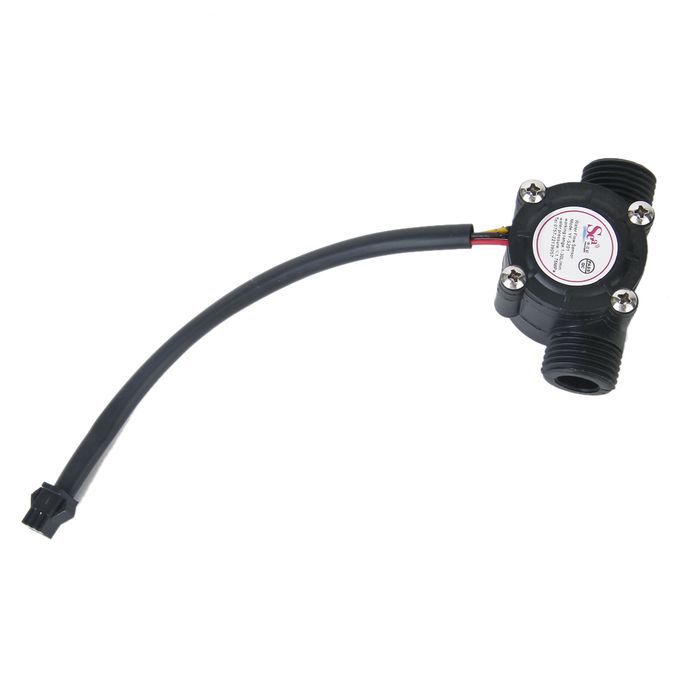

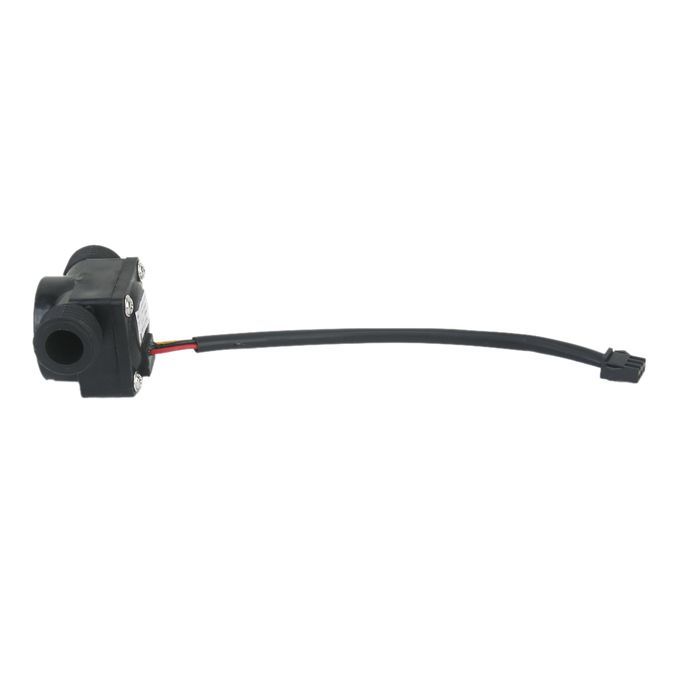

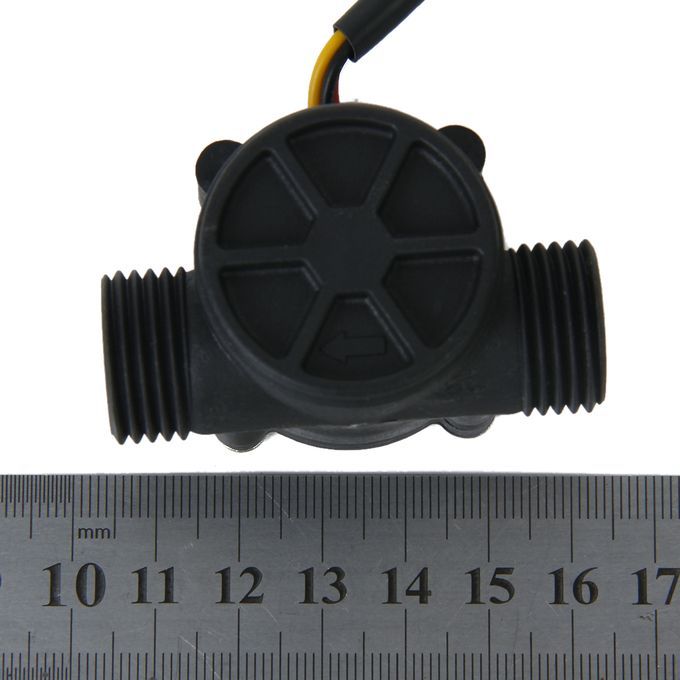

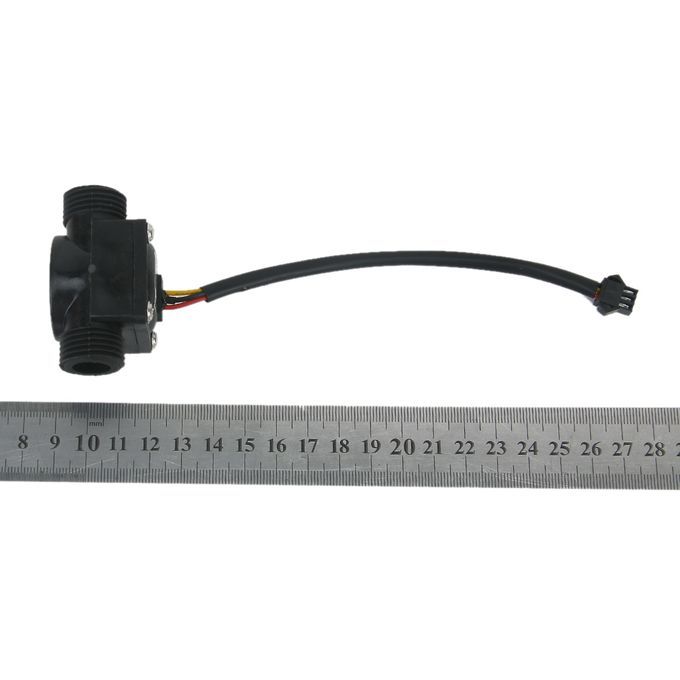

Water flow sensor is mainly consists of plastic valve body, rotor assembly and Hall Current Sensor.It is installed in the hot water inlet end for detecting water flow. When water through the flow rotor assembly, Magnetic rotor will rotate and Speed will change as the flow change. Hall Current sensor output corresponding pulse Signal and feedback to controller, then the controller will control the flow.
Can use for Water heaters, credit card machines, water vending machine, flow measurement device.
Features:
- Lght weight, small size, easy to install.
- Inlaid with stainless steel impeller shaft, durable wearable.
- Seal Ring with the upper and lower force structure never leaks.
Precautions:
- Non-violent shock, and erosion.
- Non-throwing or hitting.
- Mounted vertically, should not exceed 5 degrees inclination.
- Temperature of Medium should not exceed 120 ℃
Cord Connection:
- Red: Positive(+)
- Yellow: Signal output.
- Black: Negative(-)
Specification:
- The lowest rated working voltage: DC4.5 5V-24V.
- Maximum operating current: 15 mA (DC 5V).
- Working voltage range: DC 5~18 v.
- Load capacity: ≤ 10 mA (DC 5V).
- Work temperature: ≤ 80 ℃
- Work humidity range: 35%~90%RH (no frost)
- Allowing pressure: pressure 1.75Mpa
- Storage temperature: -25~+80 ° c
- Save humidity: 25%～95%RH
- Flow Range :1-30L / min
- External threads: 1/2"
Package Includes:
Water flow sensor flowmeter Hall flow sensor Water control
a a a a a
Key Features
Water sensor is mainly consists of plastic valve body, rotor assembly and Hall Current Sensor.It is installed in the hot water inlet end for detecting water . When water through the rotor assembly, rotor will rotate and will change as the change. Hall Current sensor output corresponding pulse Signal and feedback to controller, then the controller will control the .
Can use for Water heaters, credit card machines, water vending machine, measurement device.
Lght weight, small size, easy to install.
Inlaid with stainless steel impeller shaft, durable wearable.
Seal with the upper and lower force structure never leaks.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
1 x Water flow sensor
