| Model |
Flowmeter |
| Production Country |
China |
| Size (L x W x H cm) |
8x5x4 |
| Weight (kg) |
0.0935 |
| Color |
multicolor |
| Main Material |
ABS |
Frequency F = 48 * Q L Min
voltage output of the premium 35-24VDC
a liter of water flow after pulse output 288
Flow range 1-60Lmin
It can be used forApply to food credit card machines water vending machines and other flow measurement devices
Lowest rated operating voltage DC45
The maximum operating current 15 mA DC 5V
Operating voltage range DC 5 ~ 24 V
Load capacity Less than or to10 mA DC 5V
Operating temperature range Less than or to80
Operating humidity 35% ~ 90% RH no condensation state
Allow pressure less pressure 175Mpa
Storage temperature -25 ~ 80
Storage humidity 25% ~ 95% RH
Colour Black
Material ABS

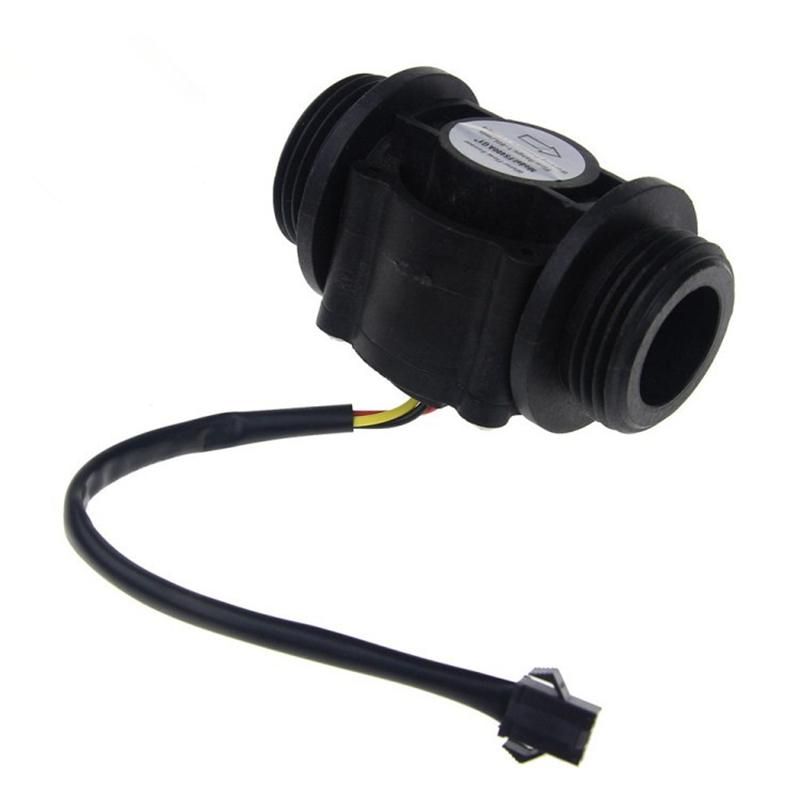

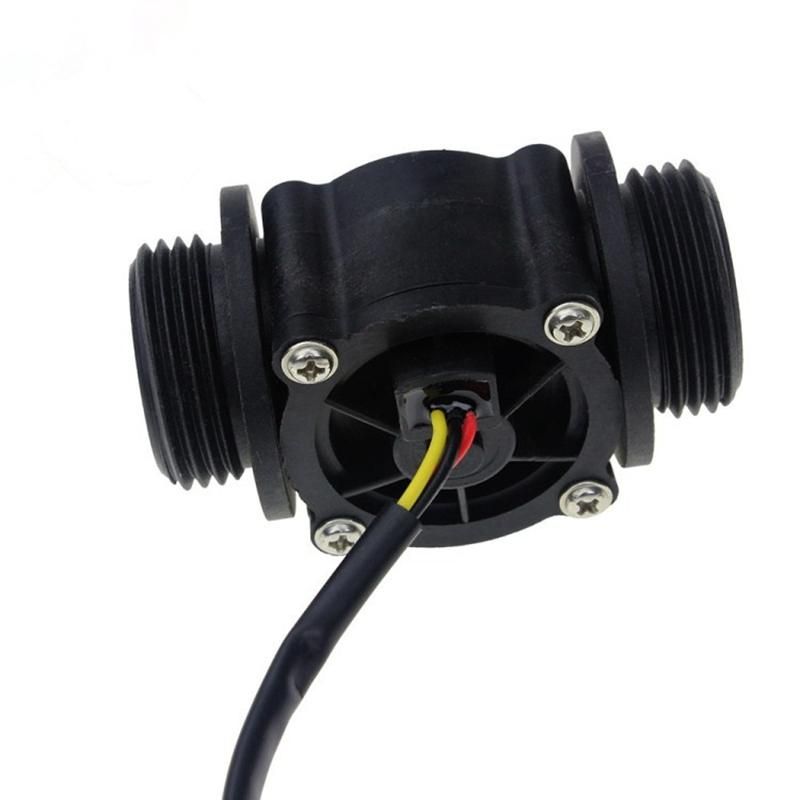

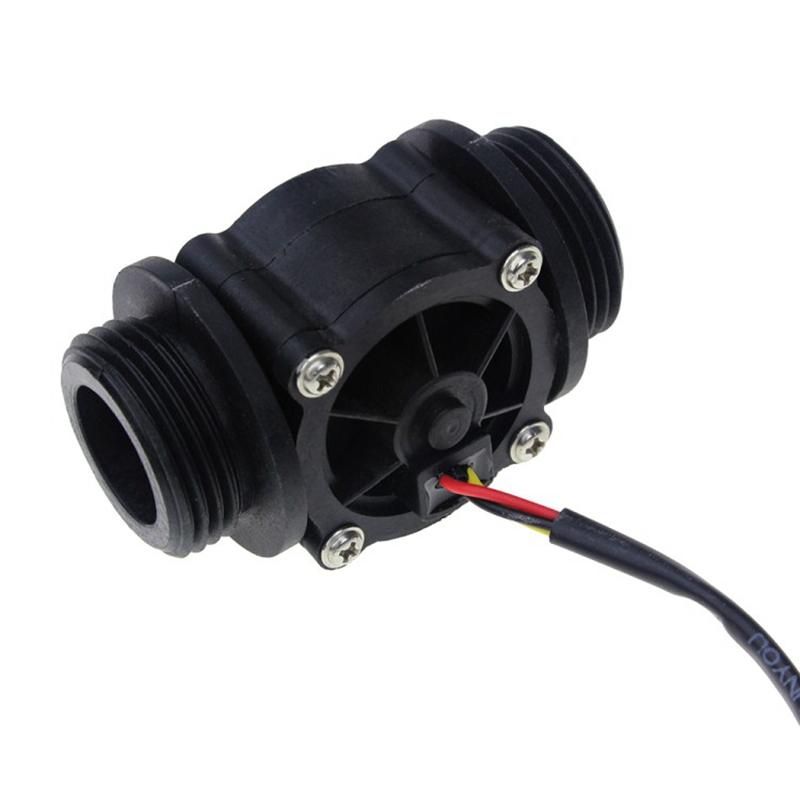

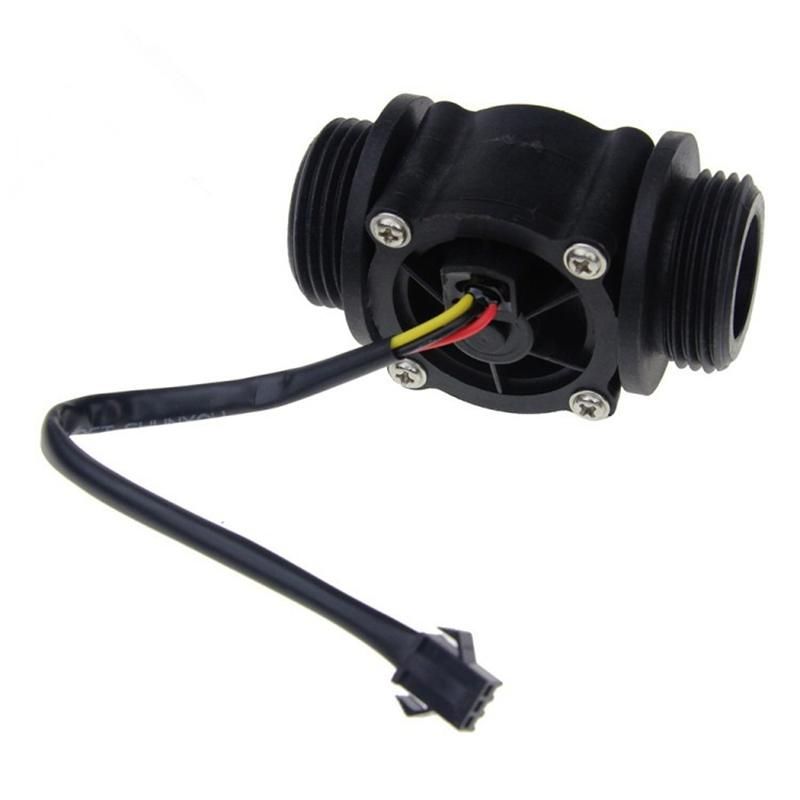

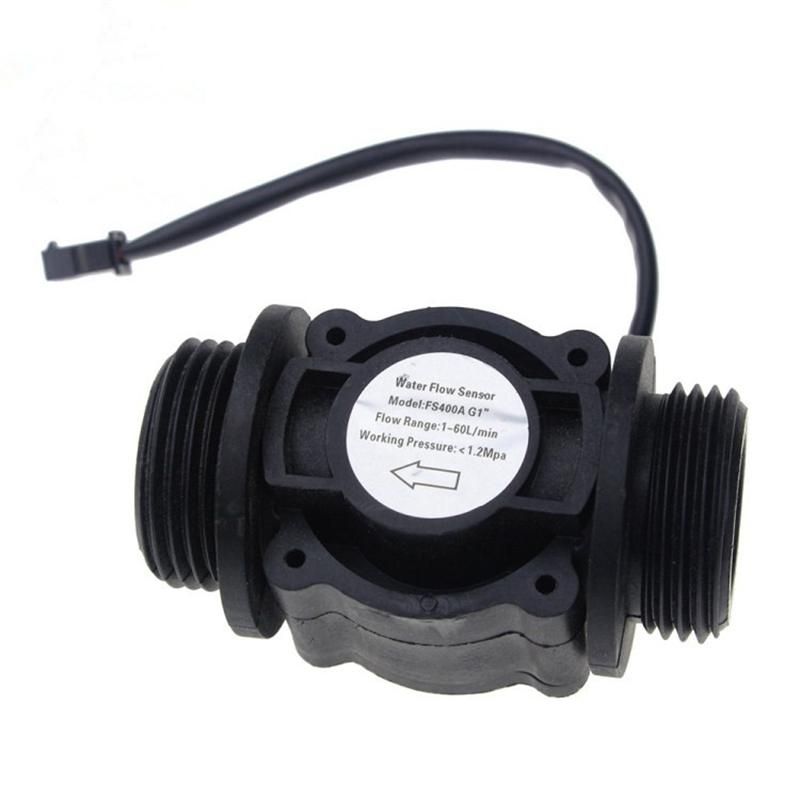

Package Included1* DN25 Water Flow Sensor
Only the above package content other products are not included
Note Light and different displays may cause the color of the item in the picture a little different from the real thing The measurement allowed error is - 1-3cm
What's In the Box
1* DN25 Water Flow Sensor
