NF-8108M Product parameters

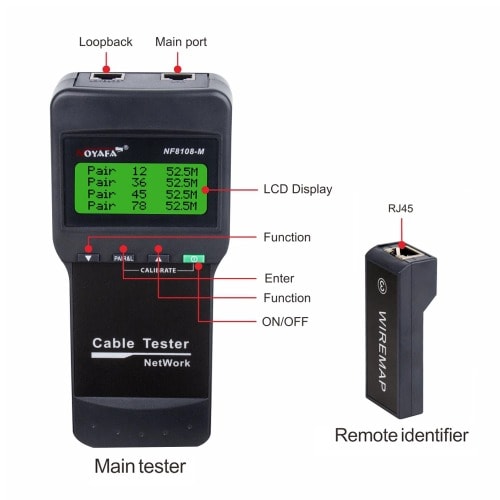

NF-8108 Network cable tester is composed of Maintester and Far-end Test. It can test cable for STP/UTP twin twisted network cables and check the cable errors such as open circuit, short circuit, reverse connection, crossover, orcross-talk interference.
Product Description:
Product Name: Network Cable Length Tester
Type: NF-8108M
Dimension(LxWxD): 184 x 84 x 46mm
Compatible Connector: RJ45
Voltage Protection: AC 60V/ DC 42V
Max. Distance of Cable Map: 1000m
Low Battery Display: LCD(6.5V)
Battery Type: DC 4 x 1.5V
Product Features:
1. Type of cable tested for STP/UTP twin twisted cables.

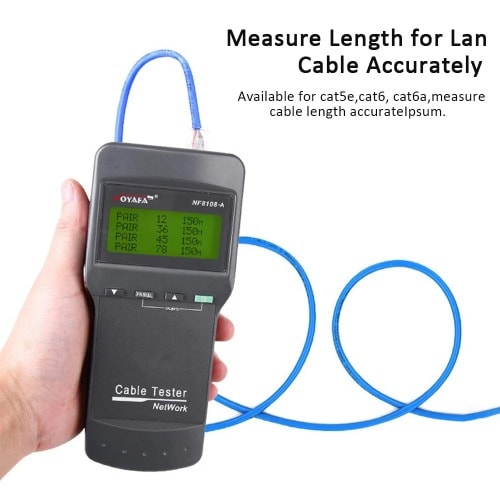

2. Measure Network cable length canarrive1000meter(3200ft).
3. Check cable errors such as open circuit, short circuit, reverse connection, crossover or cross-talk interference.
4. The length of calibrating cableis morethan10m.
5. Automatic Time-delay shut Off Time for 30mins.
6. With 8 far end to locate cable wiremap(Onlyfor NF8108-M).
Package Include:
1Set x NF-8108M Network Cable Tester
