Buy Mc100cm 10/100mbps Rj45 To 100mbps Multi-mode Sc Fiber Converter

Mc100cm 10/100mbps Rj45 To 100mbps Multi-mode Sc Fiber Converter

₦ 61,380.00 ₦ 62,000.00 -1%

0 No Reviews

Product SKU: RENG462908

Brand: TP Link

Quantity

In Stock

Product Highlights

For conversion

100% Secure Payments

TrustPay

Pay Online Delivered T&C^*

Check your shipping location

Have one to sell? Sell on rehmie

Product Specifications
Description

Colour	Black
Brand	TP-Link
USB	YesYes

10/100Mbps Multi-Mode Media Converter.
Auto-negotiation of 10/100Mbps and Auto MDI/MDIX for TX port.
Auto-negotiation and provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port.
Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
Extends fiber distance up to 2km.
Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely.
Easy-to-view LED indicators provide status to monitor network activity easily.

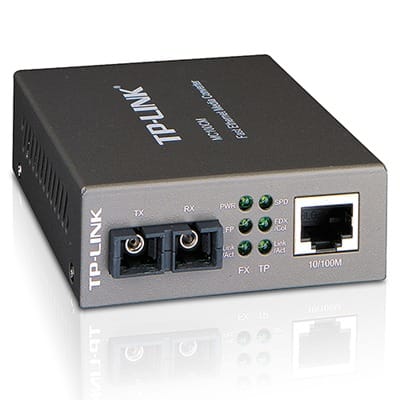

The MC100CM media converter converts 100BASE-FX fiber to 100Base-TX copper media or vice versa. It is
designed for use with 1310nm multi-mode fiber cable utilizing the SC-Type connector, transmitting data up to
2 kilometers. What's more, MC100CM can work as a stand alone device (no chassis required)or with TP-LINK’s
19’’ system chassis, and is equipped with Link Fault Pass Through which minimizes the loss caused by link
failure.

10/100Mbps Multi-Mode Media Converter.
Auto-negotiation of 10/100Mbps and Auto MDI/MDIX for TX port.
Auto-negotiation and provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port.
Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
Extends fiber distance up to 2km.
Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely.
Easy-to-view LED indicators provide status to monitor network activity easily.

Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function :
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode.
Full Duplex Flow Control (IEEE 802.3x).
Half Duplex Flow Control (Backpressure).
Extends fiber distance up to 2km.

Ports :
1 x 100M SC/UPC port
1 x 100M RJ45 port (Auto MDI/MDIX)
Wave Length : 1310nm

Network Media 10BASE-T :
UTP category 3, 4, 5 cable (maximum 100m).
EIA/TIA-568 100Ω STP (maximum 100m).

Network Media 100BASE-T :
UTP category 5, 5e cable (maximum 100m).
EIA/TIA-568 100Ω STP (maximum 100m).

Network Media 100BASE-FX : Multi-mode Fiber
LED Indicators : PWR, Link/Act
Dimensions (W*D*H) : 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Weight : 0.3kg
Warranty : 1 year Local Supplier Warranty

Power Supply : External power supply
Max Power Consumption : 2.4W
Safety & Emission : FCC, CE, RoHS
