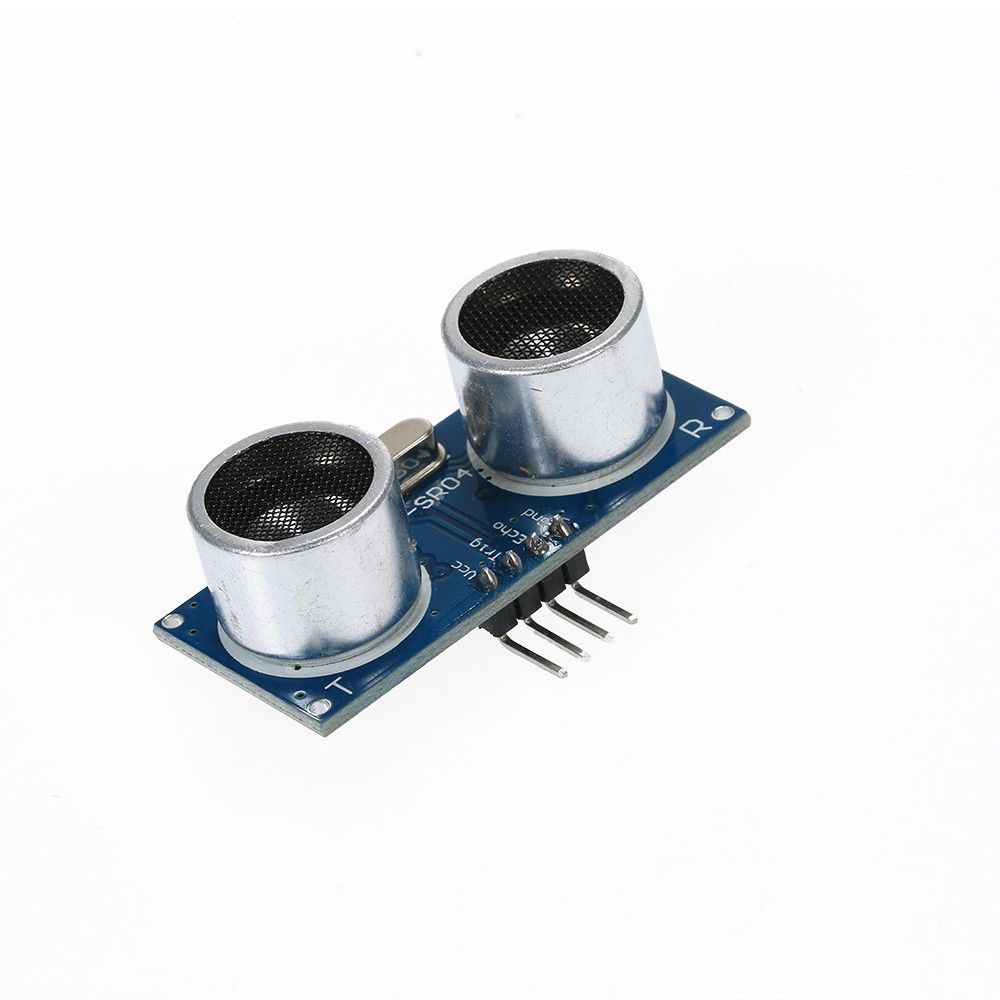

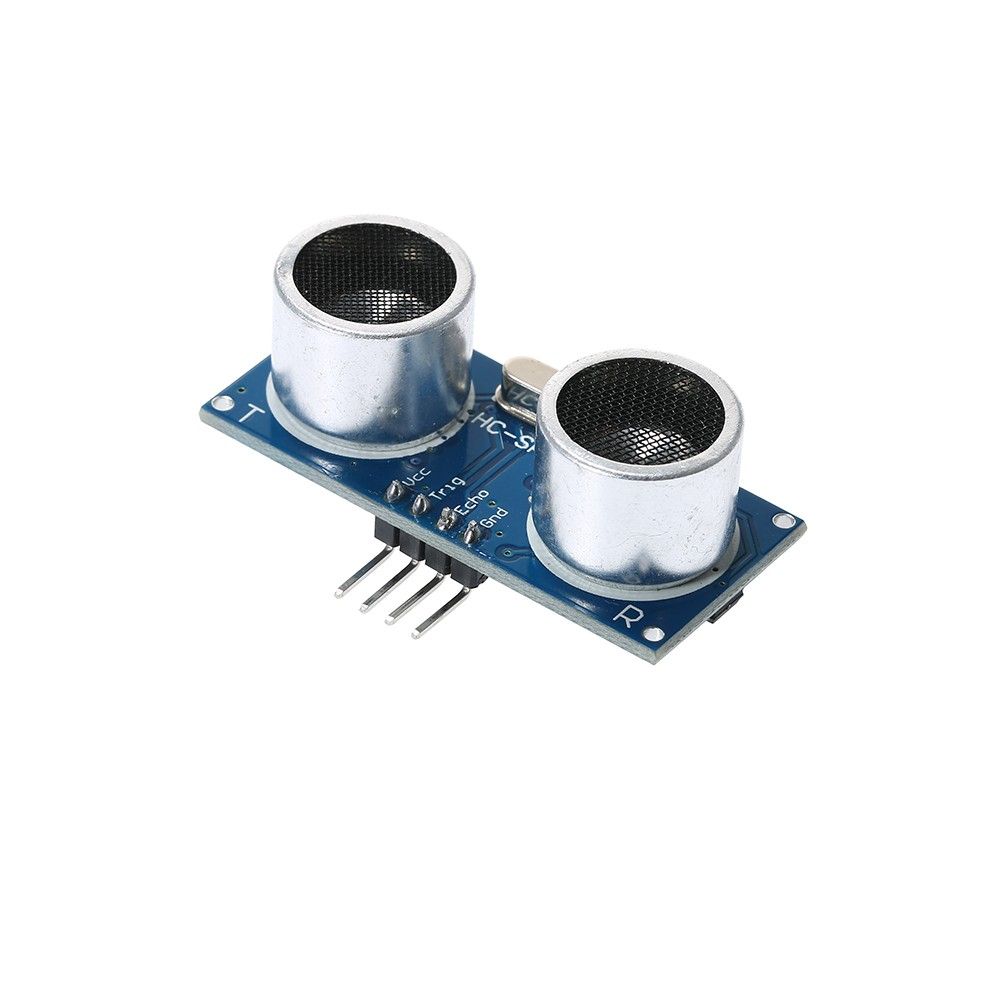

This product is simple to use, and a Control Port high above a 10US, you can wait for the high output at the receiving port. An output can open the timer can be read when this port goes low timer value for the time ranging be calculated distance. The performance of this module is stable and precise measure of distance. And comparable SRF05, SRF02 Ultrasonic Ranging Module. Module precision, blind spots (2cm) super close, stable distance measurement.
Features:
The performance of this module is stable and precise measure of distance.
Module precision, blind spots (2cm) super close.
High precision up to 0.3cm, detection range is 2cm-450cm, induction angle is not more than 15 degree.
This module can be provided ranging program: C51, PIC18F877, ultrasonic LCD1602 display, ultrasonic LCD12864 display, digital tube display, serial display, ranging reference procedures.
Simple to use, IO trigger ranging to at least 10us high signal.
Module automatically sends eight 40kHz square wave, automatically detect whether a signal return.
A signal to return to a high IO output, high duration of the ultrasonic time from launch to return.
Specifications:
Material: Aluminum+copper
Color: Blue
Working voltage: DC5V
Quiescent current: ＜2mA
Level output: High 5V
Level output: Bottom 0V
Sensing angle: not more than 15 degrees
Detection range: 2cm-450cm
High precision: up to 0.3cm
Test distance = (time high * speed of sound (340M / S)) / 2

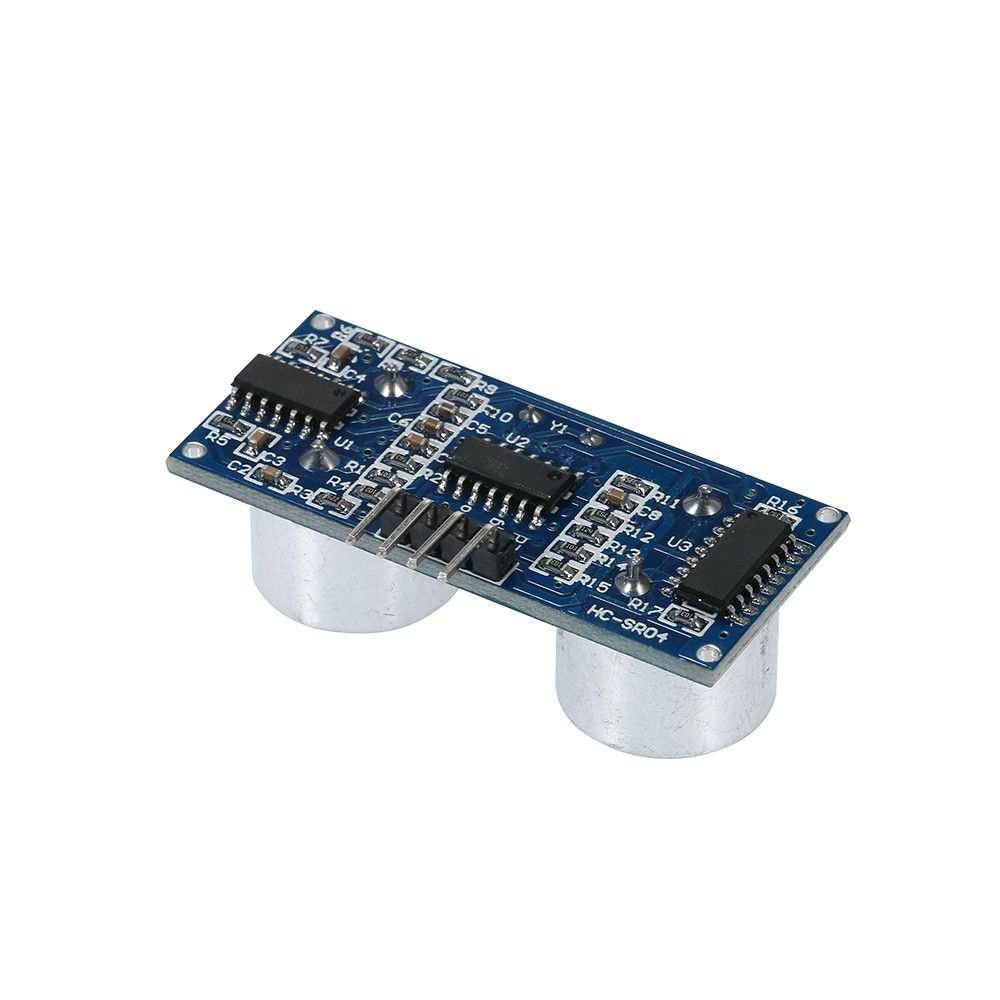

PCB board size: 4.5*2.0cm

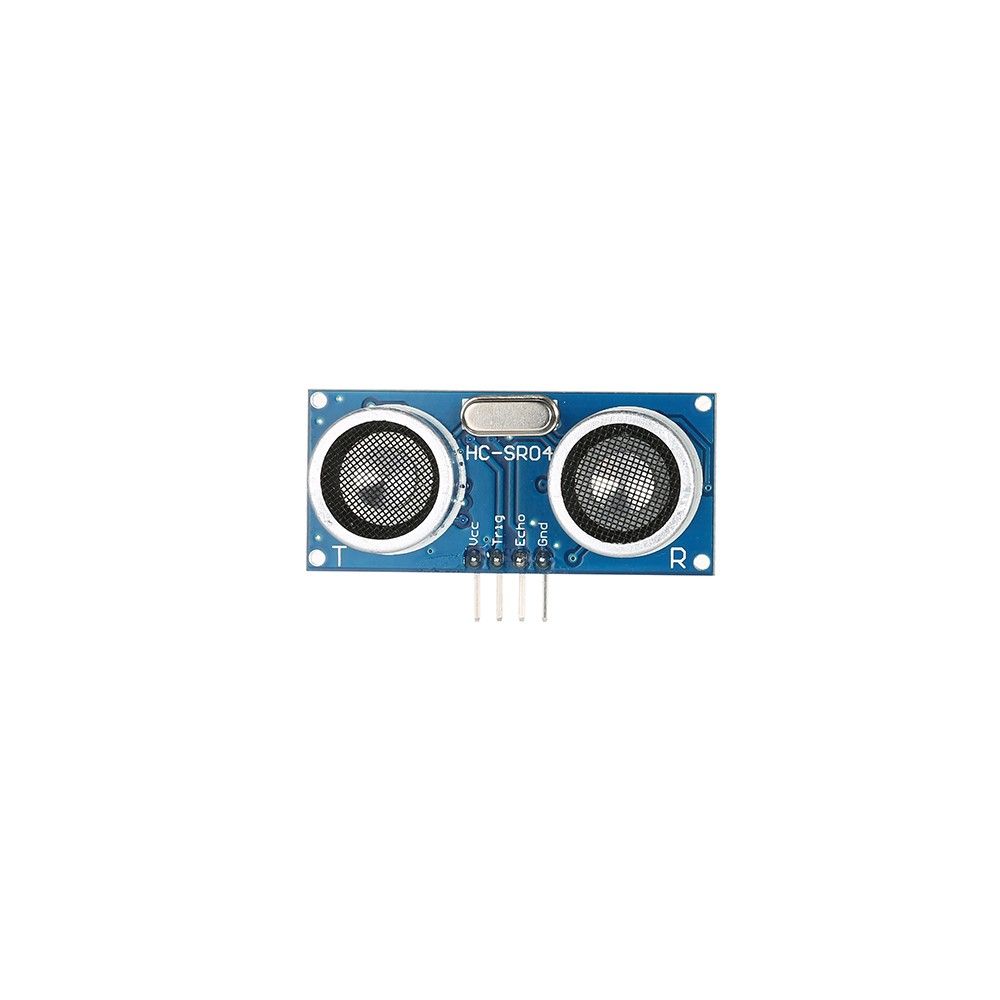

Connection mode: VCC, trig (control end), echo (receiver end), GND
Package size: 16*8.5*2cm/6.29*3.34*0.78in
Package weight: 10g
Note:
color may show sight aberration due to different shooting light and monitor display.
Packing list:
1* Ultrasonic Wave Detector
