This is a relay module with high performance, which is convenient and practical for users.
Features:
The module voltage: 5V, 12V, 24V are available.
Output capacity: within 30V 30A or AC 250V 30A.
Using optocoupler isolation, strong capability and stable performance.
The module can be set high or low trigger.
With indicator and working indicator.
To ensure stability, uses industrial grade board and 9.5mm barrier terminals.
All interfaces can be connected directly via terminal wiring leads, very convenient.

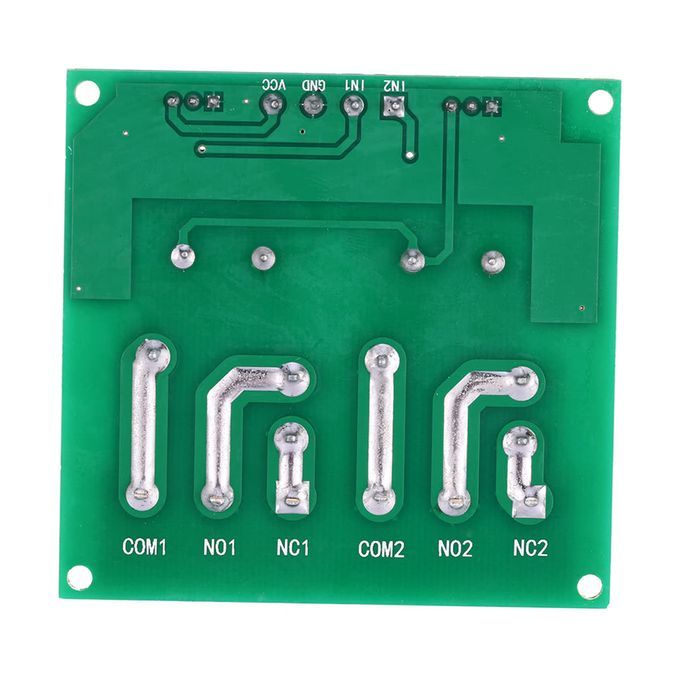

Module Interface Description:
1. +: supply positive;
2. -: supply module negative;
3. IN: Signal input terminal(support High/Low Level switch freely);
4. Normally open (NO): Relay normally open;
5. Common terminal (COM): Relay common;
6. Normally closed terminal (NC): relay normally closed terminal;
Specifications:

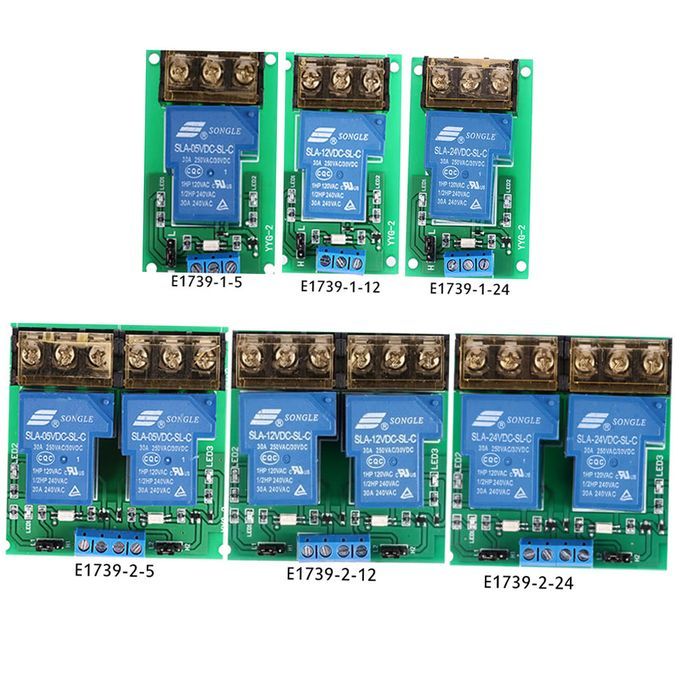

Type: 1-Channel / 2-Channel (Optional)
Relay Voltage: 5V / 12V / 24V (Optional)
Output Capacity: within 30V 30A or AC 250V 30A
Quiescent Current: 5mA
Maximum Current: 5V: 190mA; 12V: 80mA; 24V: 50mA
Trigger Current: 5mA
Module Size: 1-Channel: 66 * 40 * 22mm; 2-Channel: 69 * 66 * 22mm
Module Weight: 1-Channel: 47g; 2-Channel: 90g
Package List:
1 * Relay Module
a a a a a
Key Features
The module voltage: 5V, 12V, 24V are available.
Output capacity: within 30V 30A or AC 250V 30A.
Using optocoupler isolation, strong capability and stable performance.
The module can be set high or low trigger.
With indicator and working indicator.
To ensure stability, uses industrial grade board and 9.5mm barrier terminals.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale
What's In the Box
2-Channel 24V 30A Relay Board Module Optocoupler Isolation
