The following is a detailed introduction about our products:

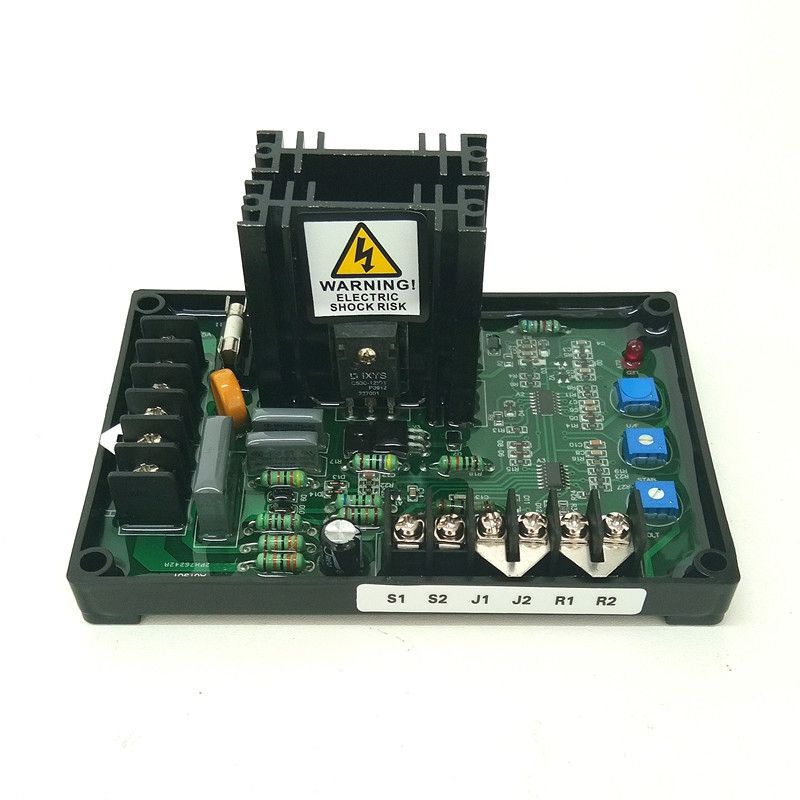

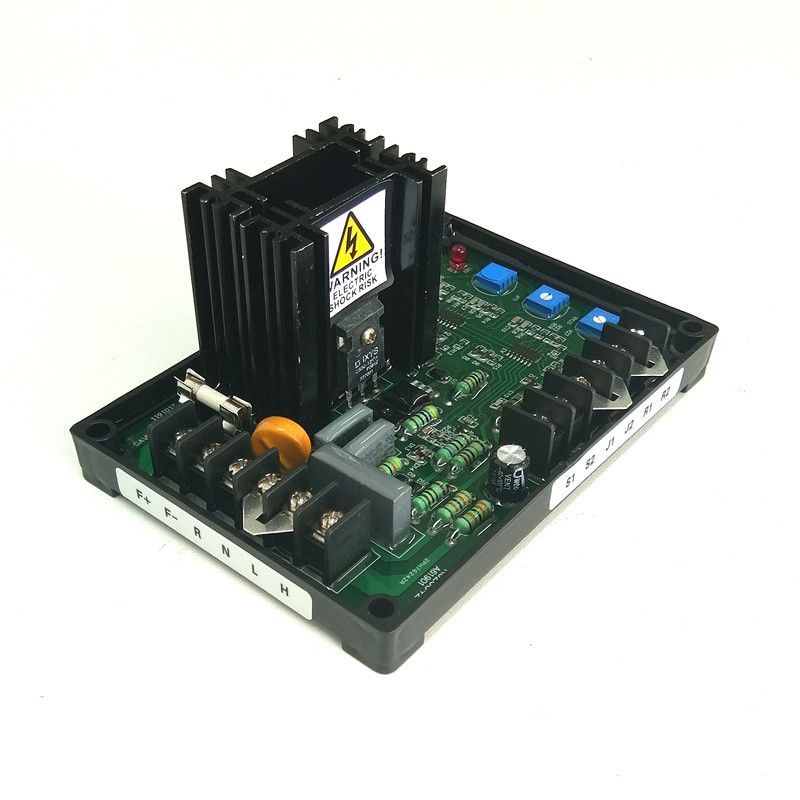

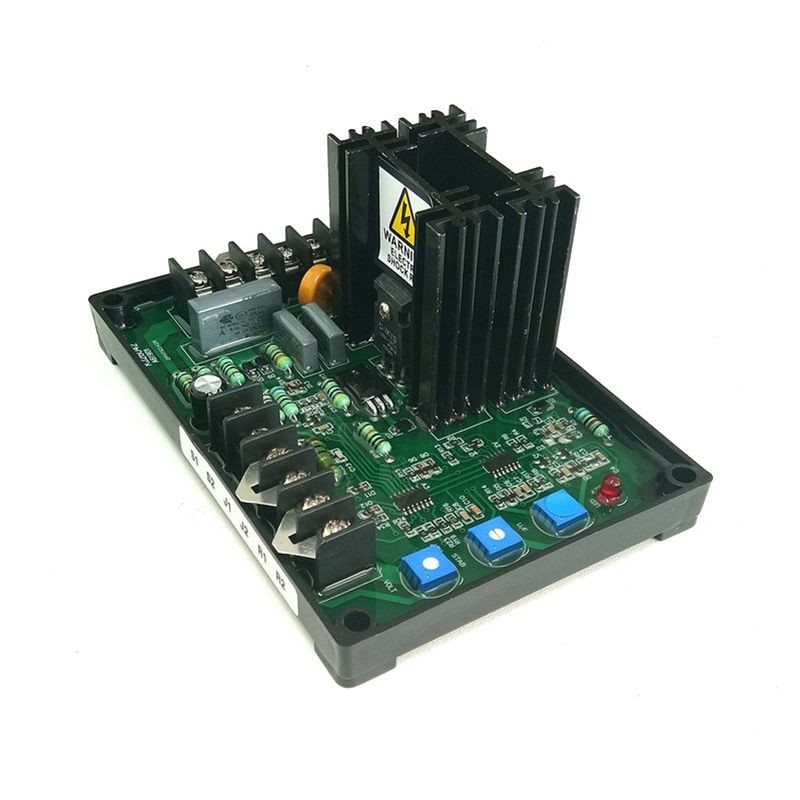

Name:GAVR-15A Universal 200KVA Generator Automatic Voltage Regulator Parts
Environment of GAVR-15A
Vibration 3G@ IOO-2K Hz
Relative Humidity Less than 95%
Operating Temperature -40-65 ℃
Storage Temperature -40-85 ℃
Specifications for AVR-15A
- Sensing lnput of AVR-15A AVR: Voltage 2201-l00V AC.I phase2wire
- Power Input of AVR GAVR-15A : Voltage 180-240VAC.I phase2wire
- Voltage Build-up: Residual volts at A VR terminal Greater than 5VAC
- External Volts Adjustment: ±7% with 1K 1watt trimmer
- Output Voltage Max.90VDC@240VACinput
- Resistance Min.IOQ Max.100Q
- Current Continuous 6A
- Intermittent 12A for IOSEE.
- Soft Start Ramp Time 3sec.
- Unit Power Dissipation: Max.8Wall
- EMI Suppression: Internal Electromagnetic Interference Filtering
- Thermal. Drift: 0.05%per change in AVR ambient
- Under Frequency Protection 60Hz system presets knee point at 57Hz
- (Factory Settings) 50Hz system presets knee point at 47Hz
- Volt Regulation Less than 0.5%(with 4%engine governing)
Material:plastic
colour:black
Package Contents:
1 x GAVR-15A Regulator Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
58463. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! !
Key Features
Environment of GAVR-15A
Vibration 3G@ IOO-2K Hz
Relative Humidity Less than 95%
Operating Temperature -40-65 ℃
Storage Temperature -40-85 ℃
Specifications for AVR-15A
- Sensing lnput of AVR-15A AVR: Voltage 2201-l00V AC.I phase2wire
- Power Input of AVR GAVR-15A : Voltage 180-240VAC.I phase2wire
- Voltage Build-up: Residual volts at A VR terminal Greater than 5VAC
- External Volts Adjustment: ±7% with 1K 1watt trimmer
- Output Voltage Max.90VDC@240VACinput
- Resistance Min.IOQ Max.100Q
- Current Continuous 6A
- Intermittent 12A for IOSEE.
- Soft Start Ramp Time 3sec.
- Unit Power Dissipation: Max.8Wall
- EMI Suppression: Internal Electromagnetic Interference Filtering
- Thermal. Drift: 0.05%per change in AVR ambient
- Under Frequency Protection 60Hz system presets knee point at 57Hz
- (Factory Settings) 50Hz system presets knee point at 47Hz
- Volt Regulation Less than 0.5%(with 4%engine governing)
Material:plastic
colour:black
Package Contents:
1 x GAVR-15A Regulator Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
What's In the Box
1 x GAVR-15A Regulator Module
