The following is a detailed introduction about our products:

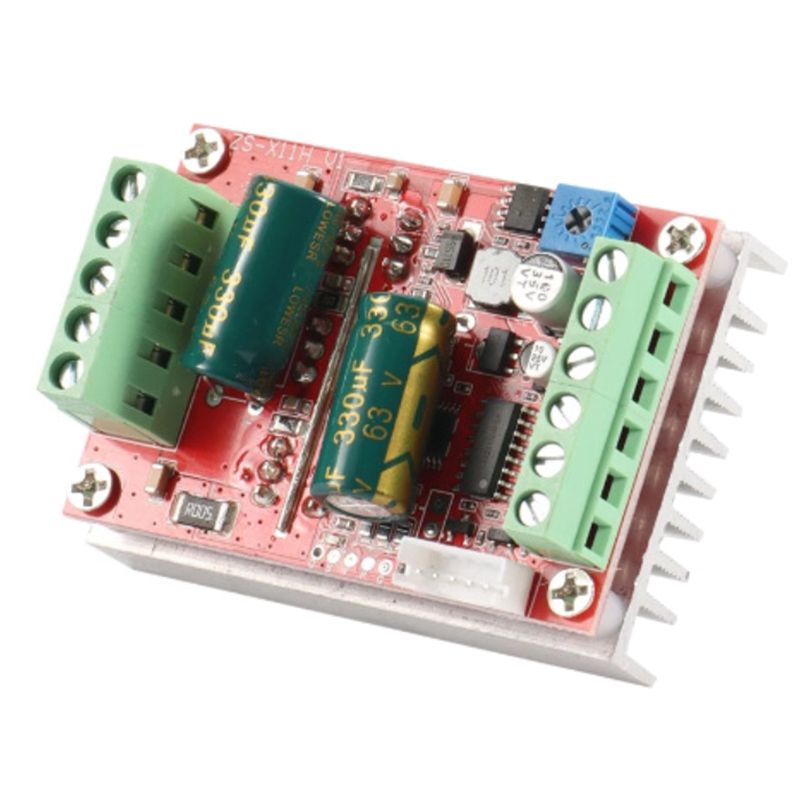

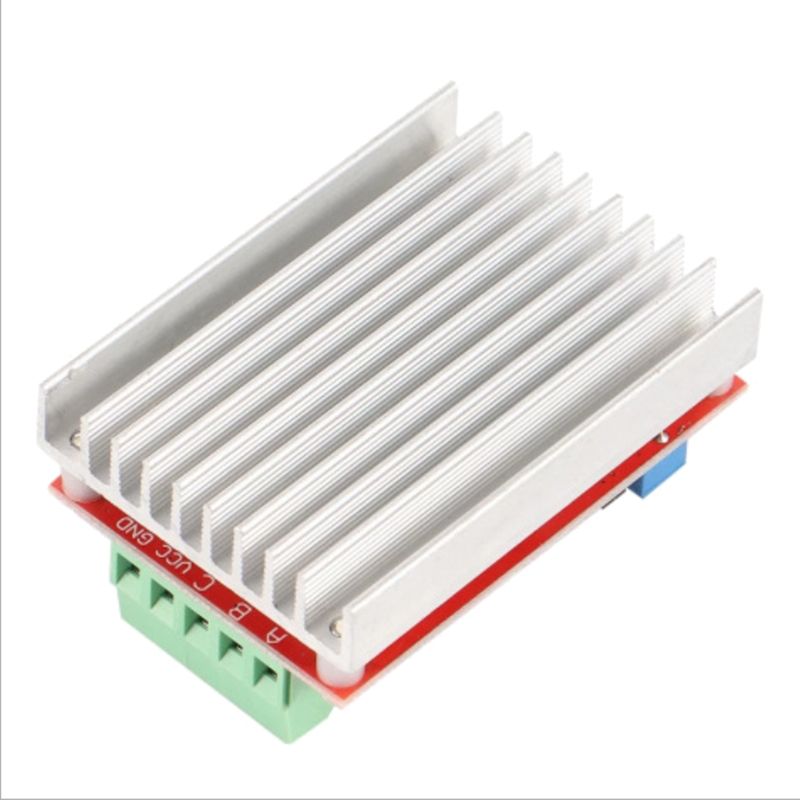

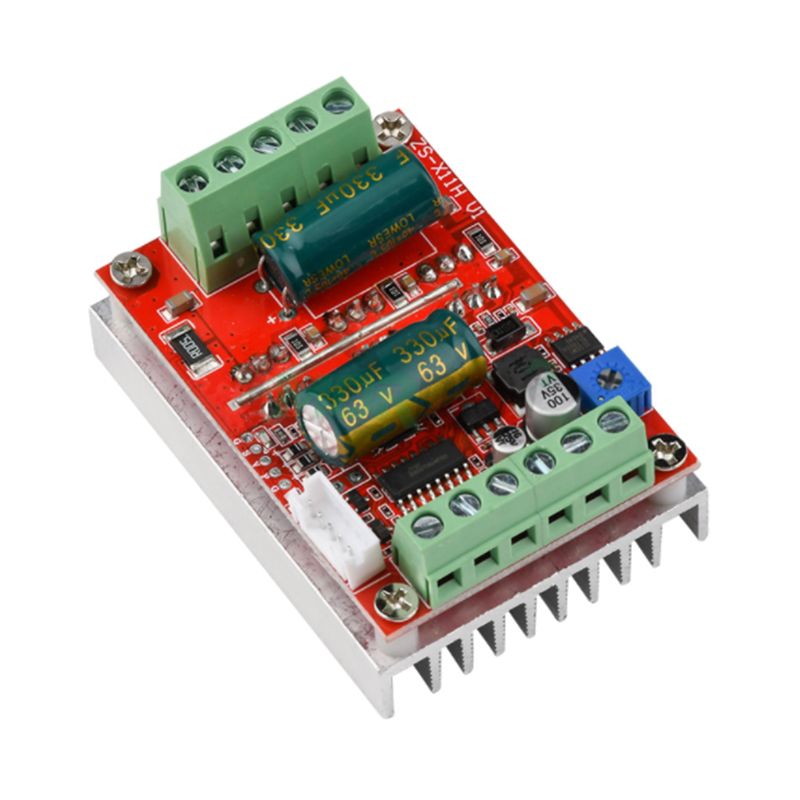

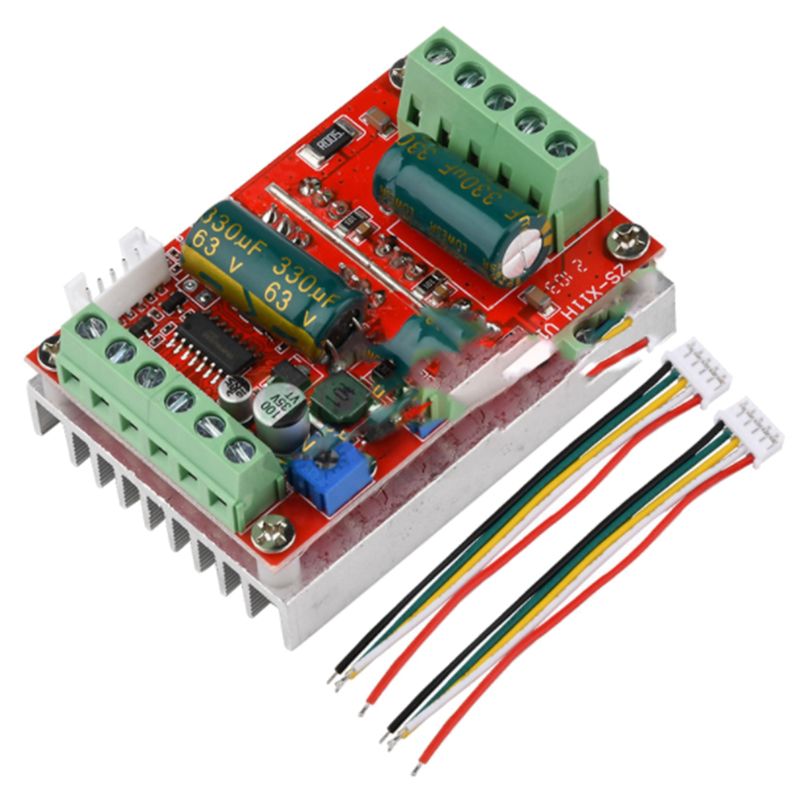

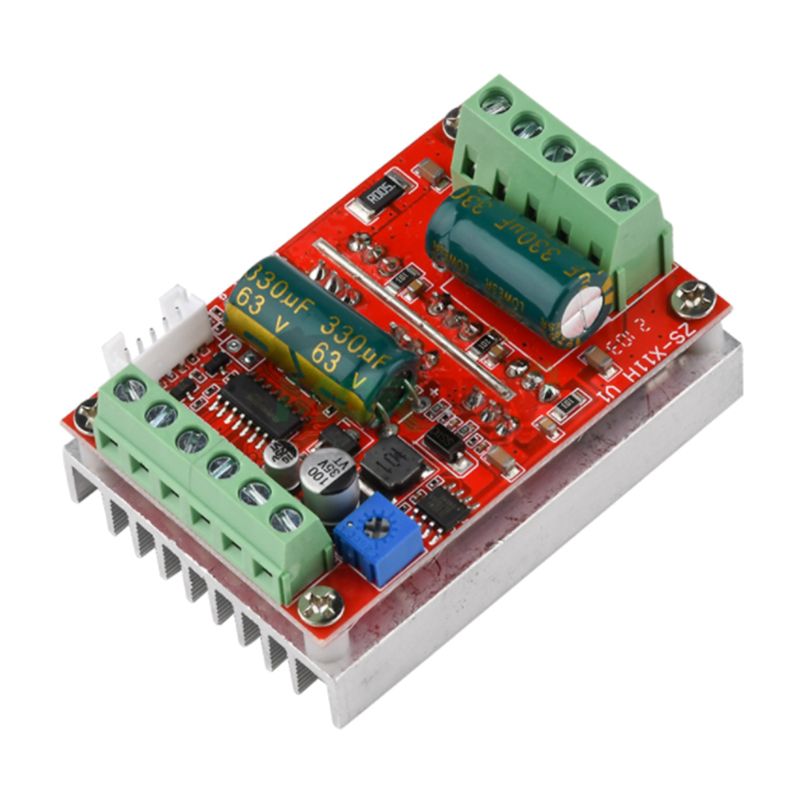

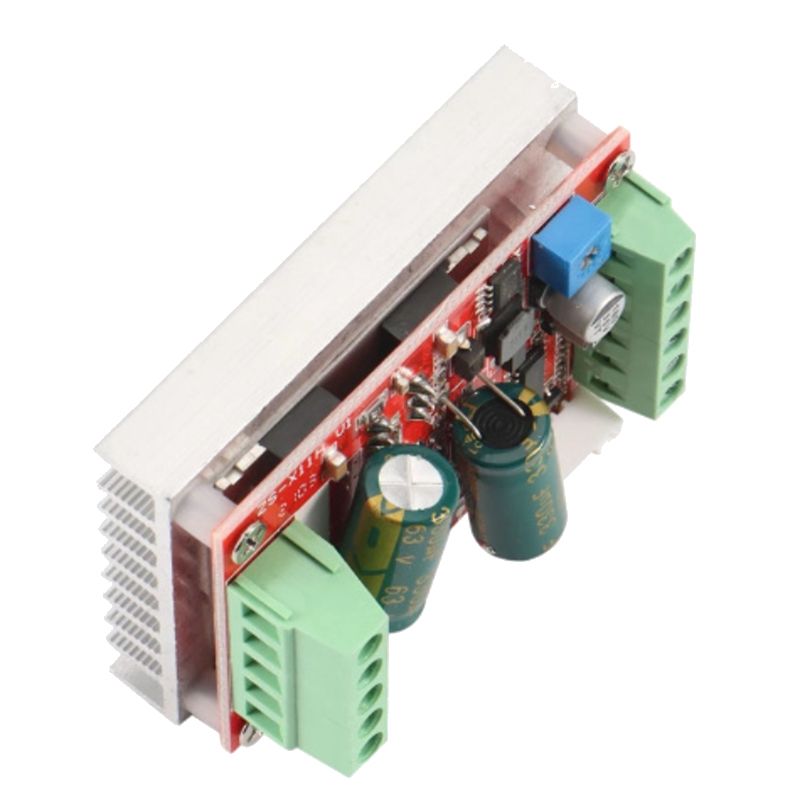

Name:DC 6-60V 400W BLDC Three Phase DC Brushless Motor Controller
Features: 1.MA MB MC phase line output connection motor
2. 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)
3.VCC GND motor main power supply (external DC power supply)
4.SC speed pulse signal output
5 positive and negative reversing control interface (also can be connected to the external switch)
VR speed control signal input (onboard with potentiometer speed control can also be connected to 0-5V analog simulation PWM duty cycle to support dual signal input speed regulation)
Ha Hb Hc +5V GND Hall signal Power input, generally with Hall's motor has five corresponding lines
Full patch process Stable performance with positive/reverse function
Motherboard specifications:
Product Name: 400W Brushless Hall DC Motor Driver
Model Number: ZS-X11D1
Operating voltage: 6-60V
Maximum current: rated 16A peak 20A
power: 400W
Overcurrent protection: Yes
Product size: length 63MM x width 45MM x height 31MM
Weight: about 73g.
colour:as shown
Material: ABS
Package Contents: 1 x Motor Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
About Us
We provide the good product with the best price,we support Wholesale/Drop Shipping Order
1. For Drop Shipping order, please remark"dropshipping order", we will prioritize it.
2. For Wholesale/Drop Shipping orders, if you have any ideas about the price or package,please contact us in advance,we will give you the best service to satisfy your demands.
About Shipments
1.We will send out the orders ASAP once your payment is completed normally.
2.Please write your complete delivery address with correct phone number and zip code, especially please confirm your full name.
About After-sale Service
We are reliable seller and we have our professional after-sale service for all of our customs. If there is any question about the order,please contact us in advance ,we will always here until you get a happy answer.
About Feedback
1. Please check the package and item when you get carefully to make sure there is no problem.
2. If you have any problem or are not entirely satisfied with your package,please don't be hesitate to contact us first before leaving negative feedback. We will resolve the problem to satisfy you.
17241. If there is no problem, please leave us five star positive feedback.
Your affirmation is our greatest motivation ! !
Key Features
Features: 1.MA MB MC phase line output connection motor
2. 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)
3.VCC GND motor main power supply (external DC power supply)
4.SC speed pulse signal output
5 positive and negative reversing control interface (also can be connected to the external switch)
VR speed control signal input (onboard with potentiometer speed control can also be connected to 0-5V analog simulation PWM duty cycle to support dual signal input speed regulation)
Ha Hb Hc +5V GND Hall signal Power input, generally with Hall's motor has five corresponding lines
Full patch process Stable performance with positive/reverse function
Motherboard specifications:
Product Name: 400W Brushless Hall DC Motor Driver
Model Number: ZS-X11D1
Operating voltage: 6-60V
Maximum current: rated 16A peak 20A
power: 400W
Overcurrent protection: Yes
Product size: length 63MM x width 45MM x height 31MM
Weight: about 73g.
colour:as shown
Material: ABS
Package Contents: 1 x Motor Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
What's In the Box
1 x Motor Controller
