The following is a detailed introduction about our products:
Name:Din Rail Dual Display Protective Device Protector Relay 40A 220V 230V
1. Over-voltage protection; Under-voltage protection; Over-current protection; Automatic recovery
2. Voltage display(voltage measurement); Current display (current measurement)
3. Voltage calibration: Voltage +-10% adjustable.
4. Restore factory settings: press the down button for more than 12s
5. Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
4.Over-voltage protection value range:230V~300~OFF(default:270V); Over-voltage recovery voltage range:225V--295V(default:250V); Over-voltage protection action time:0.1s~30s(default value:0.5s); Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V); Under-voltage recovery voltage range:145V--215V (default:190V); Under-voltage protection action time:0.1s~30s(default:0.5s); Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A); Over-current action range:0.1~30 second (default:0.5s); Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : less than 2W
9.Electric machinery life : 100,000 times
10.Installation:35mm DIN rail
type: 40A
colour: white
Material: plastic

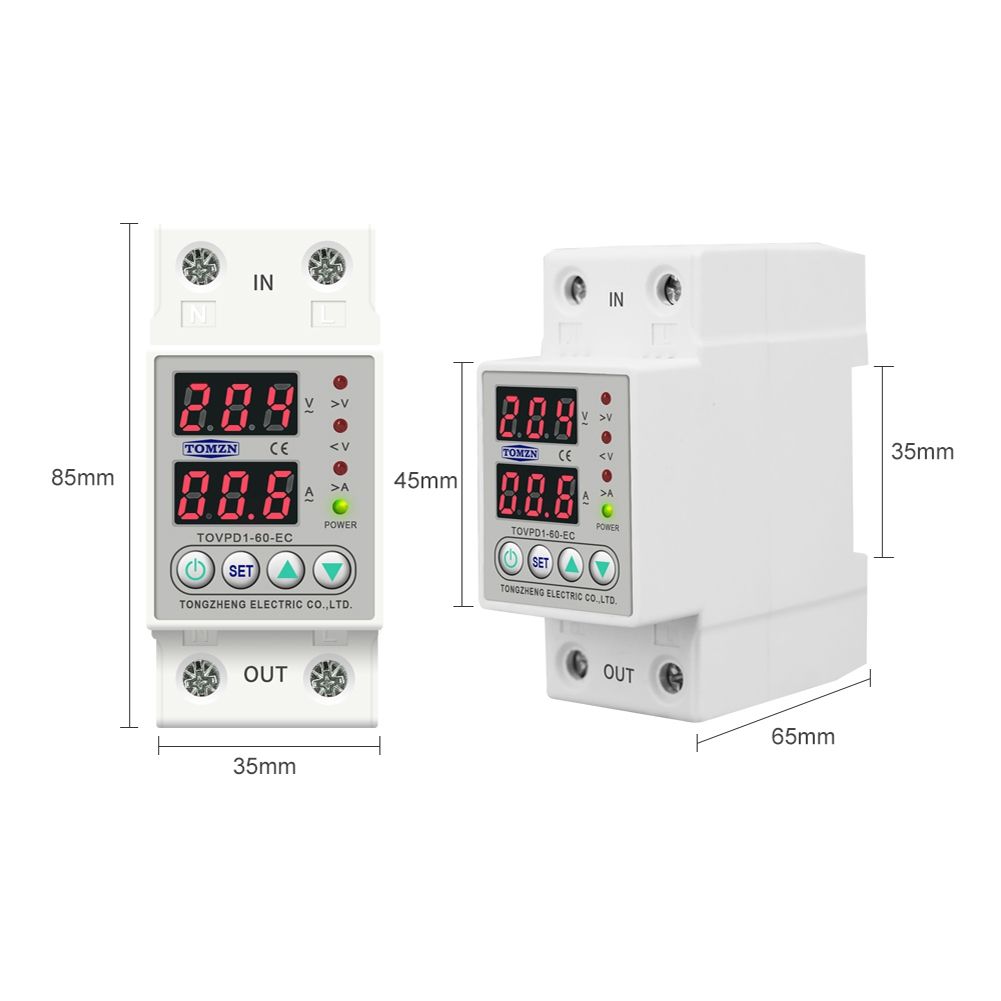

Size: about 85x35x65mm
Package Contents:
1 x Protective Device Protector Relay
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
