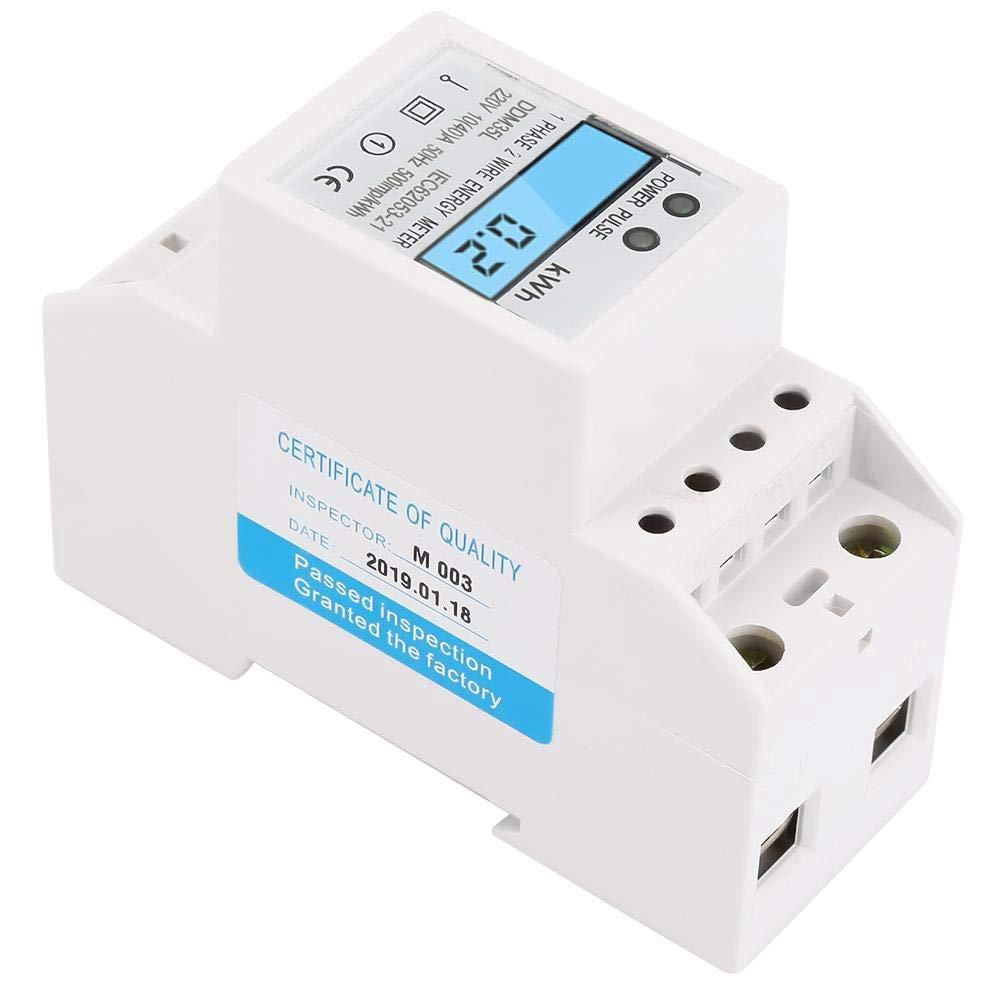

Energy Meter DDM35L 10-40A LCD Digital Display ModuleFeatures: 35mm standard DIN-rail mounting in accordance with standard DIN EN50022.
Bipolar width (modulus 17.5mm) in accordance with DIN43880.
Standard configuration 5 1 backlit LCD display (99999.1KWh).
The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar)
It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
Two LEDs indicate the power state (green) and the energy pulse signal (red).
Automatically detects the direction of the load current and the instructions on the LCD (when help 1 is displayed on the LCD, the direction in which the load current flows in the opposite direction).
Single - phase two - wire active energy consumption measurement. This has nothing to do with the direction of the load current. with IEC 62053-21.
Direct connection operation, can choose two wiring mode. Standard configuration S type wiring, or choose type wiring.
Extend the terminal cover to protect the safety of use.
Specification:
Condition: 100% The product is new
Item Type: Energy Meter
Color: white
material: plastic
Model: DDM35L
Accuracy: level 1
Voltage: 220V/230V 50/60hz
Current: 10(40)A
Current: Reference Current (maximum current)
Insulation Performance: ac voltage 4KV, 1 minute, 1.2/50us waveform impulse voltage 6KV

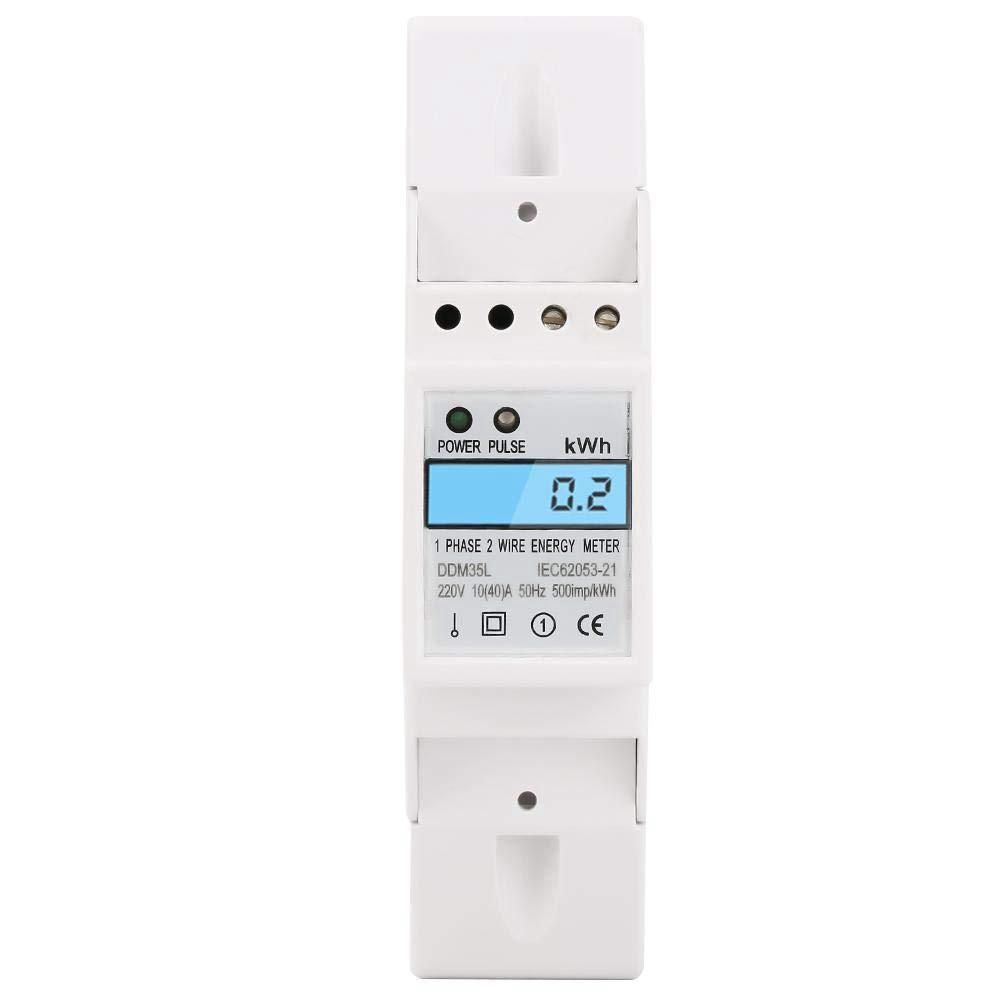

Display: LCD with backlight (5+1) display

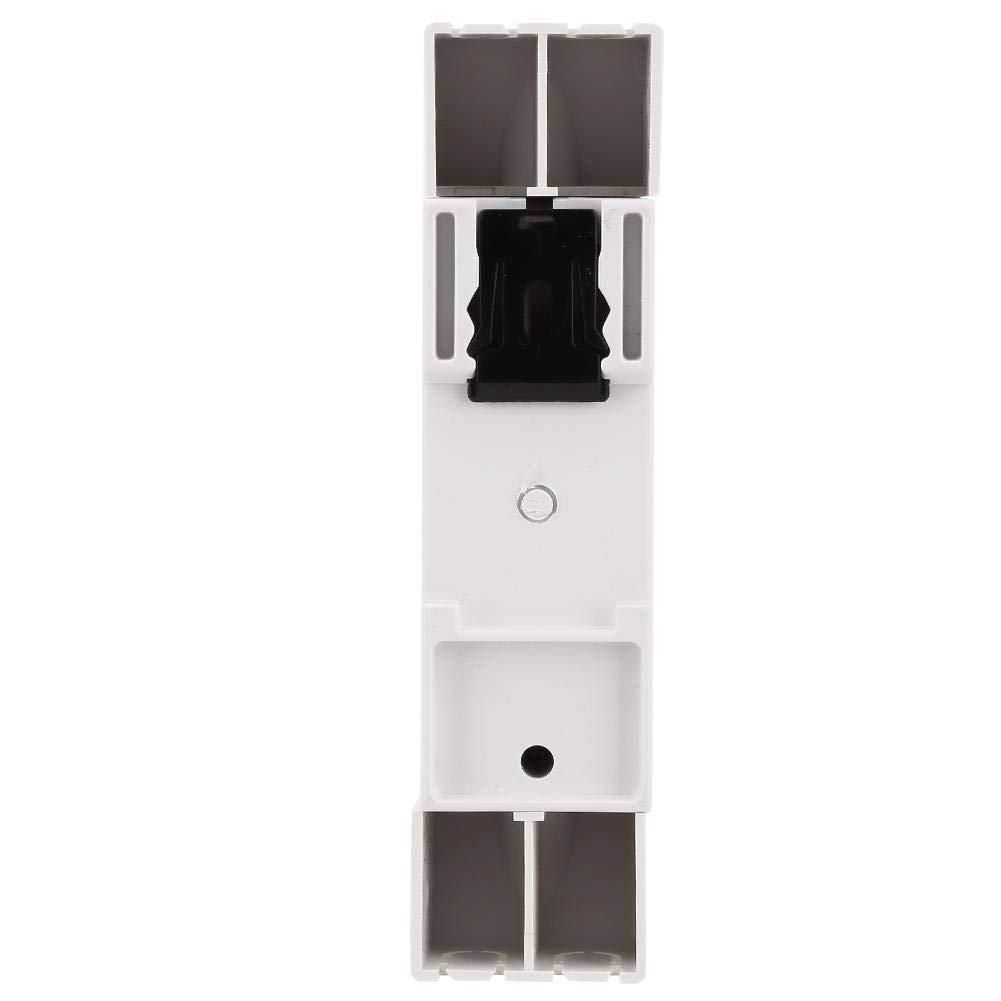

Installation: Rail mounting

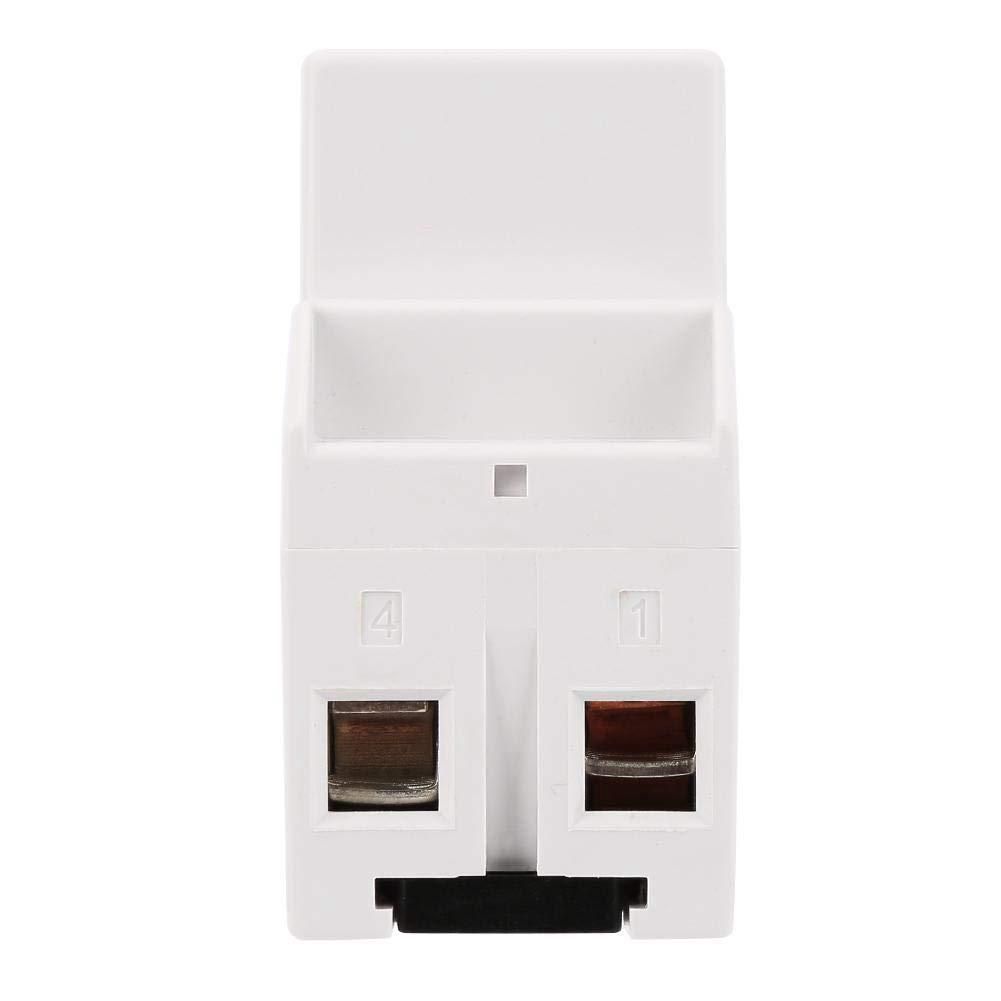

Wiring mode: bottom in, top out
Weight: Approx.183g
Package Contents:
1 * Energy Meter
1 * User manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
