Size (L x W x H cm) |
8x7x3 |
Weight (kg) |
0.05 |
Color |
as shown |
Features: Magnetically adsorbed on the measuring surface, can be attached to the workpiece to be measured

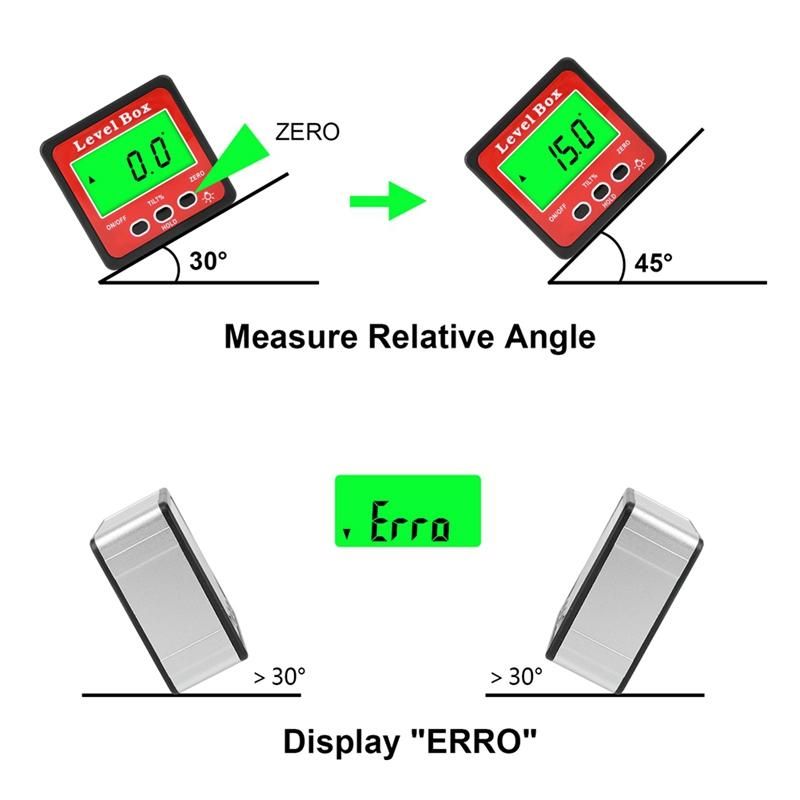

Relative measurement and absolute measurement conversion
Angle and slope conversion
Data locked for easy reading
Portable size, easy to use with other measuring tools to expand the measurement range specification:
Material: Plastic ABS
Color: silver+black+red

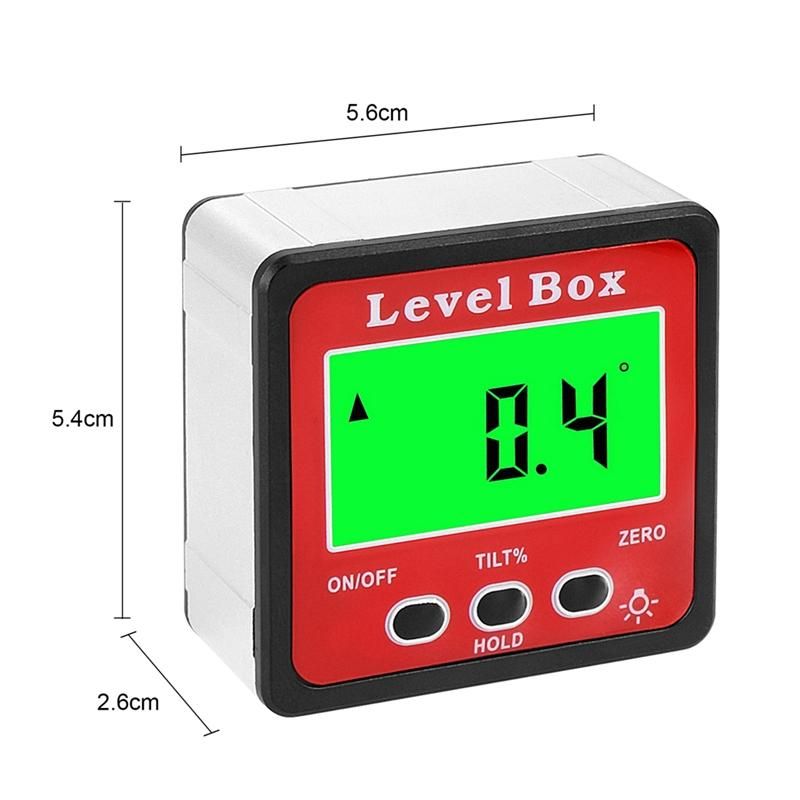

Size: 56 x 55 x 26MM
Measuring range: 4 x 90°2 x 180°
Display resolution: 0.05°0.05° (Less than 100°), 0.1° (100°~180°)
Accuracy: ±0.2°
Repeatability: 0.1°
Working temperature: 0°C~40°C
application:
Wood processing: precision cutting of timber corners
Automobile repair industry: precise control of tire fitting angle
Processing: precise positioning of the working angle of the machine tool, the rotation angle of the feature:
1. Easy to carry.
2. The response speed of the measured value is fast
3. Backlit LCD display.
4. Two AAA dry batteries on the 7th (the product does not include batteries)
5. 4 x 90° measuring range
6. Reading value: 0.1°, measurement accuracy: 0.2°
7. Multi-purpose measuring tool, three-in-one protractor, inclinometer and level
8. There is a magnet at the bottom, which can be adsorbed on the measured object. Package Contents:
1 x Digital Electronic Protractor Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
